• HIGHBAYS

UFO III SHB27/100 - 200W

Non-Dimmable, IP65 LED UFO low profile, highbay

Application

Ideal for any commercial or industrial interior space

Design Specifications

  • Die-cast aluminium body

  • Powder coated finish

  • High efficiency LED optics

  • Clear tempered glass lens, 120° beam distribution

  • Integral non-dimmable LED driver with 4KV surge protection

  • IP65, IK06 rated, complete with flex and plug for easy installation

Performance

  • Dimmable - NO

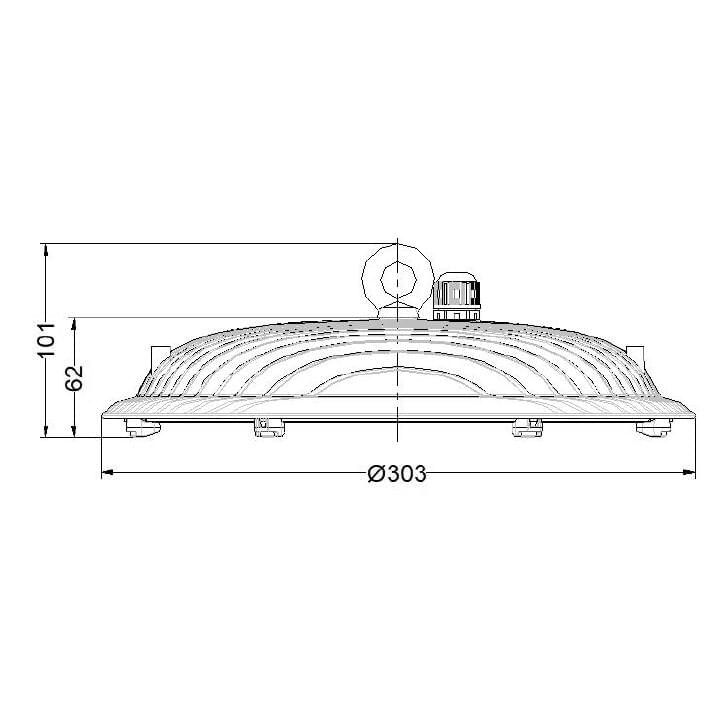

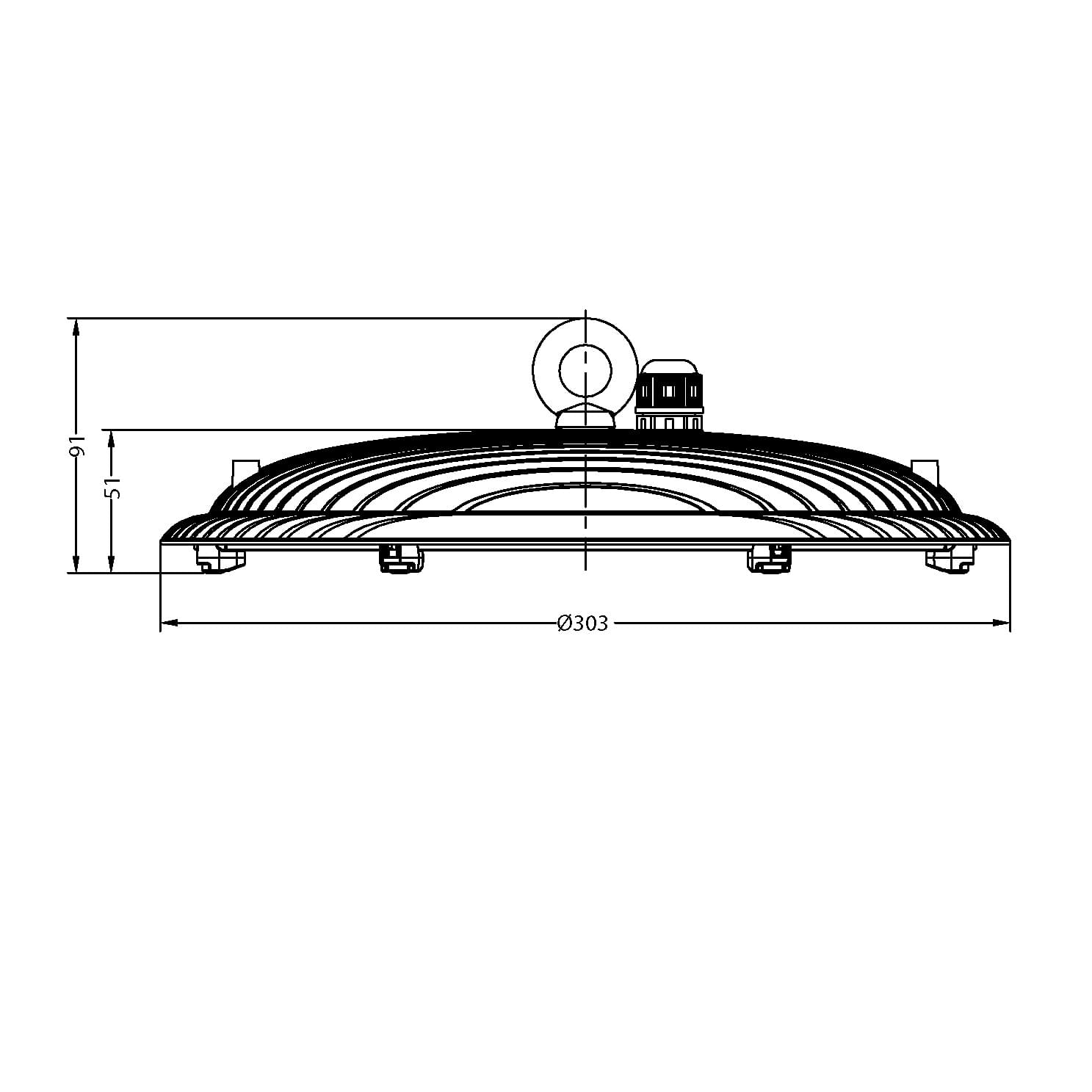

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ
    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

    • Does SAL have office locations nationally?

      Does SAL have office locations nationally?

      Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

    • What does IP stand for?

      What does IP stand for?

      IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

      As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

      For more information please refer to AS 60529.


    • What is a ta rating?

      What is a ta rating?

      (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.


    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens Beam Angle CCT CRI Body Colour Diameter Dim Mass IPART Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SHB27/100NDL Input Voltage240 Power100 Lumens12000 Beam Angle120 CCT5000 CRI80 Body ColourBLACK Diameter303 Dim81(H) Mass1.61 IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SHB27/150NDL Input Voltage240 Power150 Lumens17700 Beam Angle120 CCT5000 CRI80 Body ColourBLACK Diameter303 Dim91(H) Mass2 IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SHB27/200NDL Input Voltage240 Power200 Lumens24000 Beam Angle120 CCT5000 CRI80 Body ColourBLACK Diameter303 Dim101(H) Mass2.29 IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SHB25/120PLB Input Voltage Power Lumens Beam Angle CCT CRI Body ColourBLACK Diameter Dim Mass IPARTN/A Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
