• LED HIGHBAYS

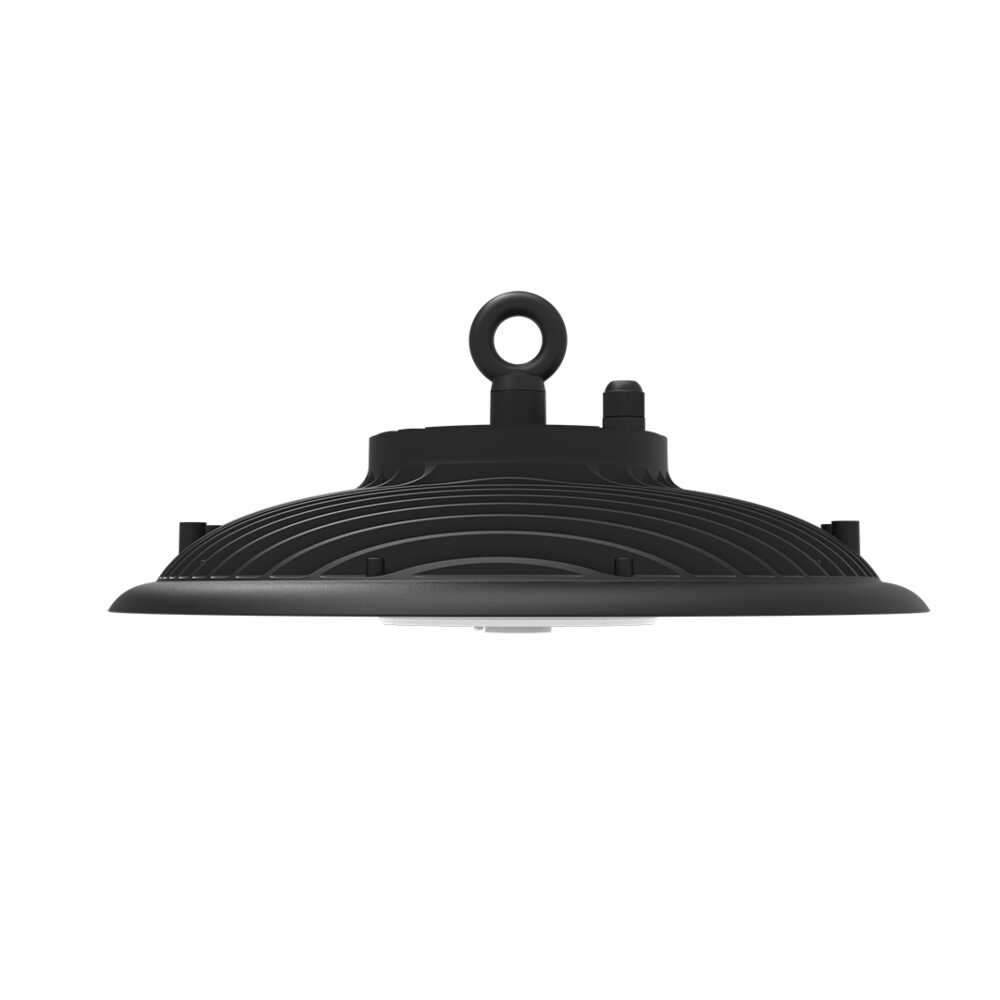

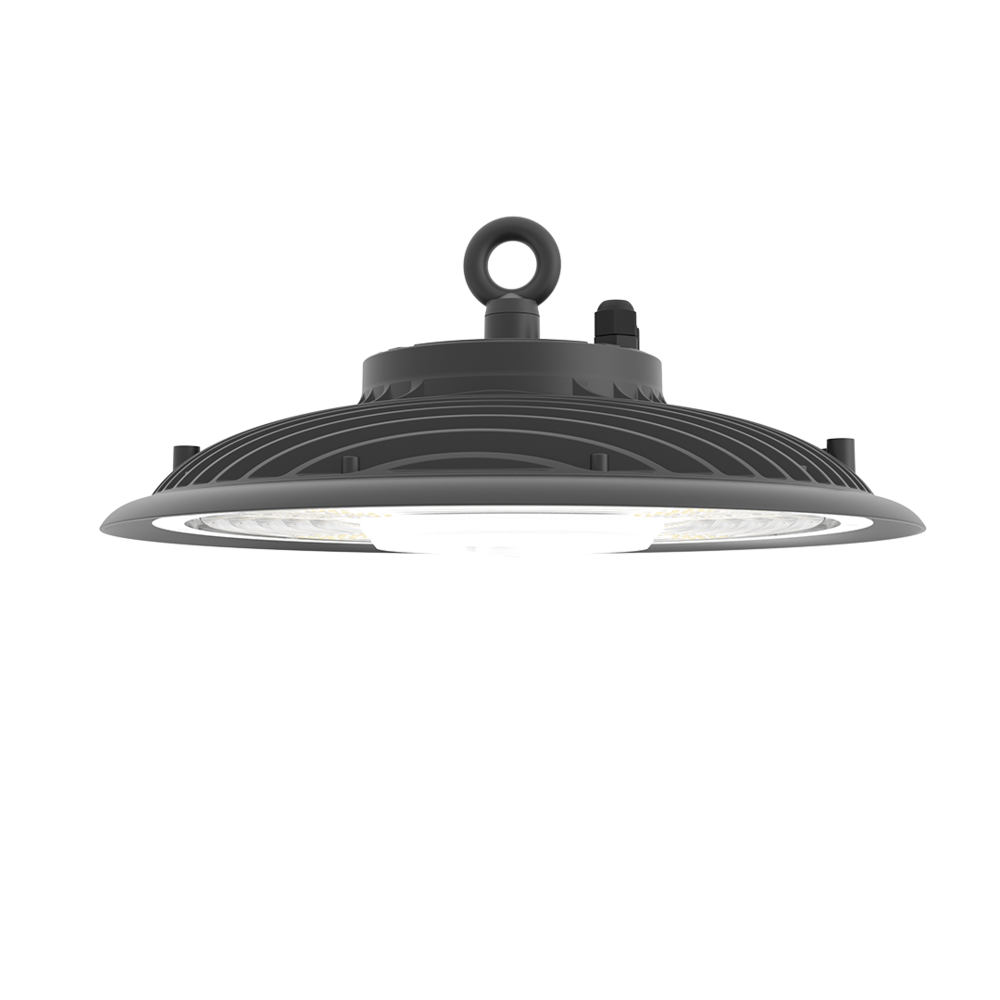

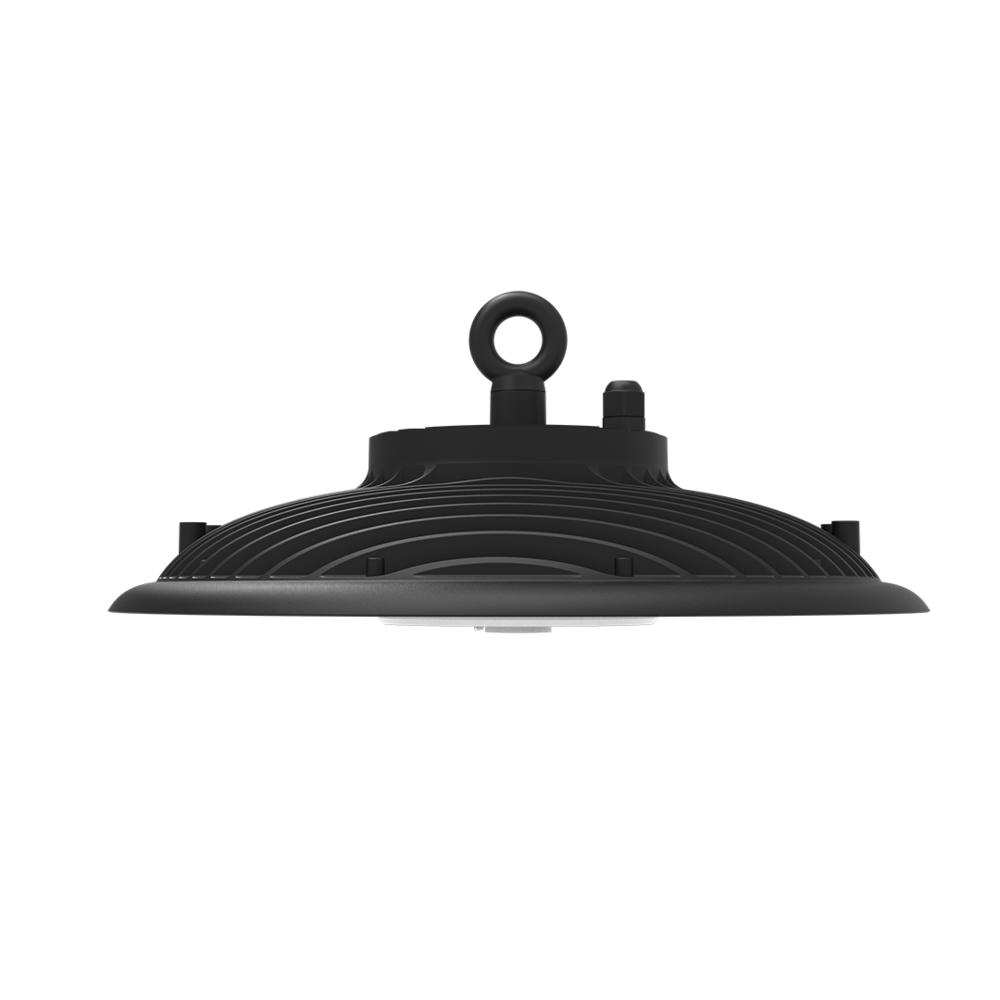

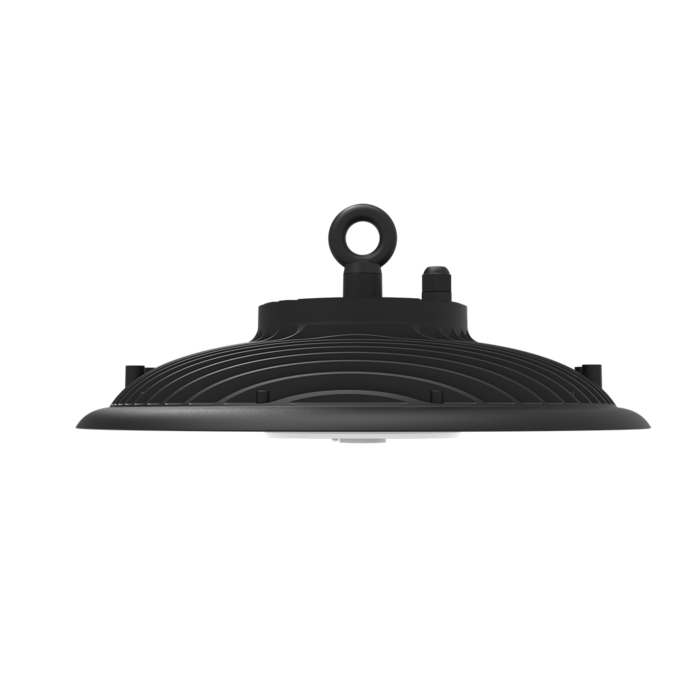

UFO III SHB27S - 100/150/200W

1-10V Dimmable, IP66 LED super low profile LED highbay

Application

Ideal for any commercial or industrial interior spaces

Design Specifications

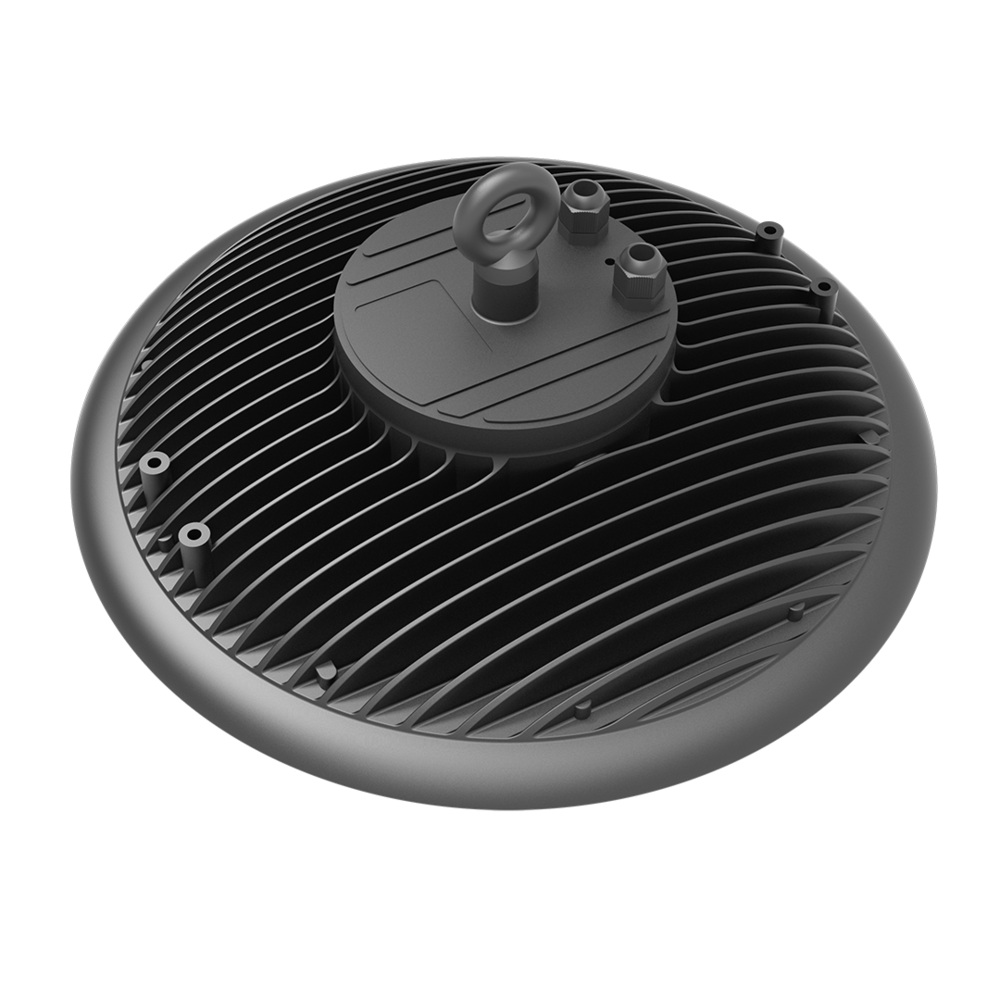

  • Die-cast aluminium body, super low profile design

  • Black powder coated finish

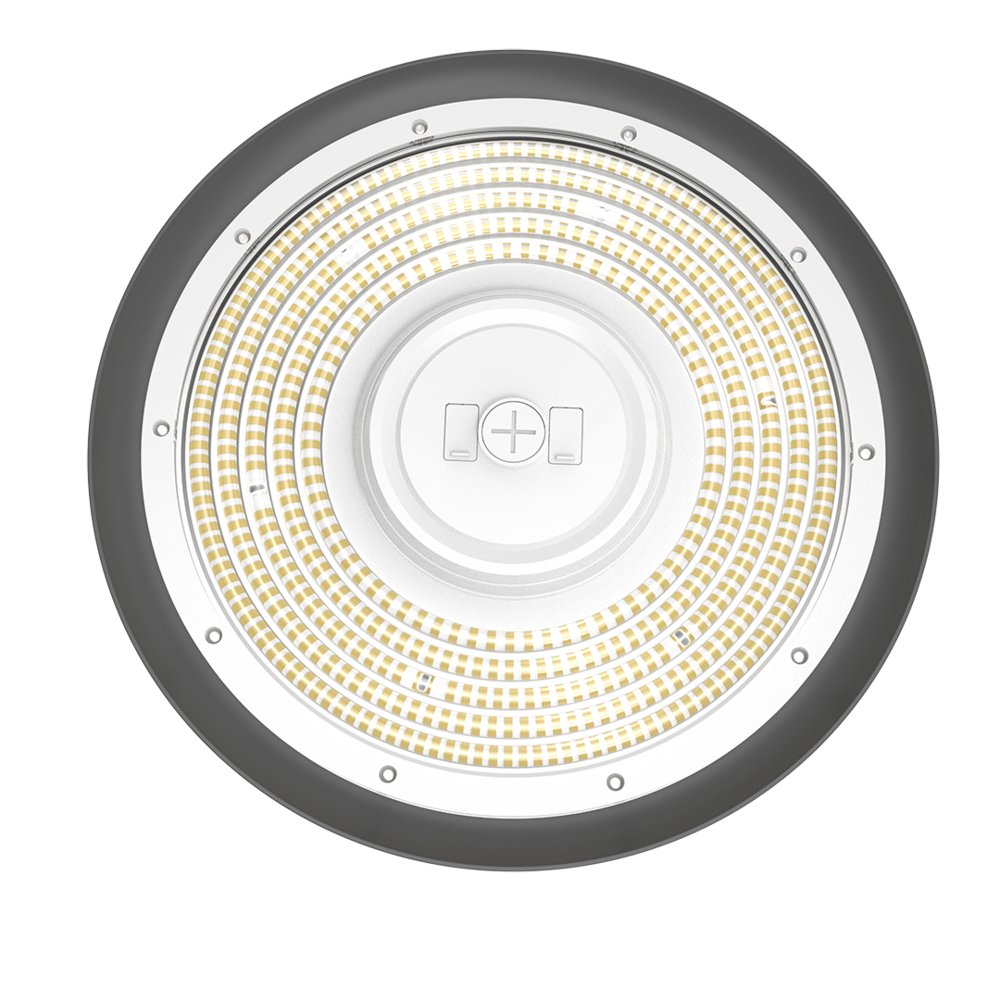

  • High efficiency LED optics, clear polycarbonate lens, 90° beam distribution

  • Optional plug and play motion and daylight harvesting sensor available (SHB2X/CS and remote control SHB2XS/RC)

  • Integral 1-10V dimmable LED driver with surge protection, complete with flex and plug for easy installation

  • Robust design IP66 and IK08 rated

Performance

  • Dimmable - YES
  • Dimmer Type - 1-10V, optional SAL DALI (1) addressable signal converter
  • In Built Sensor - OPTIONAL
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      • Where can I buy SAL products?

        Where can I buy SAL products?

        SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

      • Does SAL have office locations nationally?

        Does SAL have office locations nationally?

        Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

      • What does IP stand for?

        What does IP stand for?

        IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

        As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

        For more information please refer to AS 60529.


      • What is a ta rating?

        What is a ta rating?

        (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.


      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens Beam Angle CCT CRI Body Colour Diameter Dim Mass IPART

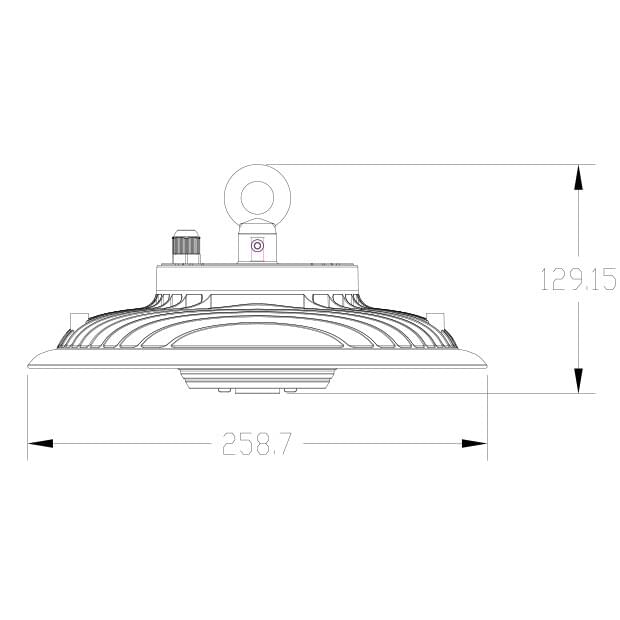

      		Model No. SHB27S100NDL Add to Enquiry Add Remove Remove Input Voltage 240 Power 100 Lumens 15000 Beam Angle 90 CCT 5000 CRI 80 Body Colour BLACK Diameter 260 Dim 129(H) Mass 1.5

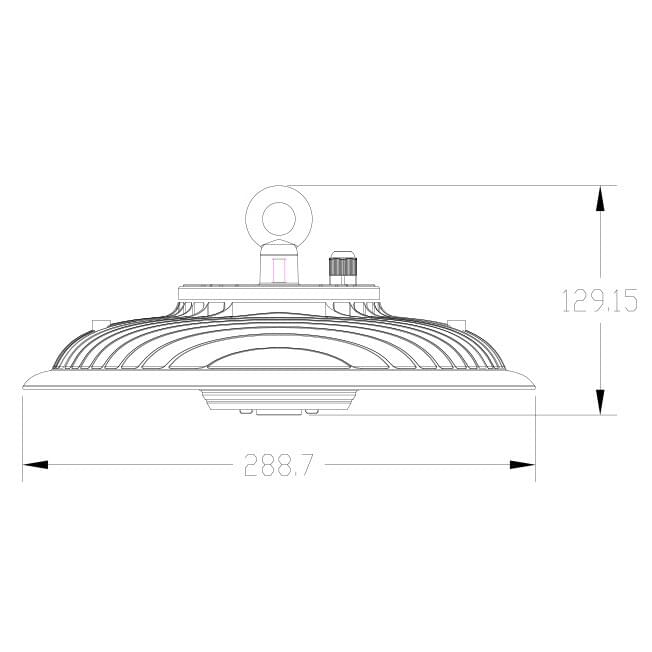

      		Model No. SHB27S150NDL Add to Enquiry Add Remove Remove Input Voltage 240 Power 150 Lumens 22500 Beam Angle 90 CCT 5000 CRI 80 Body Colour BLACK Diameter 289 Dim 129(H) Mass 1.8

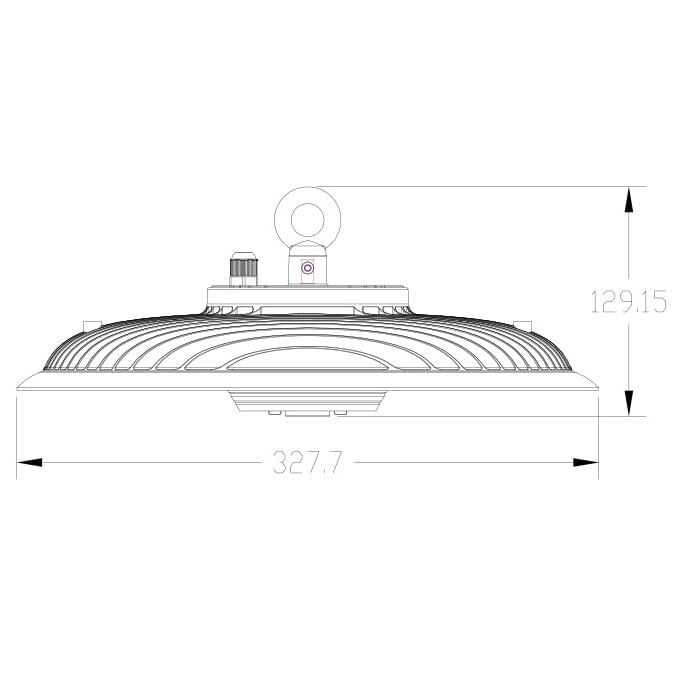

      		Model No. SHB27S200NDL Add to Enquiry Add Remove Remove Input Voltage 240 Power 200 Lumens 30000 Beam Angle 90 CCT 5000 CRI 80 Body Colour BLACK Diameter 328 Dim 129(H) Mass 2.4

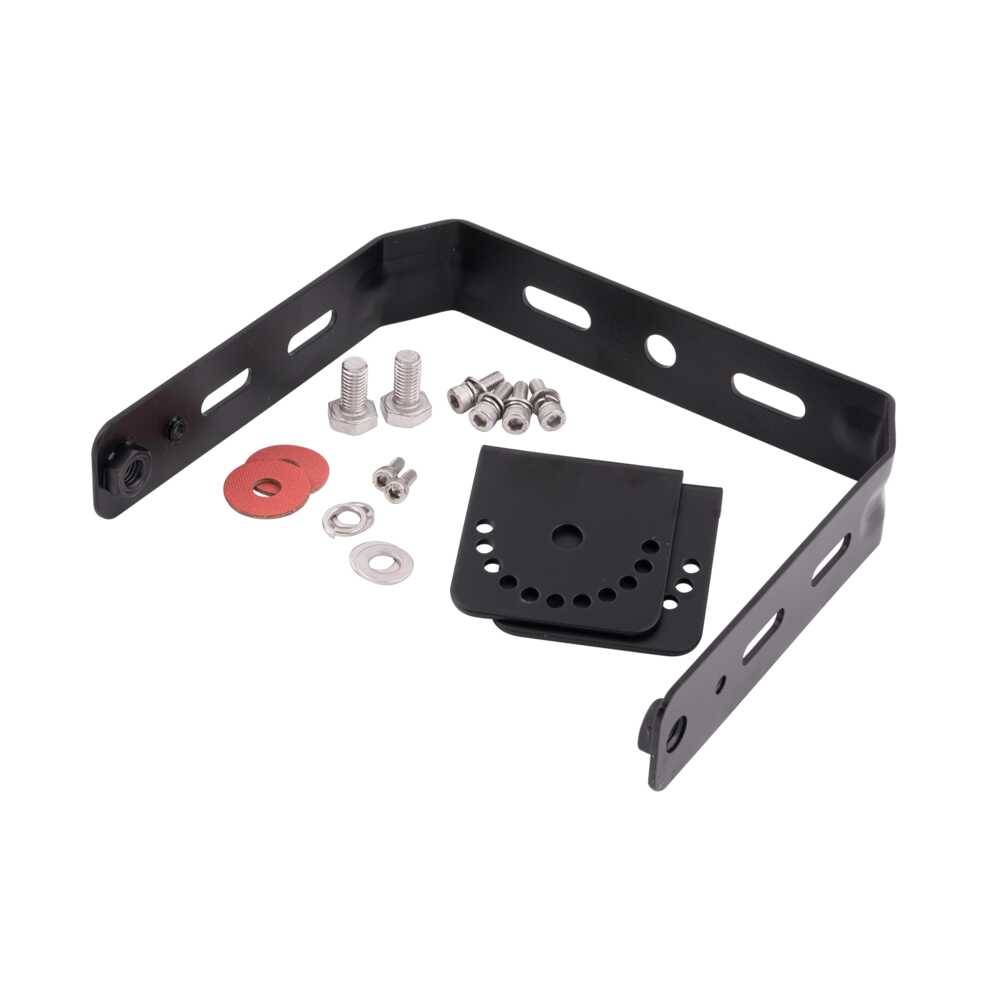

      		Model No. SHB27S/150PLB Add to Enquiry Add Remove Remove Body Colour BLACK Dim 220(W) x 185(H) IPART N/A

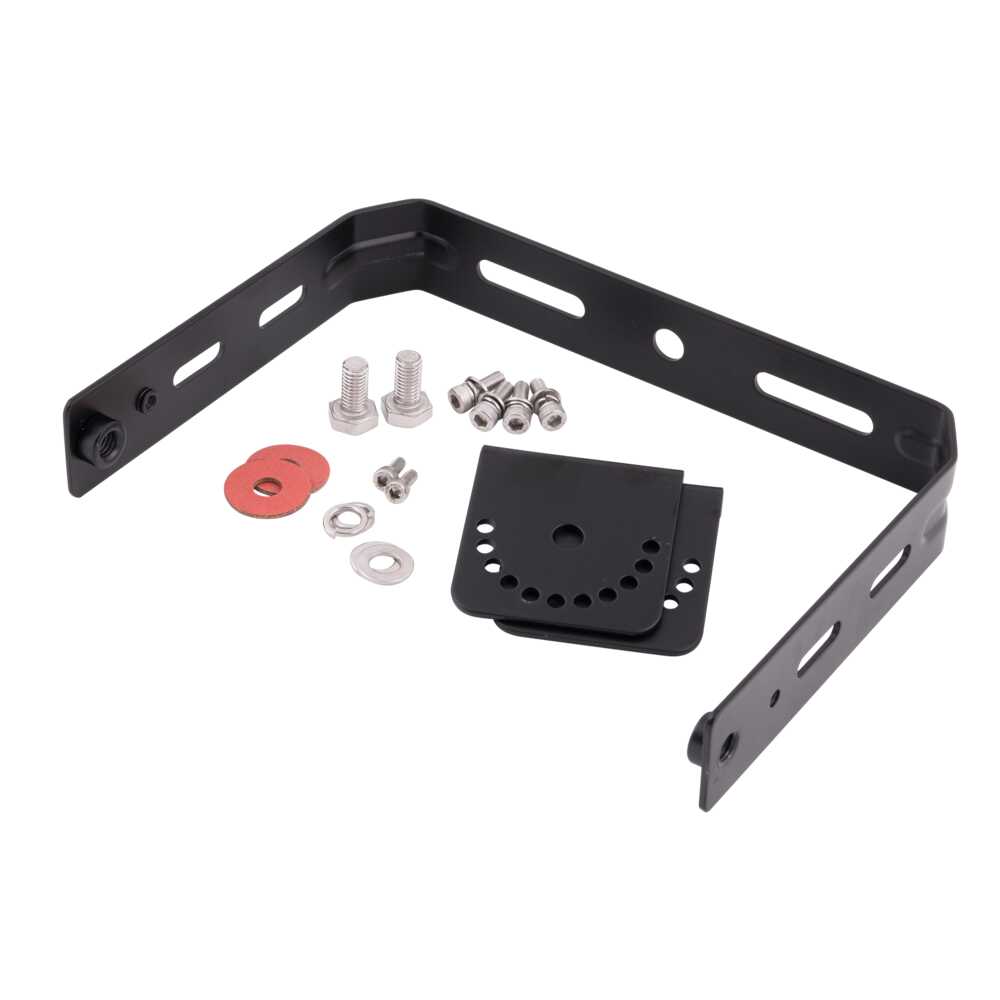

      		Model No. SHB27S/200PLB Add to Enquiry Add Remove Remove Body Colour BLACK Dim 250(W) x 185(H) IPART N/A
      		Model No. LF-SAD010B Add to Enquiry Add Remove Remove Body Colour DALI SIGNAL CONVERTER Mass 0.06
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
