• LED HIGHBAYS

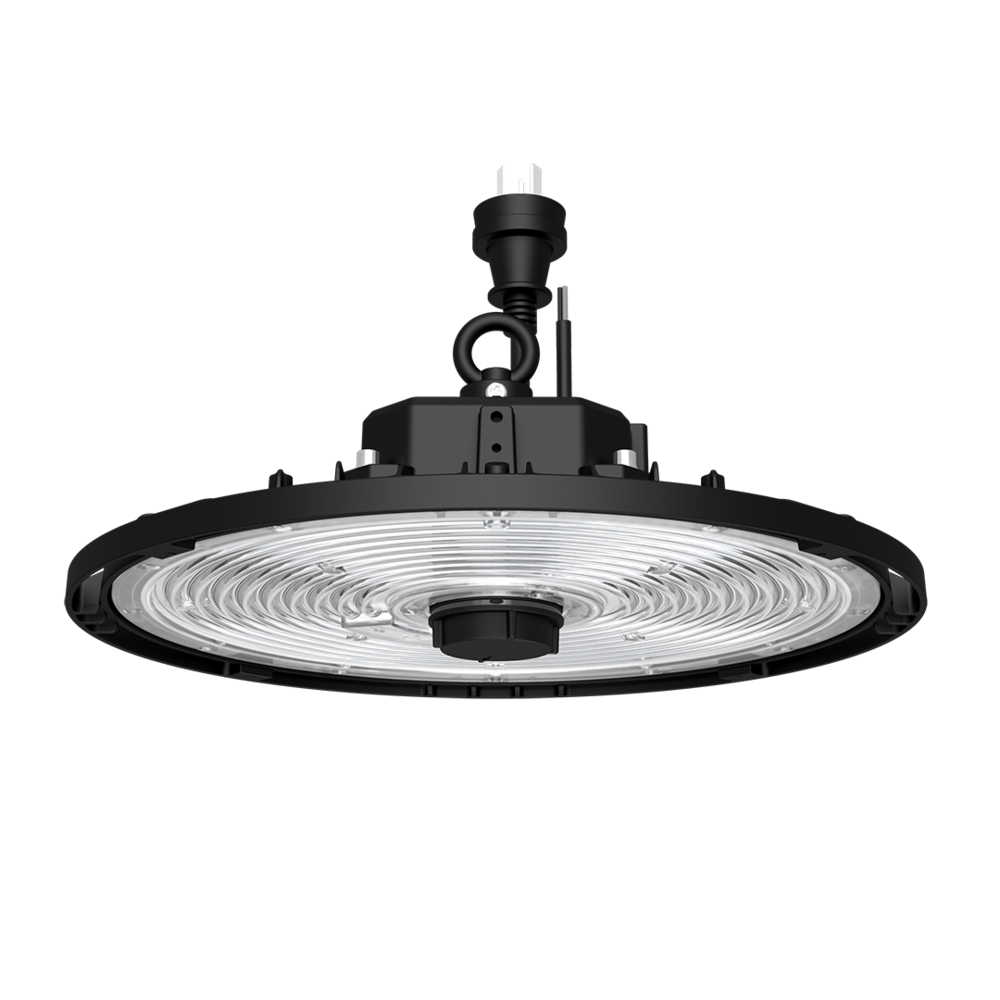

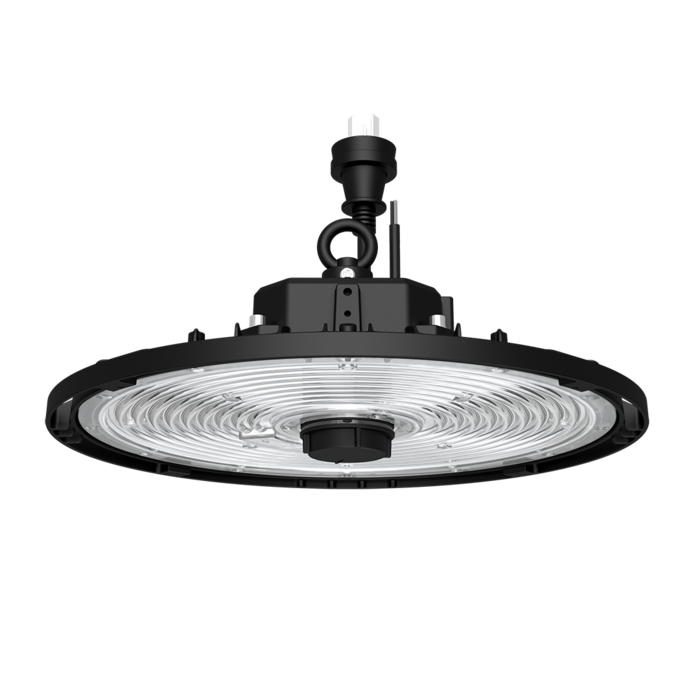

UFO SHB26MP - 80 / 200W

Super low profile, dimmable 1-10V LED highbay with selectable power, IP65.

Application

Versatile LED highbay ideal for commercial and industrial applications

Design Specifications

  • Selectable power

  • CCT 5000K, CRI >80 High efficiency LED optics,  with an impressive 150lm/W optical performance at 150W or 200W

  • Robust, black low profile die-cast aluminium body profile, IP65/IK08 protection

  • High efficiency LED optics, 90° beam distribution, polycarbonate lens

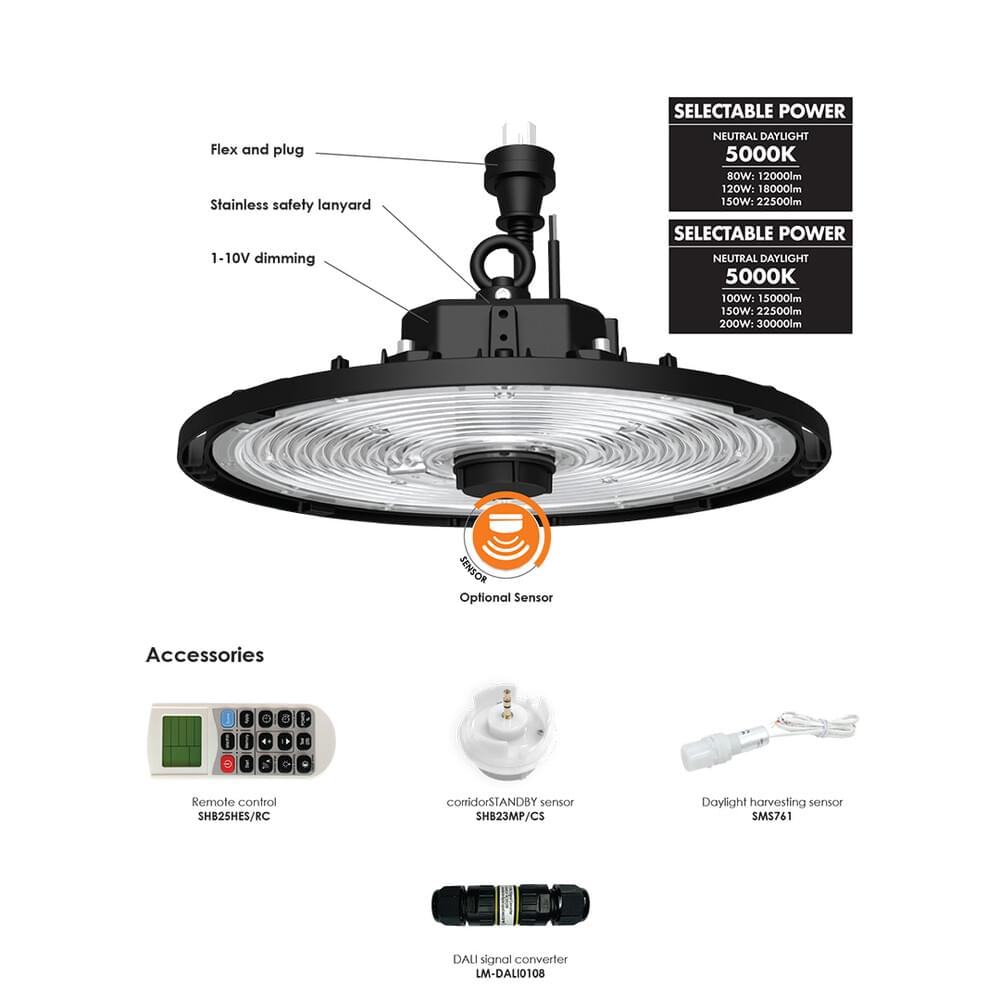

  • Integral dimmable 1-10V LED driver, complete with flex and plug for easy installation

  • Optional plug and play corridorSTANDBY sensor

Performance

  • Dimmable - YES
  • Dimmer Type - 1-10V, optional SAL DALI signal converter
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
UFO SHB26MP -
UFO SHB26MP -
UFO SHB26MP -
UFO SHB26MP -
UFO SHB26MP -
LIMITED STOCK

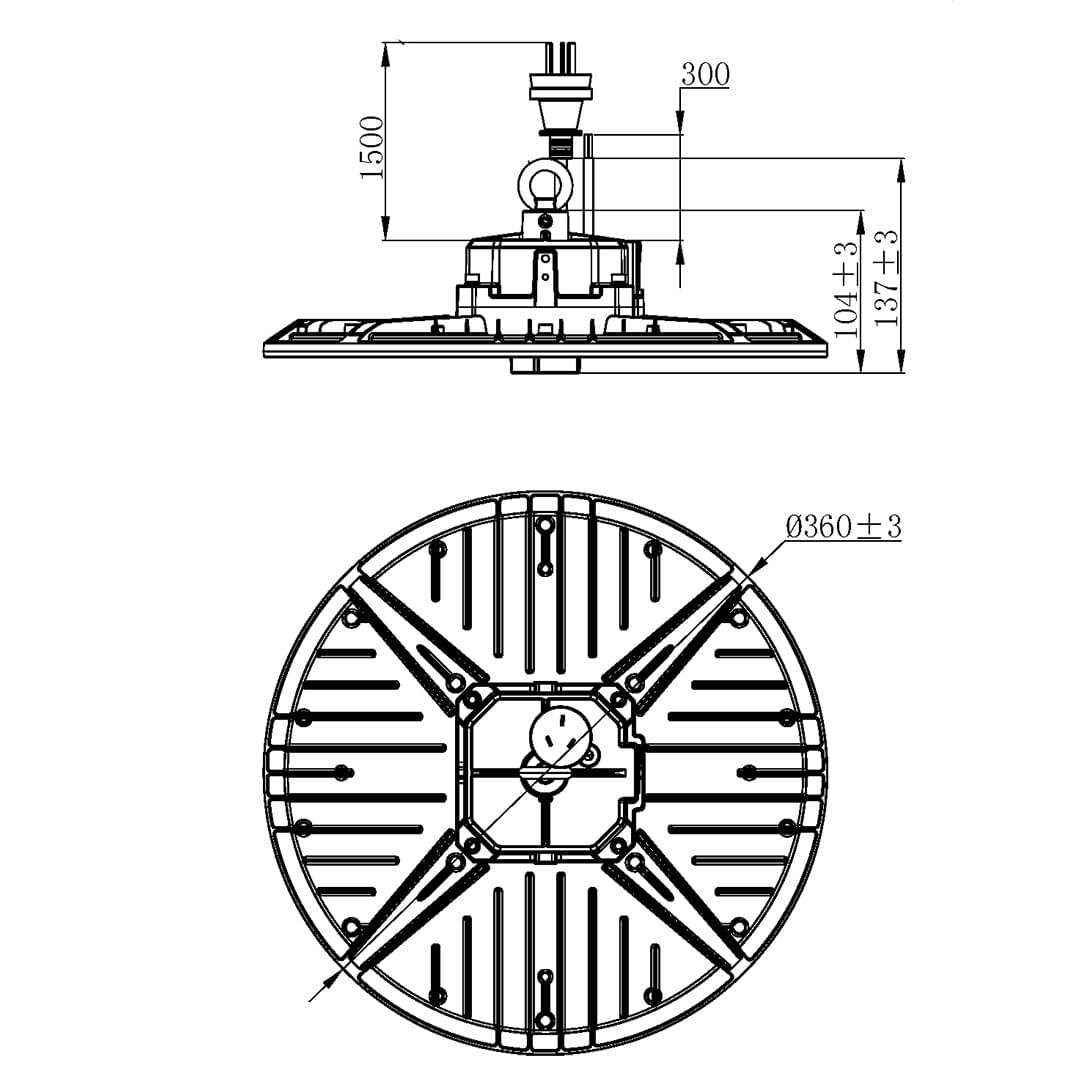

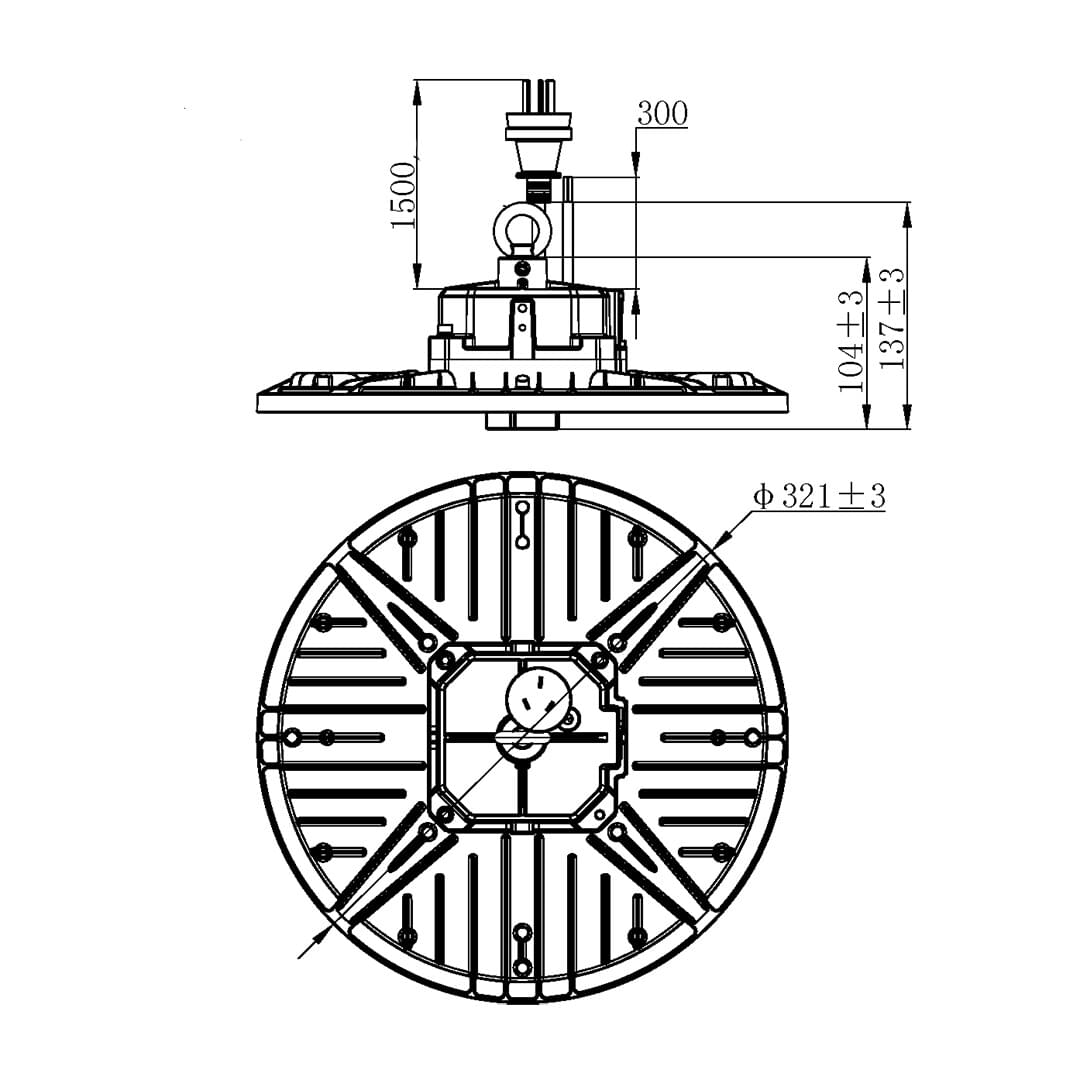

  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer 1-10V YES
  • Photometric Data
  • FAQ

    • Where can I buy SAL products?

      Where can I buy SAL products?

      SAL distribute their products through authorised Australian Electrical Trade Wholesalers and Lighting Retailers. To find a store near you, simply follow this link and input your postcode, where the nearest location to you will be provided.

    • Does SAL have office locations nationally?

      Does SAL have office locations nationally?

      Yes, SAL has customer service centres in Brisbane, Sydney, Melbourne, Adelaide and Perth.

    • What does IP stand for?

      What does IP stand for?

      IP (or Ingress and Protection) are an international standard reference which defines how well an electrical product seals itself against the intrusion of foreign bodies and moisture. The first digit I stands for intrusion of a solid object and the second digit P stands for the protection against moisture. In brief the higher the rating the more secure the product is against these elements.

      As a guide IP20 is suitable for basic interior spaces eg: office areas, where IP55 and above would be suitable for exterior equipment such as floodlights.

      For more information please refer to AS 60529.


    • What is a ta rating?

      What is a ta rating?

      (thermal ambient) is the recommended maximum environmental thermal limit for the safe continued operation of an electrical device. The ta rating can be found on the rating label and installation sheet, which is located on the relevant product web page. Typically, you will find ta ratings of 25 degree C for Interior products, where ta ratings of up to 50 degree C can be found for exterior products. Operating products beyond their designed ta limit is not recommended as it will stress the product components beyond their rated limits, resulting in reduced product performance or premature failure.


    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body Colour Diameter Dim Mass IPART Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SHB26MP150NDL Input Voltage240 Power150 Multiple Wattage80/120/150 Lumens12000/18000/22500 Beam Angle90 CCT5000 CRI80 Body ColourBLACK Diameter320 Dim137(H) Mass2.21 IPARTYES Add to Enquiry Add Remove Remove
    Model No.SHB26MP200NDL Input Voltage240 Power200 Multiple Wattage100/150/200 Lumens15000/22500/30000 Beam Angle90 CCT5000 CRI80 Body ColourBLACK Diameter360 Dim137(H) Mass2.64 IPARTYES Add to Enquiry Add Remove Remove
    Model No.SHB23MP/CS Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourCORRIDOR SENSOR Diameter Dim Mass0.04 IPART Add to Enquiry Add Remove Remove
    Model No.SHB25HES/RC Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourREMOTE CONTROL Diameter Dim Mass IPART Add to Enquiry Add Remove Remove

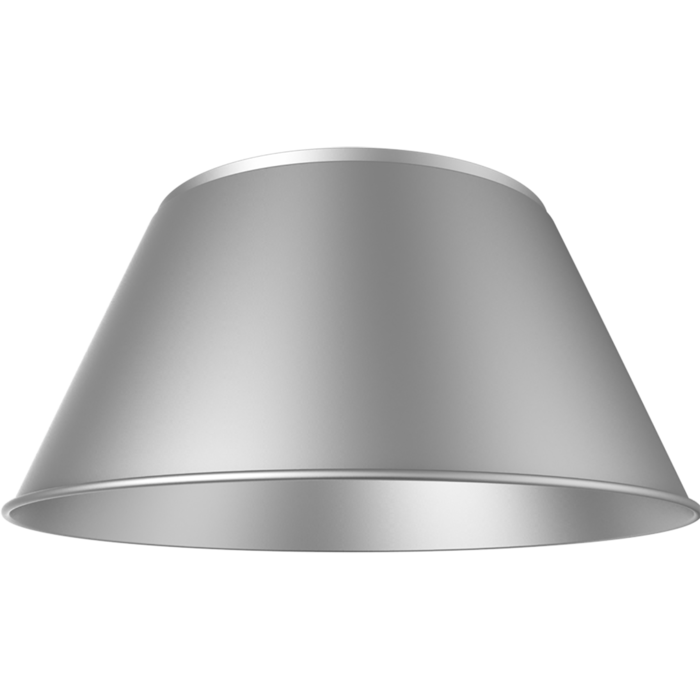

    Model No.SHB26PMR150 Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourSILVER Diameter500 Dim236(H) Mass0.57 IPART Add to Enquiry Add Remove Remove
    Model No.SHB26PMR200 Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourSILVER Diameter573 Dim264(H) Mass1.01 IPART Add to Enquiry Add Remove Remove

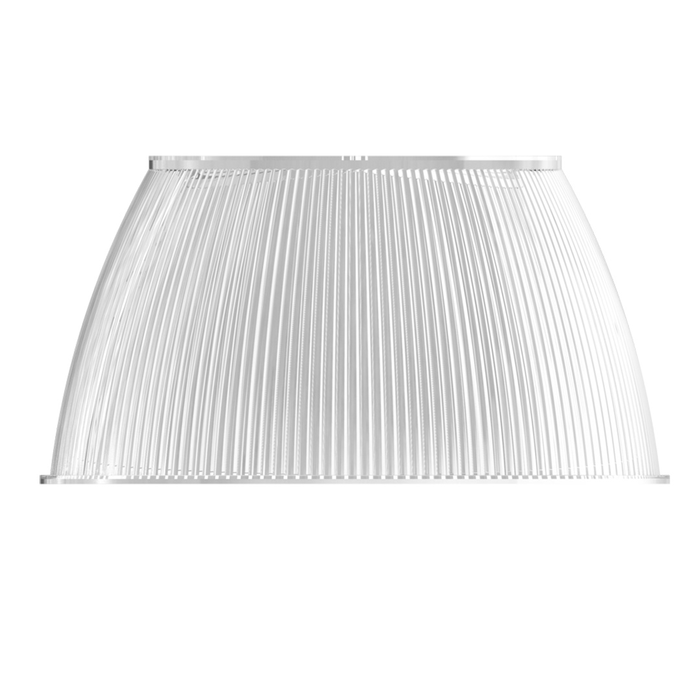

    Model No.SHB26PPR150 Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourCLEAR PC Diameter480 Dim250(H) Mass1.05 IPART Add to Enquiry Add Remove Remove
    Model No.LM-DALI010B Input Voltage Power Multiple Wattage Lumens Beam Angle CCT CRI Body ColourDALI SIGNAL CONVERTER Diameter Dim Mass0.06 IPART Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
