• LED ARCHITECTURAL

AMBIENCE S9314 - 1W

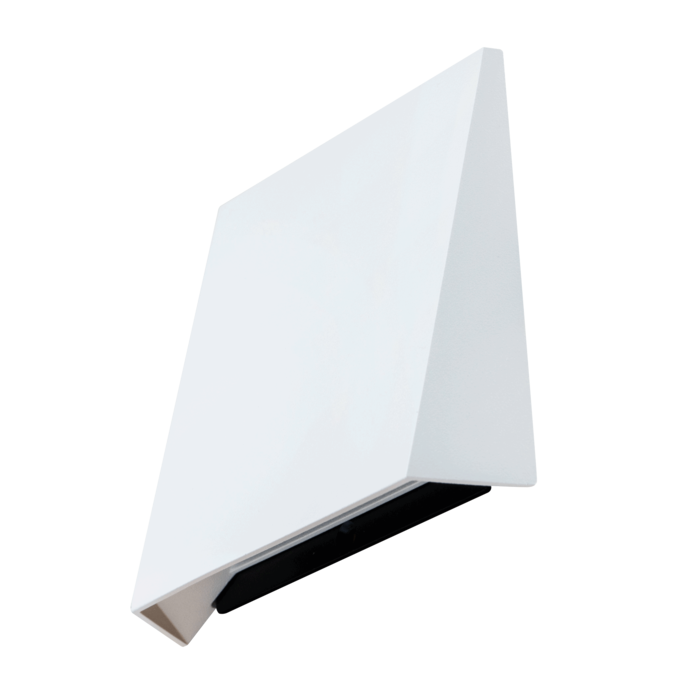

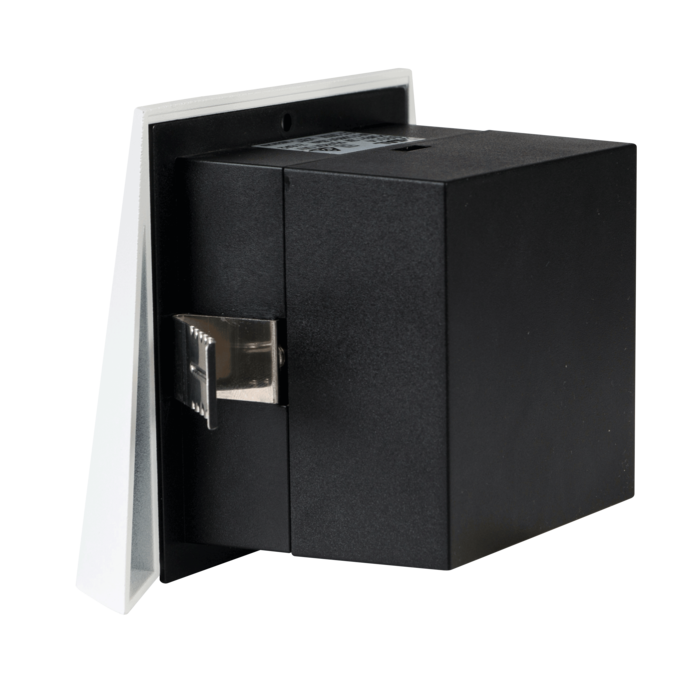

Stylish interior wall mount LED luminaire

Application

Residential hallways, bedrooms, stairways

Design Specifications

  • Square aluminum face profile, powdercoat white finish

  • Integral 240V control gear

  • CCT 3000K, 40lm

  • IP54 front only

  • Cut out - 77 x 77mm

  • Double insulated

Performance

  • Dimmable - NO
  • WARM WHITE3000K

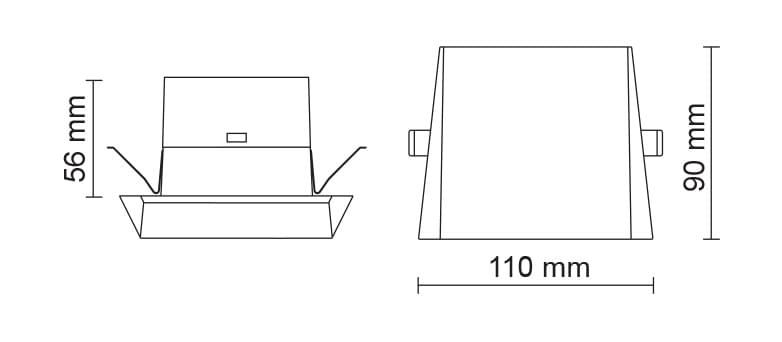

    • Dimensions - Wiring Diagrams
    • Design Options

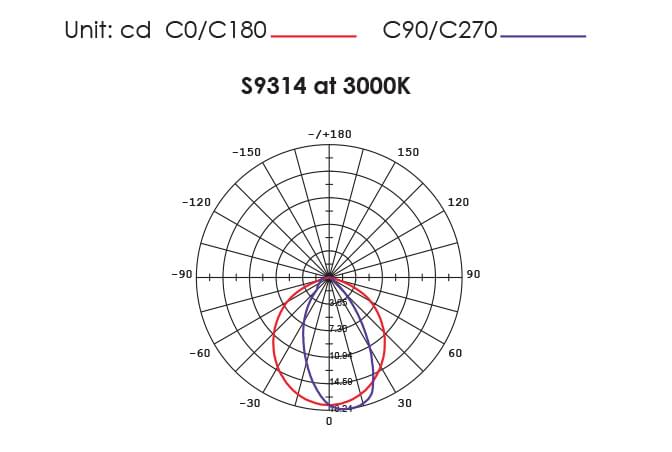

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Lumens CCT CRI Beam Angle Dimmable Body Colour
      		Model No. S9314 Add to Enquiry Add Remove Remove Input Voltage 240 Lumens 140 CCT 3000 CRI 80 Beam Angle 80 Dimmable NO Body Colour White
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
