• LED ARCHITECTURAL

BROOM S9311 - 3W

LED 3 watt recessed square profile wall luminaire

Application

Ideal for any residential or commercial interior space

Design Specifications

  • Durable extruded aluminium body profile

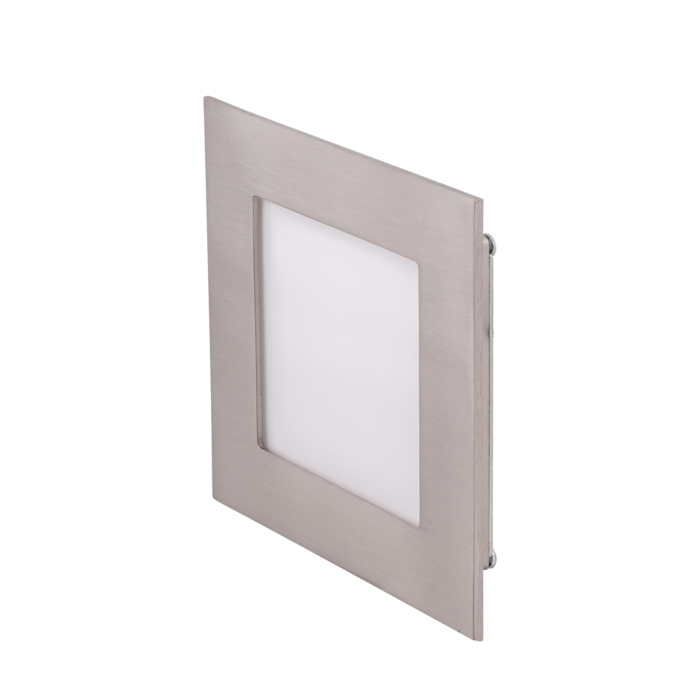

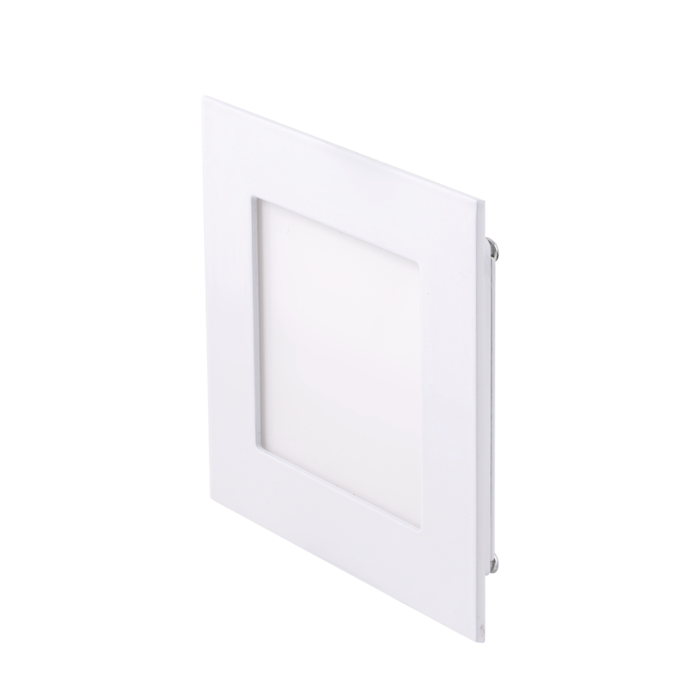

  • Quality white powder coat or satin nickel plated finish

  • High efficiency SMD LED chips, 3000K, CRI >80, beam distribution 105 degree

  • Opal arcylic diffuser

  • Suitable drivers - PLUTO EGL12V/6W, PLUTO 15DV, 30DV, 50DV

  • 12V AC or DC non-dimmable driver required

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • DAYLIGHT6000K
  • WARM WHITE3000K
  • DAYLIGHT6000K

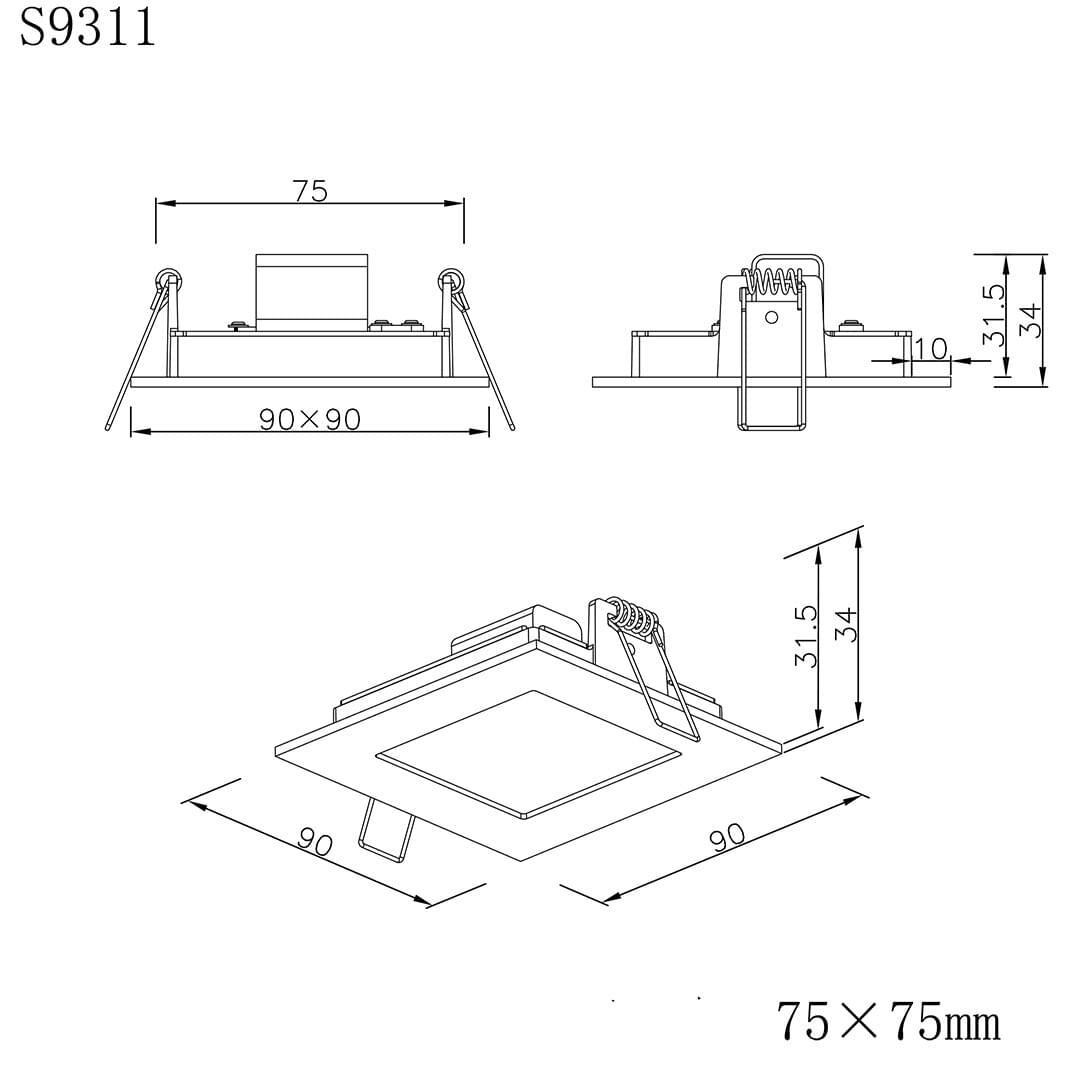

  • Dimensions - Wiring Diagrams
  • Design Options

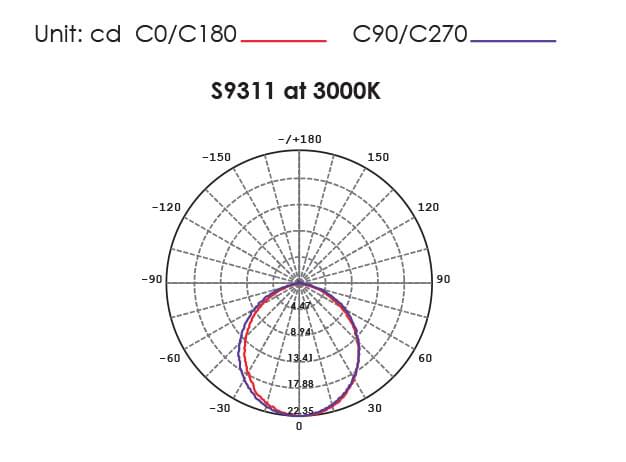

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9311 WH Input Voltage12 Input Voltage12 Power3 Lumens110 CCT3000 CRI80 Beam Angle105 Dimmable NO Dim90(L) x 90(W) x 34(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.S9311 SN Input Voltage12 Input Voltage12 Power3 Lumens110 CCT3000 CRI80 Beam Angle105 Dimmable NO Dim90(L) x 90(W) x 34(H) Body ColourSATIN NICKEL Add to Enquiry Add Remove Remove
    Model No.S9311 DL SN Input Voltage12 Input Voltage12 Power3 Lumens110 CCT6000 CRI80 Beam Angle105 Dimmable NO Dim90(L) x 90(W) x 34(H) Body ColourSATIN NICKEL Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
