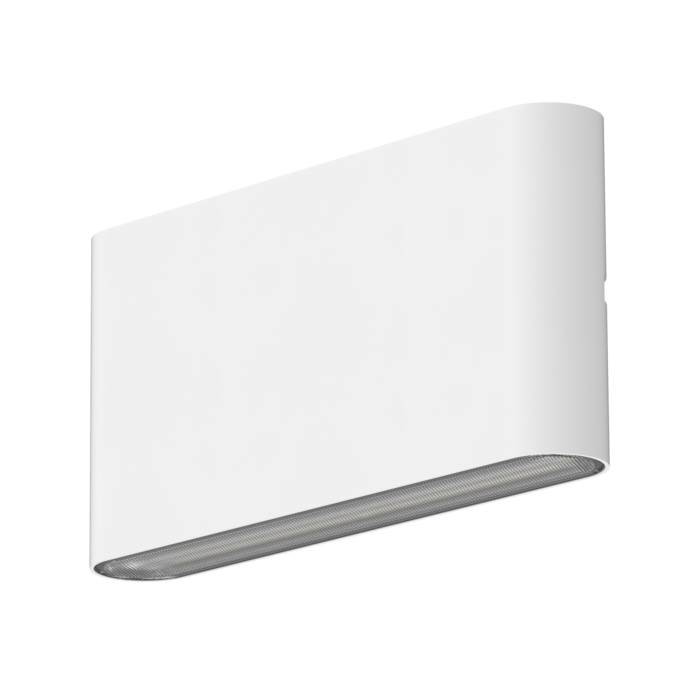

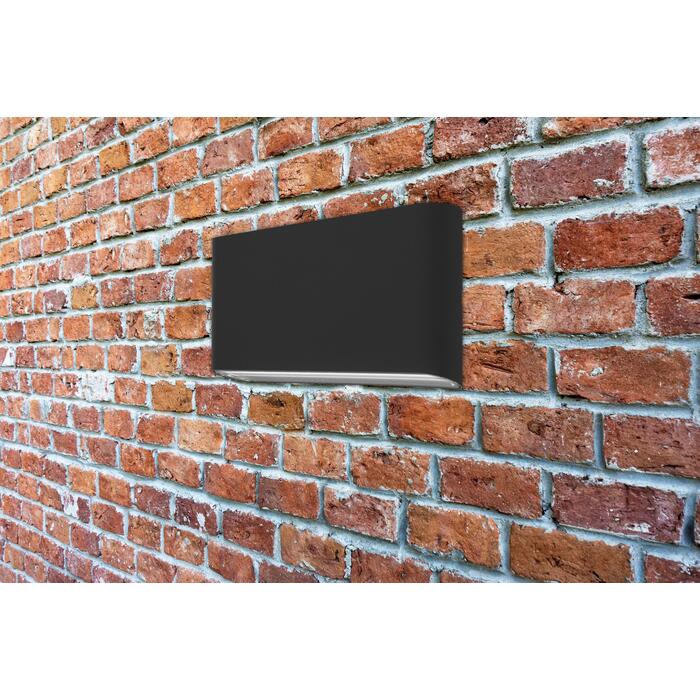

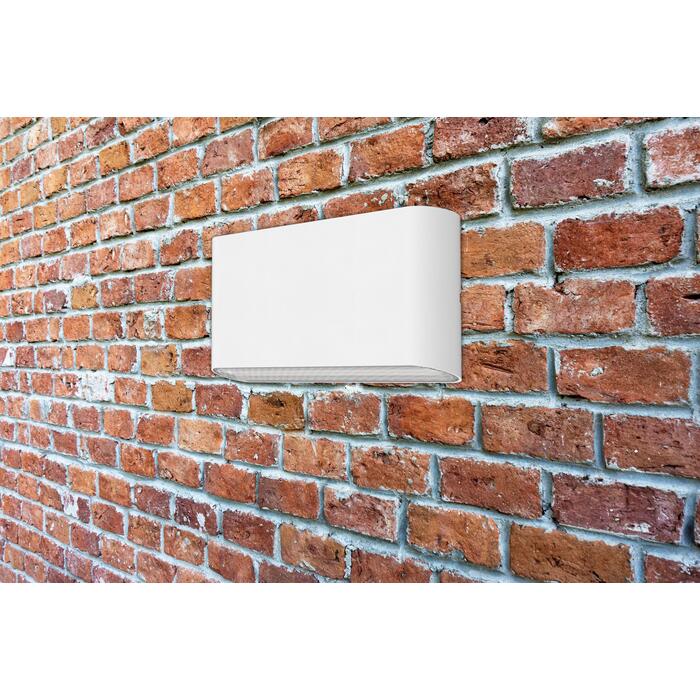

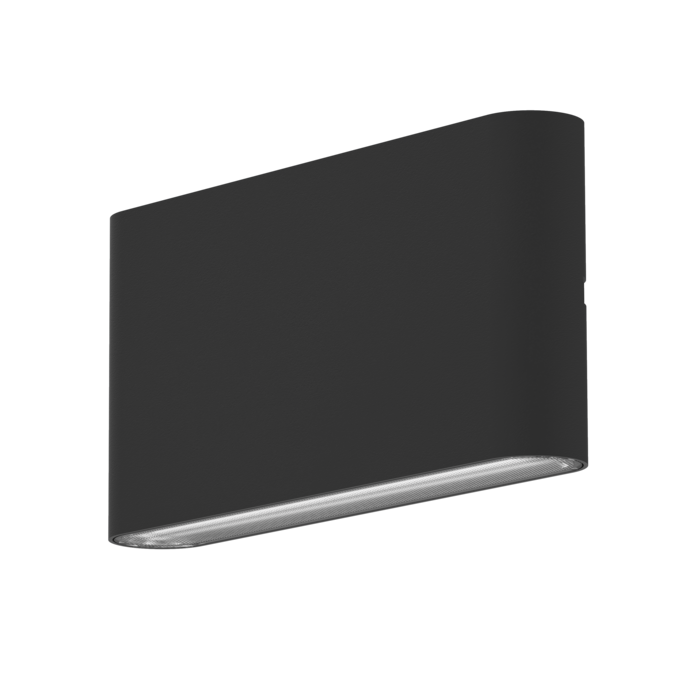

CARINA SE7150 - 10W

Low profile, 10 watt LED wall mount luminaire, with selectable CCT

Application

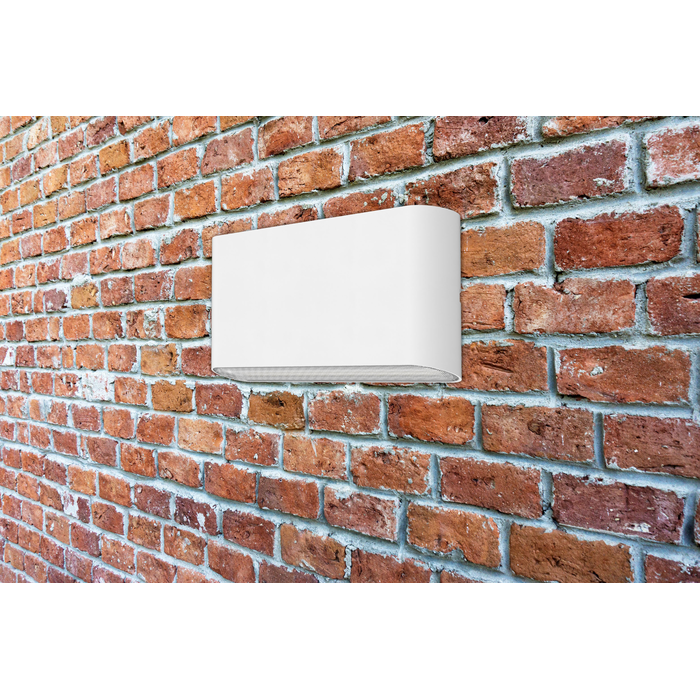

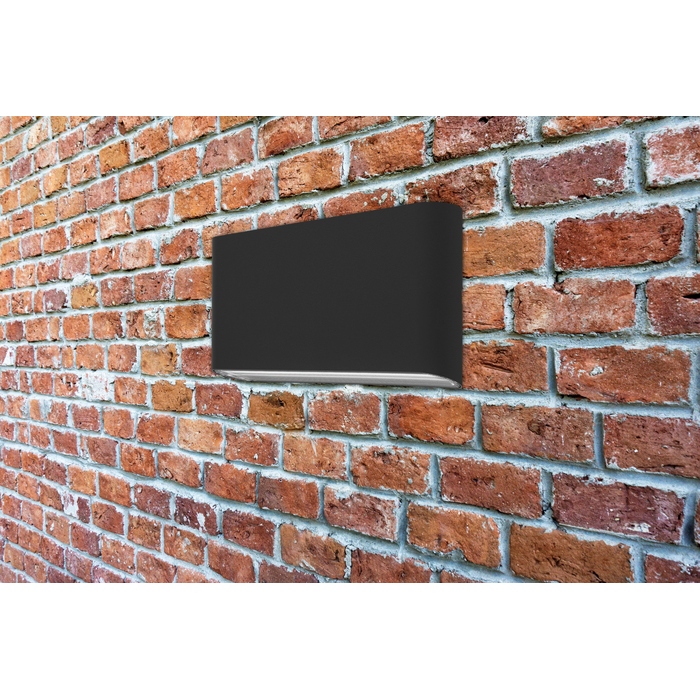

Residential and commercial interior and exterior wall features

Design Specifications

  • Durable aluminium body profile

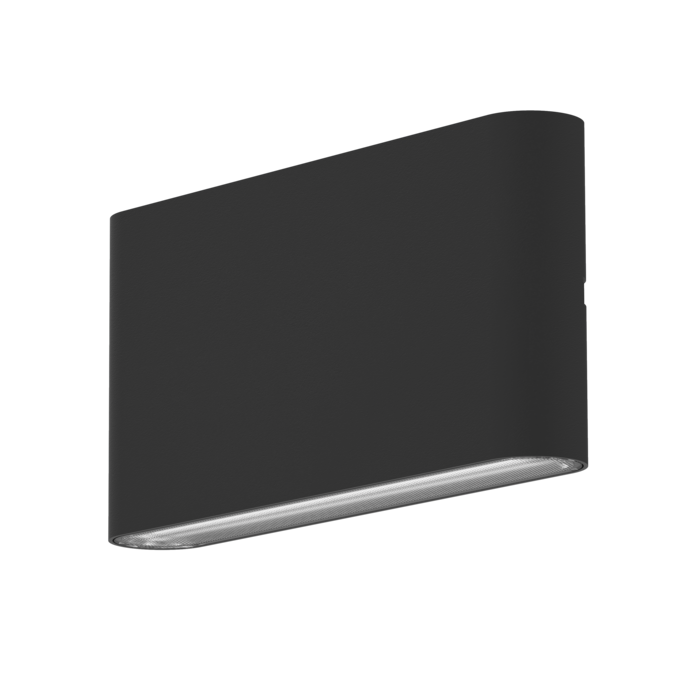

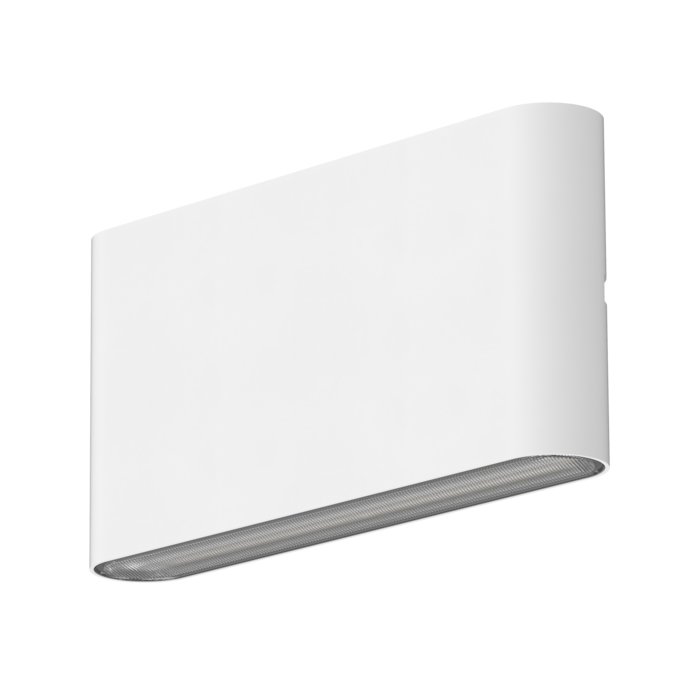

  • Matt black or white powder coat finish

  • High efficiency LED optics

  • Selectable CCT 3000 / 4000 or 5700K

  • Precise UP/DOWN beam distribution 8°

  • Integral flickerCONTROLLED LED control gear

Performance

  • Dimmable - NO

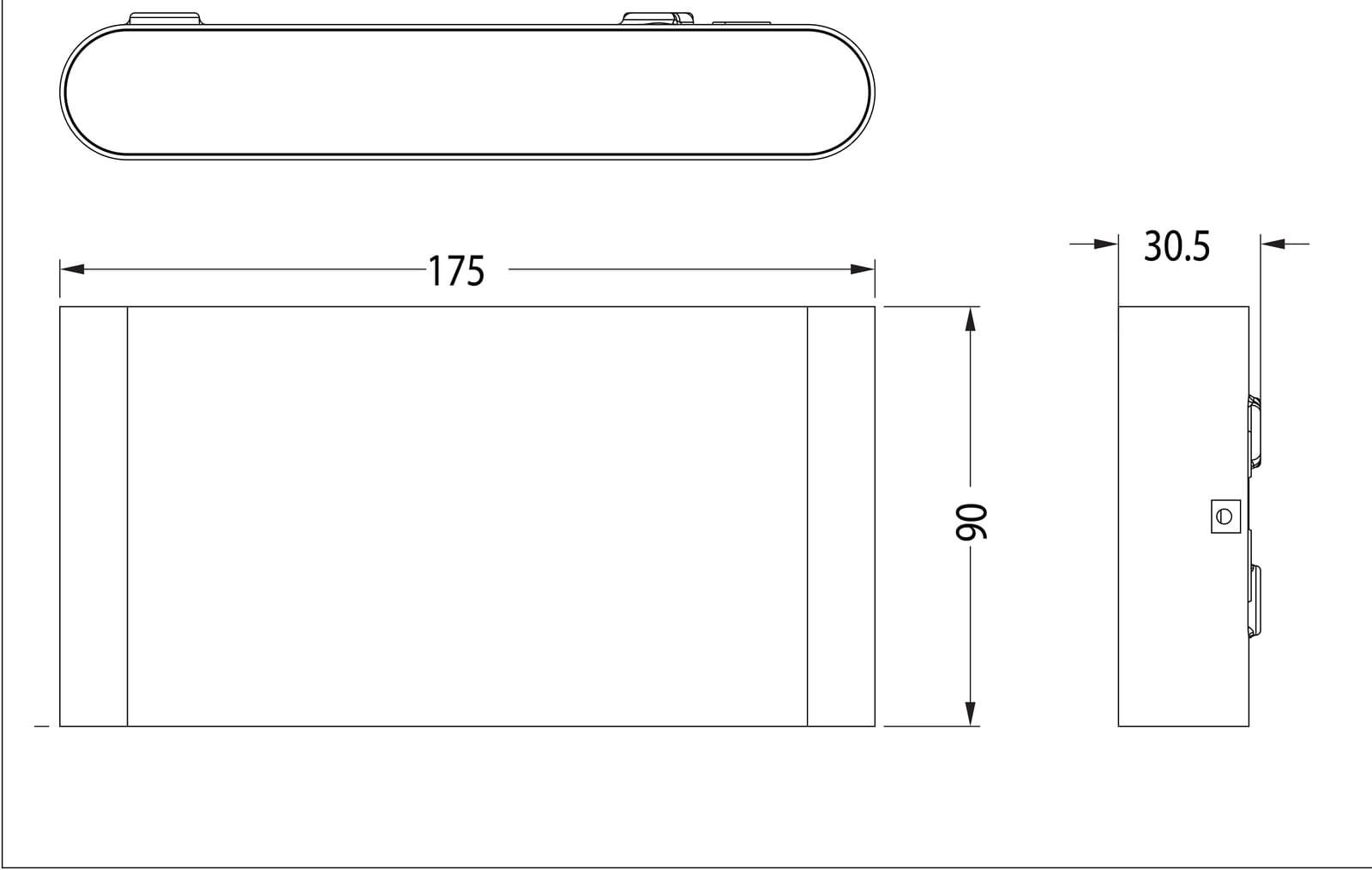

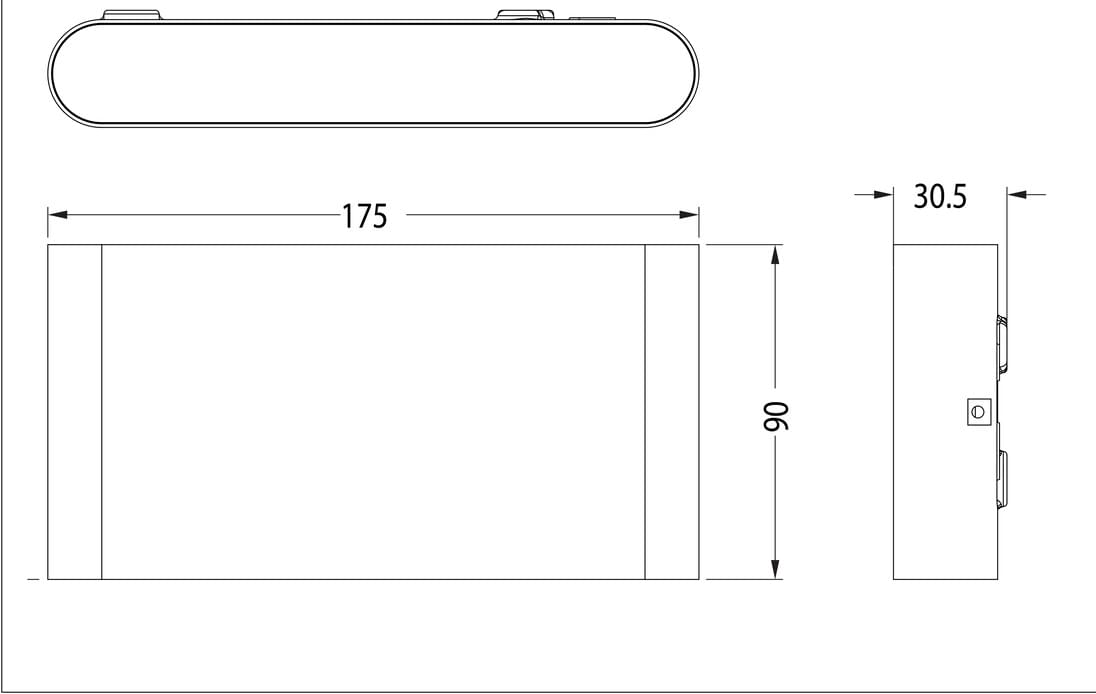

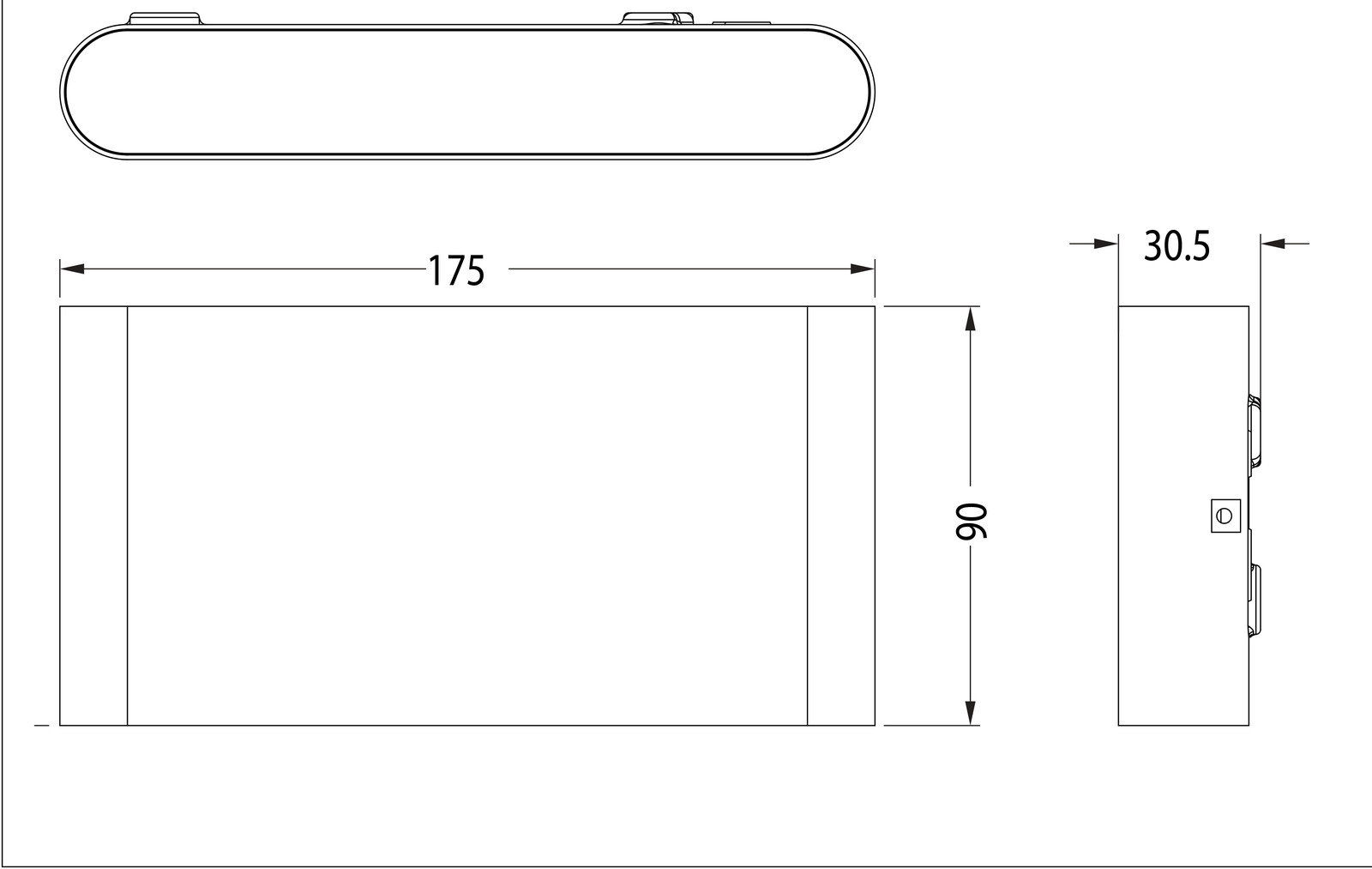

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SE7150/10TC/WH Input Voltage240 Power10 Lumens950/1050/1000 CCT3000/4000/5700 CRI80 Beam Angle8 Dimmable NO Dim175(W) x 90(H) x 30(D) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SE7150/10TC/BK Input Voltage240 Power10 Lumens950/1050/1000 CCT3000/4000/5700 CRI80 Beam Angle8 Dimmable NO Dim175(W) x 90(H) x 30(D) Body ColourBLACK Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
