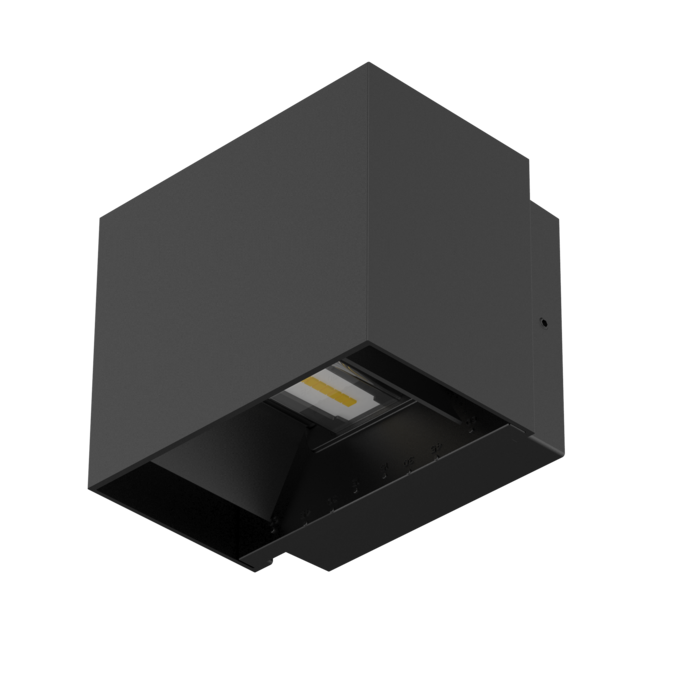

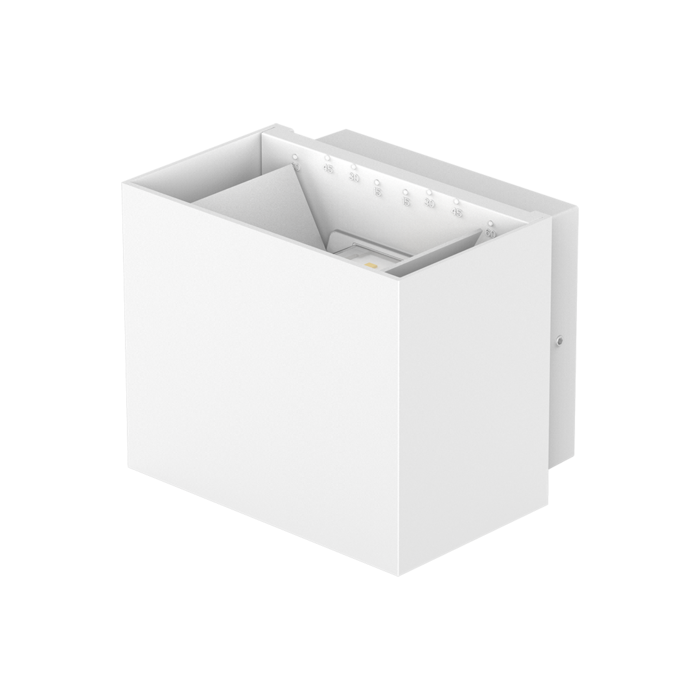

CUBE II S9320 - 10W

10 watt LED surface mount CUBE profile wall luminaire, IP65

Application

Ideal for any residential or commercial interior or exterior space

Design Specifications

  • Durable aluminium body profile

  • Powder coat finish, colour black or white

  • High efficiency LED optics

  • CCT choice of 3000K / 5000K

  • Independent up & down beam, adjustable from 10º to 60°

  • Integral non-dimmable LED driver

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • NEUTRAL DAYLIGHT5000K

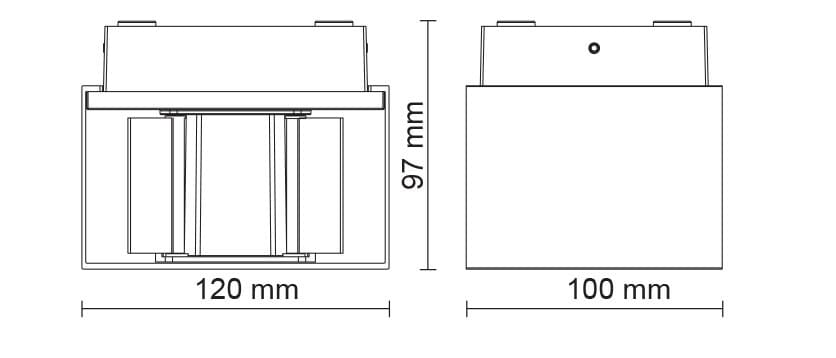

    • Dimensions - Wiring Diagrams
    • Design Options

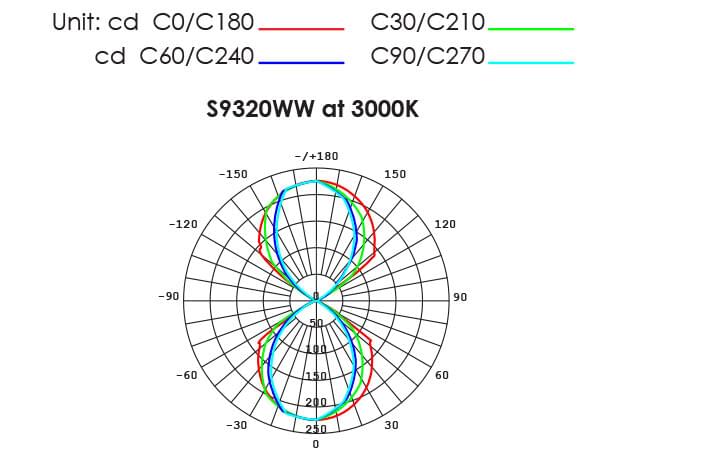

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Body Colour
      		Model No. S9320WW/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 750 CCT 3000 CRI 80 Beam Angle 60 Dimmable NO Dim 120(W) x 100(H) x 97(D) Body Colour WHITE
      		Model No. S9320WW/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 750 CCT 3000 CRI 80 Beam Angle 60 Dimmable NO Dim 120(W) x 100(H) x 97(D) Body Colour BLACK
      		Model No. S9320NDL/WH Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 900 CCT 5000 CRI 80 Beam Angle 60 Dimmable NO Dim 120(W) x 100(H) x 97(D) Body Colour WHITE
      		Model No. S9320NDL/BK Add to Enquiry Add Remove Remove Input Voltage 240 Power 10 Lumens 900 CCT 5000 CRI 80 Beam Angle 60 Dimmable NO Dim 120(W) x 100(H) x 97(D) Body Colour BLACK
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
