• LED ARCHITECTURAL

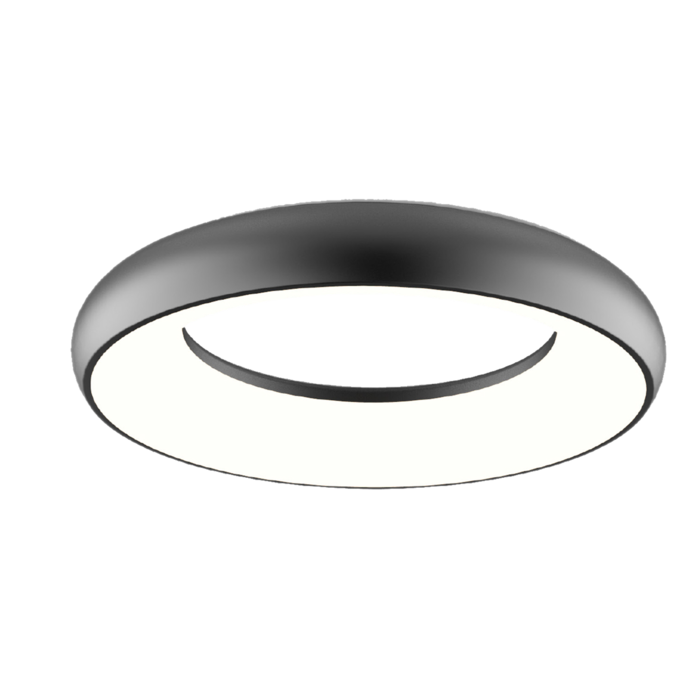

HALO SO3000 - 18/35W

Dimmable architectural LED ceiling luminaire

Application

A creative design for residential or commercial spaces

Design Specifications

  • Slim disc like appearance, 18 or 35 watt models

  • Durable polycarbonate body profile with opal acrylic diffuser

  • Simple twist lock installation mechanism

  • High efficiency LED optics, CCT 4000K, 35watt available in 3000K

  • Integral constant current trailing edge dimmable LED driver

  • Trim standard black

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge
  • COOL WHITE4000K
  • Dimensions - Wiring Diagrams
  • Design Options

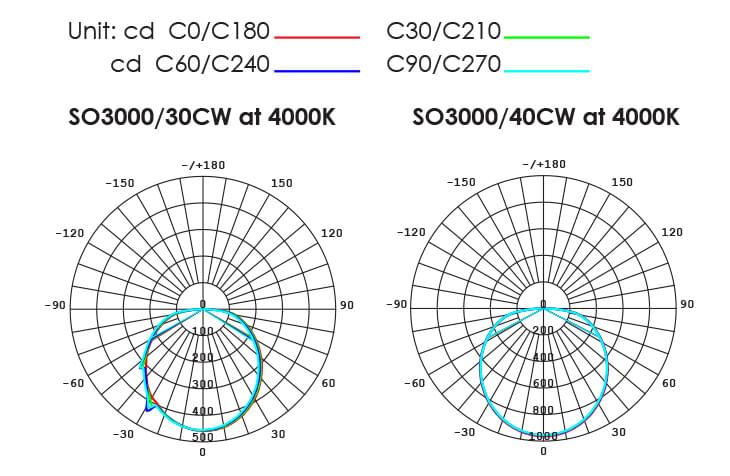

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Dimmable Diameter Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SO3000/30CW Input Voltage240 Power18 Lumens1450 CCT4000 CRI80 Dimmable YES Diameter300 Dim300(W) x 51(H) Body ColourBLACK Add to Enquiry Add Remove Remove
    Model No.SO3000/40CW Input Voltage240 Power35 Lumens3300 CCT4000 CRI80 Dimmable YES Diameter400 Dim400(W) x 68(H) Body ColourBLACK Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
