• LED ARCHITECTURAL

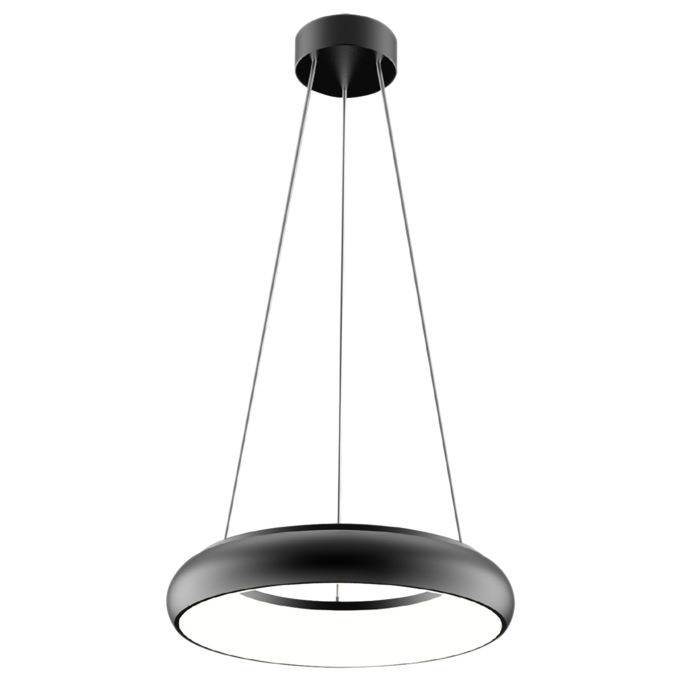

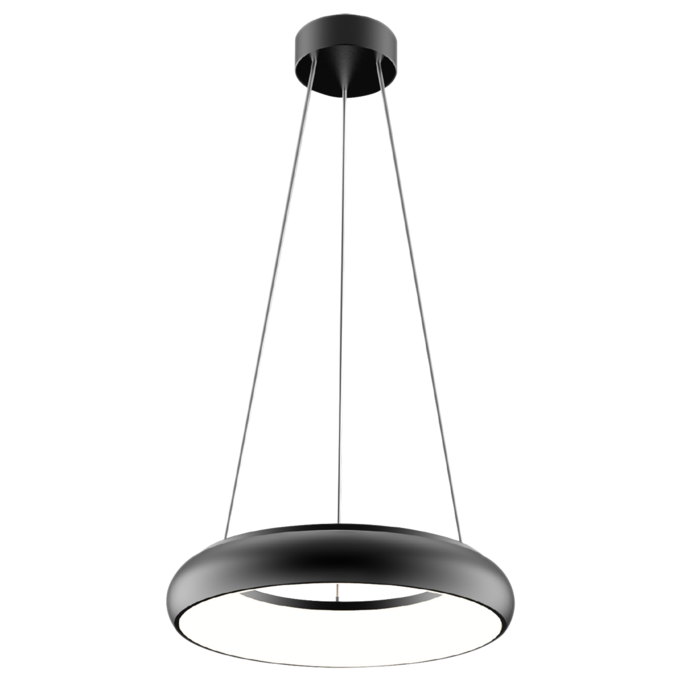

HALO SPL3000 - 18/35W

Dimmable architectural LED pendant luminaire

Application

A creative design for residential or commercial spaces

Design Specifications

  • Slim disc like appearance, standard trim colour black, optional silver

  • Durable polycarbonate body profile with opal acrylic diffuser

  • High efficiency LED optics, 18 or 35 watt models

  • Integral constant current trailing edge dimmable LED driver

  • Suspension kits provided (standard length 1.5 m and adjustable)

  • CCT 4000K standard

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge
  • COOL WHITE4000K

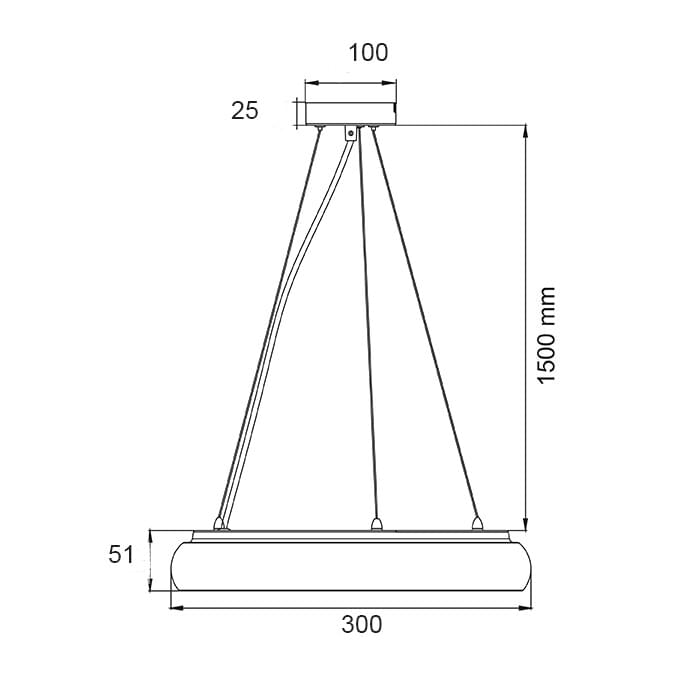

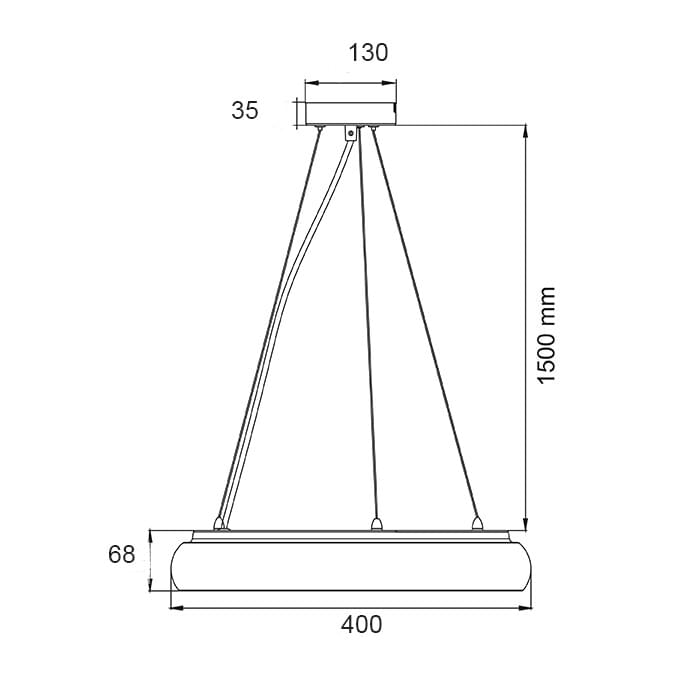

    • Dimensions - Wiring Diagrams
    • Design Options

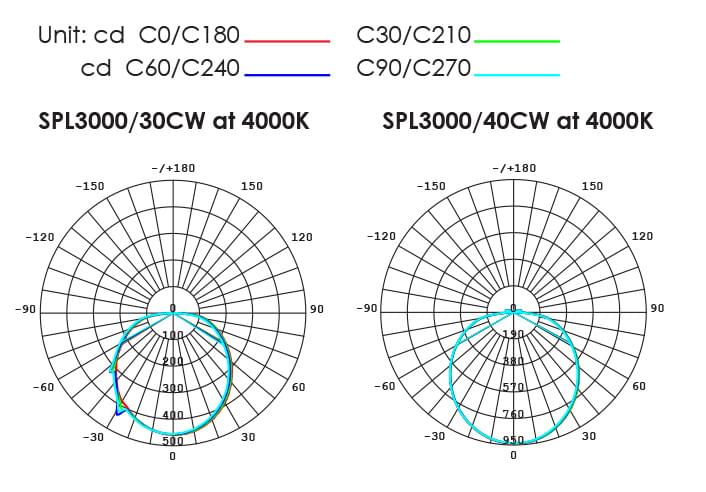

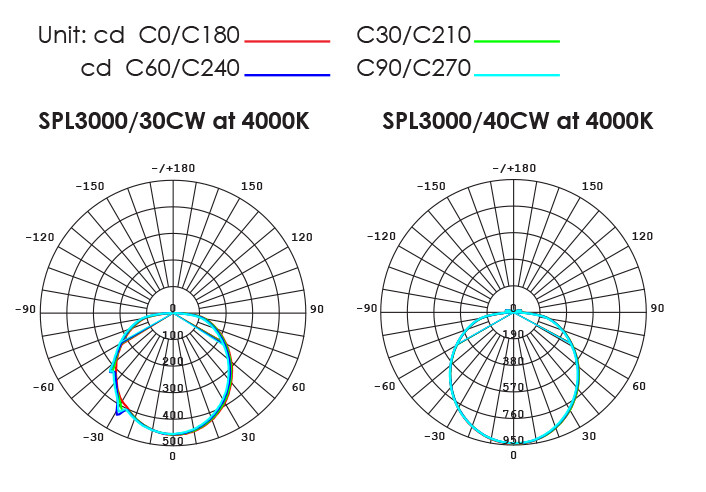

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT CRI Diameter Dim Body Colour
      		Model No. SPL3000/30CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 18 Lumens 1450 CCT 4000 CRI 80 Diameter 300 Dim 300(W) x 51(H) Body Colour BLACK
      		Model No. SPL3000/40CW Add to Enquiry Add Remove Remove Input Voltage 240 Power 35 Lumens 3300 CCT 4000 CRI 80 Diameter 400 Dim 400(W) x 68(H) Body Colour BLACK
