• ARCHITECTURAL

LOUNGE II S9328/150TC - 9W

9 watt decorative IP54 architectural LED wall mount luminaire, with selectable CCT

Application

A decorative architectural solution for residential, commercial interior or exterior spaces

Design Specifications

  • Selectable CCT 3000K / 4000K / 5000K

  • Durable white or black powder coated finish

  • Integral non-dimmable control gear 9 watt

  • Robust die-cast aluminium body profile

  • High efficiency LED optics

  • Indirect illumination  (up and down) optical performance

Performance

  • Dimmable - NO
  • Dimensions - Wiring Diagrams
  • Design Options

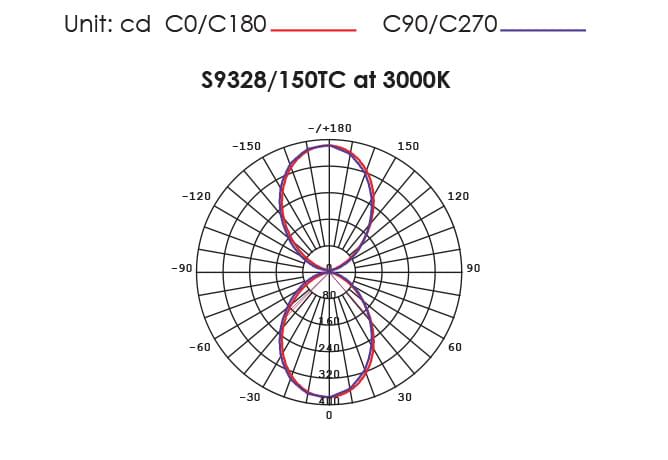

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

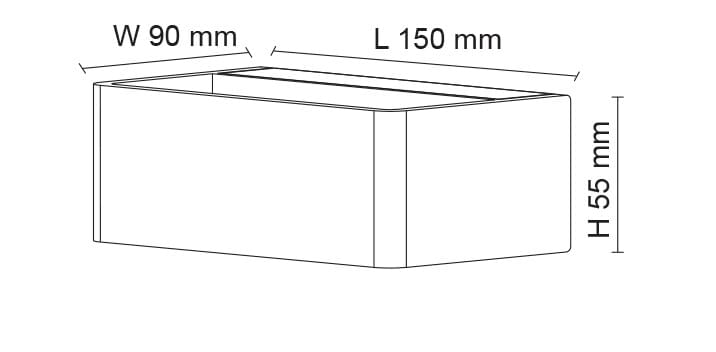

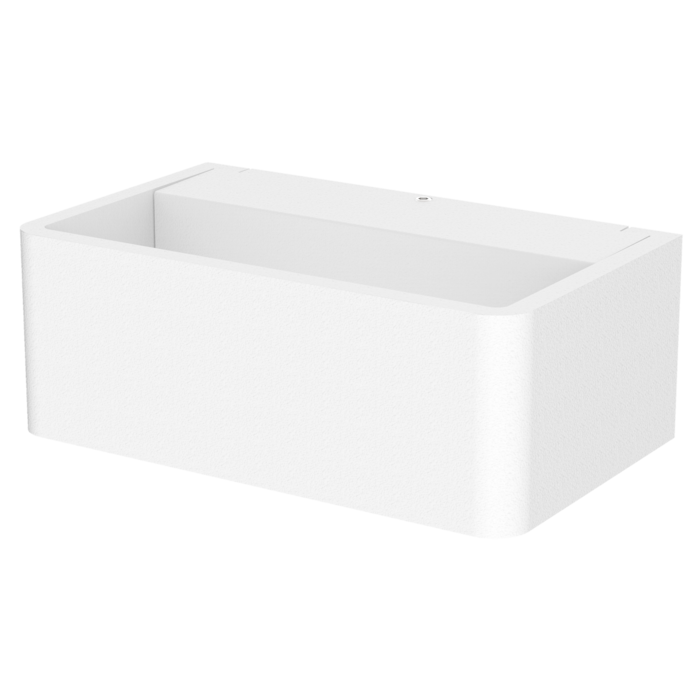

    Model No.S9328/150TC/WH Input Voltage240 Power9 Lumens500/600/550 CCT3000/4000/5000 CRI80 Beam Angle100 Dim150(L) x 90(W) x 55(H) Body ColourWHITE Add to Enquiry Add Remove Remove

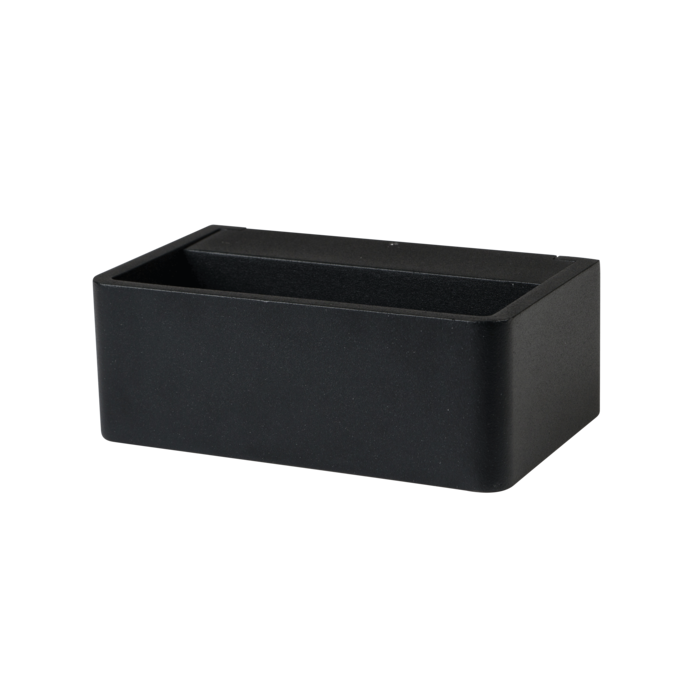

    Model No.S9328/150TC/BK Input Voltage240 Power9 Lumens500/600/550 CCT3000/4000/5000 CRI80 Beam Angle100 Dim150(L) x 90(W) x 55(H) Body ColourBLACK Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
