• LED LAMPS

AR111/3500 - 35W

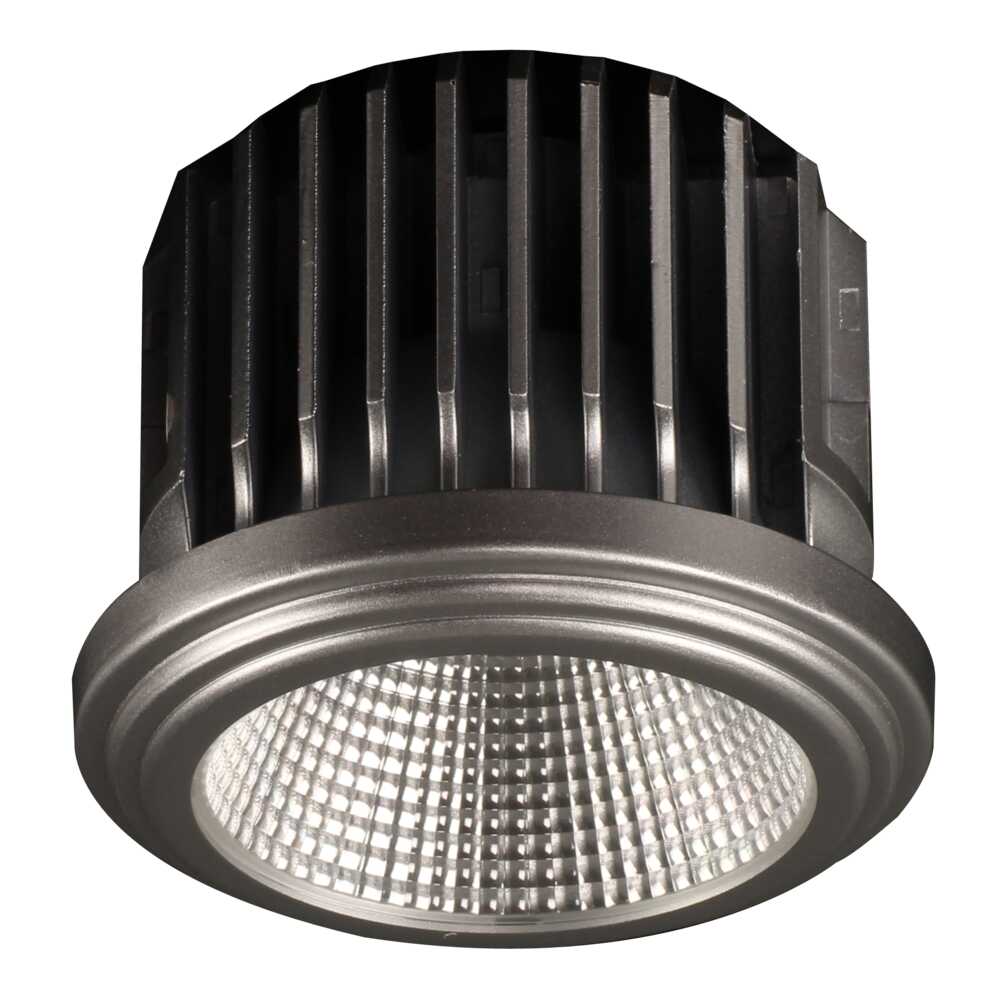

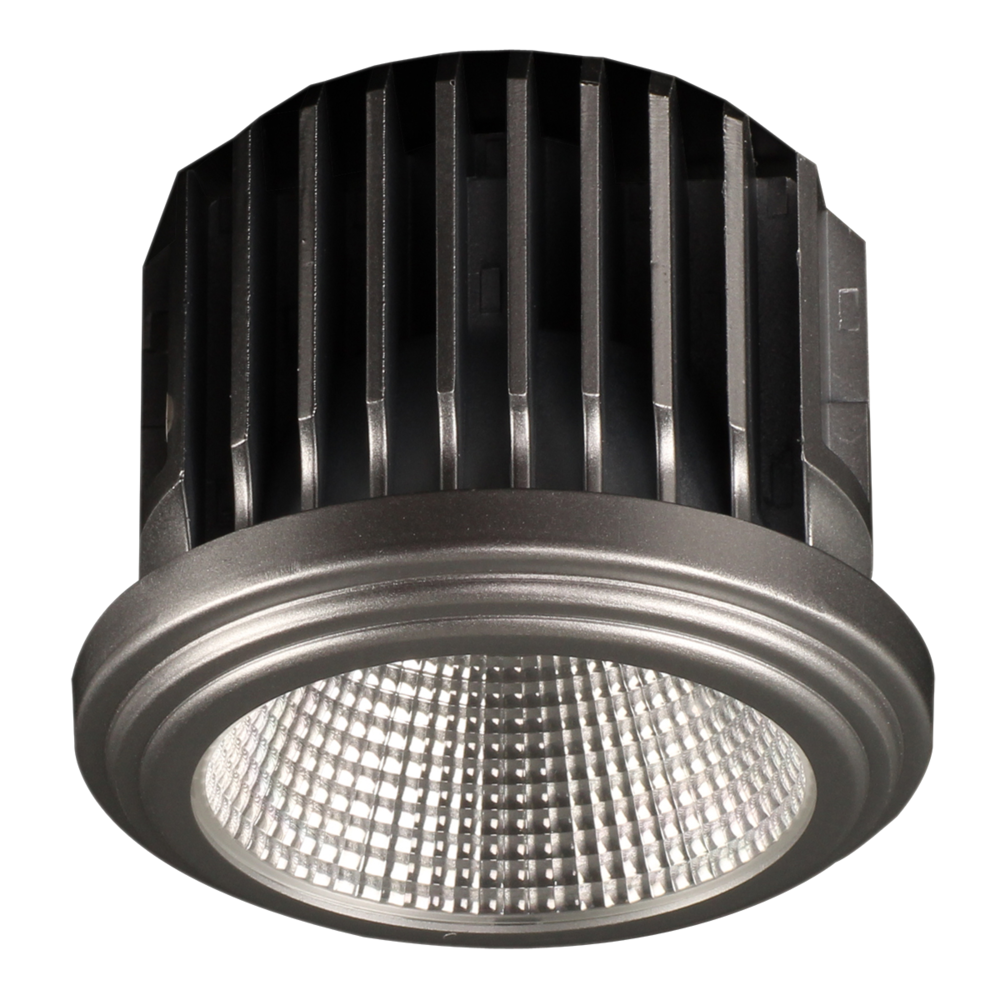

LED AR111 lamp module

Application

Energy efficient LED lamp solutions

Design Specifications

  • Die-cast aluminium body, black body profile

  • High output LED optics, CCT 3000K, 3300lm

  • Specially designed optical lens

  • High performance changeable multi-faceted reflector system

  • Constant current non-dimmable LED driver required, 35w, 1000mA (driver SAL DIM1200/48DC/NR@1000mA)

  • Standard beam angles refer Technical Specification table below, AR111/1700: 40° (option), AR111/3500: 20°, 60° (option)

Performance

  • Dimmable - NO
  • WARM WHITE3000K

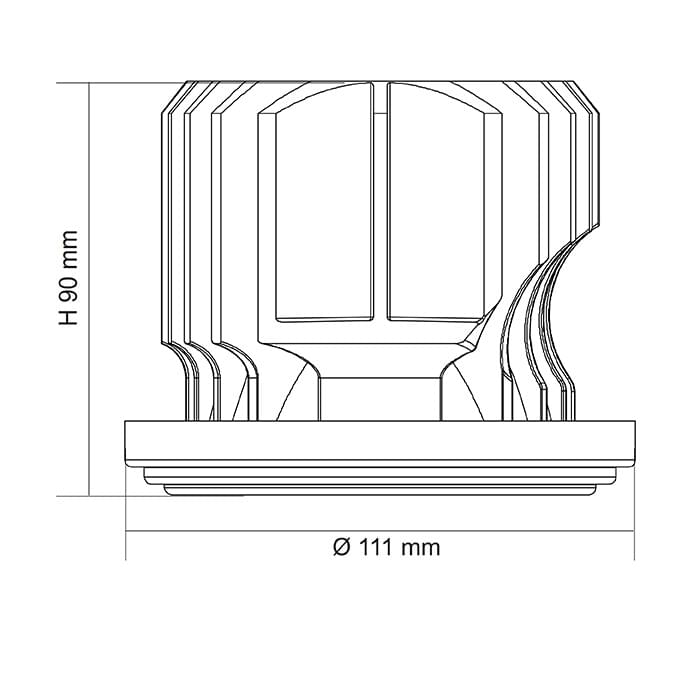

  • Dimensions - Wiring Diagrams
  • Design Options

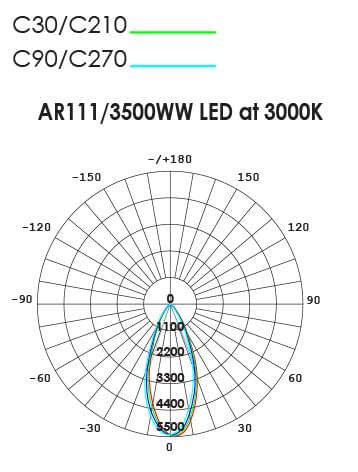

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Power Lumens CCT CRI Beam Angle Dimmable Diameter Height Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.AR111/3500WW Power35 Lumens3300 CCT3000 CRI80 Beam Angle40 Dimmable NO Diameter111 Height90 Base TypeAR111 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
