• LAMPS

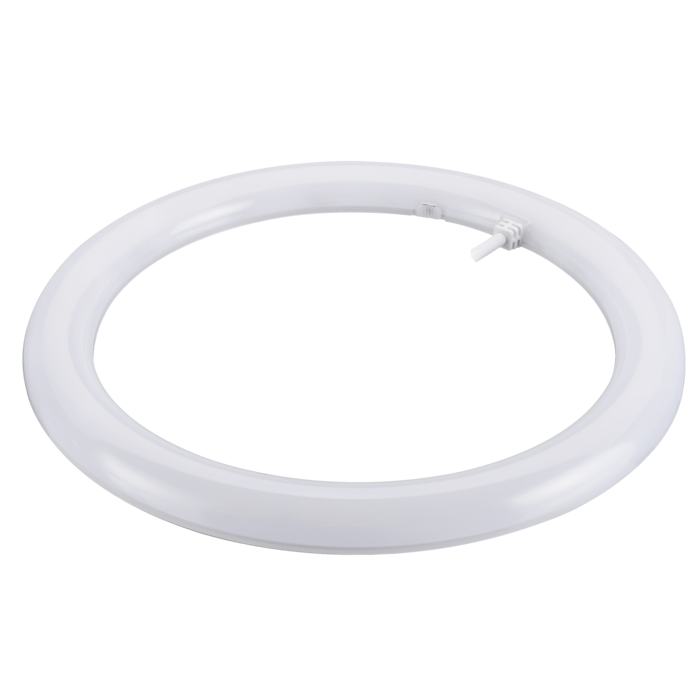

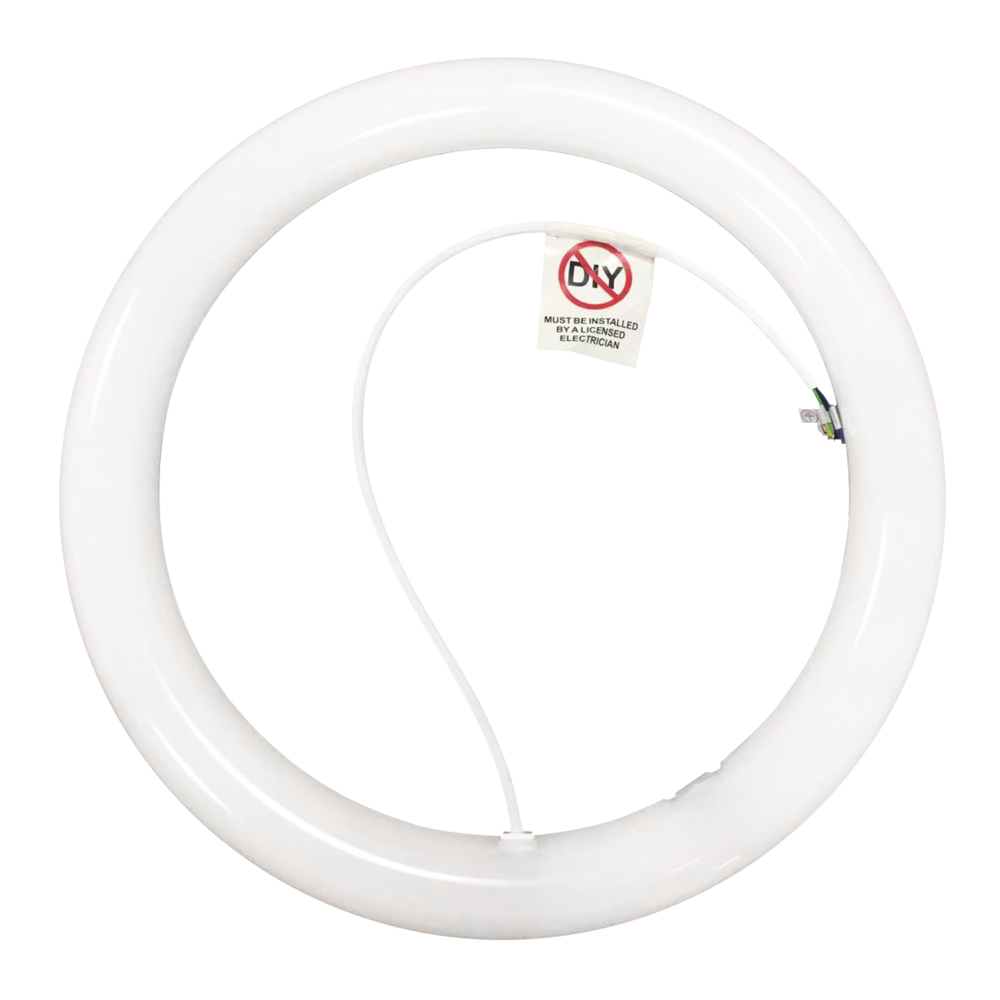

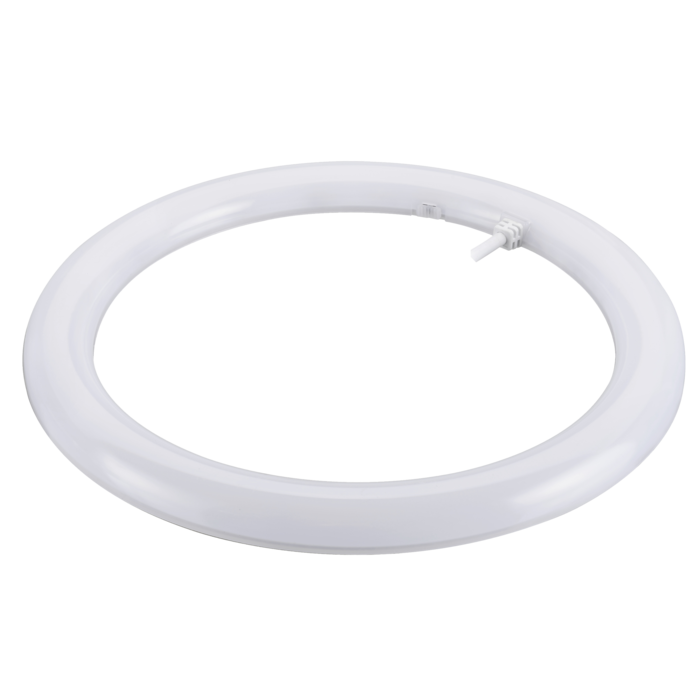

LCT CONVERSION KIT DIMMABLE LCT TC/D - 20W

Dimmable 20 watt LED conversion kit, with selectable CCT

Application

Energy efficient LED lamp solutions, ideal for apartments and residential spaces

Design Specifications

  • Aluminium heat sink mounted base

  • Polycarbonate lens

  • High efficiency LED optics, CRI >80

  • Requires installation into a compatible luminaire

  • Integral trailing edge dimmable 20 watt LED driver

  • Selectable CCT 3000K / 4000K / 5700K
    Supplied with mounting clips and screws for easy installation

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge

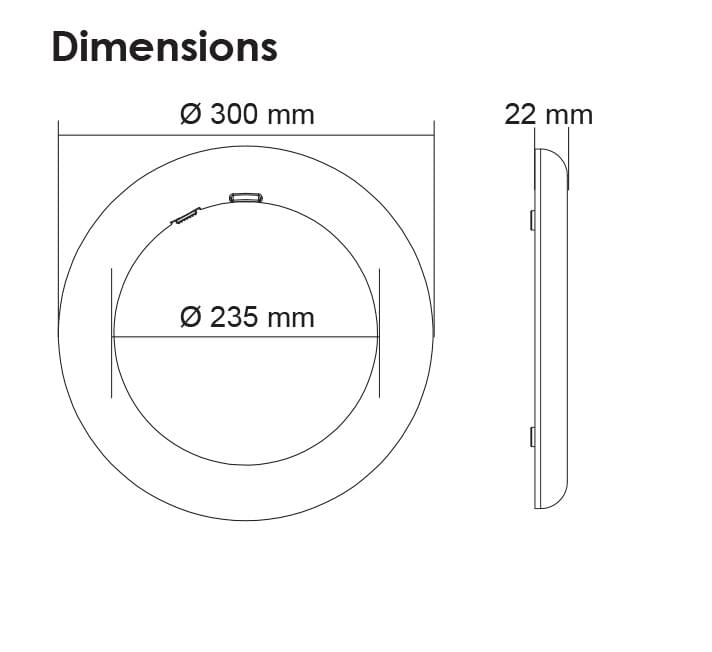

  • Dimensions - Wiring Diagrams
  • Design Options
    Dimmer Trailing Edge YES
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Dimmable Diameter Height Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.LCT30TC/D Input Voltage240 Power20 Lumens1800/2000/1900 CCT3000/4000/5700 CRI80 Dimmable YES Diameter300 Height22 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
