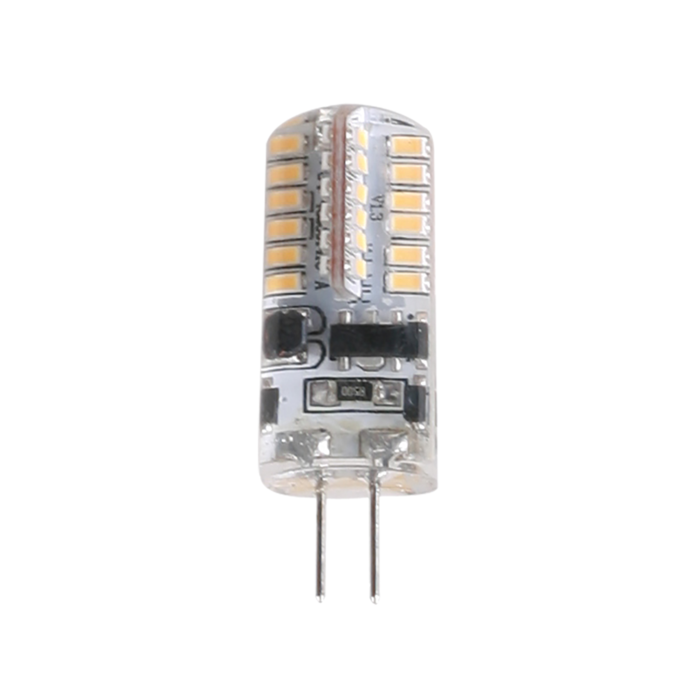

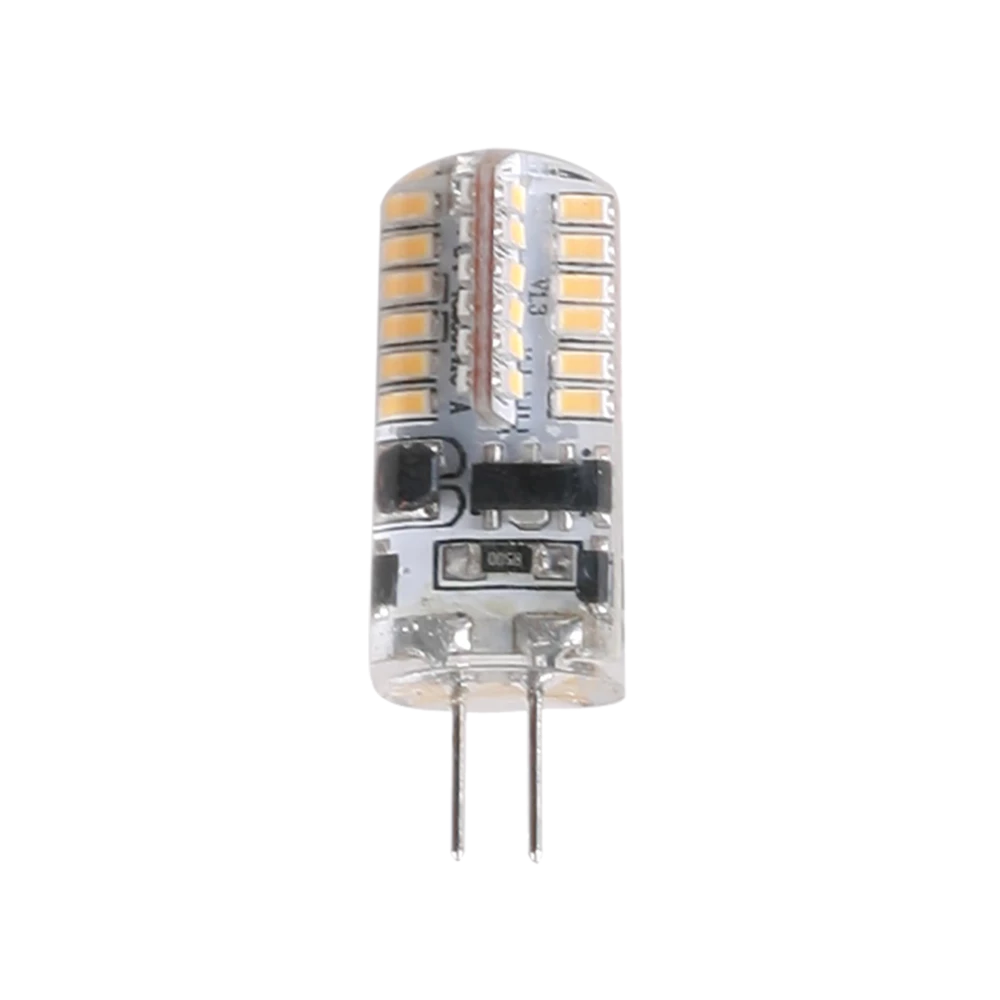

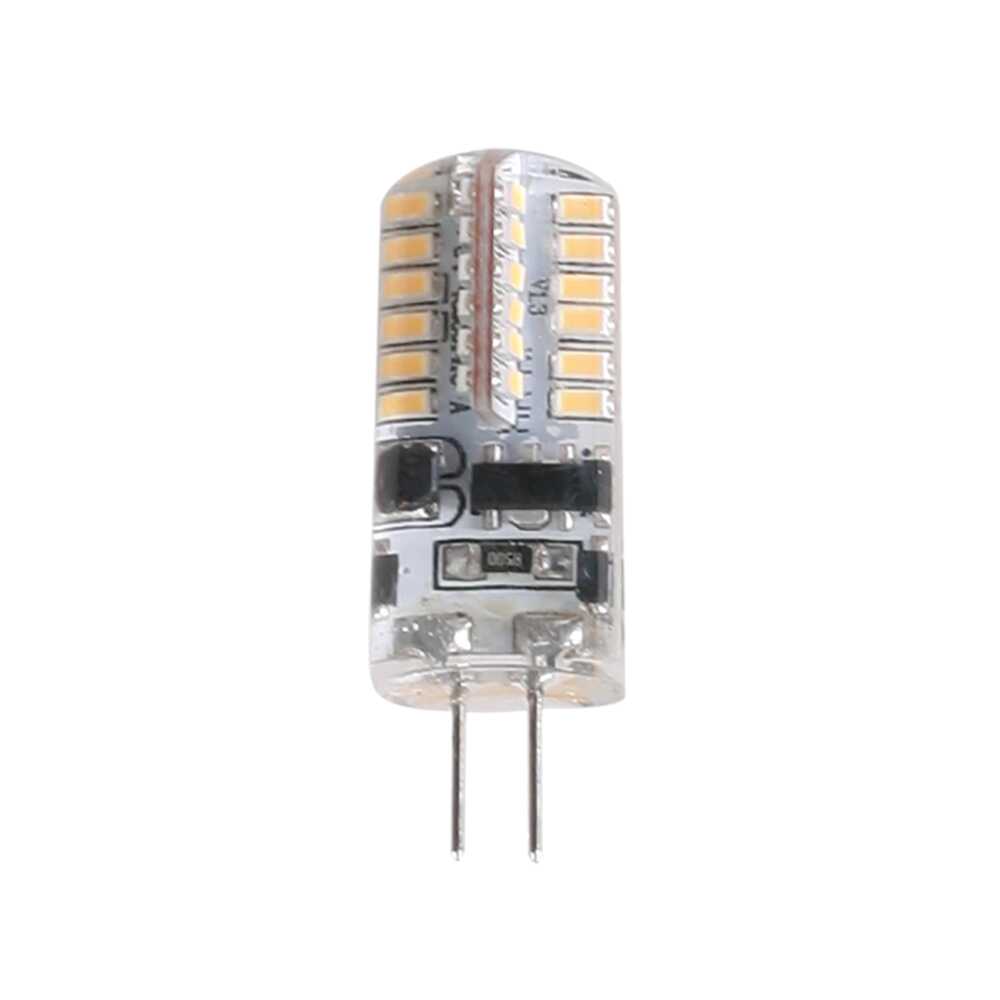

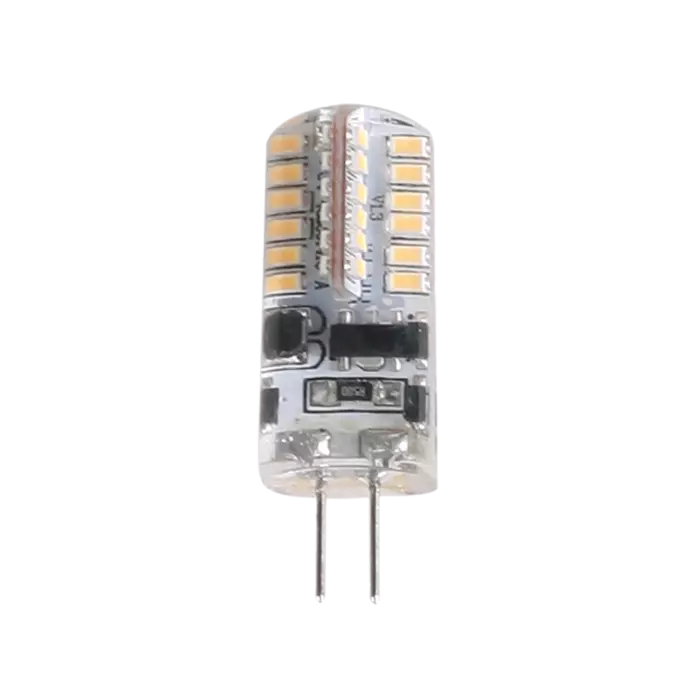

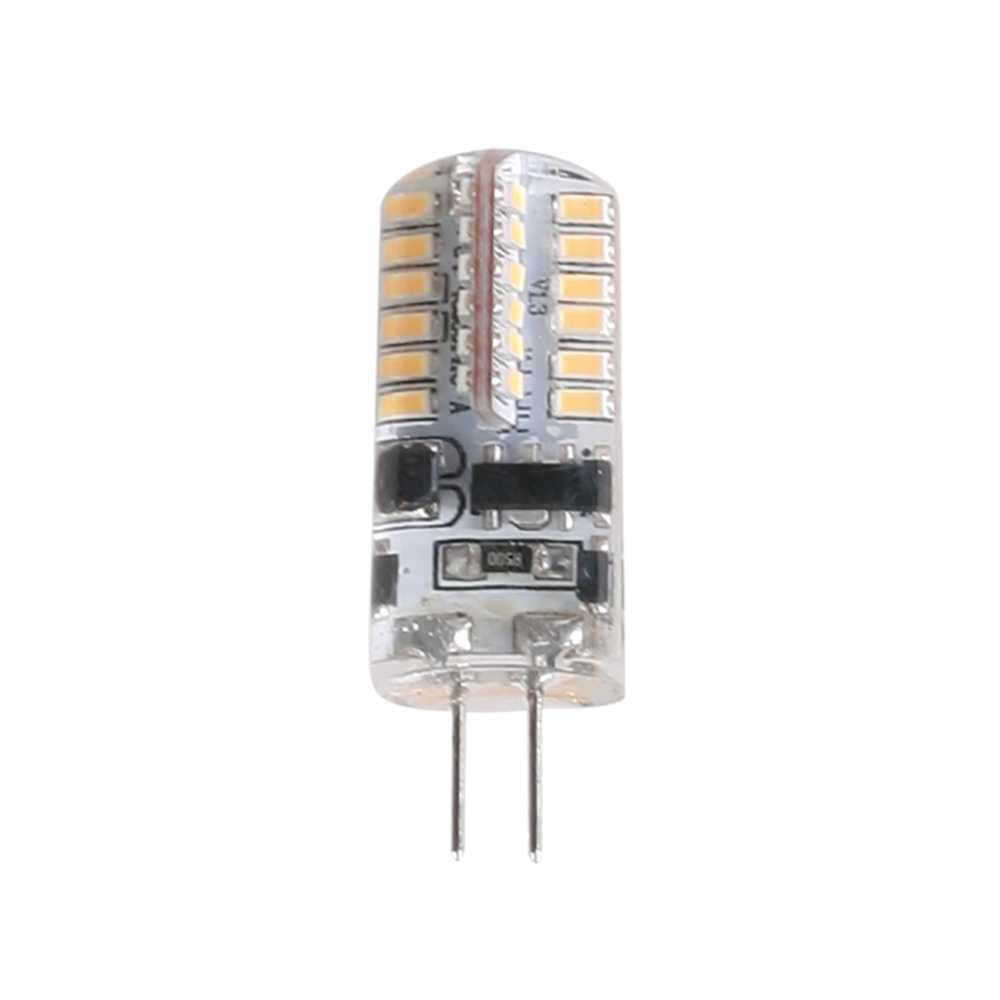

G4 SERIES G4L25 - 2.5W

2.5 watt LED G4 lamp


Energy efficient LED lamp solutions, designed for G4 base luminaires

Design Specifications

  • Transparent silicone body
  • 12V AC or DC driver required
  • High efficiency LED optics

  • CCT choice of 3000K or 6000K

  • Beam distribution 270°

  • Compatible with most electronic transformers, suits most G4 lamp fittings


  • Dimmable - NO

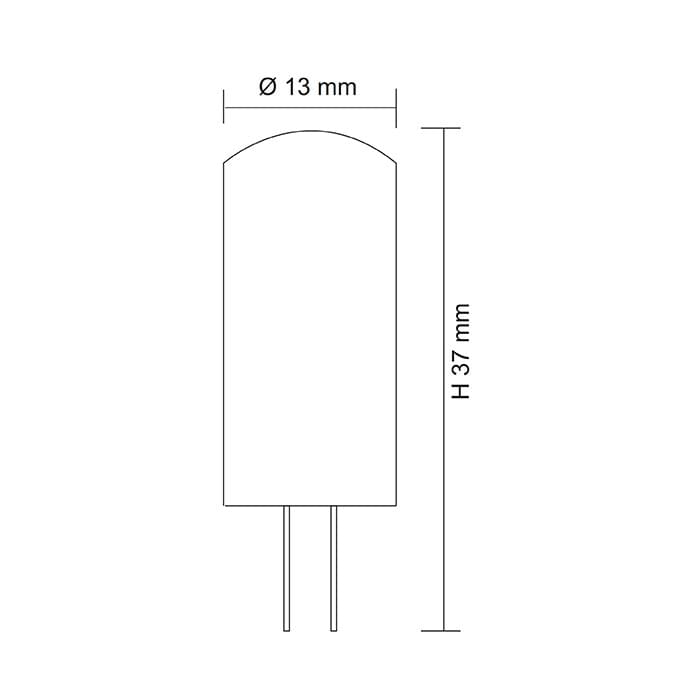

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.

  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Height Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.G4L25WW Input Voltage12 Input Voltage12 Power2.5 Lumens160 CCT3000 CRI80 Beam Angle270 Dimmable NO Diameter13 Height37 Base TypeG4 Add to Enquiry Add Remove Remove
    Model No.G4L25DL Input Voltage12 Input Voltage12 Power2.5 Lumens180 CCT6000 CRI80 Beam Angle270 Dimmable NO Diameter13 Height37 Base TypeG4 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
