• LAMPS

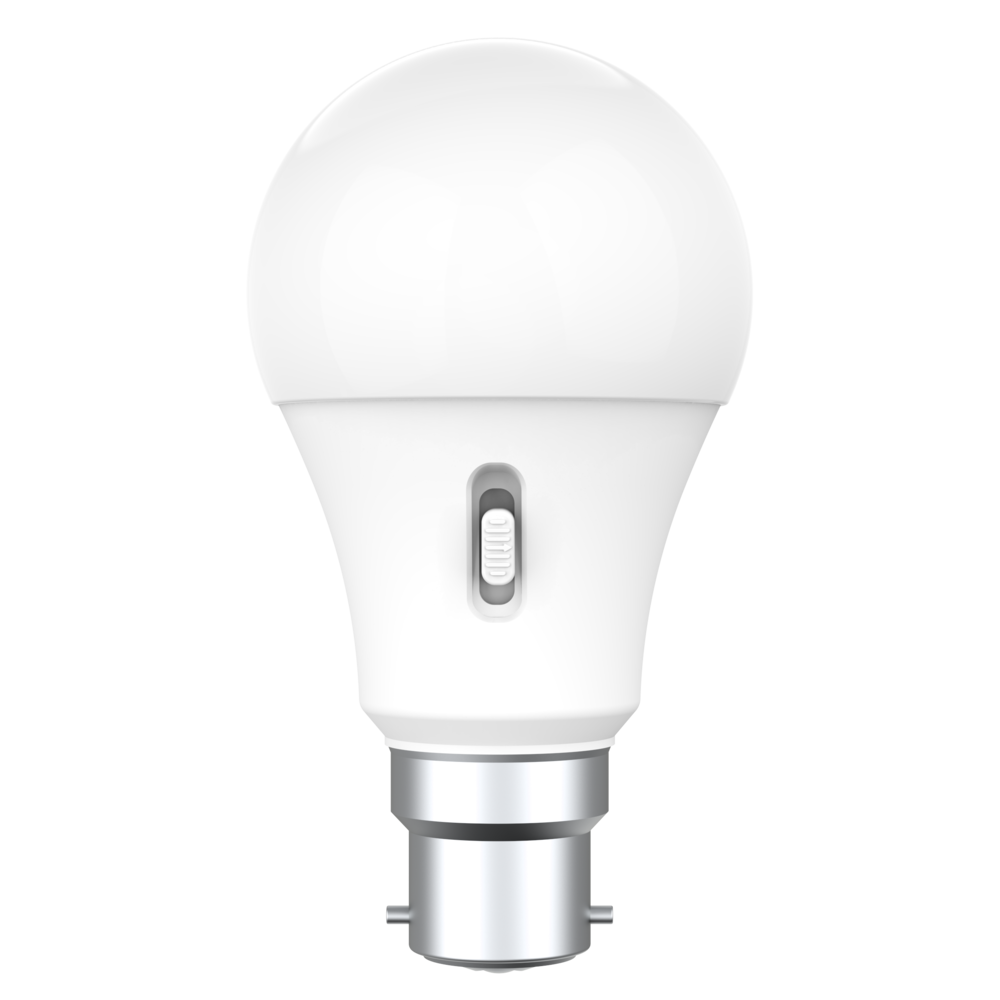

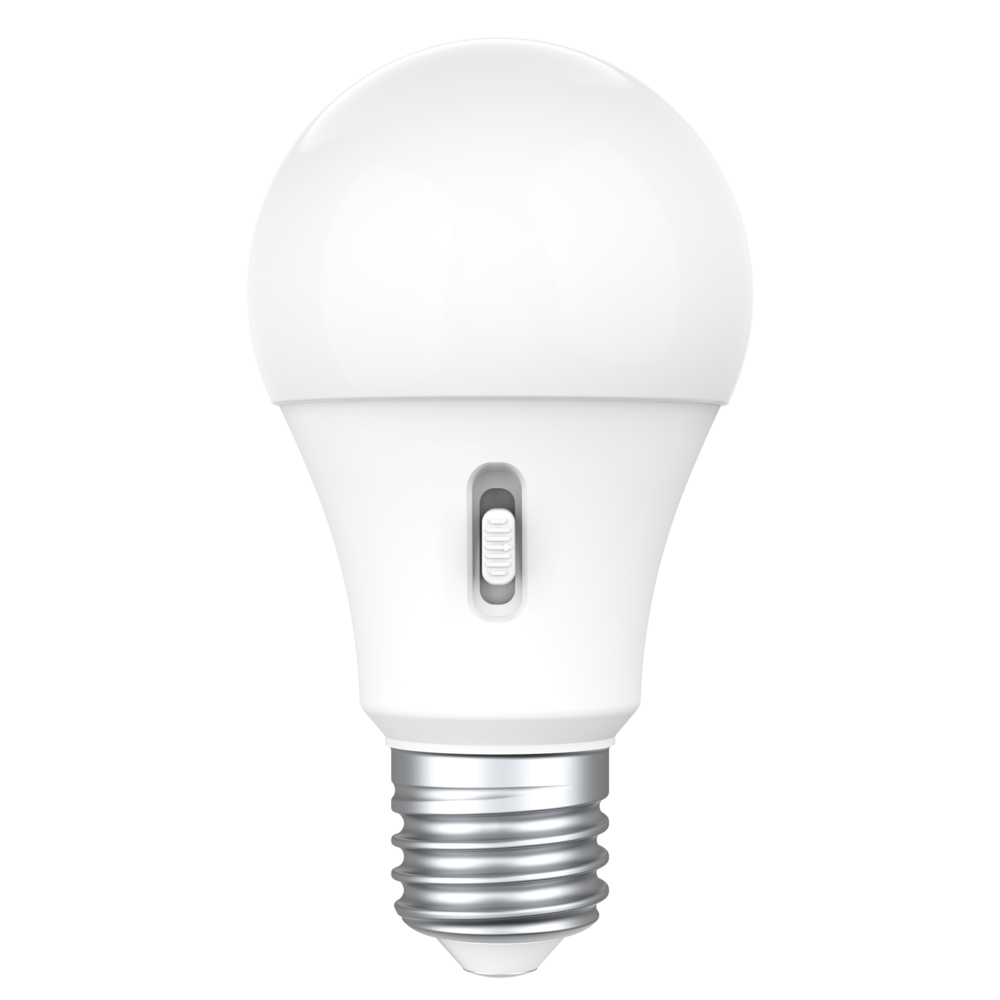

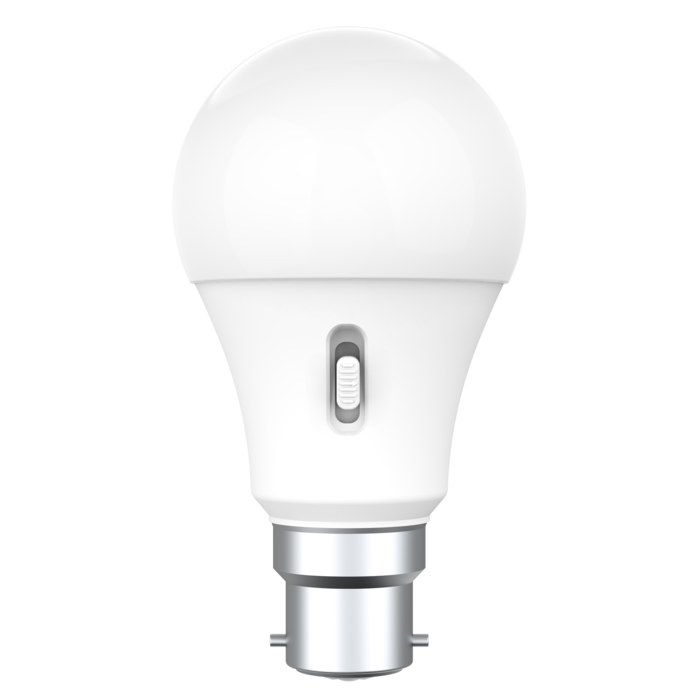

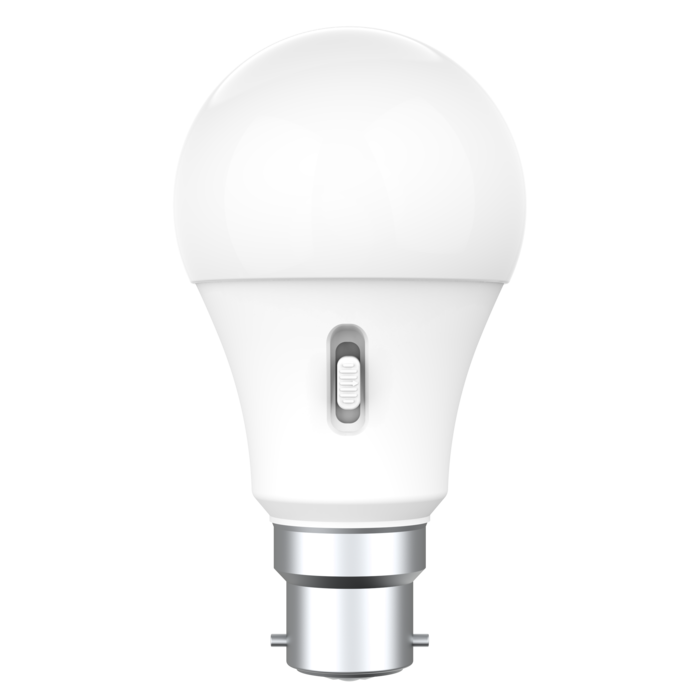

LGS4TC OPAL - 4W

4 watt LED GLS style opal lamps, with selectable CCT

Application

Energy efficient LED lamp solutions

Design Specifications

  • Opal polycarbonate diffuser, beam distribution 200°

  • Poly covered aluminium body, B22 and E27 lamp bases

  • High efficiency LED optics, CRI>80

  • Integral non-dimmable LED driver

  • CCT selectable 2700K/4000K/6000K

  • 1:1 size to traditional GLS / A60 lamp,
    suits most GLS / A60 lamp fittings

Performance

  • Dimmable - NO

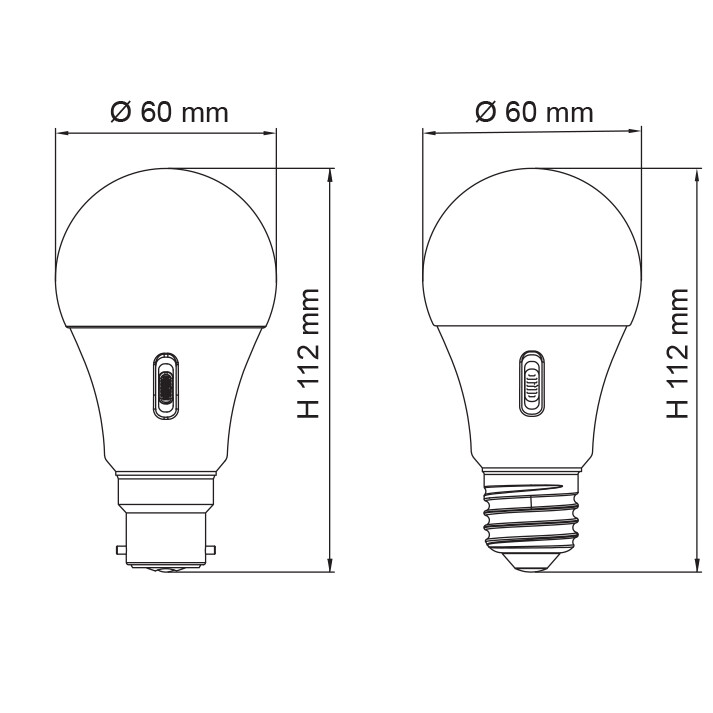

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Length Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.LGS4TC/B22 Input Voltage240 Power4 Lumens350/400/350 CCT2700/4000/6000 CRI80 Beam Angle200 Dimmable NO Diameter60 Length112 Base TypeB22 Add to Enquiry Add Remove Remove
    Model No.LGS4TC/E27 Input Voltage240 Power4 Lumens350/400/350 CCT2700/4000/6000 CRI80 Beam Angle200 Dimmable NO Diameter60 Length112 Base TypeE27 Add to Enquiry Add Remove Remove

    IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
