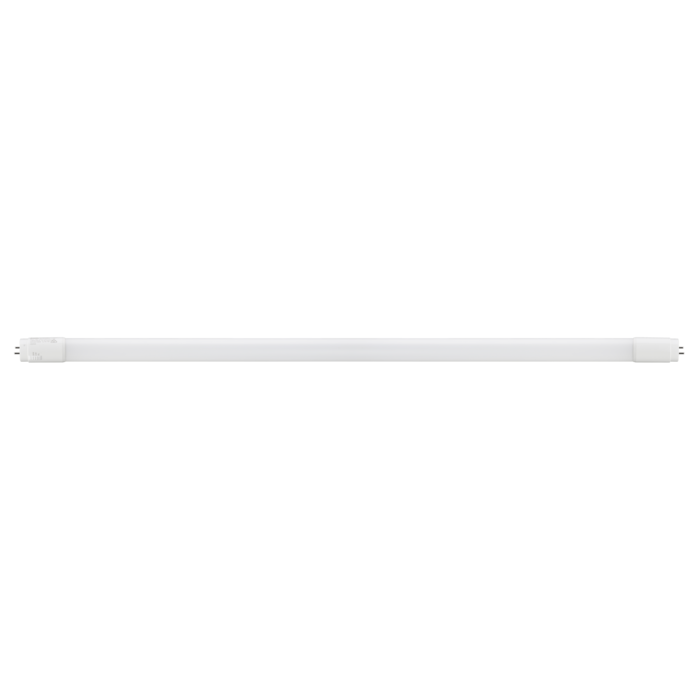

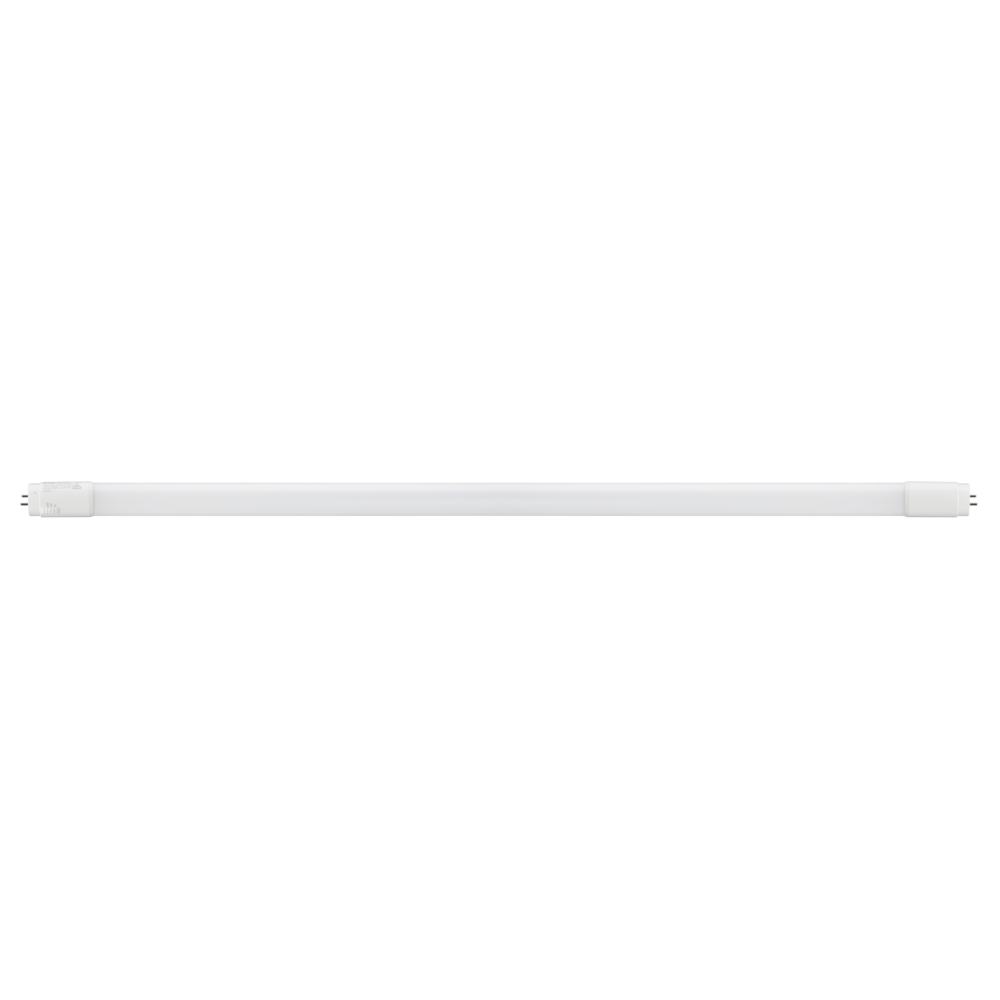

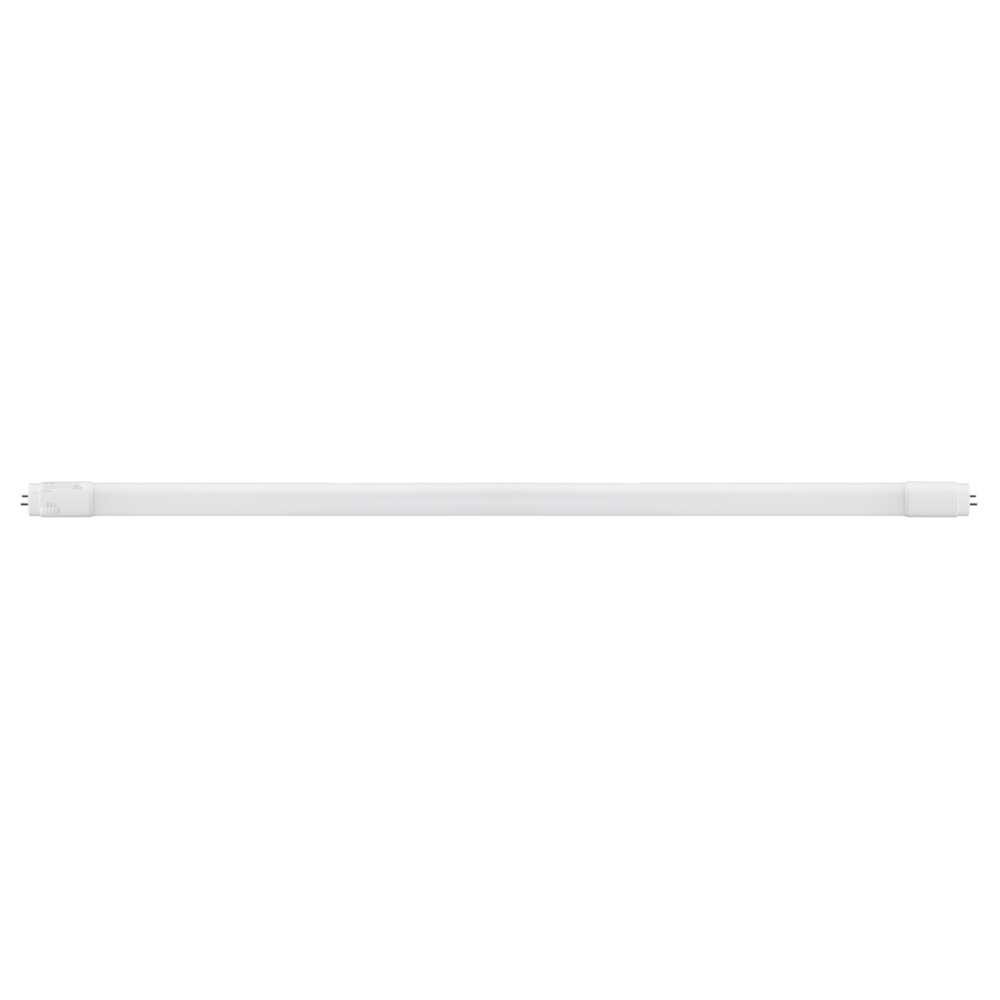

TUBE LED LT8 TC - 9W/24W

LED shatter-proof tube, G13 base , CRI>90

Application

Energy efficient LED lamp solutions

Design Specifications

  • Fits new T8 LED fixtures or retrofit T8 fluorescent fixtures (Magnetic Ballast)

  • Traditional full glass shatter-proof poly coated body construction, G13 lamp base

  • High efficiency LED optics, CRI >90, beam distribution 320°

  • Integral non-dimmable LED driver, 9, 18 or 24 watt models

  • Selectable CCT 3000K / 4000K / 6000K

  • No flicker, instant start, Safety LED fuse included,
    operating temp Min -20 / Max 25 deg C

Performance

  • Dimmable - NO
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Length Base Type
      		Model No. LT8/60TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 9 Lumens 950/1050/950 CCT 3000/4000/6000 CRI 90 Beam Angle 320 Dimmable NO Diameter 28 Length 589 Base Type G13
      		Model No. LT8/120TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 18 Lumens 1700/1900/1750 CCT 3000/4000/6000 CRI 90 Beam Angle 320 Dimmable NO Diameter 28 Length 1198 Base Type G13
      		Model No. LT8/150TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 24 Lumens 2150/2400/2200 CCT 3000/4000/6000 CRI 90 Beam Angle 320 Dimmable NO Diameter 28 Length 1500 Base Type G13

      Warning: The luminaire that these LED tubes are installed in may need to be converted in accordance with AS/NZS60598.2.1:2014 by a suitably qualified person. In all instances any electronic components (i.e. driver, electronic ballast, capacitor) must be removed from the circuit. Refer installation instructions for more details, in particular the orientation of the lamp ACTIVE supply.

      IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
