• LED LAMPS

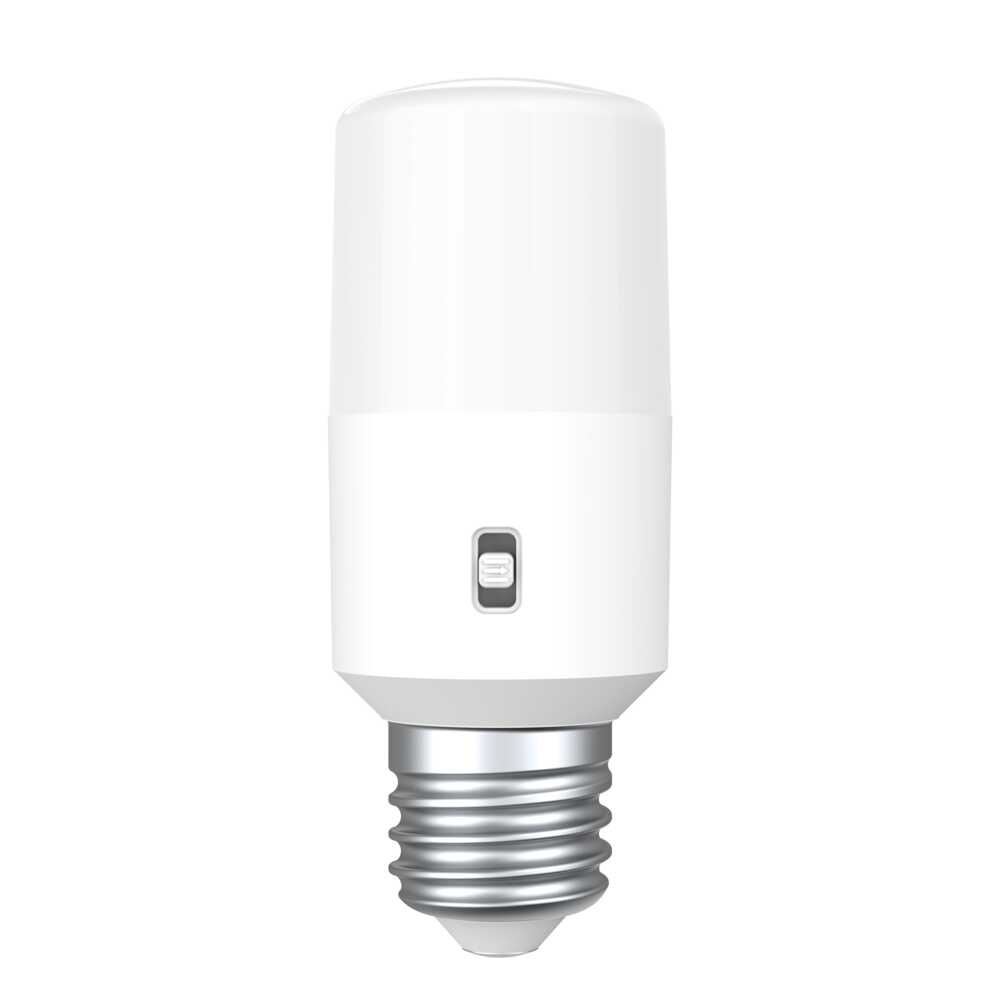

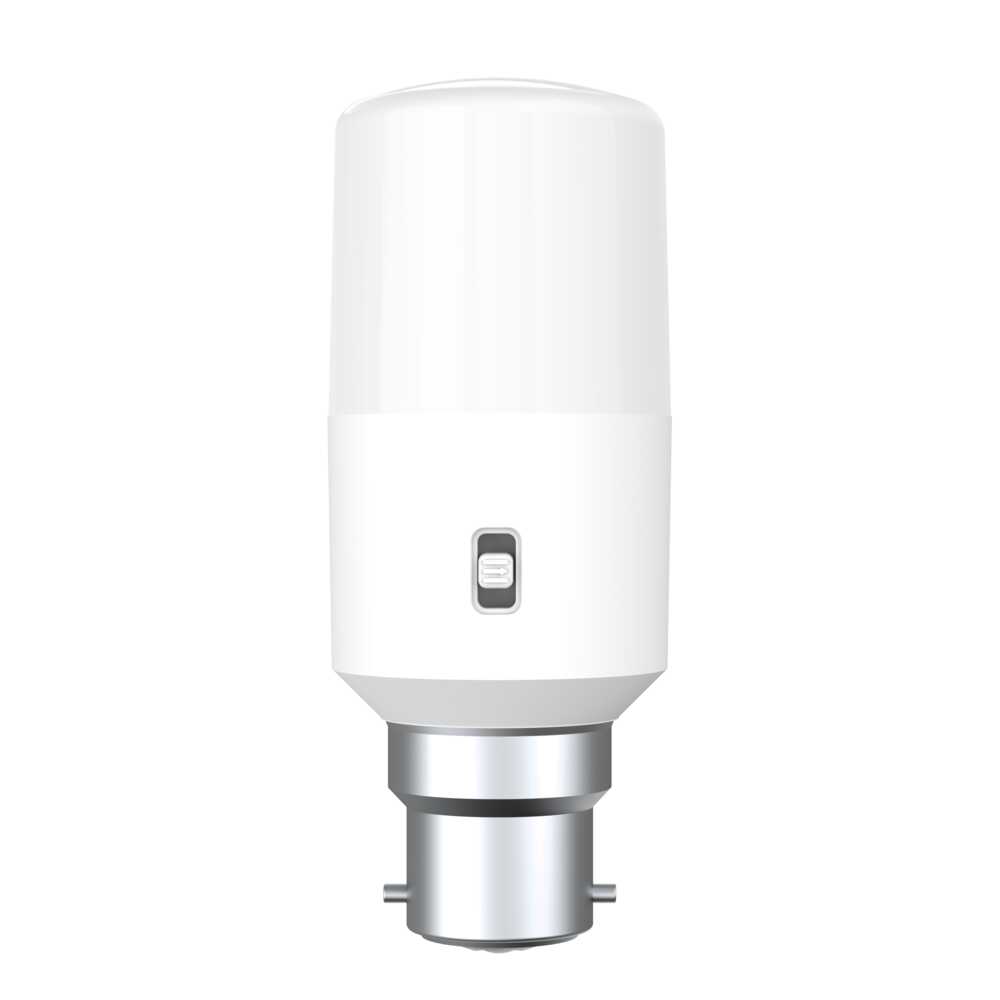

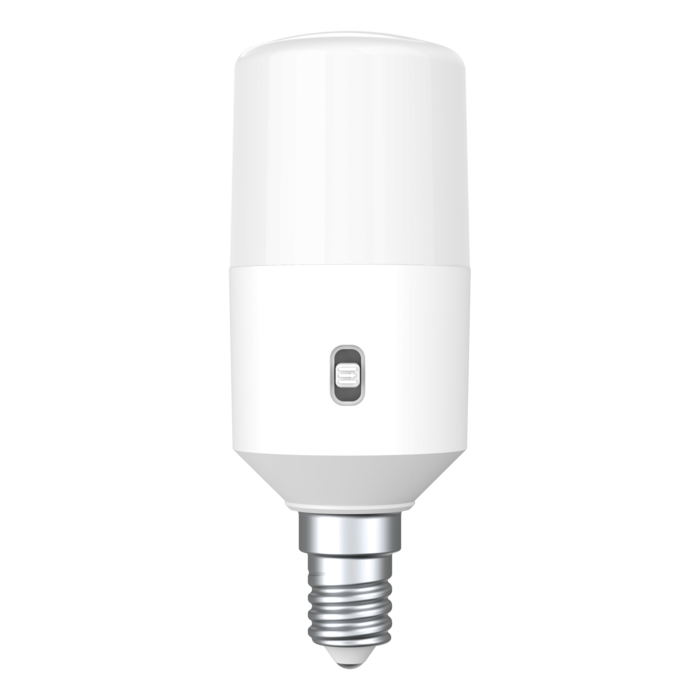

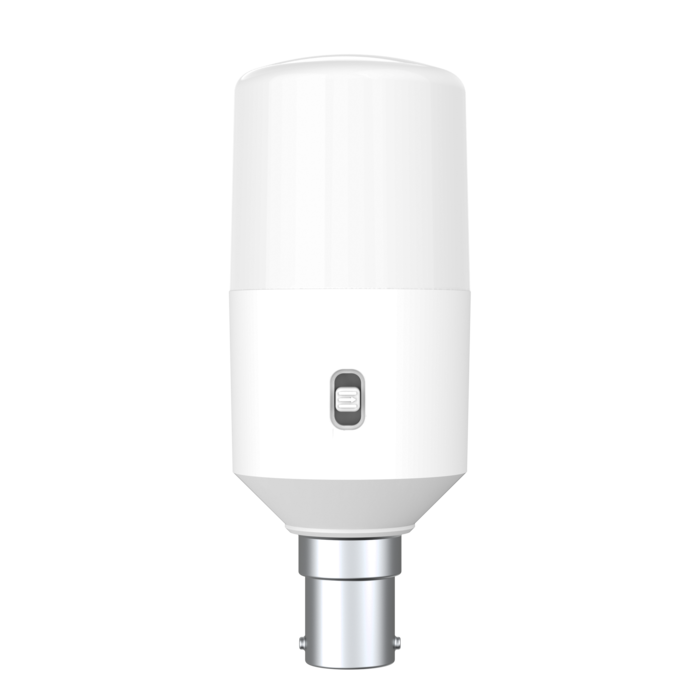

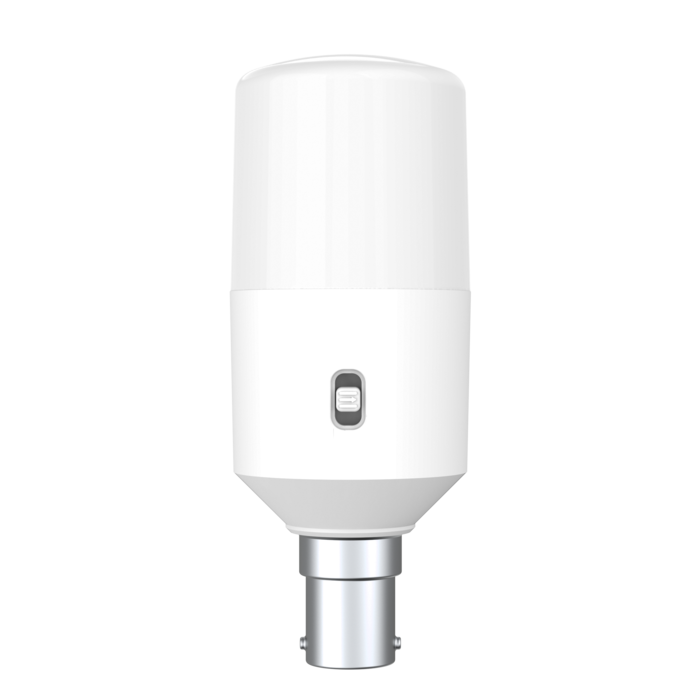

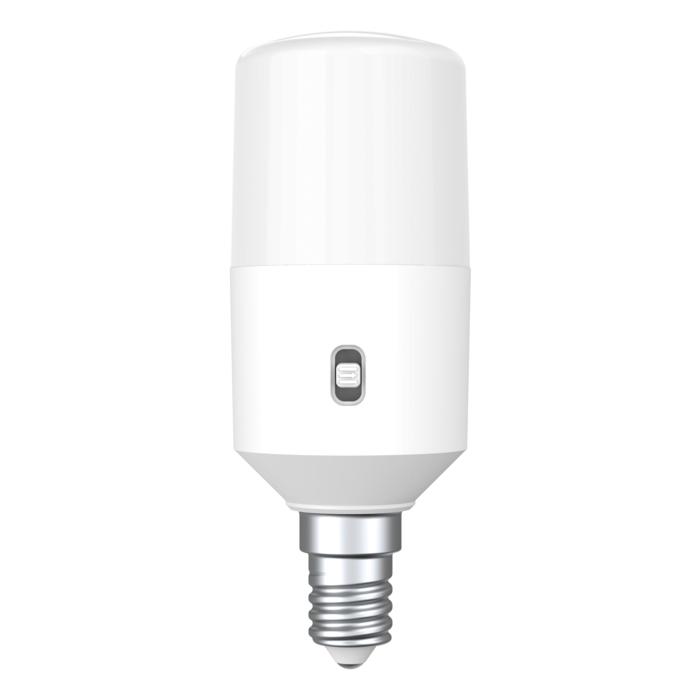

LT SERIES LT407TC - 7W

7 watt LED SMD tubular lamps, with selectable colour temperature

Application

Energy efficient LED lamp solutions

Design Specifications

  • Opal polycarbonate diffuser
  • Poly covered aluminium body
  • High efficiency SMD LED chips, beam 200 degree

  • Integral non-dimmable LED driver

  • Selectable colour temperature 3000K / 4000K / 6000K, CRI > 80

  • Suits most CFL lamp fitting, lamp bases B22, E27, B15, E14, double insulation

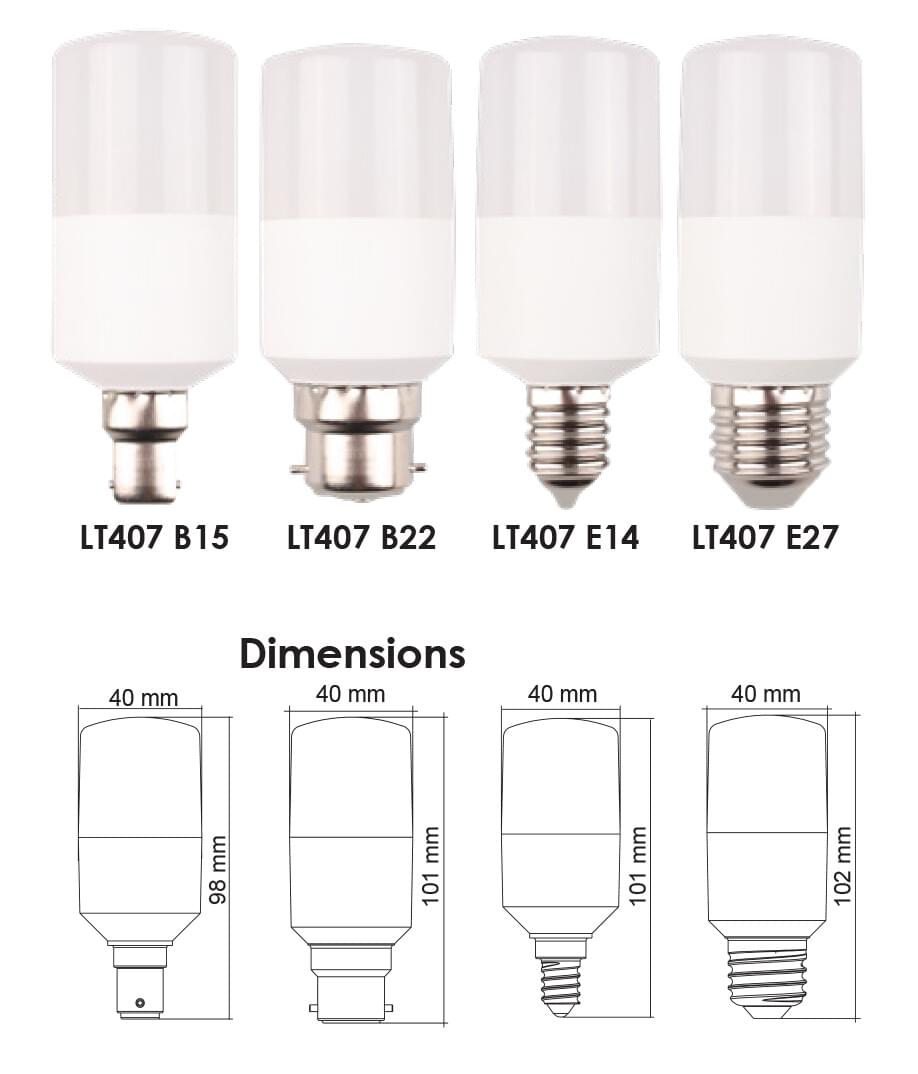

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Technical Specifications
    Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Length Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.LT407TC/B15 Input Voltage240 Power7 Lumens650/700/650 CCT3000/4000/6000 CRI80 Beam Angle200 Dimmable NO Diameter40 Length98 Base TypeB15 Add to Enquiry Add Remove Remove
    Model No.LT407TC/E14 Input Voltage240 Power7 Lumens650/700/650 CCT3000/4000/6000 CRI80 Beam Angle200 Dimmable NO Diameter40 Length101 Base TypeE14 Add to Enquiry Add Remove Remove
    Model No.LT407TC/B22 Input Voltage240 Power7 Lumens650/700/650 CCT3000/4000/6000 CRI80 Beam Angle200 Dimmable NO Diameter40 Length101 Base TypeB22 Add to Enquiry Add Remove Remove
    Model No.LT407TC/E27 Input Voltage240 Power7 Lumens650/700/650 CCT3000/4000/6000 CRI80 Beam Angle200 Dimmable NO Diameter40 Length102 Base TypeE27 Add to Enquiry Add Remove Remove

    IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.
