• LED LAMPS

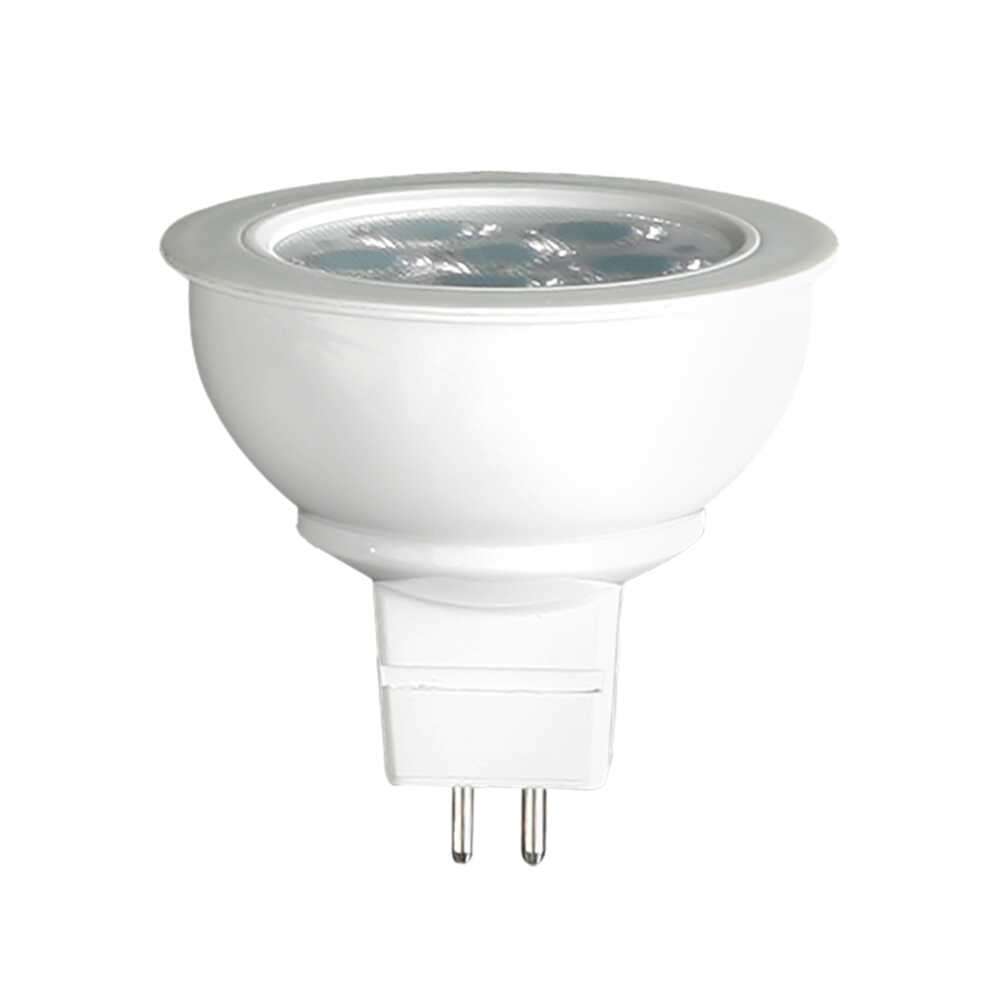

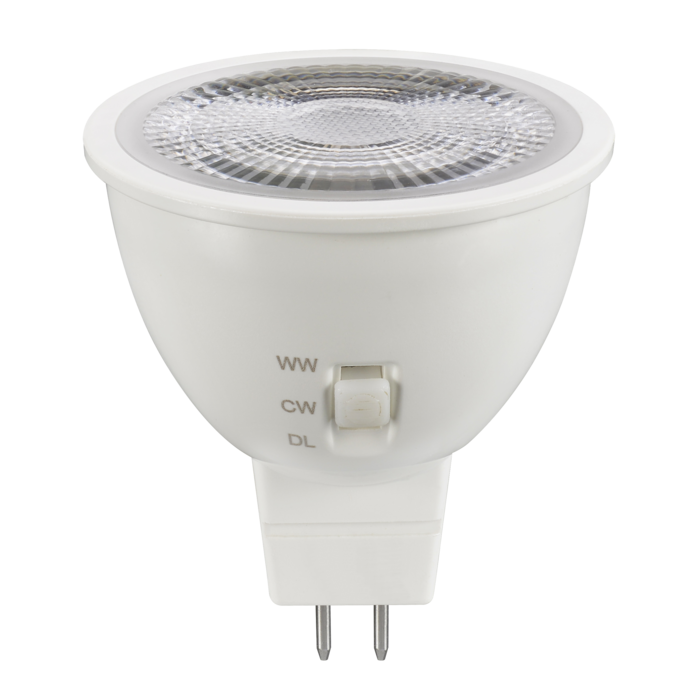

LED MR16 TC - 4/6W

Non-dimmable 4 watt / 6 watt - MR 16 profile shape LED, with selectable colour temperature

Application

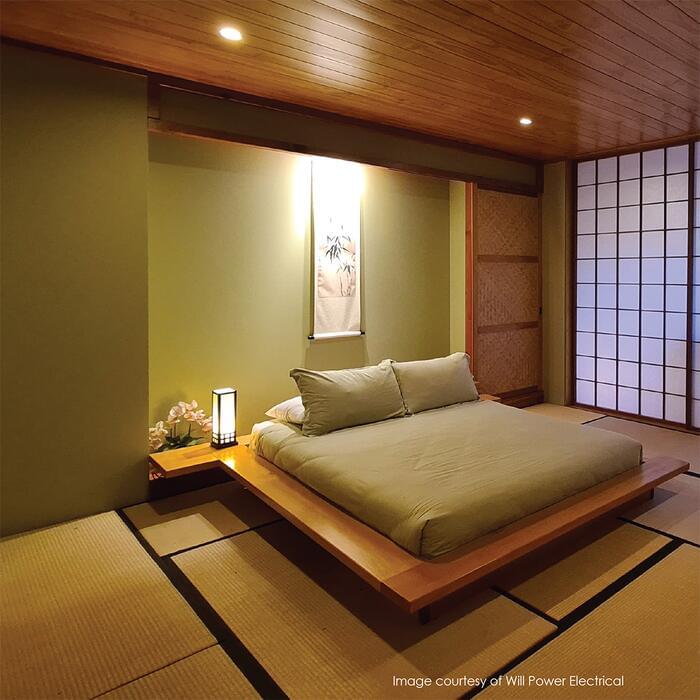

Ideal for any residential interior space

Design Specifications

  • Shockproof frosted polycarbonate lens

  • Die-cast aluminium body

  • High efficiency SMD LED chips

  • Recommended driver is the SAL MINl60

  • Beam distribution 38 degree

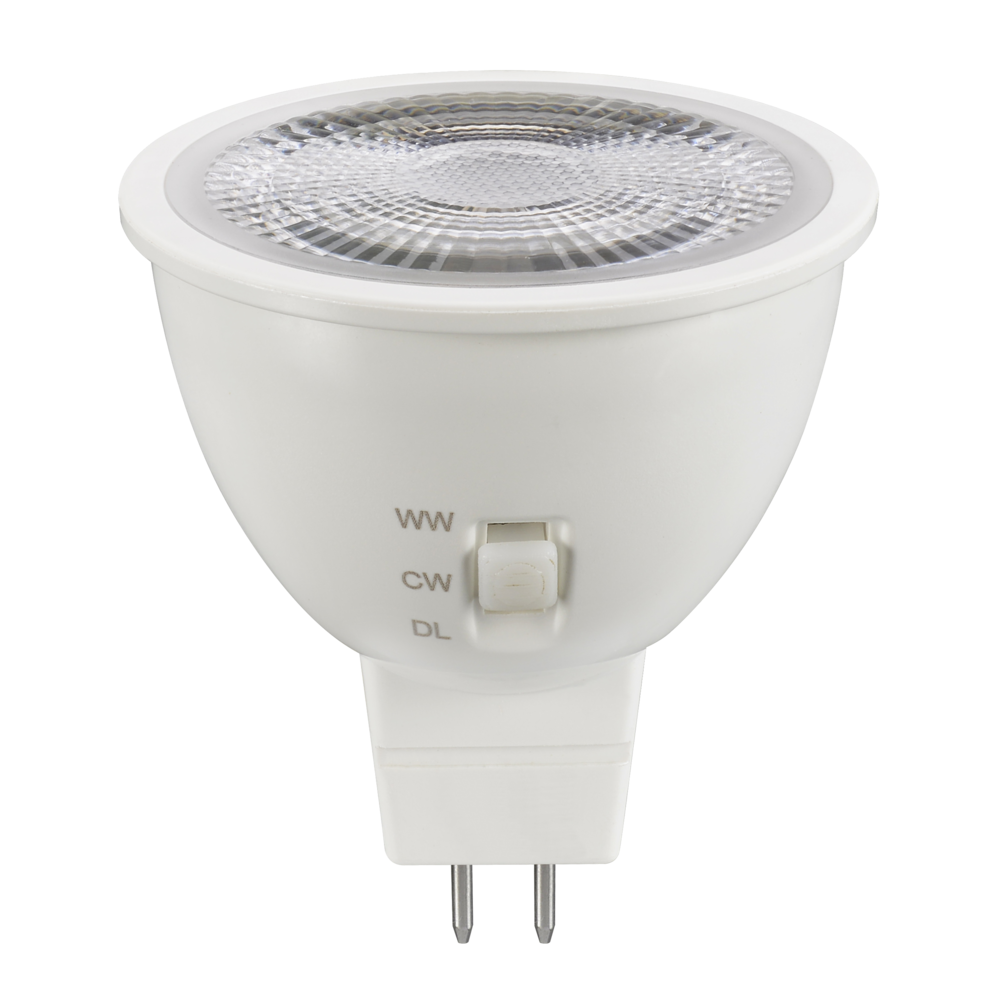

  • Selectable colour temperature 3000K/4000K/6000K, lamp base GU5.3


  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

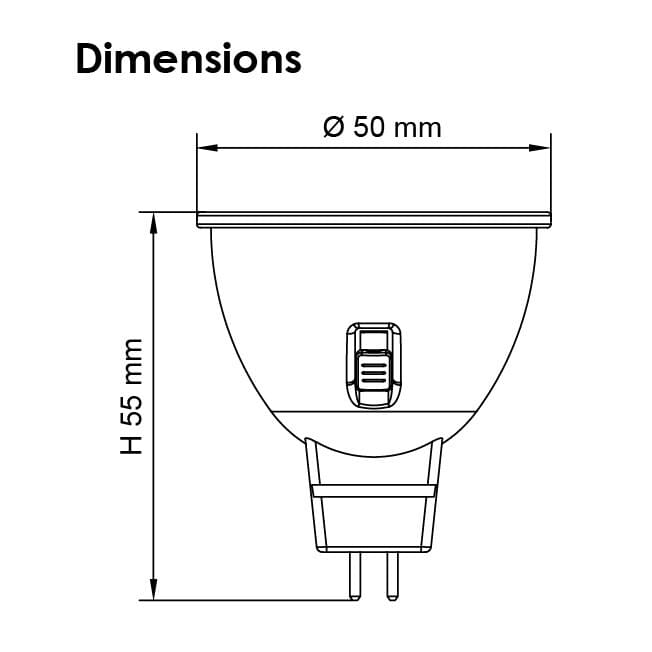

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Technical Specifications
    Model No. Input Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.MR16/5W/TC Input Voltage12 Input Voltage12 Power4 Lumens360/400/380 CCT3000/4000/6000 CRI80 Beam Angle38 Dimmable NO Base TypeGU5.3 Add to Enquiry Add Remove Remove
    Model No.MR16/7W/TC Input Voltage12 Input Voltage12 Power6 Lumens500/600/550 CCT3000/4000/6000 CRI80 Beam Angle38 Dimmable NO Base TypeGU5.3 Add to Enquiry Add Remove Remove

    IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
