• LAMPS

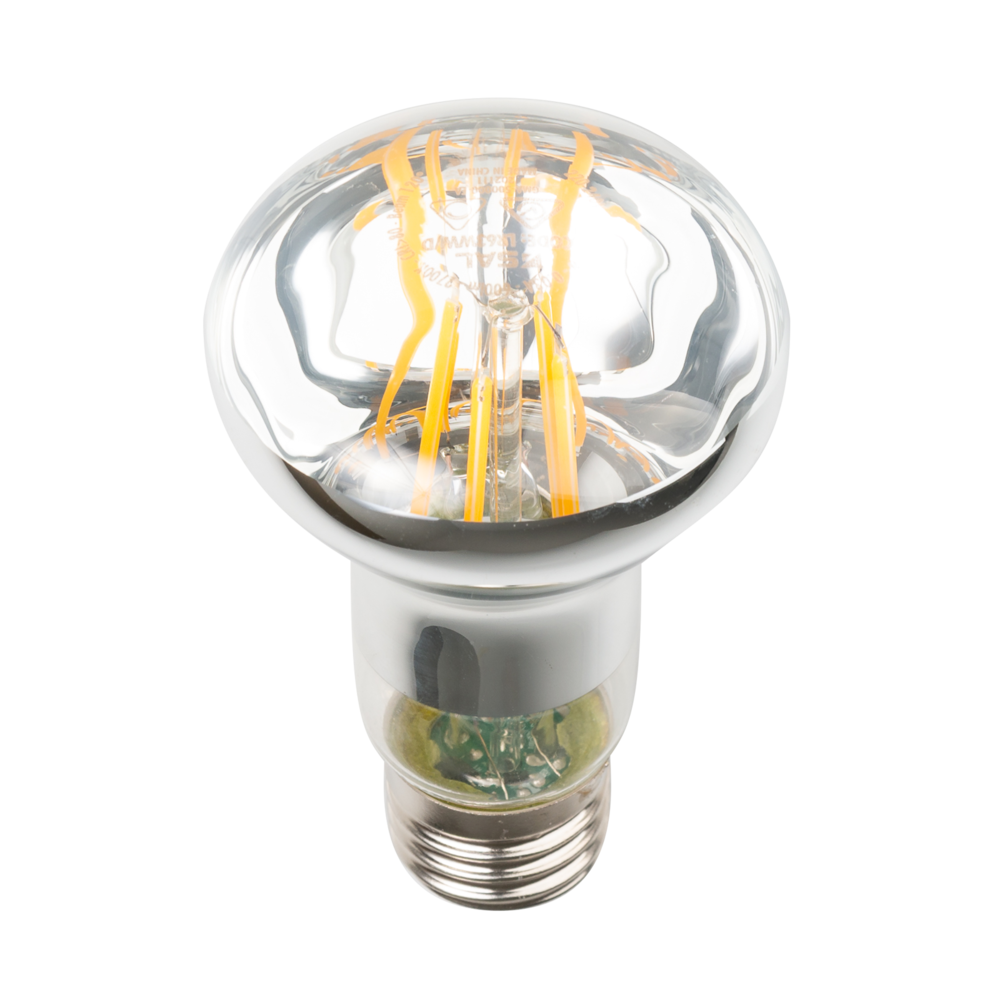

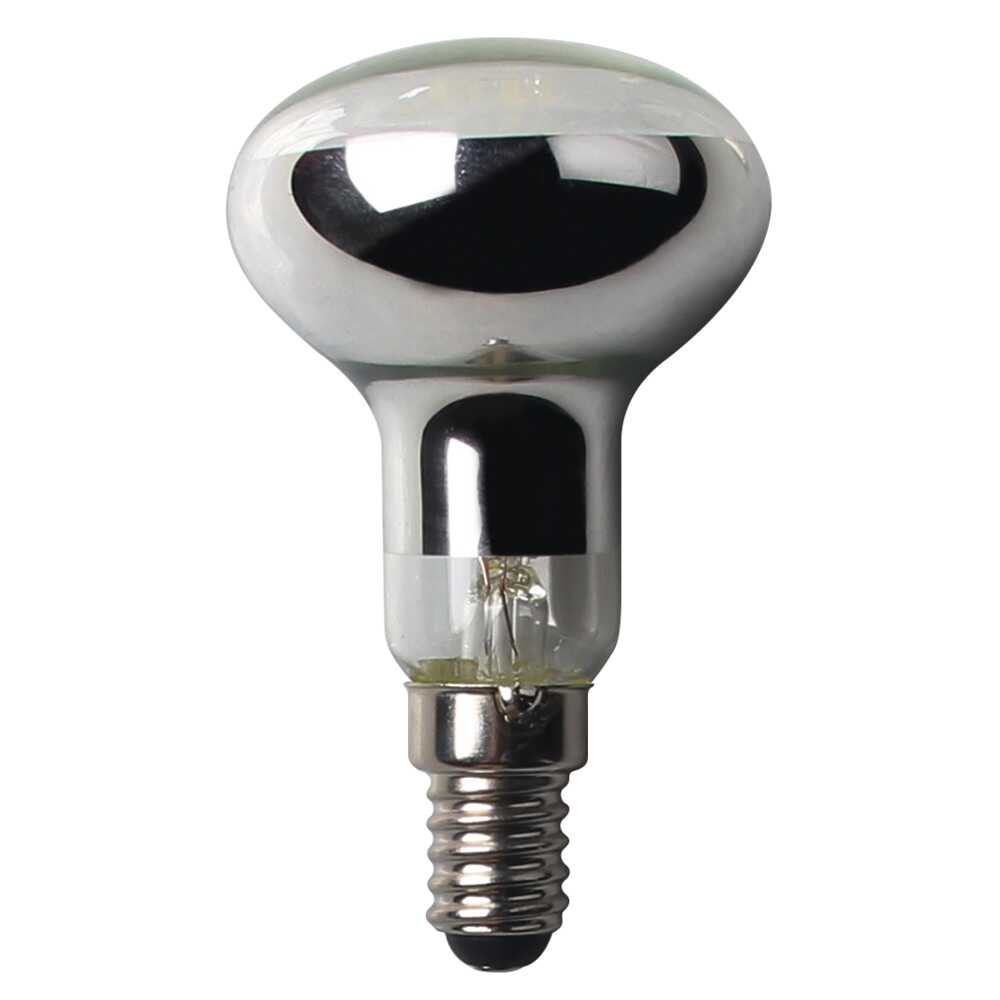

R SERIES DIMMABLE LR50/D - 5W

5 watt LED directional and dimmable reflector lamps

Application

Perfect for residential spaces

Design Specifications

  • 120° beam distribution

  • Mirror reflector, glass body profile

  • High efficiency filament LED

  • Integral dimmable LED driver

  • CCT choice of  2700K / 6000K, CRI 80

  • 1:1 size to traditional R shaped lamps, suits most R lamp fittings

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing Edge
  • WARM WHITE2700K
  • DAYLIGHT6000K

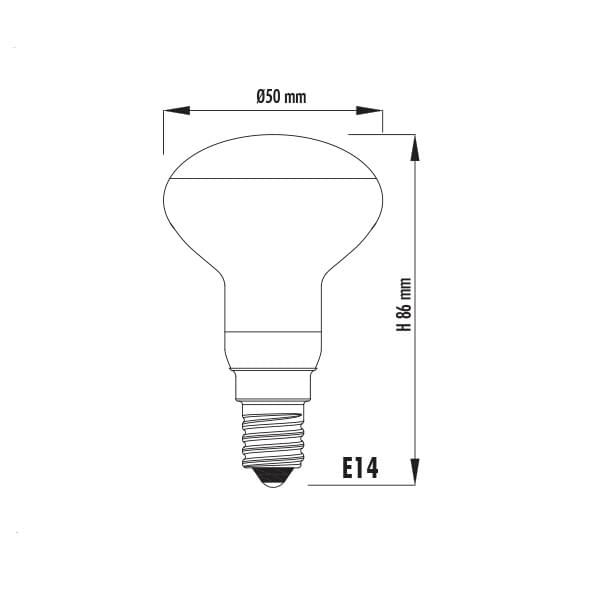

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Height Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.LR50WW/D Input Voltage240 Power5 Lumens300 CCT2700 CRI80 Beam Angle120 Dimmable YES Diameter50 Height86 Base TypeE14 Add to Enquiry Add Remove Remove
    Model No.LR50DL/D Input Voltage240 Power5 Lumens400 CCT6000 CRI80 Beam Angle120 Dimmable YES Diameter50 Height86 Base TypeE14 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
