SPHERICAL OPAL DIMMABLE LG125 - 12W

12 watt dimmable LED opal spherical lamp

Application

Energy efficient LED lamp solutions, with B22 or E27 bases

Design Specifications

  • Opal polycarbonate diffuser

  • Poly covered aluminium body, B22 or E27 lamp bases

  • High efficiency LED optics, beam distribution 240°

  • Integral trailing edge dimmable LED driver

  • CCT choice of  3000K / 6000K, CRI >80

  • 1:1 size to traditional spherical lamp, dimmable, suits most spherical lamp fittings

Performance

  • Dimmable - YES
  • Dimmer Type - TRAILING EDGE
  • WARM WHITE3000K
  • DAYLIGHT6000K

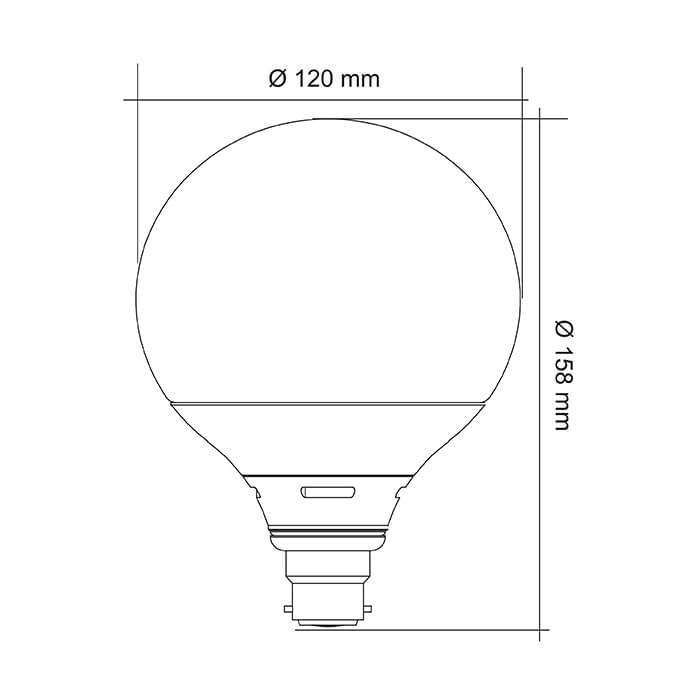

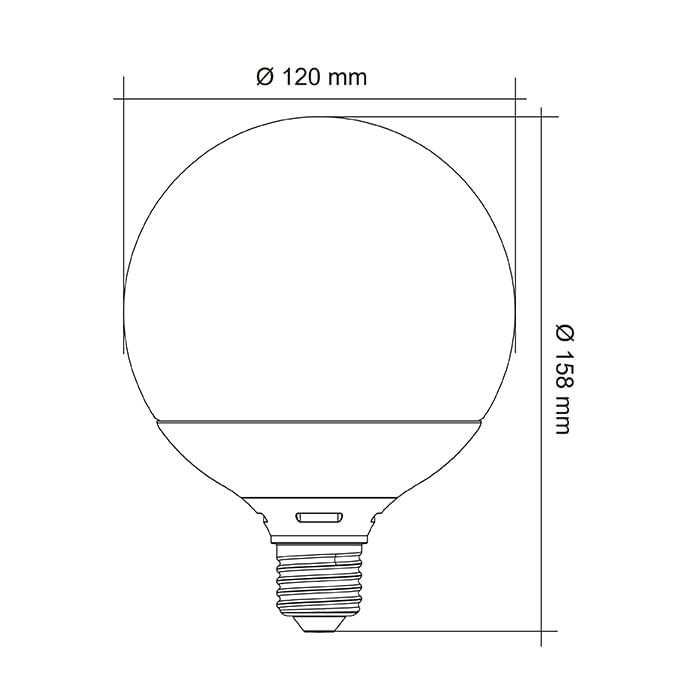

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Diameter Length Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.LG125/830B22 Input Voltage240 Power12 Lumens1100 CCT3000 CRI80 Beam Angle240 Dimmable YES Diameter120 Length158 Base TypeB22 Add to Enquiry Add Remove Remove
    Model No.LG125/860B22 Input Voltage240 Power12 Lumens1200 CCT6000 CRI80 Beam Angle240 Dimmable YES Diameter120 Length158 Base TypeB22 Add to Enquiry Add Remove Remove
    Model No.LG125/830E27 Input Voltage240 Power12 Lumens1100 CCT3000 CRI80 Beam Angle240 Dimmable YES Diameter120 Length158 Base TypeE27 Add to Enquiry Add Remove Remove
    Model No.LG125/860E27 Input Voltage240 Power12 Lumens1200 CCT6000 CRI80 Beam Angle240 Dimmable YES Diameter120 Length158 Base TypeE27 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
