• LAMPS

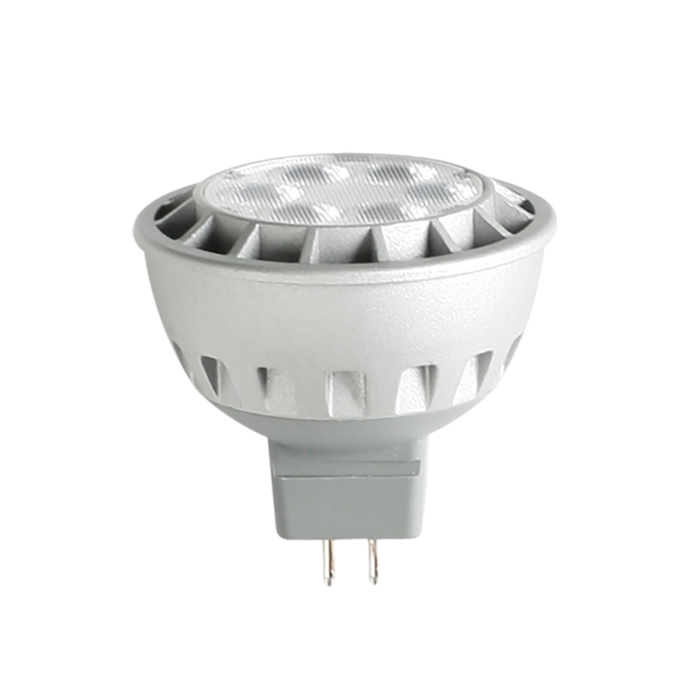

MR16 - 7 W

7 watt - MR16 profile shape LED

Application

Ideal for any residential interior space

Design Specifications

  • Shockproof frosted polycarbonate lens

  • Die cast aluminium body

  • High efficiency LED optics,
    beam distribution 60 degree

  • 12V AC or DC driver required, non dimmable

  • 7 watt, CRI > 80, CCT 3000K / 4000K / 6000K

  • Lamp base GU5.3

Performance

  • Dimmable - NO
LIMITED STOCK
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Base Type Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.MR16/7W/WW Input Voltage12 Input Voltage12 Power7 Lumens500 CCT3000 CRI80 Beam Angle60 Dimmable NO Base TypeGU5.3 Add to Enquiry Add Remove Remove
    Model No.MR16/7W/CW Input Voltage12 Input Voltage12 Power7 Lumens550 CCT4000 CRI80 Beam Angle60 Dimmable NO Base TypeGU5.3 Add to Enquiry Add Remove Remove
    Model No.MR16/7W/DL Input Voltage12 Input Voltage12 Power7 Lumens550 CCT6000 CRI80 Beam Angle60 Dimmable NO Base TypeGU5.3 Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
