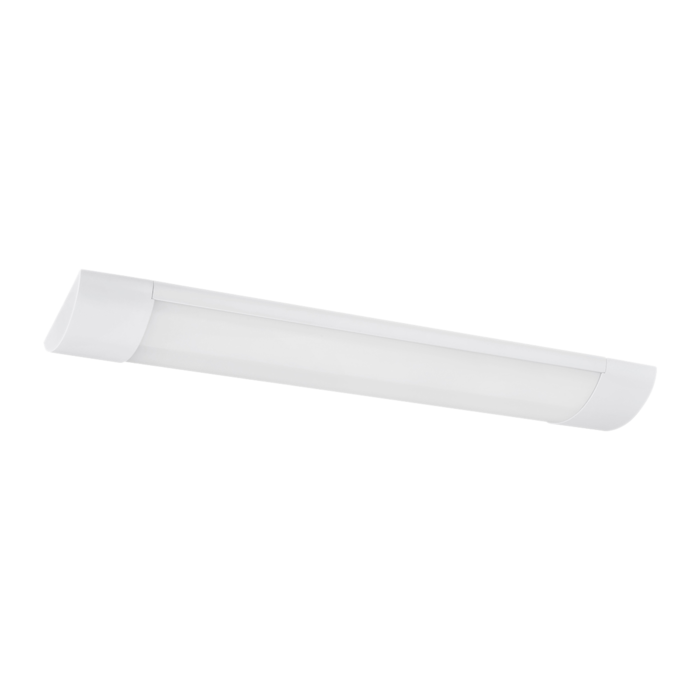

BLADE SL9707TC - 20W/35W

LED low profile batten with selectable CCT

Application

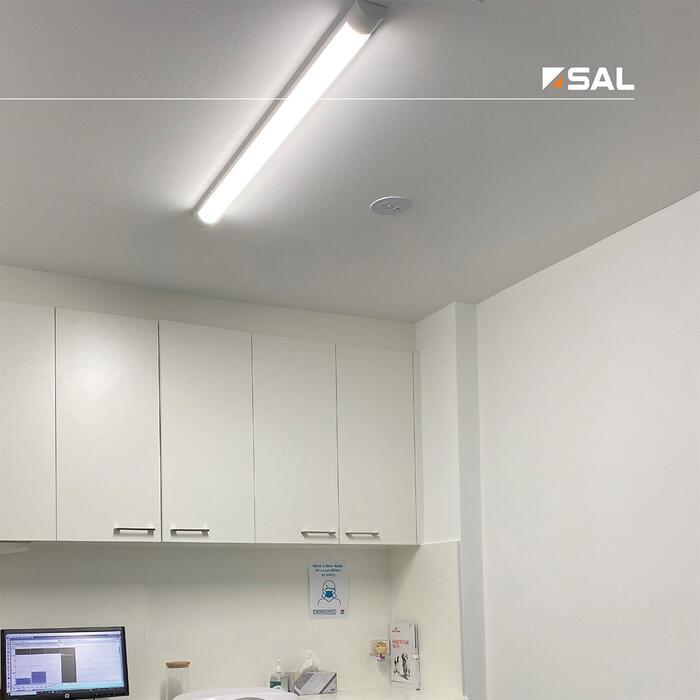

Conventional LED profile battens for commercial service spaces

Design Specifications

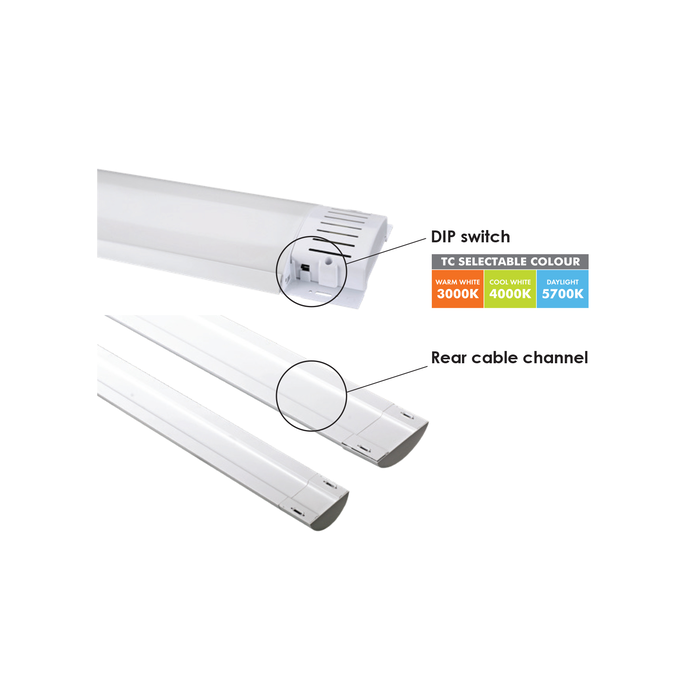

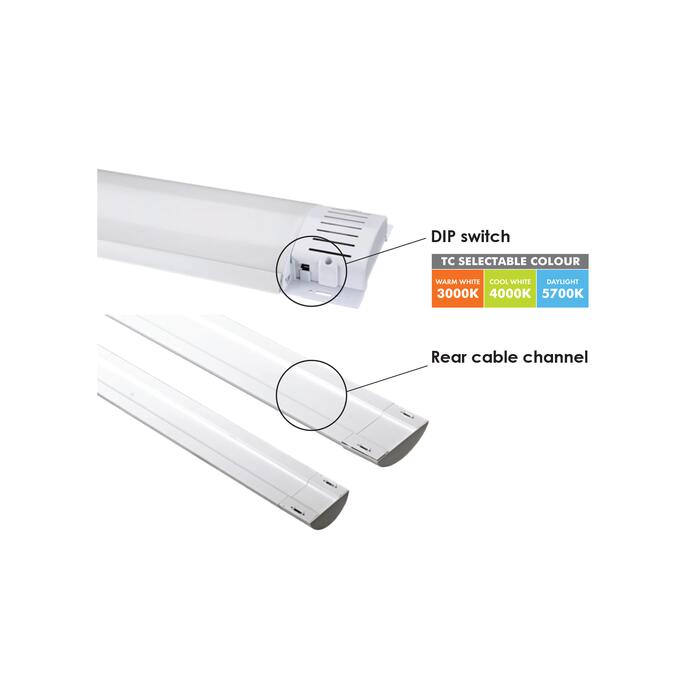

  • Selectable CCT 3000K / 4000K / 5700K

  • Extruded aluminium body with plastic end cap with a rear cable channel allowing easy wiring

  • White powder coat finish

  • Integral constant current non-dimmable LED driver, 20, 30 or 35 watt

  • Robust opal polycarbonate diffuser

  • High efficiency LED optics, CRI >80, 120° beam distribution

Performance

  • Dimmable - NO
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dim Body Colour IPART Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SL9707/60TC Input Voltage240 Power20 Lumens2600/2800/2800 CCT3000/4000/5700 CRI80 Beam Angle120 Dim597(L) x 80(W) x 35(H) Body ColourWHITE IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SL9707/120TC Input Voltage240 Power30 Lumens4200/4500/4500 CCT3000/4000/5700 CRI80 Beam Angle120 Dim1197(L) x 80(W) x 35(H) Body ColourWHITE IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SL9707/150TC Input Voltage240 Power35 Lumens4800/5100/5100 CCT3000/4000/5700 CRI80 Beam Angle120 Dim1485(L) x 80(W) x 35(H) Body ColourWHITE IPART Add to Enquiry Add Remove Remove

    IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
