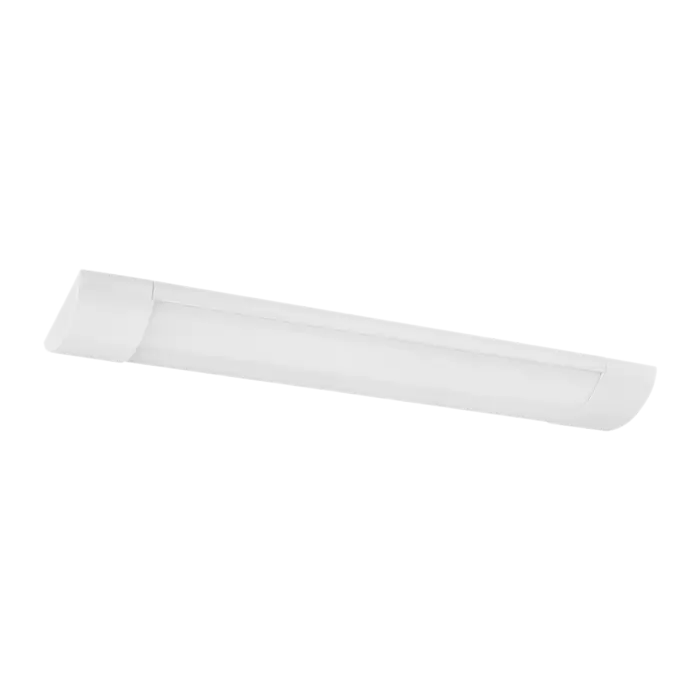

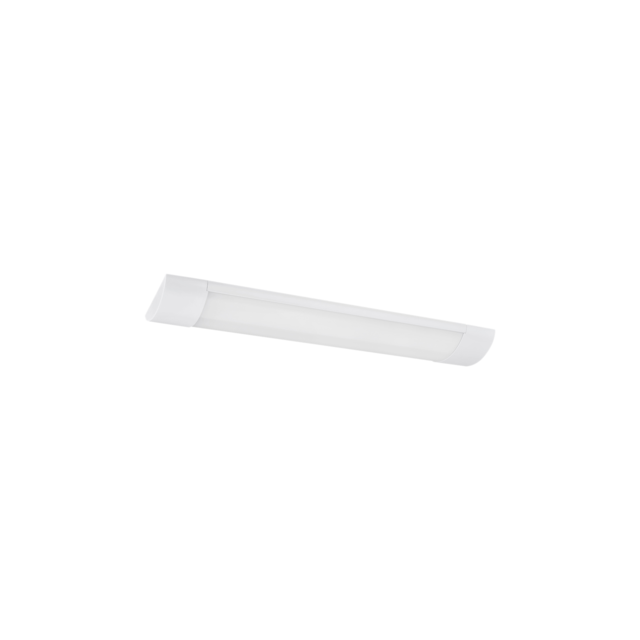

BLADE SL9709 TC - 25W/50W

LED low profile batten with selectable CCT

Application

Conventional LED profile battens for commercial service spaces

Design Specifications

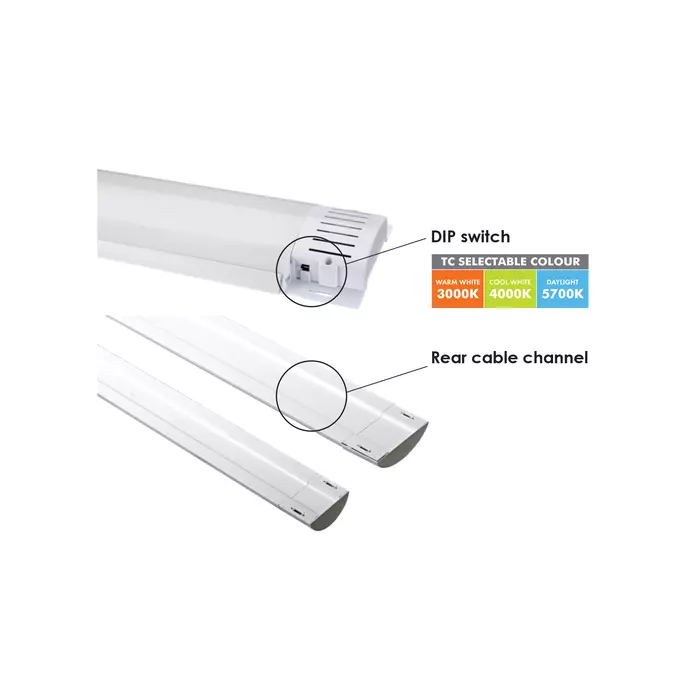

  • Selectable CCT 3000K/4000K/5700K

  • Extruded aluminium body with plastic end cap with a rear cable channel allowing easy wiring
  • White powder coat finish

  • Integral constant current non-dimmable LED driver, 25, 45 or 50 watt

  • Robust opal polycarbonate diffuser

  • High efficiency LED optics, CRI >80, 120° beam distribution

Performance

  • Dimmable - NO
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dim Body Colour IPART Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL9709/60TC Input Voltage240 Power25 Lumens3400/3600/3600 CCT3000/4000/5700 CRI80 Beam Angle120 Dim613(L) x 120(W) x 35(H) Body ColourWHITE IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SL9709/120TC Input Voltage240 Power45 Lumens6100/6500/6500 CCT3000/4000/5700 CRI80 Beam Angle120 Dim1213(L) x 120(W) x 35(H) Body ColourWHITE IPARTN/A Add to Enquiry Add Remove Remove
    Model No.SL9709/150TC Input Voltage240 Power50 Lumens6900/7300/7300 CCT3000/4000/5700 CRI80 Beam Angle120 Dim1485(L) x 120(W) x 35(H) Body ColourWHITE IPART Add to Enquiry Add Remove Remove

    IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.
