• LED LINEAR BATTENS & PROFILES

ECOLINE EXTRA SL9737TC/DP - 10/50W

LED WIDE (90mm) diffused batten with selectable colour temperature, dual power with emergency and sensor options

Application

Extra wide 90mm conventional style linear LED batten design for commercial services

Design Specifications

  • Quality white powder coat finish with a robust opal polycarbonate diffuser

  • Selectable power with flickerCONTROL technology

  • Large terminal block for easier installation

  • Selectable colour temperature 3000K/4000K/5700K

  • High efficiency SMD LED, CRI >80, 120° beam distribution

  • Optional sensor, dimming and emergency configurations

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI/DSI
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Multiple Wattage Lumens CCT CRI Beam Angle Dimmable Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

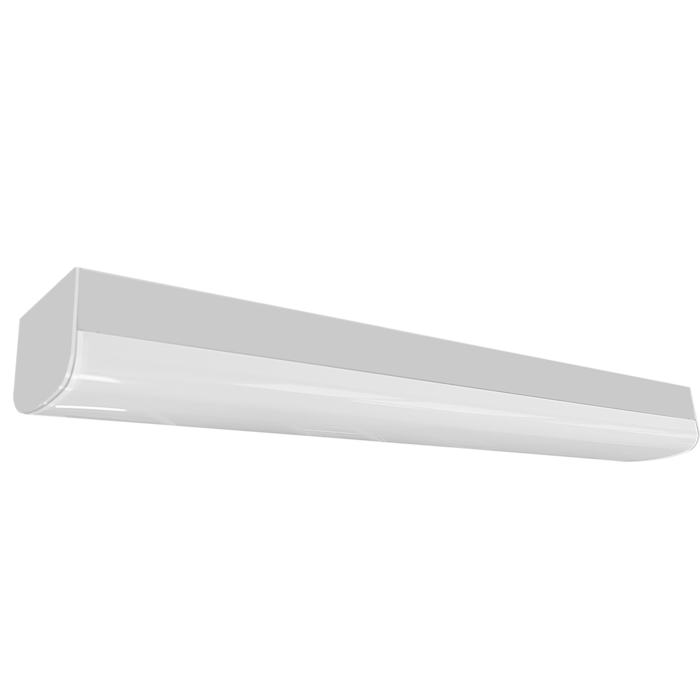

    Model No.SL9737/20TC/DP Input Voltage240 Power Multiple Wattage10/20 Lumens2400/2600/2400 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable NO Dim610(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove

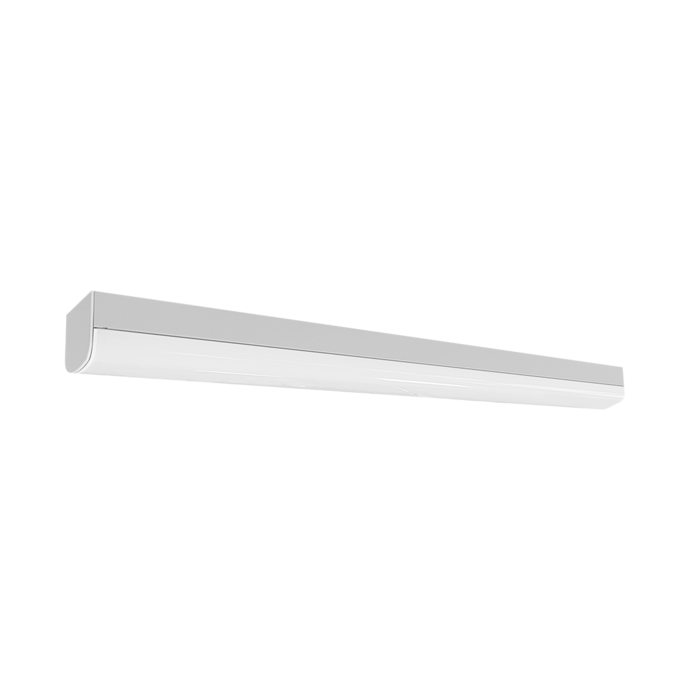

    Model No.SL9737/40TC/DP Input Voltage240 Power Multiple Wattage20/40 Lumens4550/5200/4950 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable NO Dim1225(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9737/50TC/DP Input Voltage240 Power Multiple Wattage25/50 Lumens5600/6450/5950 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable NO Dim1519(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove

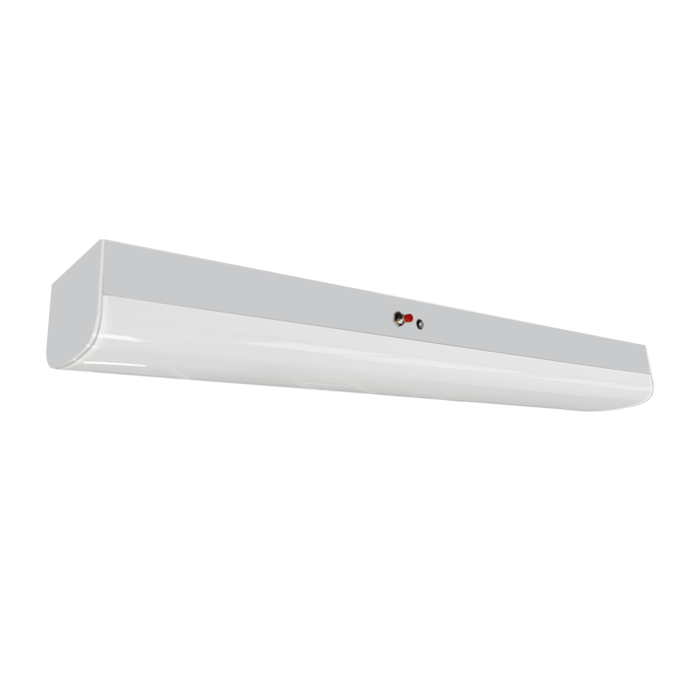

    Model No.SL9737/20TC/DP/EM Input Voltage240 Power Multiple Wattage10/20 Lumens2400/2600/2400 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable NO Dim610(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9737/40TC/DP/EM Input Voltage240 Power Multiple Wattage20/40 Lumens4550/5200/4950 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable NO Dim1225(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9737/50TC/DP/EM Input Voltage240 Power Multiple Wattage25/50 Lumens5600/6450/5950 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable NO Dim1519(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9737/20TC/DP/S Input Voltage240 Power Multiple Wattage10/20 Lumens2400/2600/2400 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable NO Dim610(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9737/40TC/DP/S Input Voltage240 Power Multiple Wattage20/40 Lumens4550/5200/4950 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable NO Dim1225(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9737/50TC/DP/S Input Voltage240 Power Multiple Wattage25/50 Lumens5600/6450/5950 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable NO Dim1519(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9737/20TC/DIM Input Voltage240 Power20 Multiple Wattage Lumens2400/2600/2400 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable YES Dim610(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9737/40TC/DIM Input Voltage240 Power40 Multiple Wattage Lumens4550/5200/4950 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable YES Dim1225(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9737/50TC/DIM Input Voltage240 Power50 Multiple Wattage Lumens5600/6450/5950 CCT3000/4000/5700 CRI80 Beam Angle100 Dimmable YES Dim1519(L) x 90(W) x 66(H) Body ColourWHITE Add to Enquiry Add Remove Remove

    NOTE: lumens (lm) shown are at FULL power setting

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
