ECOLINE III SL9732TC - 10W/50W

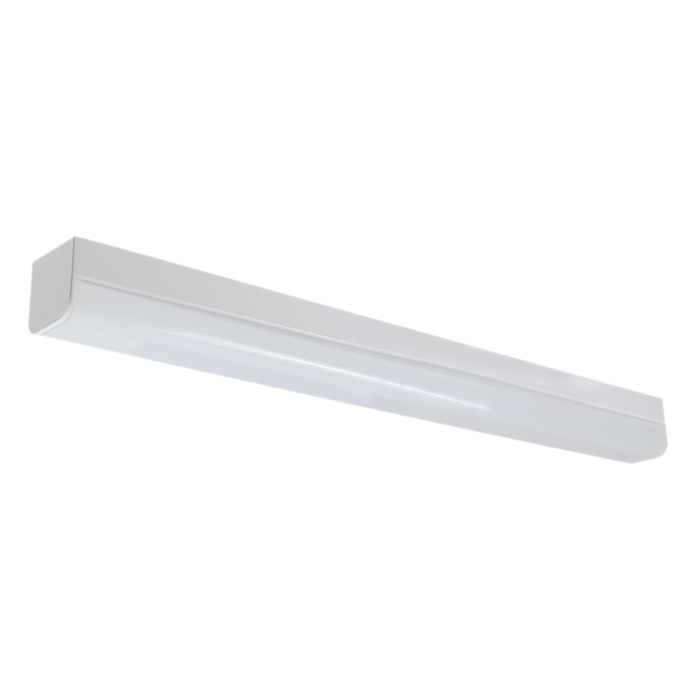

LED narrow diffused batten with selectable CCT and Dual Power

Application

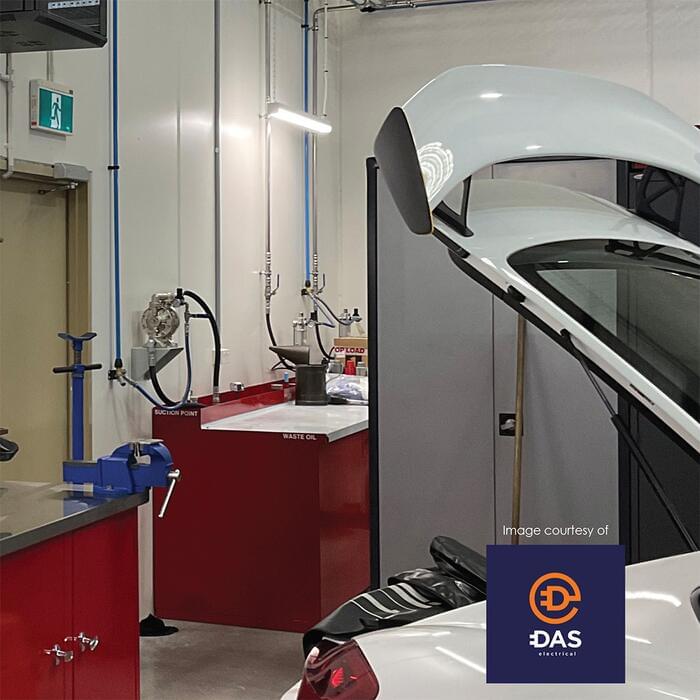

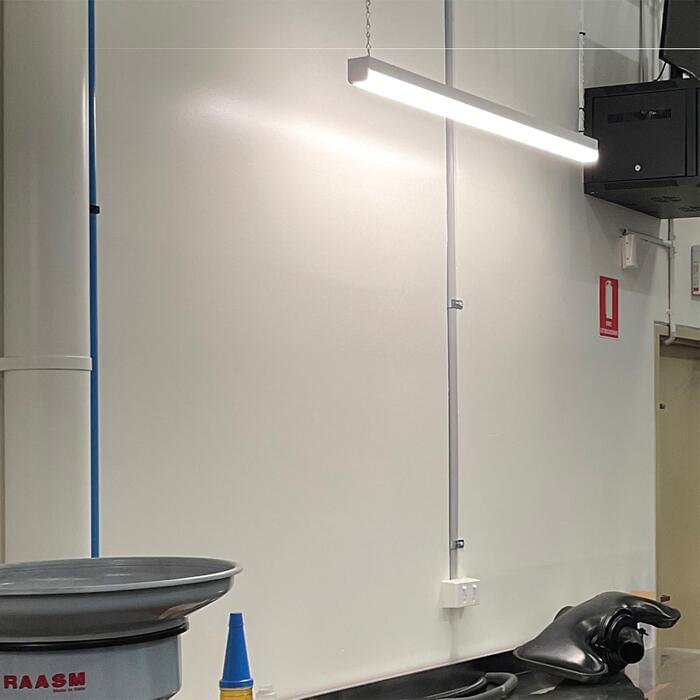

Conventional linear LED batten products for commercial service spaces

Design Specifications

  • 65 mm narrow steel body

  • White powder coat finish with a robust polycarbonate diffuser

  • Large terminal block, easy installation

  • Selectable CCT  3000K/4000K/5700K

  • High efficiency LED optics, CRI >80, 120° beam distribution

  • Integral LED driver with selectable power, Emergency options available and Non-dimmable corridorSTANDBY options available

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - refer model no, Trailing edge, 1-10V, DALI / DSI
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Multiple Wattage Lumens CCT CRI Beam Angle Dimmable Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

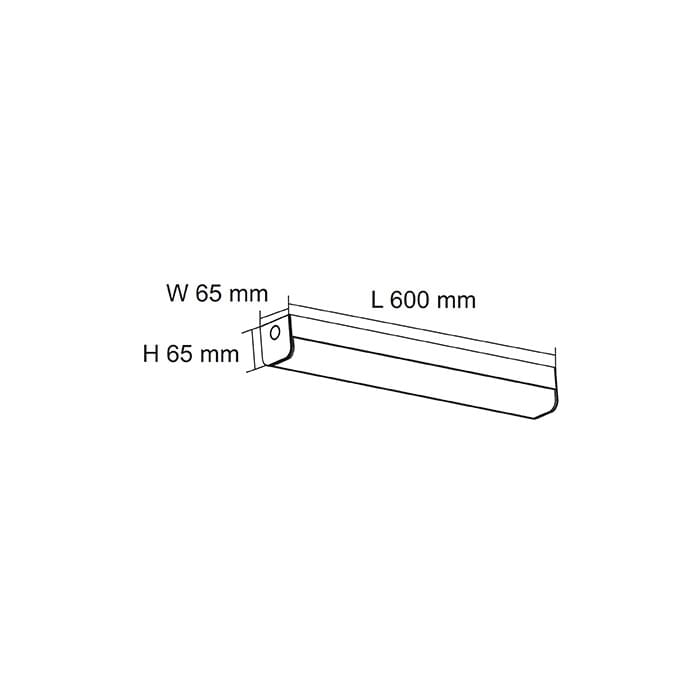

    Model No.SL9732/20TC/DP3 Input Voltage240 Power Multiple Wattage10/20 Lumens2370/2600/2460 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim600(L) x 65(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove

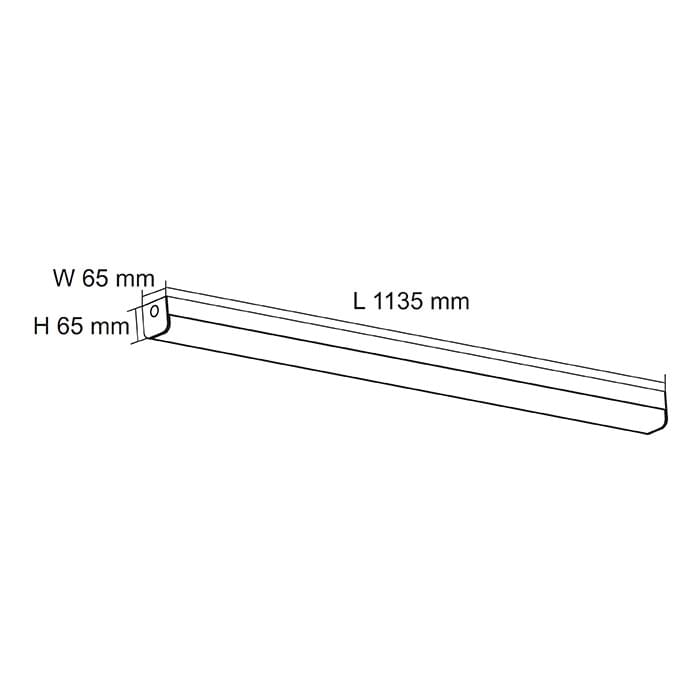

    Model No.SL9732/40TC/DP3 Input Voltage240 Power Multiple Wattage20/40 Lumens4600/5100/4860 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1135(L) x 65(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9732/50TC/DP3 Input Voltage240 Power Multiple Wattage25/50 Lumens6100/6700/6300 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1455(L) x 65(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9732/20TC/DP3EM Input Voltage240 Power Multiple Wattage10/20 Lumens2370/2600/2460 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim600(L) x 65(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9732/40TC/DP3/EM Input Voltage240 Power Multiple Wattage24/40 Lumens4880/5340/5070 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1135(L) x 65(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9732/50TC/DP3EM Input Voltage240 Power Multiple Wattage25/50 Lumens6100/6700/6300 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1455(L) x 65(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9732/20TC/DP3S Input Voltage240 Power Multiple Wattage10/20 Lumens2370/2600/2460 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim600(L) x 65(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9732/40TC/DP3S Input Voltage240 Power Multiple Wattage20/40 Lumens4600/5100/4860 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1135(L) x 65(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9732/20TC3DIM Input Voltage240 Power20 Multiple Wattage Lumens2400/2500/2450 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable YES Dim600(L) x 65(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9732/40TC3DIM Input Voltage240 Power40 Multiple Wattage Lumens4650/4900/4700 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable YES Dim1135(L) x 65(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL9732/50TC3DIM Input Voltage240 Power40 Multiple Wattage Lumens4650/4900/4700 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable YES Dim1455(L) x 65(W) x 65(H) Body ColourWHITE Add to Enquiry Add Remove Remove

    NOTE: lumens (lm) shown are at FULL power setting

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
