• LED LINEAR BATTENS & PROFILES

ECOLINE MKII SL9732 - 12/50W

LED narrow diffused batten with selectable colour temperature, dual power and sensor options

Application

Conventional linear LED batten products for commercial service spaces

Design Specifications

  • 65 mm narrow steel body

  • Quality white powder coat finish with robust polycarbonate diffuser

  • Large terminal block, easy installation

  • Selectable CCT 3000K/4000K/5700K (SL9732/TC/DP)

  • High efficiency (>125lm/W) LED, CRI >80, 120° beam distribution

  • Integral constant current non-dimmable LED driver with selectable power, Emergency options available compliant to AS/NZS2293, corridorSTANDBY (microwave sensor) options available, for sensor settings

    DP2 models only : FlickerCONTROLLED LED driver included.

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
  • Dimensions - Wiring Diagrams
  • Design Options

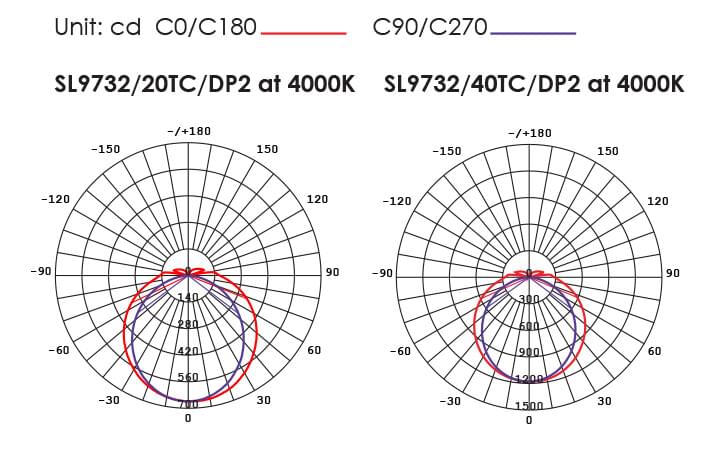

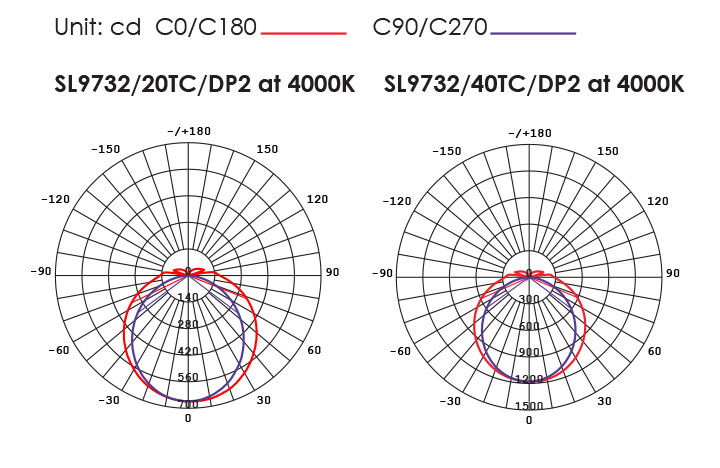

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Multiple Wattage Lumens CCT CRI Beam Angle Dimmable Dim Body Colour IPART VEET Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SL9732/20TC/C Input Voltage240 Power20 Multiple Wattage Lumens2465/2650/2670 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim600(L) x 65(W) x 65(H) Body ColourWHITE IPART VEET Add to Enquiry Add Remove Remove
    Model No.SL9732/20TC/DALI Input Voltage240 Power20 Multiple Wattage Lumens2465/2650/2670 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable YES Dim600(L) x 65(W) x 65(H) Body ColourWHITE IPART VEET Add to Enquiry Add Remove Remove
    Model No.SL9732/20TC/DIM Input Voltage240 Power20 Multiple Wattage Lumens2465/2650/2670 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable YES Dim600(L) x 65(W) x 65(H) Body ColourWHITE IPART VEET Add to Enquiry Add Remove Remove
    Model No.SL9732/40CW2 Input Voltage240 Power40 Multiple Wattage Lumens5000 CCT4000 CRI80 Beam Angle120 Dimmable OPTIONAL Dim1135(L) x 65(W) x 65(H) Body ColourWHITE IPART VEET Add to Enquiry Add Remove Remove
    Model No.SL9732/40DL2 Input Voltage240 Power40 Multiple Wattage Lumens5000 CCT5700 CRI80 Beam Angle120 Dimmable OPTIONAL Dim1135(L) x 65(W) x 65(H) Body ColourWHITE IPART VEET Add to Enquiry Add Remove Remove
    Model No.SL9732/40TC/C Input Voltage240 Power40 Multiple Wattage Lumens4800/5180/5230 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1135(L) x 65(W) x 65(H) Body ColourWHITE IPART VEET Add to Enquiry Add Remove Remove
    Model No.SL9732/40TC/DALI Input Voltage240 Power40 Multiple Wattage Lumens4800/5180/5230 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable YES Dim1135(L) x 65(W) x 65(H) Body ColourWHITE IPARTYES VEETYES Add to Enquiry Add Remove Remove
    Model No.SL9732/40TC/DP2 Input Voltage240 Power Multiple Wattage24/40 Lumens4800/5180/5230 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1135(L) x 65(W) x 65(H) Body ColourWHITE IPARTYES VEETYES Add to Enquiry Add Remove Remove
    Model No.SL9732/40TC/S Input Voltage240 Power Multiple Wattage24/40 Lumens4800/5180/5230 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1135(L) x 65(W) x 65(H) Body ColourWHITE IPART VEET Add to Enquiry Add Remove Remove
    Model No.SL9732/40TC/DIM Input Voltage240 Power40 Multiple Wattage Lumens4800/5180/5230 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable YES Dim1135(L) x 65(W) x 65(H) Body ColourWHITE IPART VEET Add to Enquiry Add Remove Remove
    Model No.SL9732/50TC/DP2 Input Voltage240 Power Multiple Wattage30/50 Lumens5910/6270/6330 CCT3000/4000/5700 CRI80 Beam Angle120 Dimmable NO Dim1455(L) x 65(W) x 65(H) Body ColourWHITE IPART VEETYES Add to Enquiry Add Remove Remove

    NOTE: lumens (lm) shown are at FULL power setting

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
