• LED LINEAR BATTENS & PROFILES

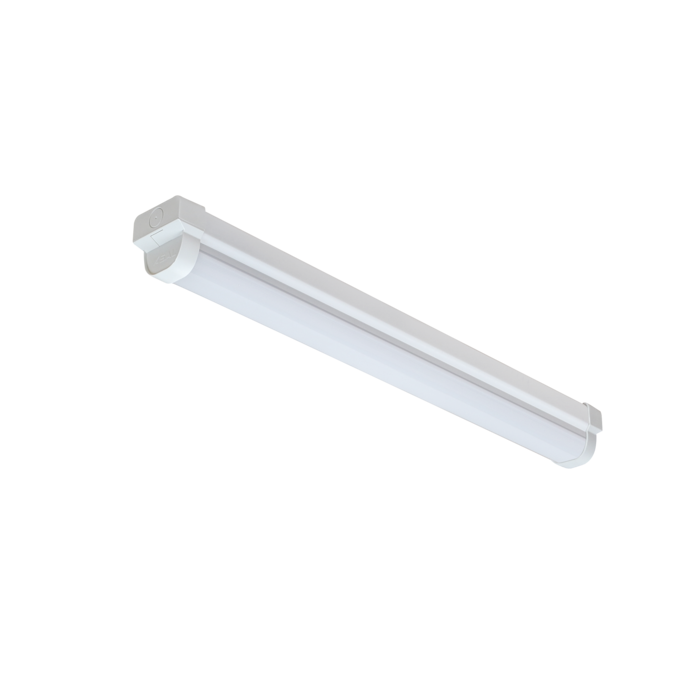

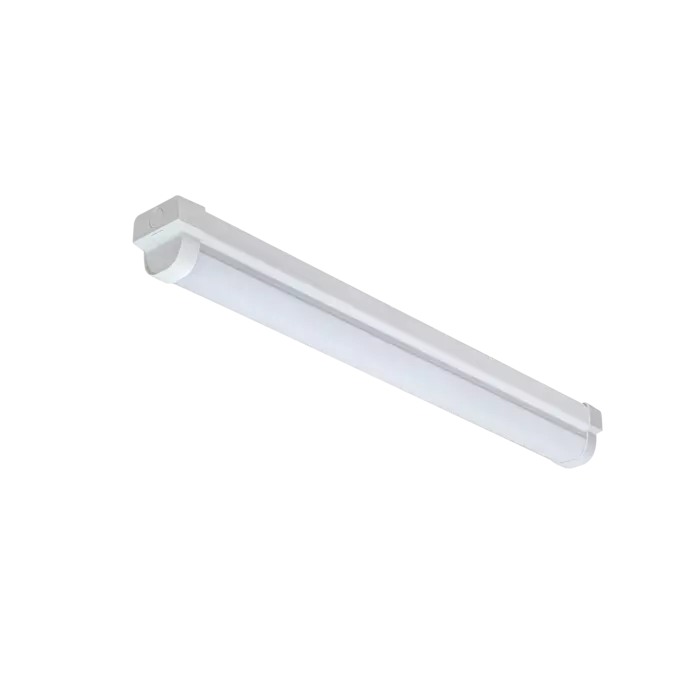

ECOLINE XV SL9731TC/DP - 20/40W

LED narrow diffused batten with selectable CCT and Dual Power

Application

Conventional linear LED batten products for commercial or residential service spaces

Design Specifications

  • 67 mm narrow steel body

  • Quality white powder coat finish with robust opal polycarbonate diffuser

  • Large terminal block for easy installation

  • Selectable CCT 3000K/4000K/5700K

  • High efficiency LED optics, CRI >80, 120° beam distribution

  • Integral constant current non-dimmable LED driver with selectable power, emergency options available

Performance

  • Dimmable - NO

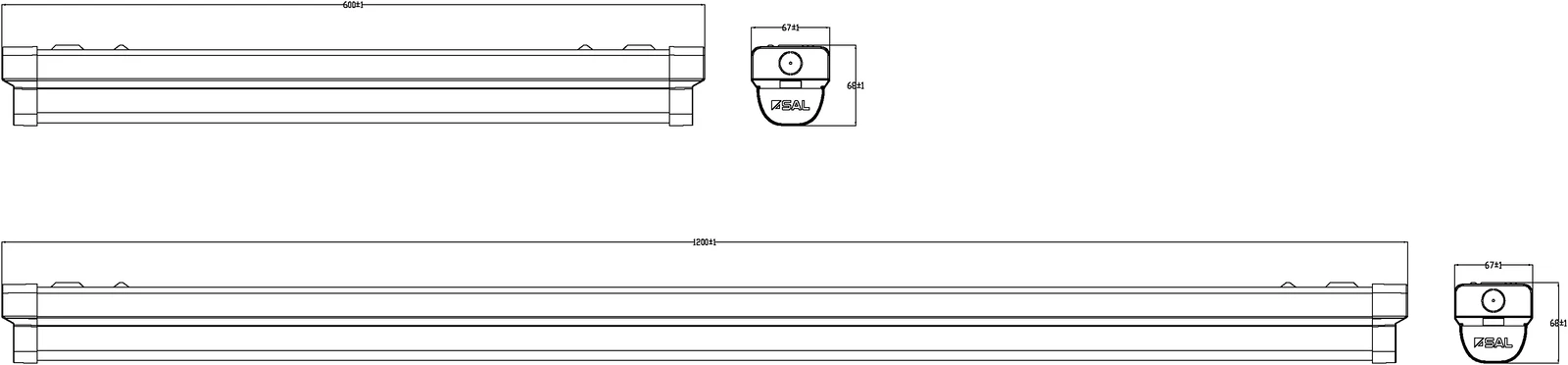

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Multiple Wattage Lumens CCT CRI Beam Angle Dimmable Dim Body Colour
      		Model No. SL9731/40TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Power 40 Multiple Wattage 20/40 Lumens 4300/4900/4400 CCT 3000/4000/5700 CRI 80 Beam Angle 120 Dimmable NO Dim 1200(L) x 67(W) x 68(H) Body Colour WHITE

      NOTE: lumens (lm) shown are at FULL power setting

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
