• LINEAR BATTENS & PROFILES

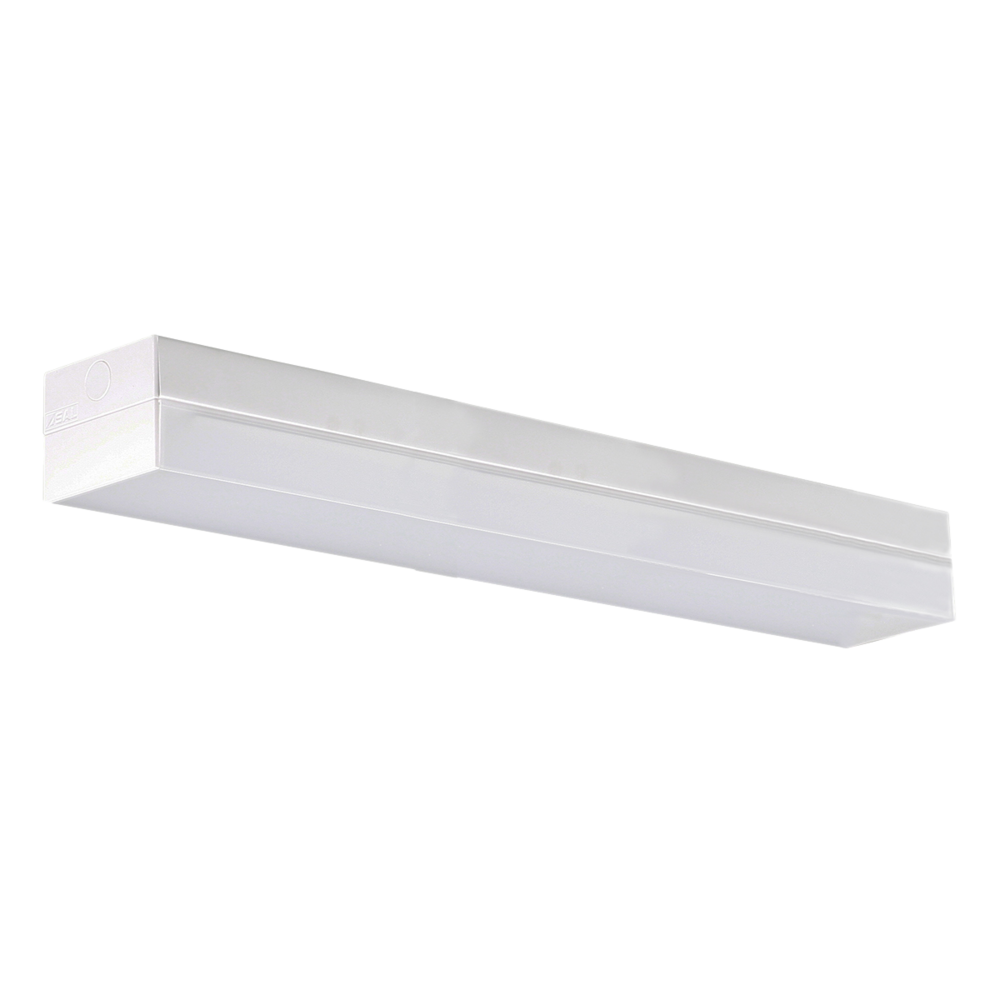

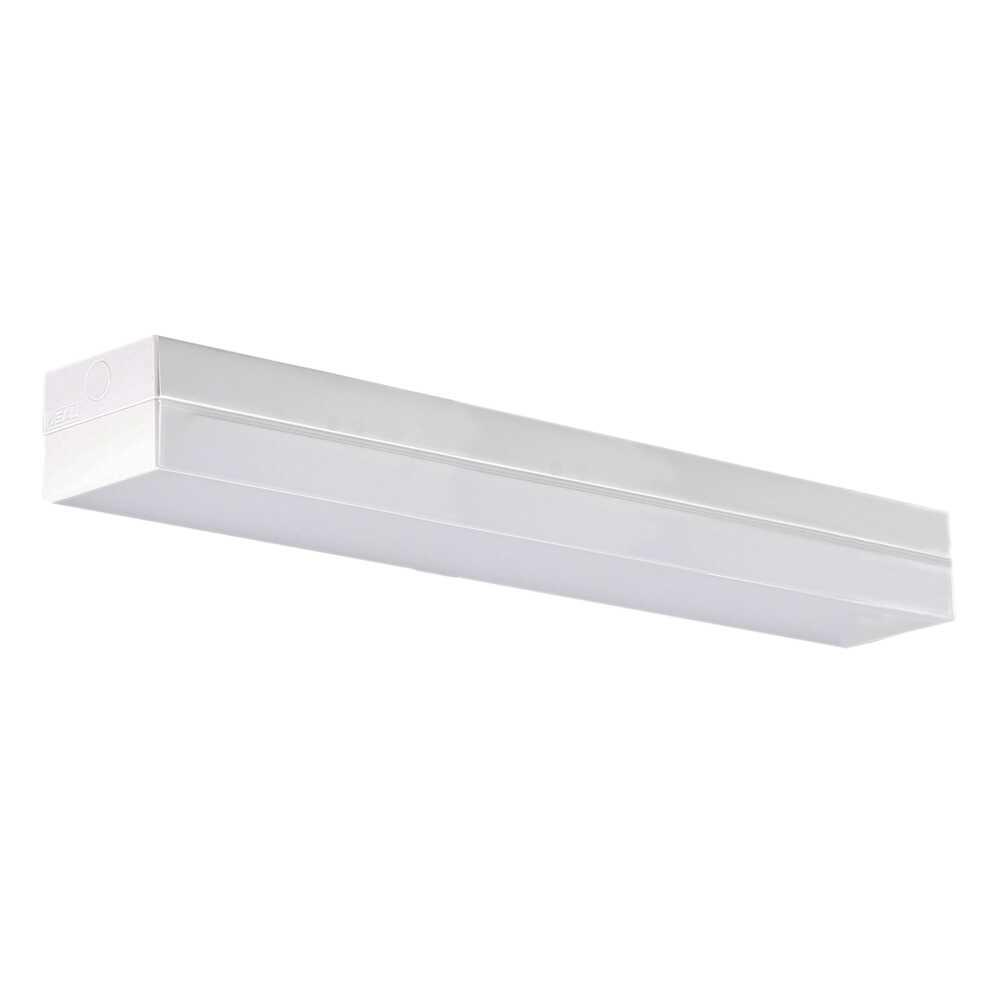

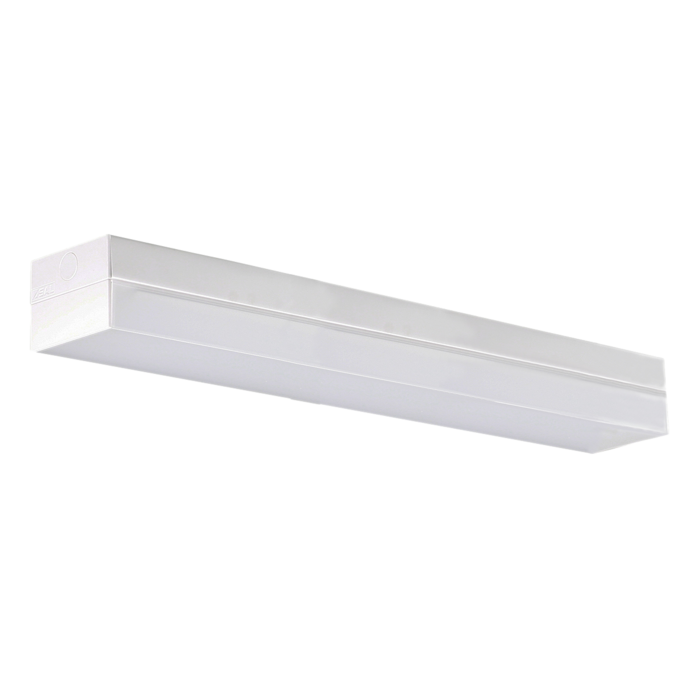

LEDLINE SLD2000TC/MP - 20W

LED diffused batten 20 watt with selectable power and CCT

Application

Conventional LED linear surface mount batten for commercial service spaces

Design Specifications

  • Robust, pressed steel body profile

  • White powder coat finish with an opal PMMA diffuser

  • High efficiency LED optics, CRI > 80

  • Integral flickerCONTROLLED non-dimmable LED driver 20 watt as standard, optional dimming, emergency and sensor functions available.

  • Default (maximum) current selection is 500mA, refer installation sheet for optional range selections

  • Unique diffuser design allows end to end installation and large terminal block for easy installation

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI / DSI
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K

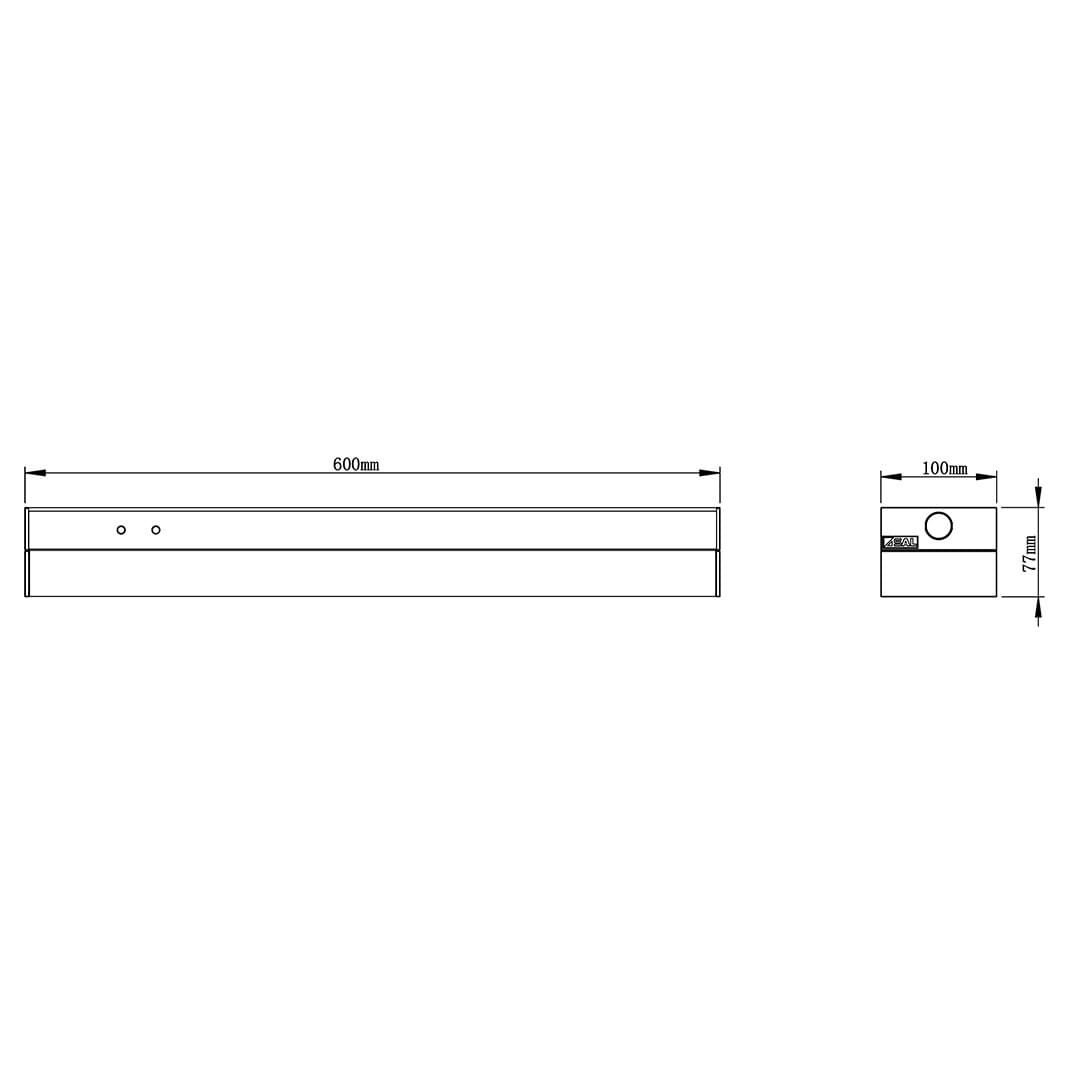

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SLD2000TC/MP Input Voltage240 Power20 Lumens2250/2400/2300 CCT3000/4000/5700 CRI80 Beam Angle110 Dimmable OPTIONAL Dim600(L) x 100(W) x 77(H) Body ColourWHITE Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
