• LED LINEAR BATTENS & PROFILES

LEDLINE SLD4000TC/MP - 40W

LED diffused batten 40 watt with selectable power and CCT

Application

Conventional LED linear surface mount batten for commercial service spaces

Design Specifications

  • Robust, pressed steel body profile

  • White powder coat finish with an opal PMMA diffuser

  • High efficiency LED optics, CRI > 80

  • Integral flickerCONTROLLED non-dimmable LED driver 40 watt as standard, optional dimming, emergency and sensor functions available.

  • Default (maximum) current selection is 1000mA, refer installation sheet for optional range selections

  • Unique diffuser design allows end to end installation and large terminal block for easy installation

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI / DSI
  • In Built Sensor - OPTIONAL
  • Sensor Type - MICROWAVE
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K

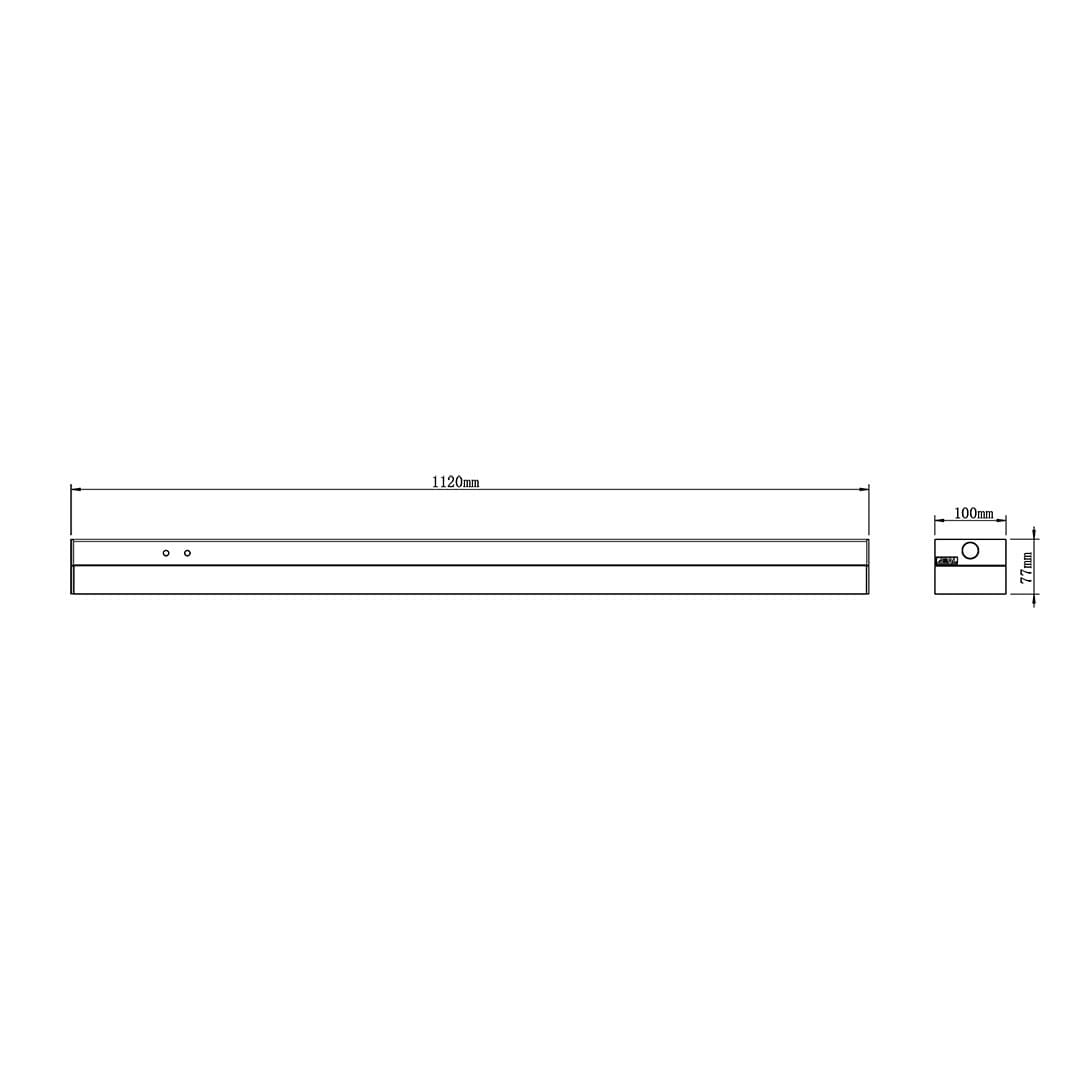

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Body Colour
      		Model No. SLD4000TC/MP Add to Enquiry Add Remove Remove Input Voltage 240 Power 40 Lumens 4500/4800/4600 CCT 3000/4000/5700 CRI 80 Beam Angle 110 Dimmable OPTIONAL Dim 1120(L) x 100(W) x 77(H) Body Colour WHITE
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
