• LED LINEAR BATTENS & PROFILES

SLIMLINE SEAMLESS TC LINKABLE SL9706 - 4/22W

TC SEAMLESS SLIMLINE

Application

Great for commercial shop spaces, home pantries, walk-in wardrobes

Design Specifications

  • Selectable CCT 3000K, 4000K, 5500K, beam distribution 105 degree, CRI > 80

  • Polycarbonate body profile and opal diffuser

  • Integral constant current non-dimmable driver

  • Individual switch control, plug and play flex and plug included

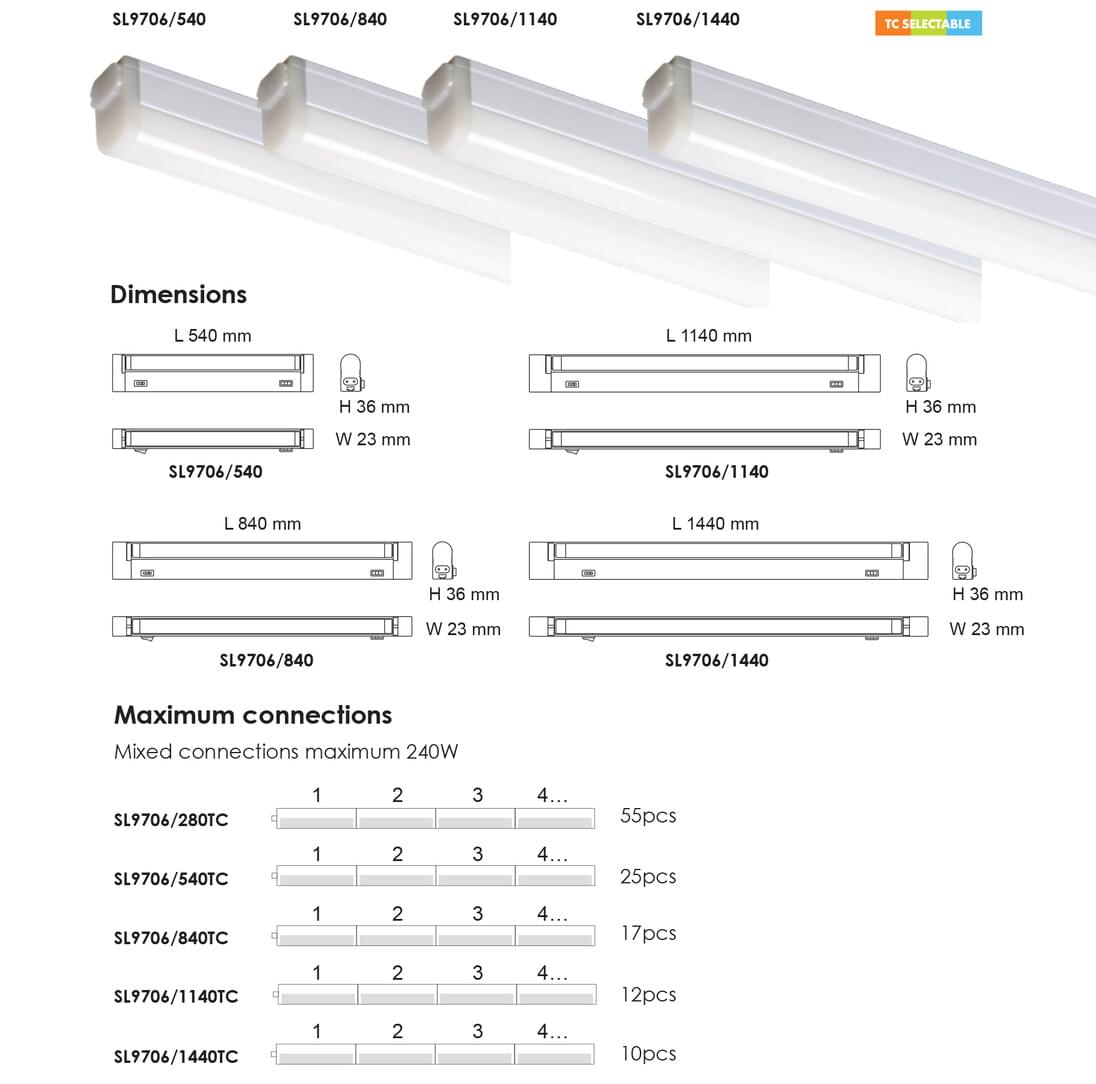

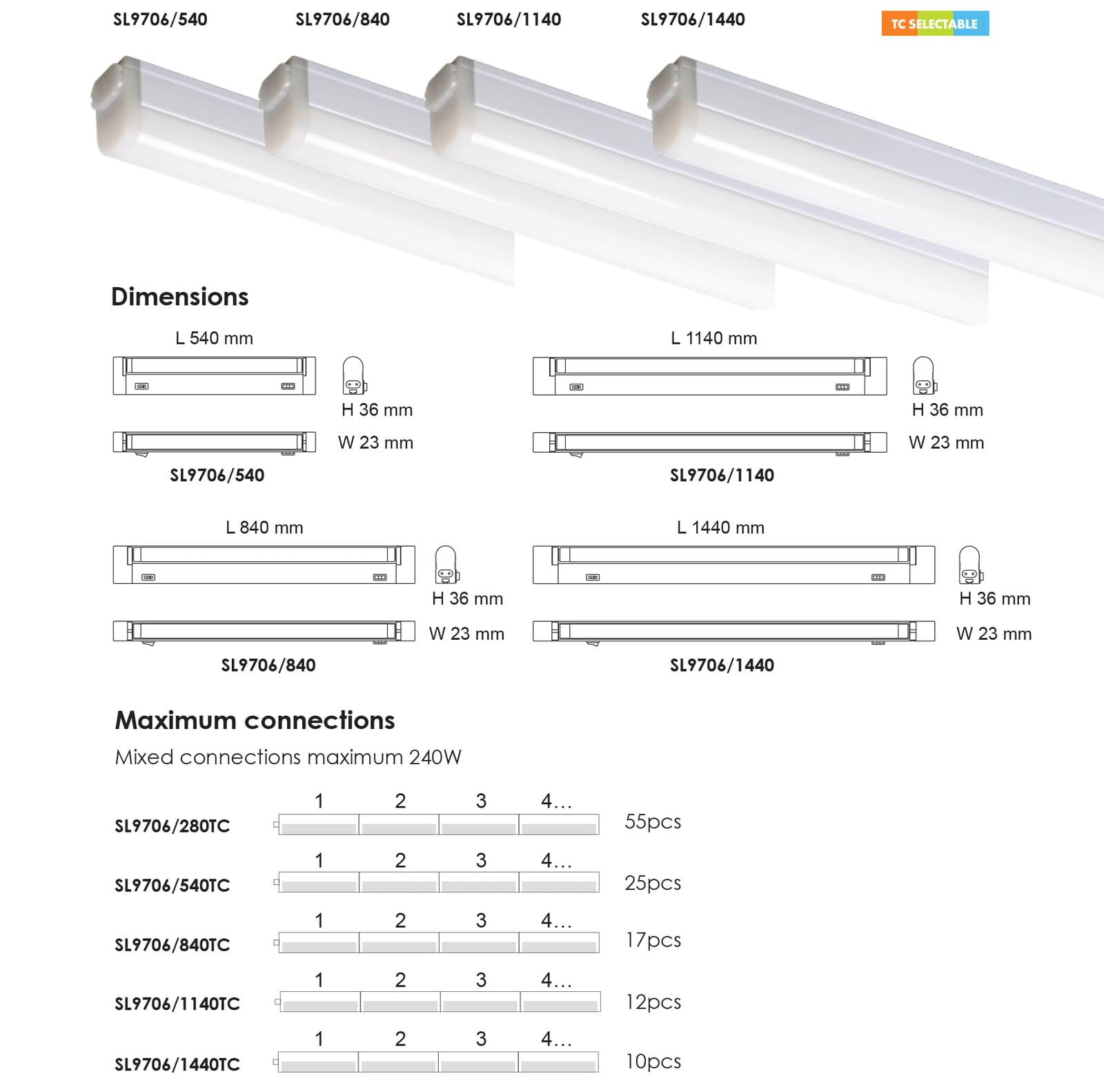

  • Maximum connections: 280TC x 55, 540TC x 25, 840TC x 17, 1140TC x 12, 1440TC x 10 UNITS,

    Maximum mixed connections 240W

  • Accessories: SL9706/32CM LINK (L 320mm) SL9706/76CM LINK (L 760 mm)

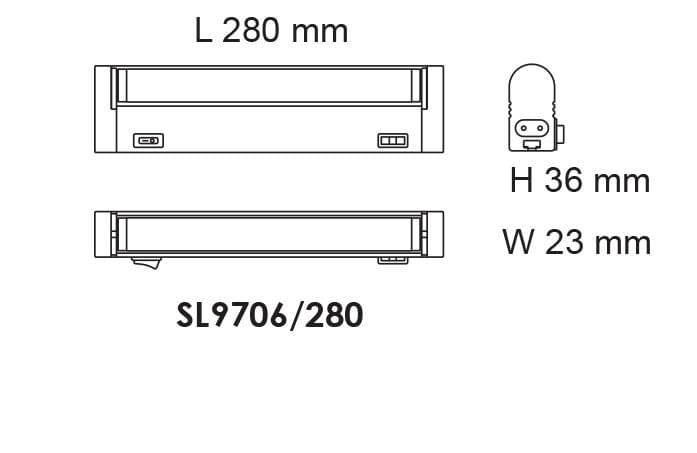

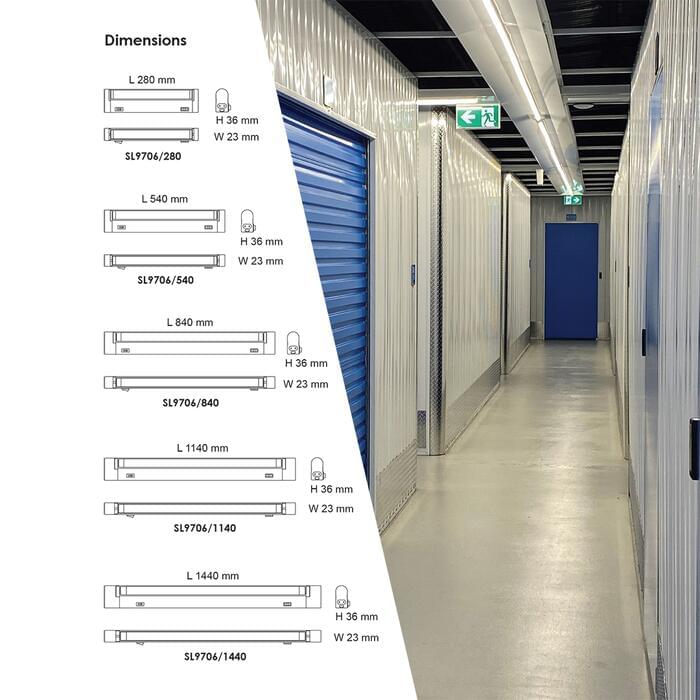

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Input Voltage Power Lumens CCT CRI Beam Angle Dim Body Colour VEET

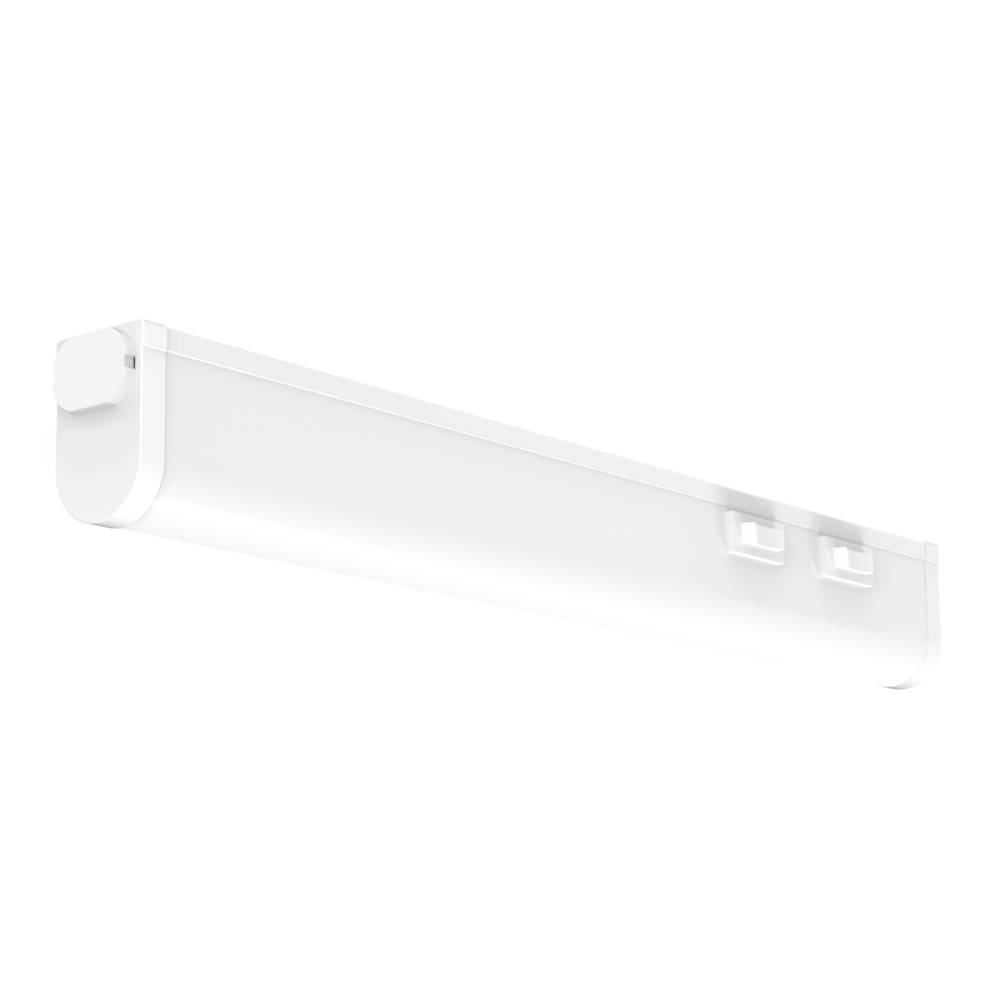

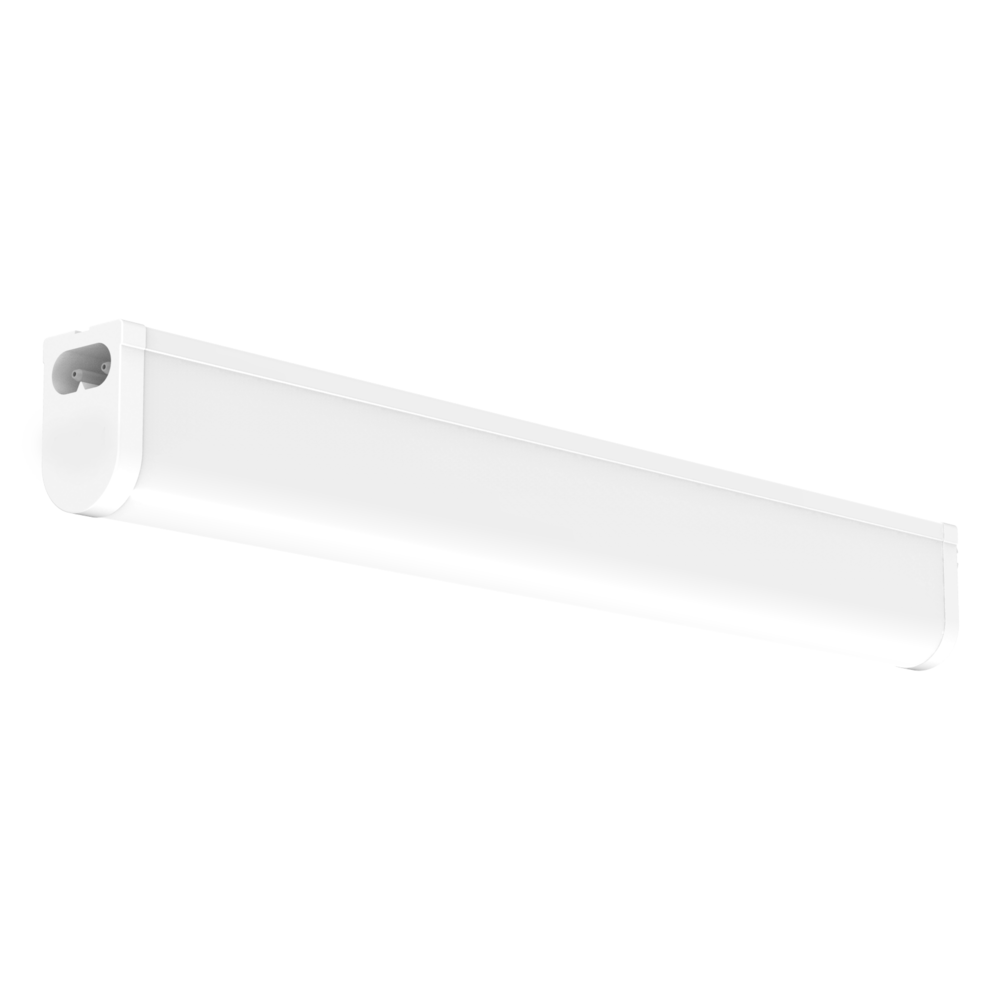

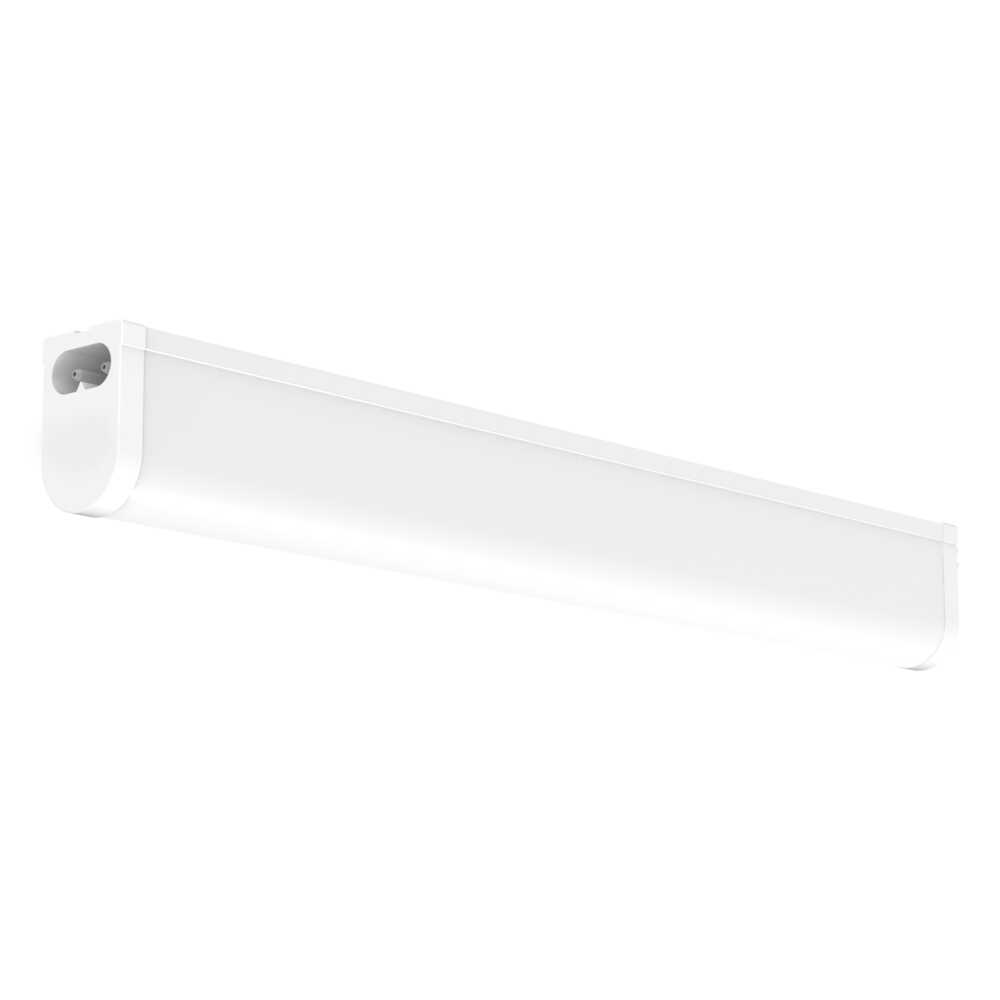

      Model No. SL9706/280TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 4 Lumens 350/400/350 CCT 3000/4000/5500 CRI 80 Beam Angle 105 Dim 280(L) x 23(W) x 36(H) Body Colour WHITE

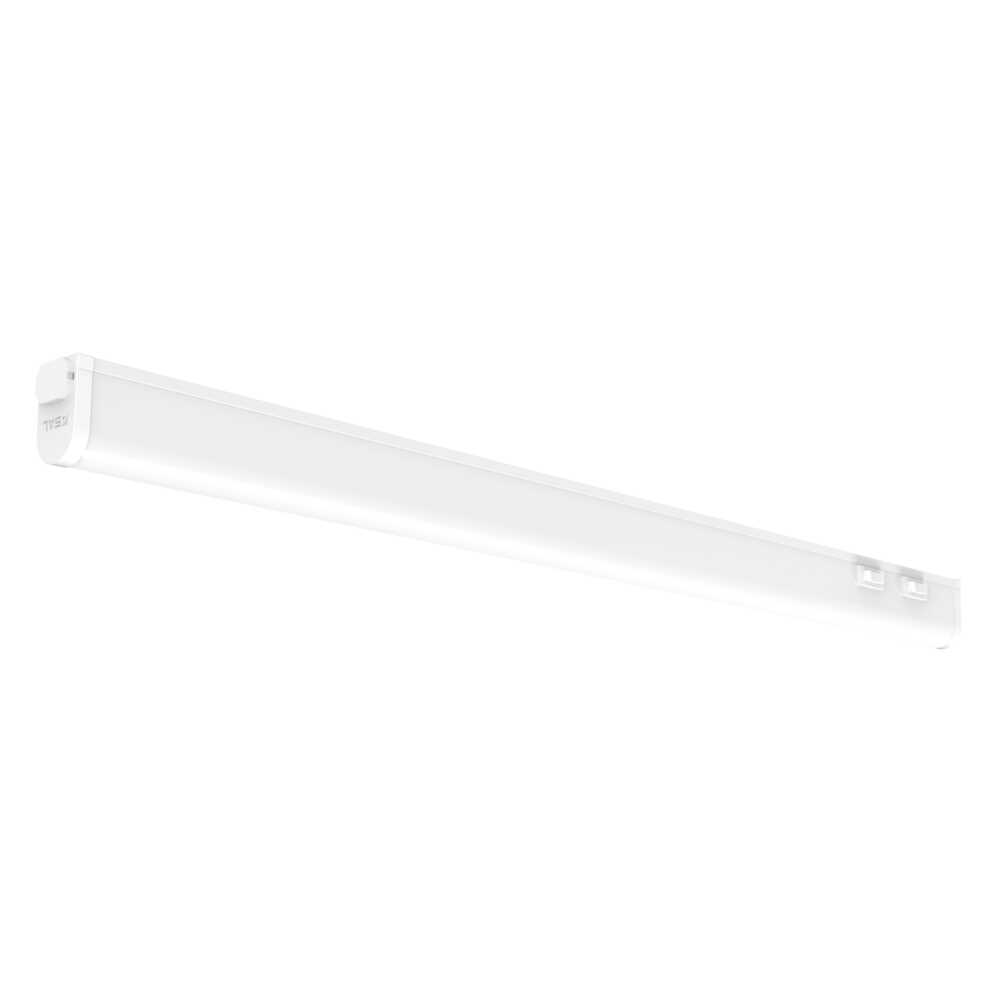

      Model No. SL9706/540TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 9 Lumens 850/1050/900 CCT 3000/4000/5500 CRI 80 Beam Angle 105 Dim 540(L) x 23(W) x 36(H) Body Colour WHITE

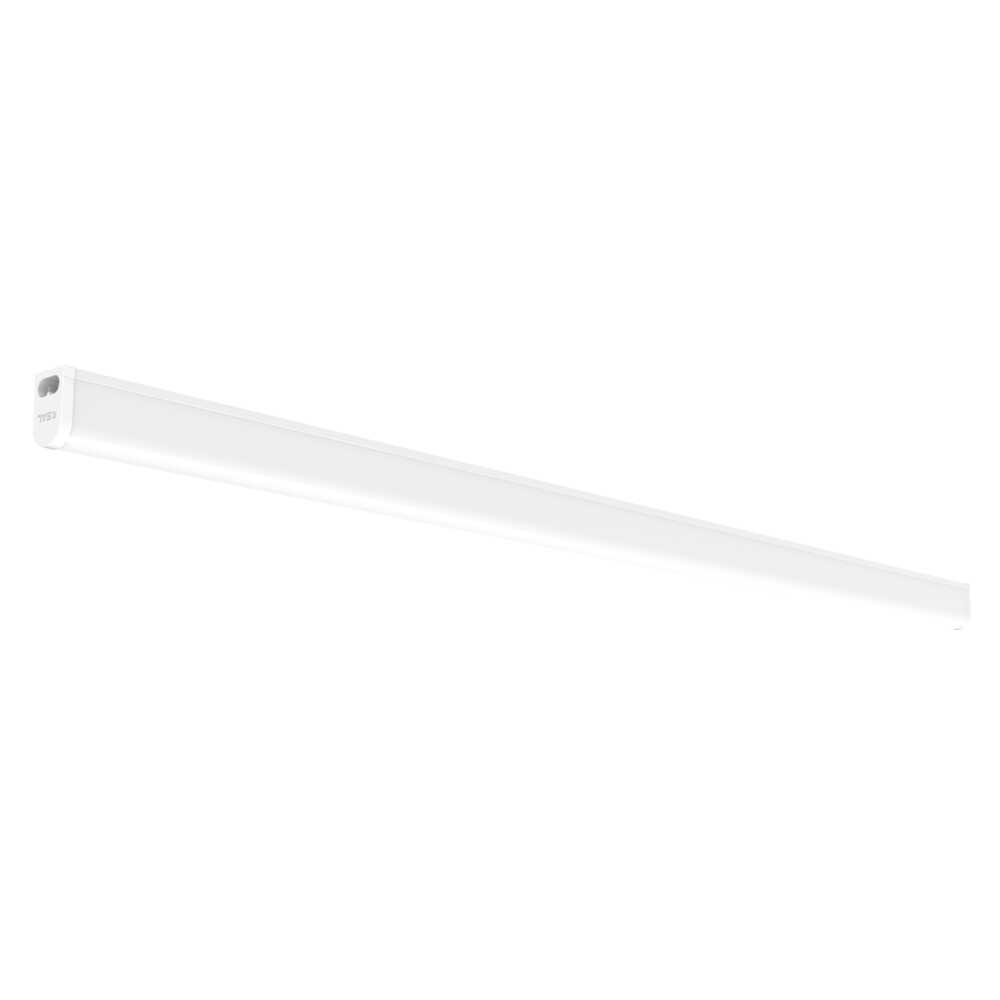

      Model No. SL9706/840TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 13 Lumens 1300/1500/1400 CCT 3000/4000/5500 CRI 80 Beam Angle 105 Dim 840(L) x 23(W) x 36(H) Body Colour WHITE VEET YES

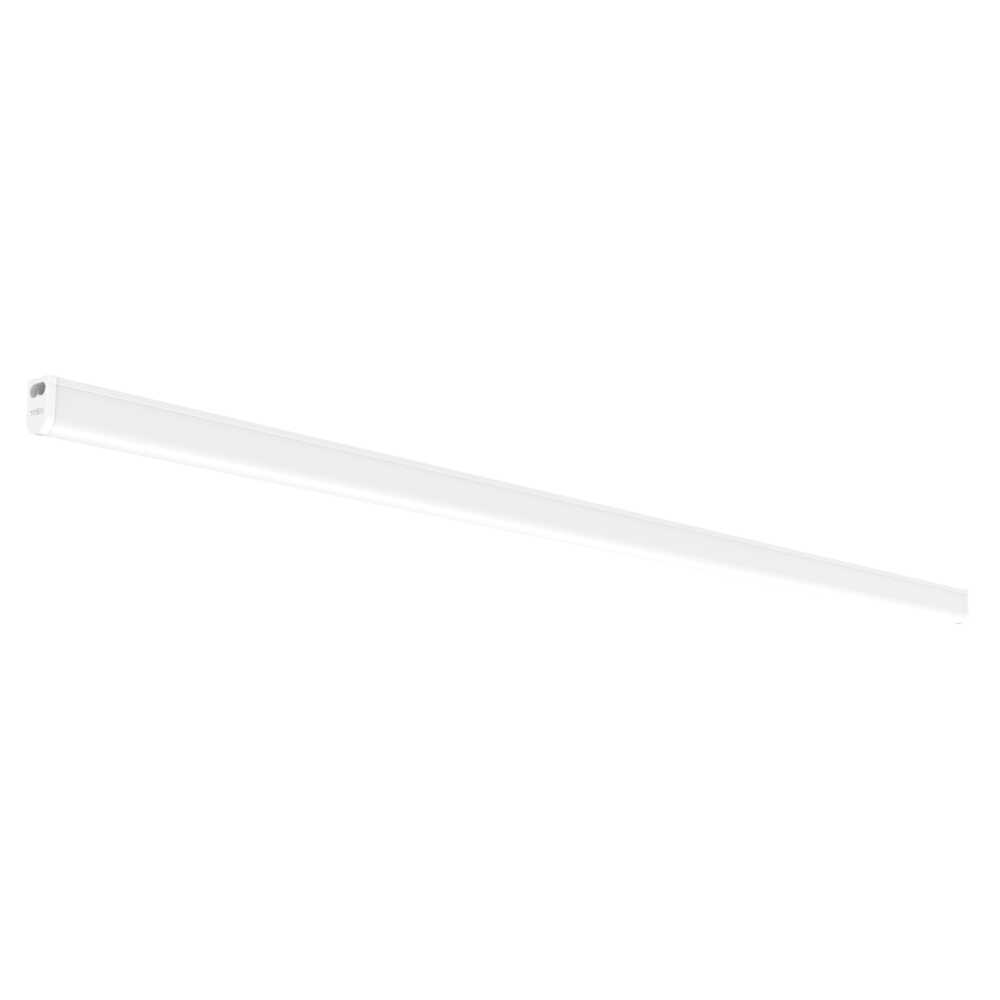

      Model No. SL9706/1140TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 18 Lumens 1800/2100/1850 CCT 3000/4000/5500 CRI 80 Beam Angle 105 Dim 1140(L) x 23(W) x 36(H) Body Colour WHITE VEET YES

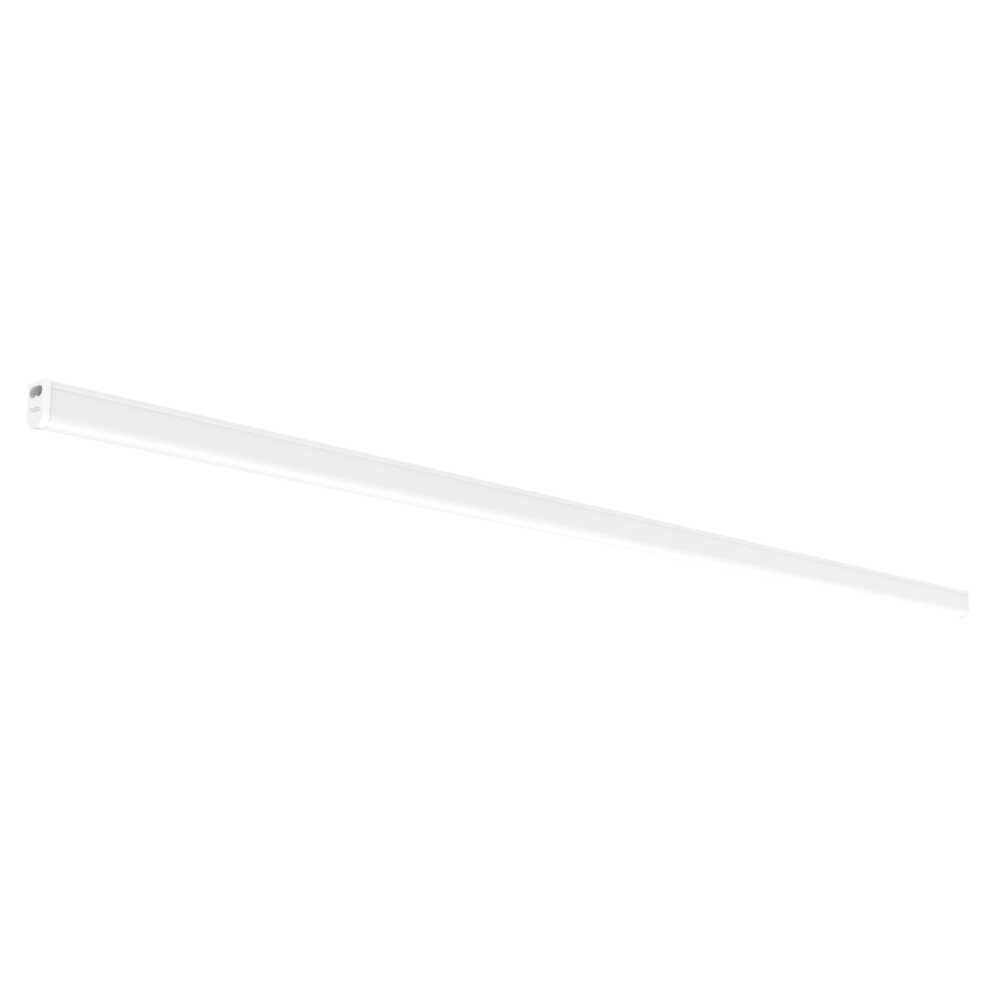

      Model No. SL9706/1440TC Add to Enquiry Add Remove Remove Input Voltage 240 Power 22 Lumens 2150/2450/2200 CCT 3000/4000/5500 CRI 80 Beam Angle 105 Dim 1440(L) x 23(W) x 36(H) Body Colour WHITE VEET YES

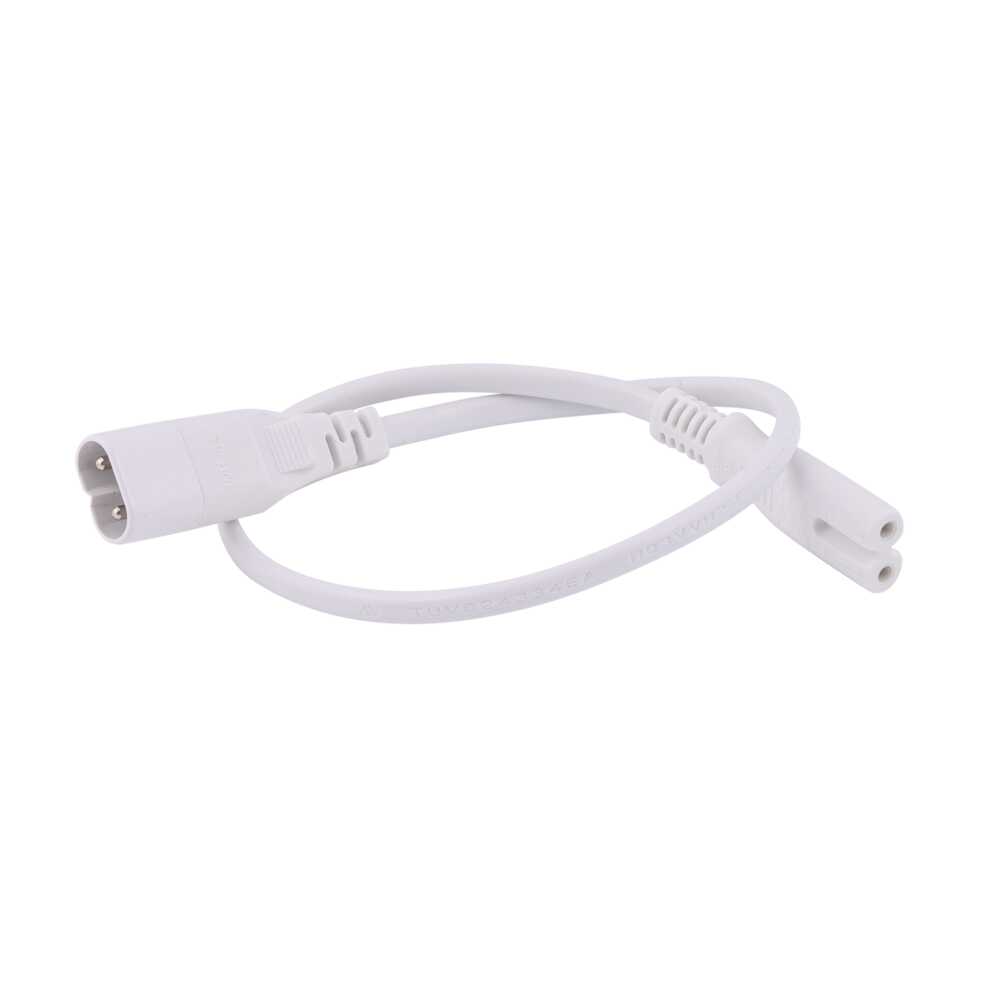

      Model No. SL9706/32CM Add to Enquiry Add Remove Remove Input Voltage 240 Dim 320(L) Body Colour WHITE

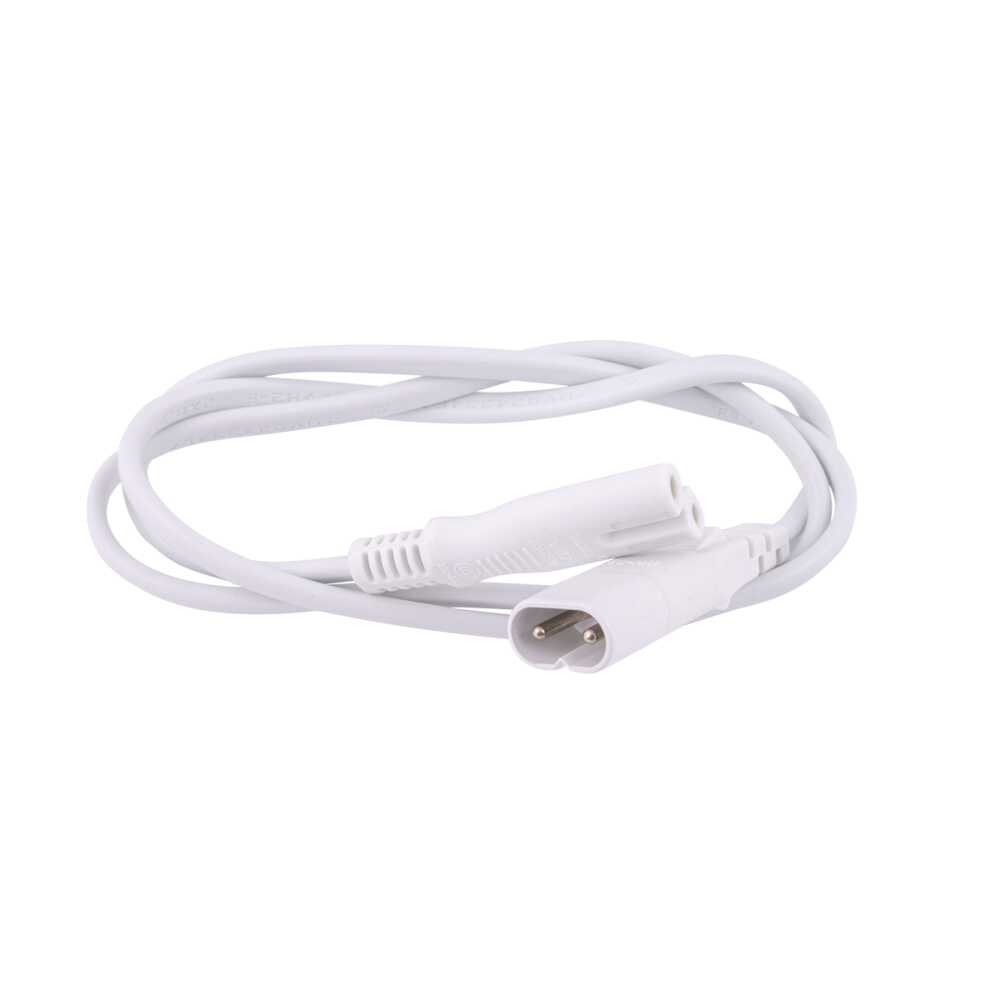

      Model No. SL9706/76CM Add to Enquiry Add Remove Remove Input Voltage 240 Dim 760(L) Body Colour WHITE

      IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
