LED STD25 TC - 9/36W

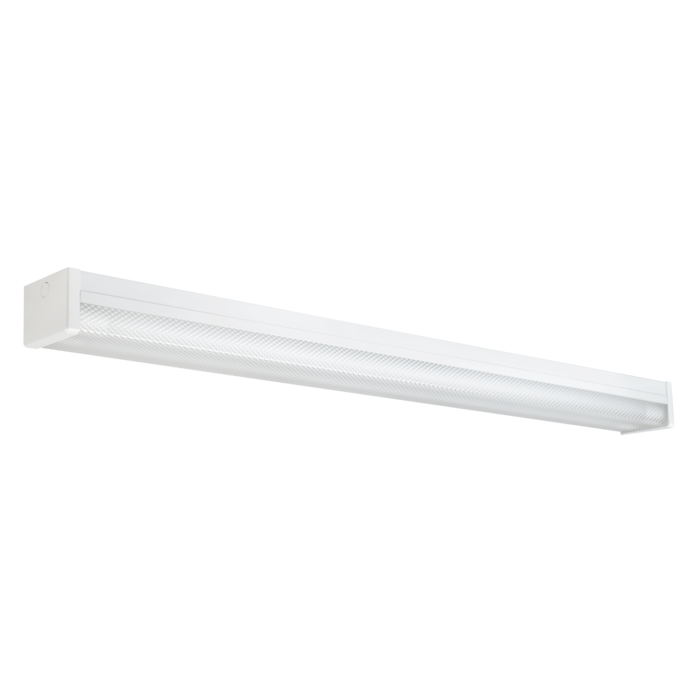

LED tube surface mount diffused linear batten 9 - 36 watt

Application

Conventional linear LED batten profile ideal for residential and commercial spaces

Design Specifications

  • Durable metal body profile, white powder coat finish

  • Large terminal block, easy installation

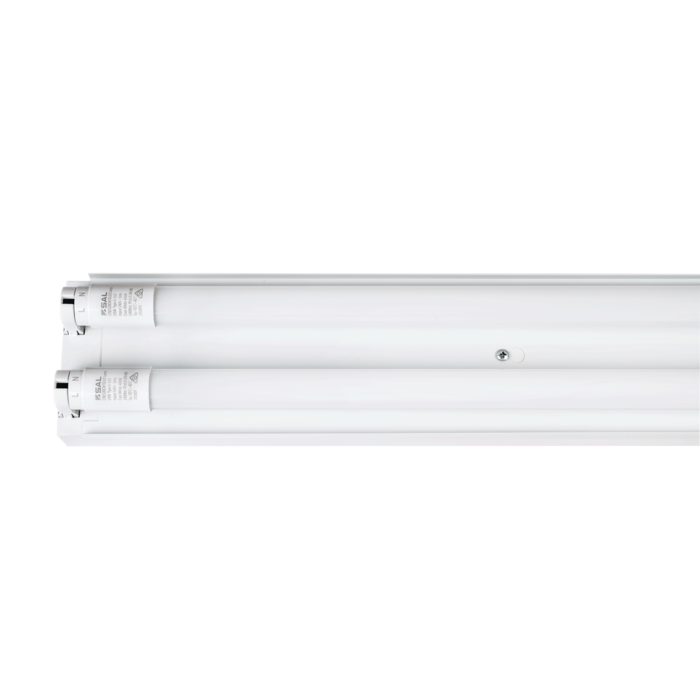

  • High efficiency LED T8 tubes fitted, beam distribution 120°, CRI >80, with selectable CCT lamps included, 3000K/4000K/6000K

  • Safety HRC fuse installed

  • Emergency and sensor option available

  • Wire guard (STG series) option available


  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • Technical Specifications
    Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dim Body Colour VEET Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.STD25/106TC Input Voltage240 Power9 Lumens650/750/700 CCT3000/4000/6000 CRI80 Beam Angle120 Dim620(L) x 65(W) x 77(H) Body ColourWHITE VEETYES Add to Enquiry Add Remove Remove
    Model No.STD25/112TC Input Voltage240 Power18 Lumens1300/1500/1400 CCT3000/4000/6000 CRI80 Beam Angle120 Dim1230(L) x 65(W) x 77(H) Body ColourWHITE VEET Add to Enquiry Add Remove Remove
    Model No.STD25/206TC Input Voltage240 Power18 Lumens1300/1500/1400 CCT3000/4000/6000 CRI80 Beam Angle120 Dim620(L) x 110(W) x 77(H) Body ColourWHITE VEET Add to Enquiry Add Remove Remove
    Model No.STD25/212TC Input Voltage240 Power36 Lumens2600/3000/2800 CCT3000/4000/6000 CRI80 Beam Angle120 Dim1230(L) x 110(W) x 77(H) Body ColourWHITE VEET Add to Enquiry Add Remove Remove

    IMPORTANT, where CCT selection switching is provided, it is important to switch OFF the SUPPLY before the CCT selection is made, otherwise equipment damage may occur.

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
