TITAN S9776TC - 40/80W

40 or 80 watt LED connectable profile, with selectable colour temperature

Application

Decorative commercial or residential applications, meeting rooms, kitchens or amenity areas

Design Specifications

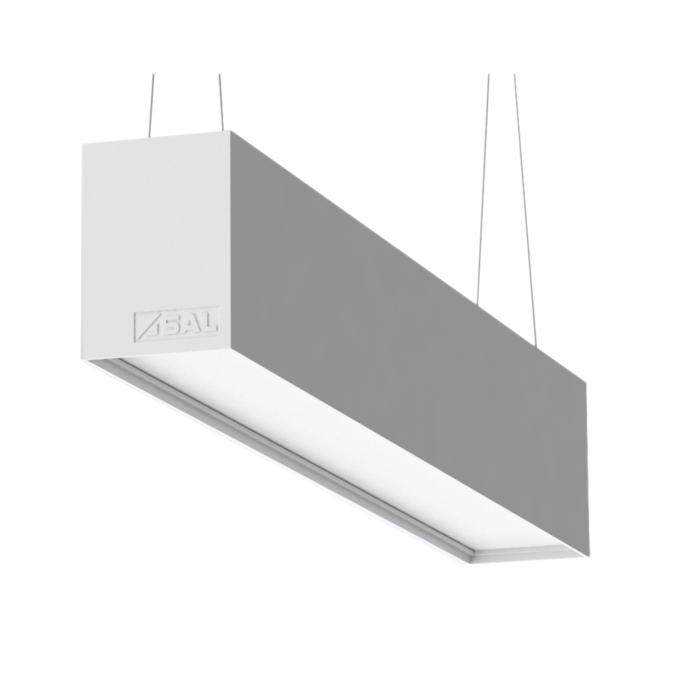

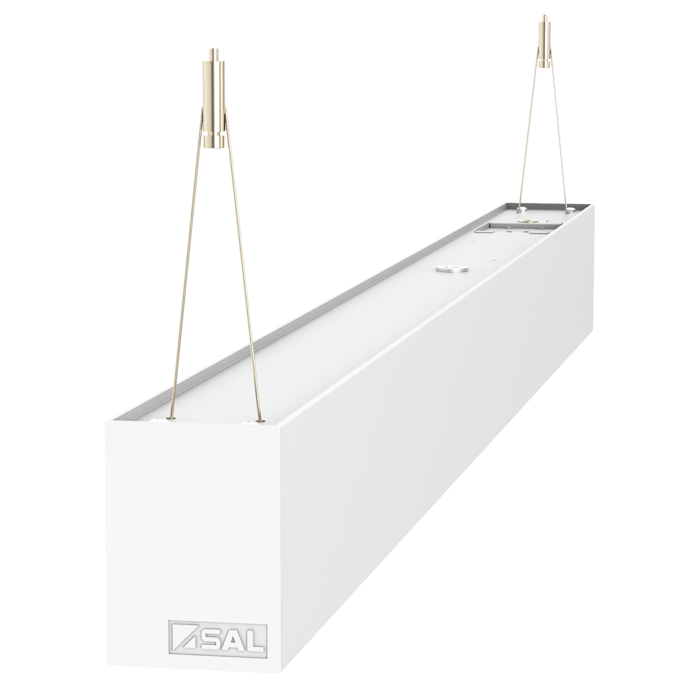

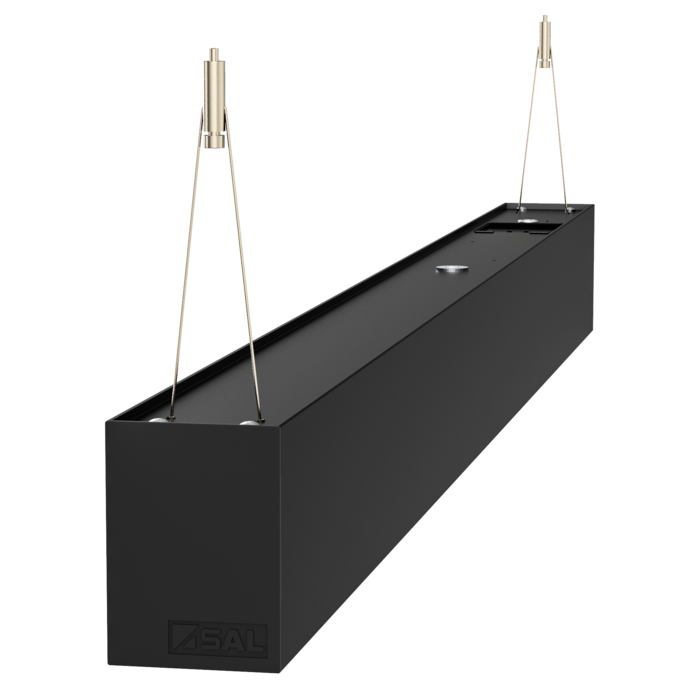

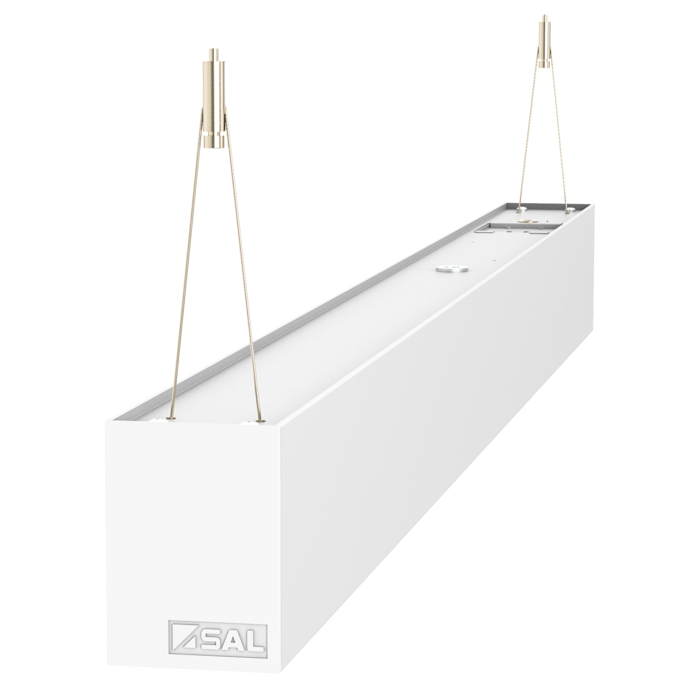

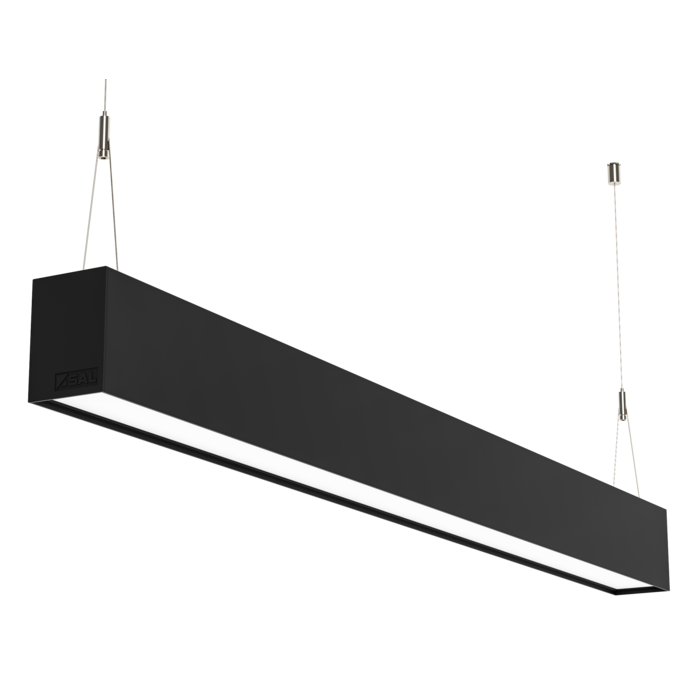

  • Extruded aluminium profile colour white or black, with opal polycarbonate diffuser

  • High efficiency SMD LED chips, CRI > 80, beam distribution 90 degree, CCT selectable 3000/4000/5700K.

  • Integral constant current non-dimmable LED driver 40 or 80 watt

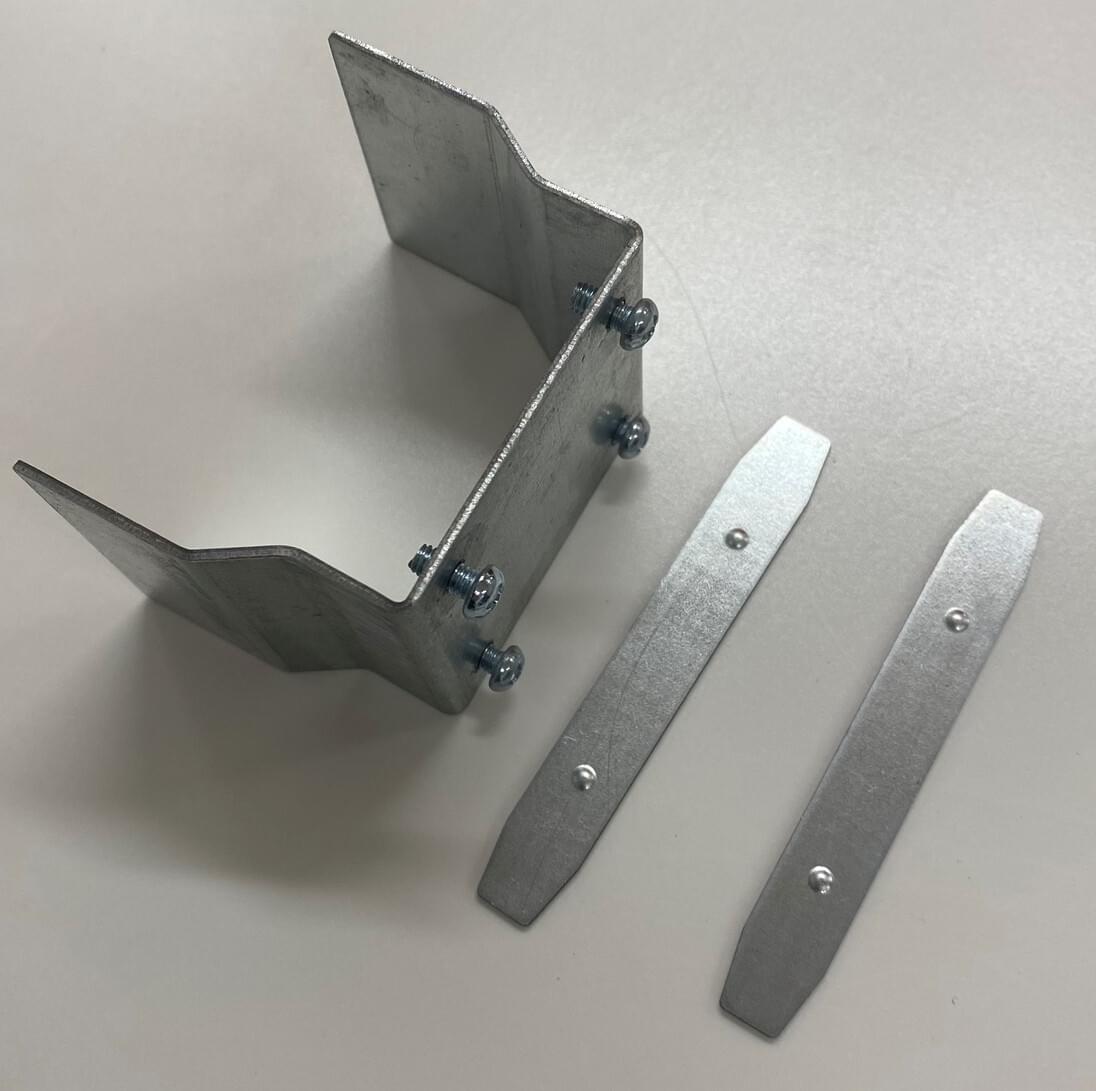

  • Adjustable suspension kit supplied (2 x SSY1512), Accessory option - straight link (S9776IP)

  • Surface mounted (allow min. 200 mm clearance at both ends) Loop in loop out wiring available via the PA12 termination block

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, DALI / DSI
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT5700K
  • Dimensions - Wiring Diagrams
  • Design Options

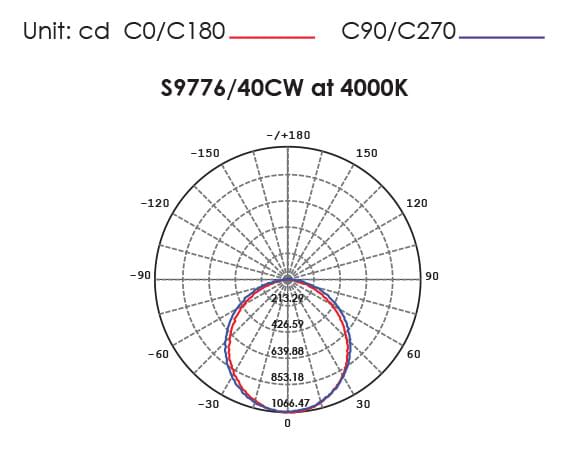

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmable Dim Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

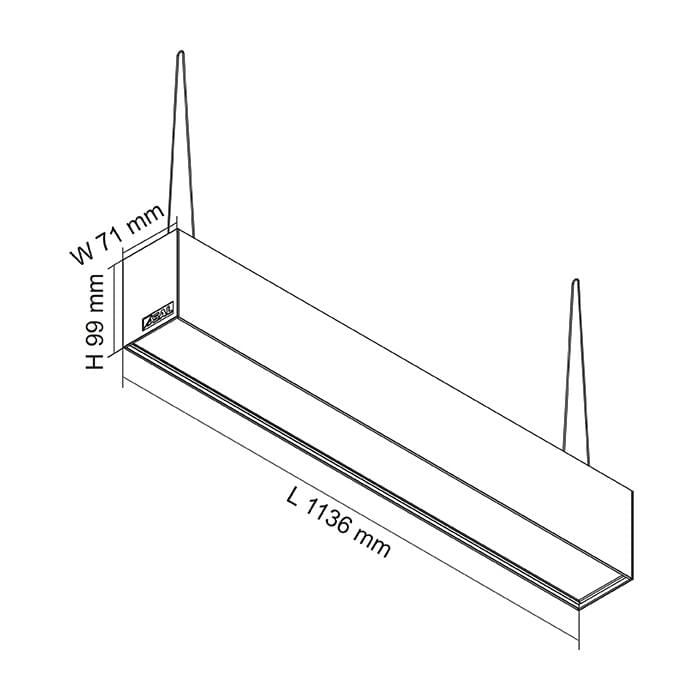

    Model No.S9776/40TC Input Voltage240 Power40 Lumens3900/4050/3950 CCT3000/4000/5700 CRI80 Beam Angle90 Dimmable OPTIONAL Dim1138(L) x 71(W) x 99(H) Body ColourWHITE Add to Enquiry Add Remove Remove

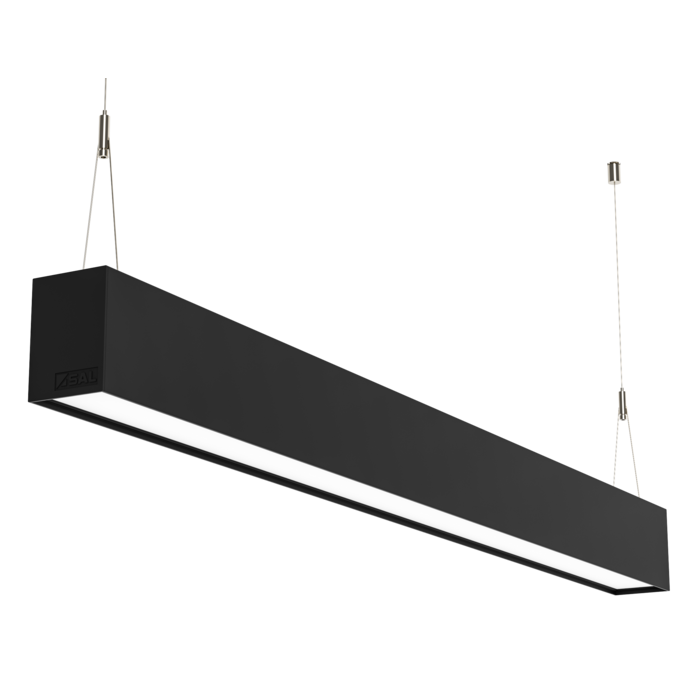

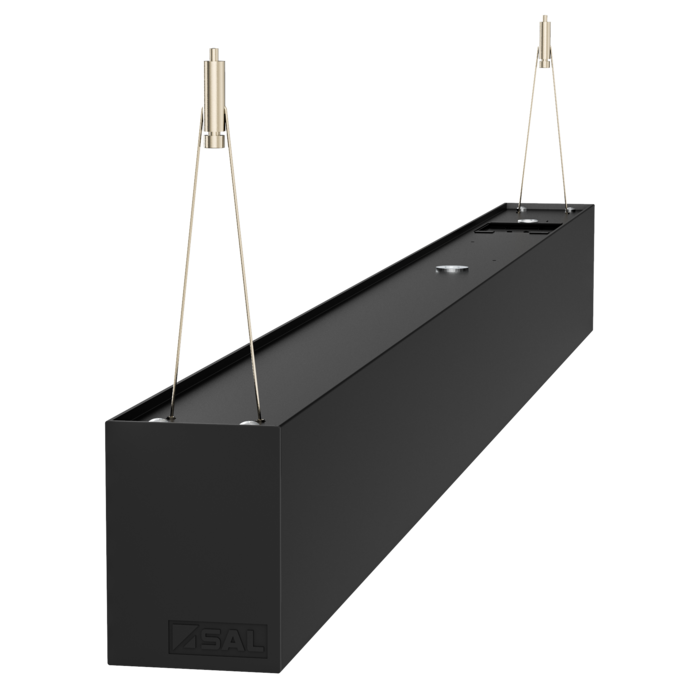

    Model No.S9776/40TC/BK Input Voltage240 Power40 Lumens3900/4050/3950 CCT3000/4000/5700 CRI80 Beam Angle90 Dimmable OPTIONAL Dim1138(L) x 71(W) x 99(H) Body ColourBLACK Add to Enquiry Add Remove Remove

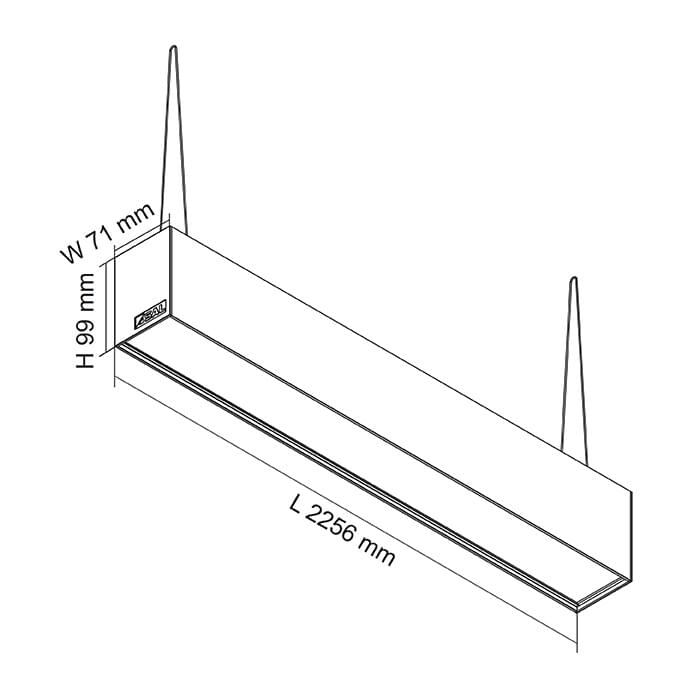

    Model No.S9776/80TC Input Voltage240 Power80 Lumens7800/8100/7900 CCT3000/4000/5700 CRI80 Beam Angle90 Dimmable OPTIONAL Dim2256(L) x 71(W) x 99(H) Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.S9776/80TC/BK Input Voltage240 Power80 Lumens7800/8100/7900 CCT3000/4000/5700 CRI80 Beam Angle90 Dimmable OPTIONAL Dim2256(L) x 71(W) x 99(H) Body ColourBLACK Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
