• LED LINEAR BATTENS & PROFILES

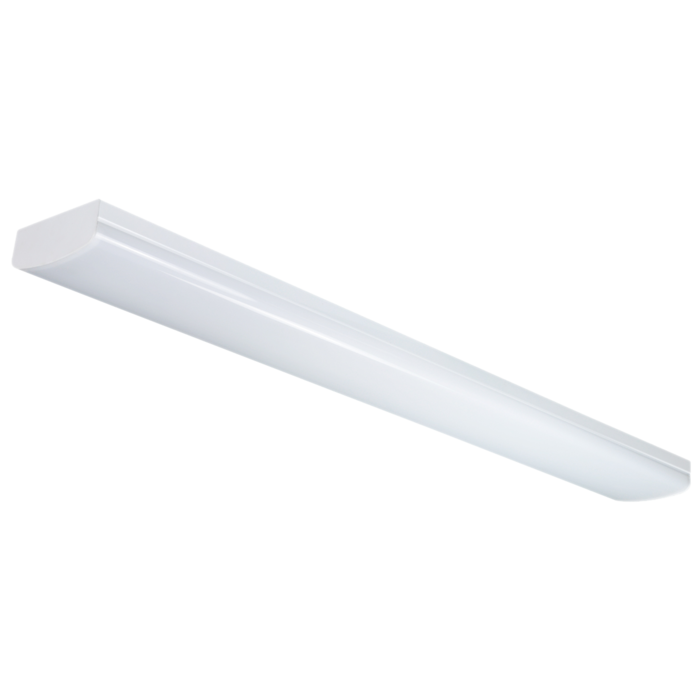

WIDELINE SL9733TC/DP - 9W/55W

LED wide diffused batten 9 - 55 watt with selectable CCT and power

Application

Low profile design suitable for residential apartments and commercial service spaces

Design Specifications

  • Wide pressed steel base with opal polycarbonate diffuser

  • Quality white powder coated finish

  • High efficiency LED optics, CRI >80, beam distribution 120°

  • Integral constant current non-dimmable LED driver, with selectable power

  • Selectable CCT 3000K / 4000K / 5700K

  • Large terminal block for easy installation

Performance

  • Dimmable - NO
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Multiple Wattage Lumens CCT CRI Beam Angle Dim Body Colour IPART
      		Model No. SL9733/206TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 9/18 Lumens 2100/2300/2200 CCT 3000/4000/5700 CRI 80 Beam Angle 120 Dim 610(L) x 160(W) x 63(H) Body Colour WHITE IPART N/A
      		Model No. SL9733/212TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 18/36 Lumens 3800/4150/3900 CCT 3000/4000/5700 CRI 80 Beam Angle 120 Dim 1145(L) x 160(W) x 63(H) Body Colour WHITE IPART N/A
      		Model No. SL9733/215TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 28/55 Lumens 5900/6350/6100 CCT 3000/4000/5700 CRI 80 Beam Angle 120 Dim 1495(L) x 160(W) x 63(H) Body Colour WHITE IPART N/A

      NOTE: Lumens (lm) shown are at full power setting



    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
