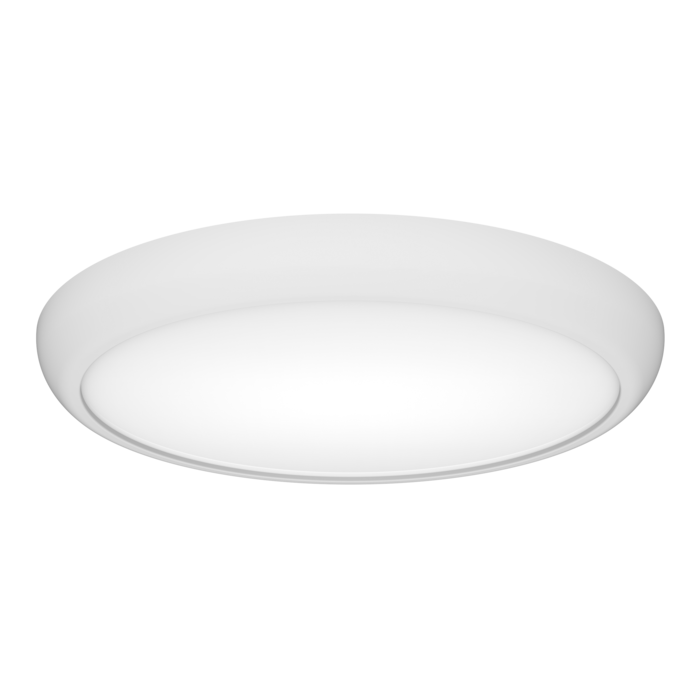

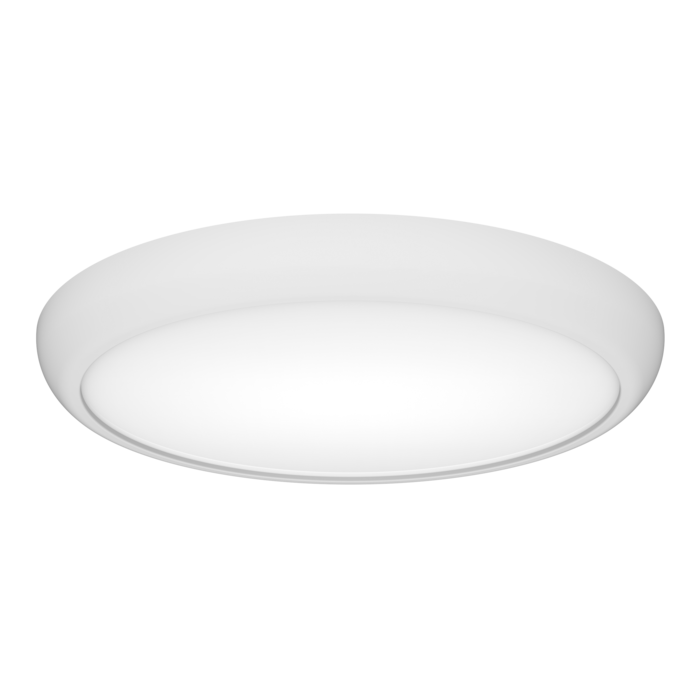

FRISBEE SL2104TC - 8W/25W

Low profile, recessed or surface mount oyster with selectable CCT and dual power, IP44.

Application

A creative design for residential or commercial spaces

Design Specifications

  • Low profile design, ceiling mount

  • Durable white polyamide body profile with an opal polycarbonate diffuser

  • High efficiency LED optics, with selectable CCT 3000K/4000K/6000K

  • Integral non-dimmable driver with a choice of selectable power 8/12W, 12/18W, 18/25W

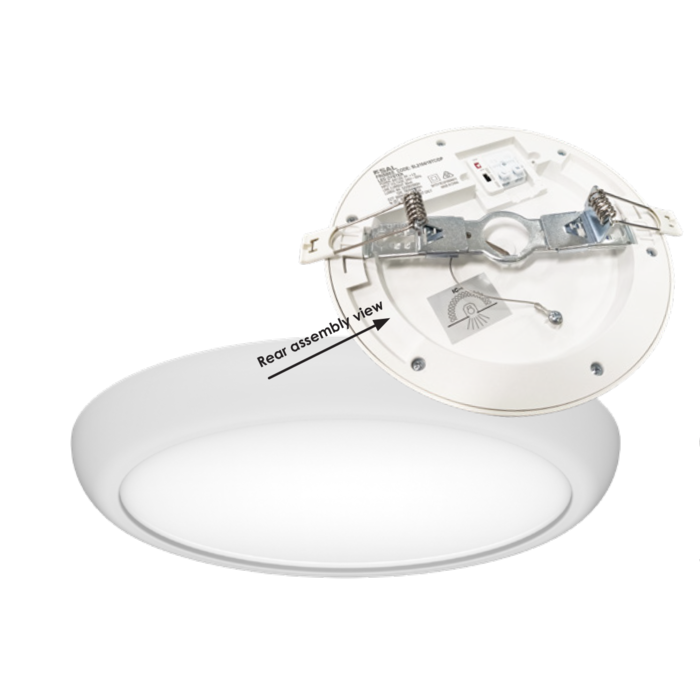

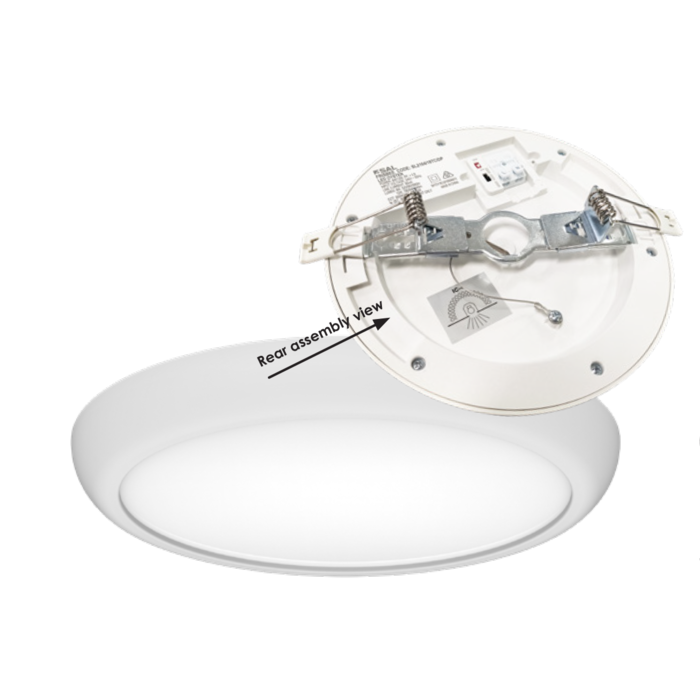

  • Flexible cut-out sizes to suit retrofit recessed applications - SL2104/18TC 80-100mm, SL2104/22TC 120-200mm, SL2104/30TC 150-270mm

  • Double insulated

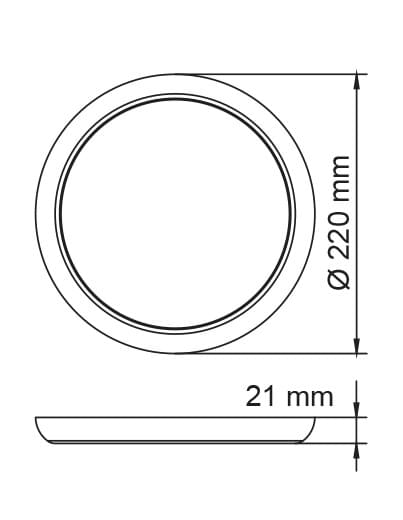

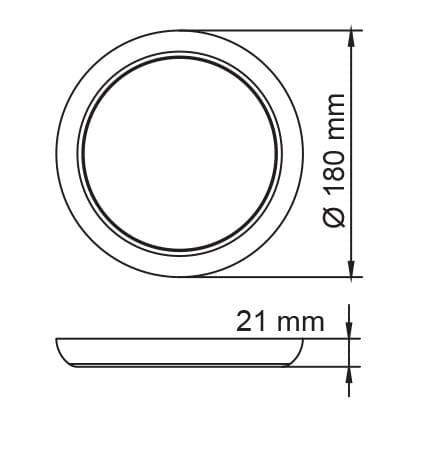

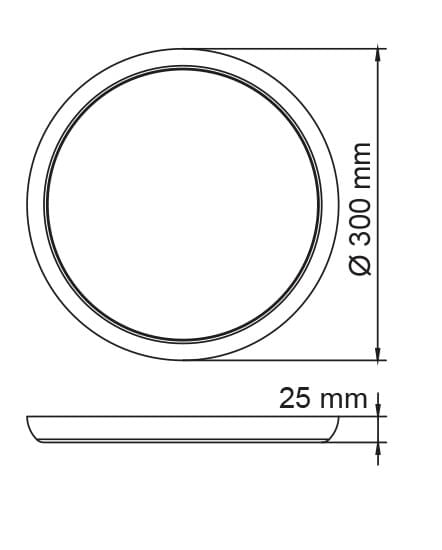

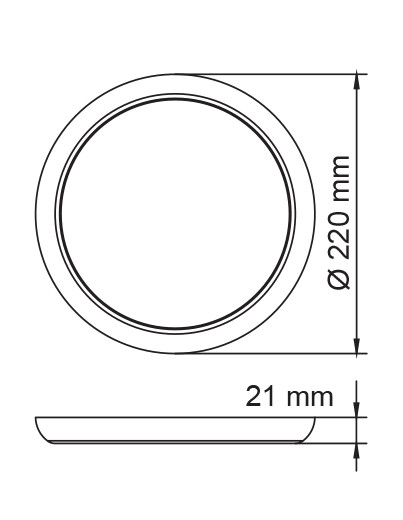

    • Dimensions - Wiring Diagrams
    • Design Options

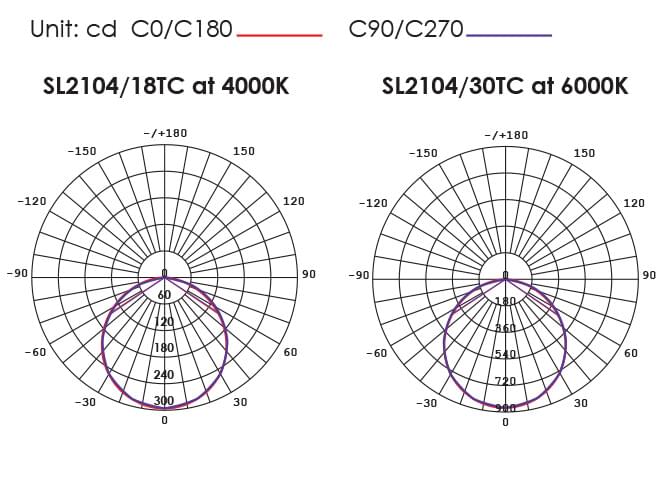

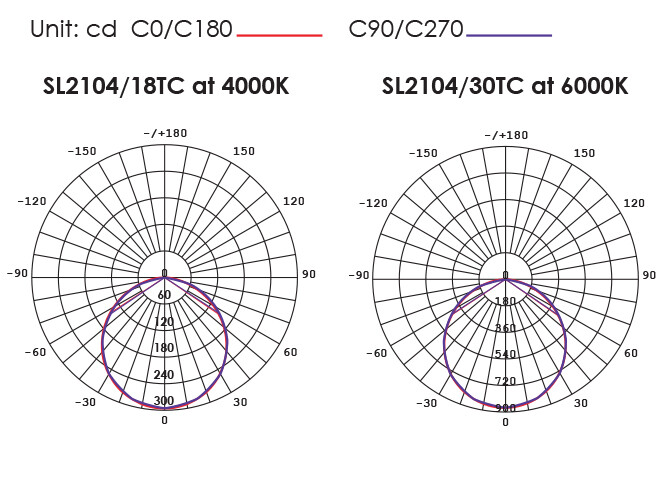

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Multiple Wattage Lumens CCT CRI Beam Angle Body Colour Diameter Dim Mass
      		Model No. SL2104/18TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 8/12 Lumens 780/840/840 CCT 3000/4000/6000 CRI 80 Beam Angle 110 Body Colour WHITE Diameter 180 Dim 21(H) Mass 0.26
      		Model No. SL2104/22TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 12/18 Lumens 1260/1350/1350 CCT 3000/4000/6000 CRI 80 Beam Angle 110 Body Colour WHITE Diameter 220 Dim 21(H) Mass 0.35
      		Model No. SL2104/30TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 18/25 Lumens 1875/2000/2000 CCT 3000/4000/6000 CRI 80 Beam Angle 110 Body Colour WHITE Diameter 300 Dim 25(H) Mass 0.68

      Lumens (lm) shown are at full power setting

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
