• LED OYSTERS

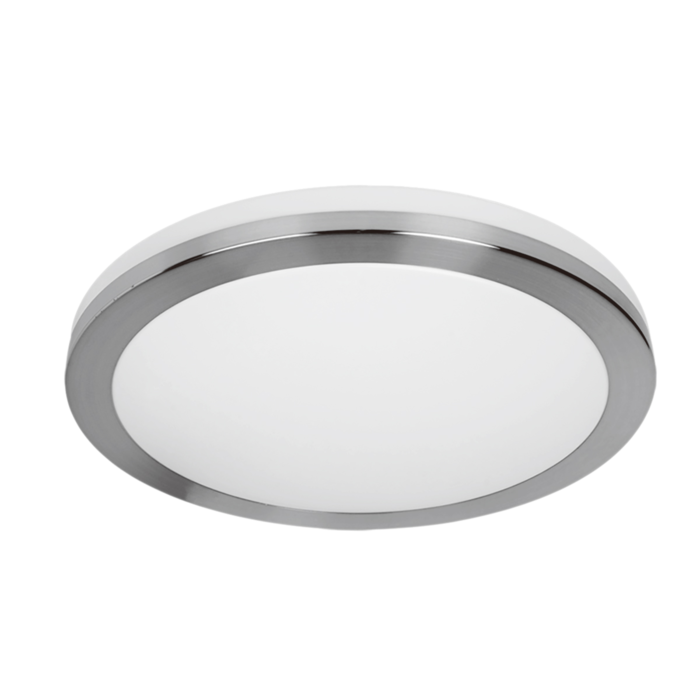

GEM DIMMABLE SO3701/TC/DPD - 8W/30W

Dimmable LED Oyster 8 to 30 watt, satin nickel trim with selectable CCT and dual power

Application

A perfect choice for apartments, residential or commercial spaces

Design Specifications

  • Selectable CCT 3000K, 4000K, 6000K

  • White powder coated steel body profile

  • High performance opal PMMA diffuser

  • High efficiency LED optics, CRI >80

  • Satin Nickel plated deco trim, ceiling mount, two versatile profile sizes Ø 320 or 400mm

  • Integral dimmable LED driver with dual power selection

Performance

  • Dimmable - YES
  • Dimmer Type - trailing edge
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Multiple Wattage Lumens CCT CRI Dimmable Beam Angle Body Colour Diameter Dim Mass
      		Model No. SO3701/30/TC/DPD Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 8/16 Lumens 1070/1300/1155 CCT 3000/4000/6000 CRI 80 Dimmable YES Beam Angle 120 Body Colour Satin Nickel Diameter 320 Dim 85(H) Mass 0.72
      		Model No. SO3701/40/TC/DPD Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 15/30 Lumens 2150/2600/2200 CCT 3000/4000/6000 CRI 80 Dimmable YES Beam Angle 120 Body Colour Satin Nickel Diameter 400 Dim 90(H) Mass 1.24

        Lumens (lm) shown are displayed at maximum power

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
