• LED OYSTERS

JUNEE SL2116TC/DP - 9/30W

IP65 / IK10 LED ceiling mount oyster with corridor functions, selectable CCT and power

Application

A perfect choice for residential or apartments spaces

Design Specifications

  • Selectable CCT 3000 / 4000 / 6000K and corridor functions

  • Durable polycarbonate body profile with opal polycarbonate diffuser, colour white

  • Rugged IK10 / IP65 construction, interior or covered exterior spaces

  • High efficiency LED optics, 120° beam distribution,  CRI > 80

  • Integral, dimmable flickerCONTROLLED gear with selectable power models 9/13W, 17/24W and 21/30W, (non-dim in Corridor mode).

  • Double insulated

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing Edge refer model
  • In Built Sensor - OPTIONAL
  • Sensor Type - MV CORRIDOR

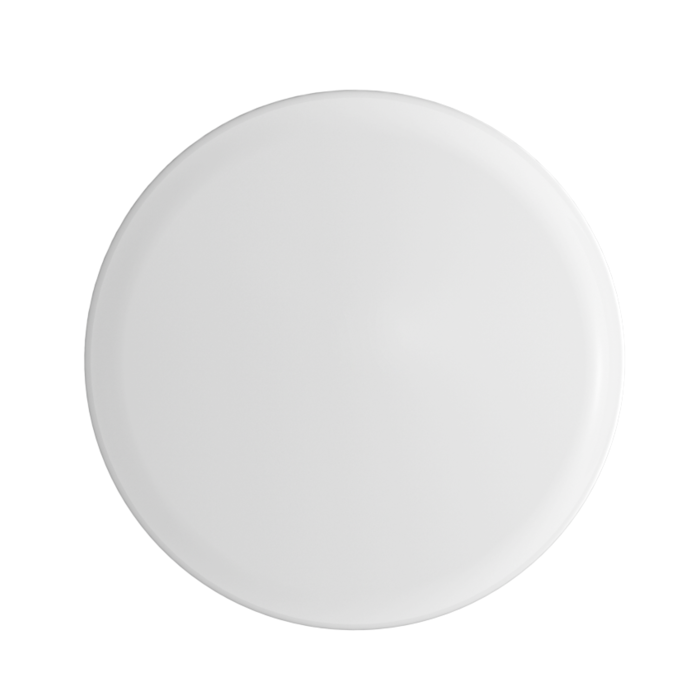

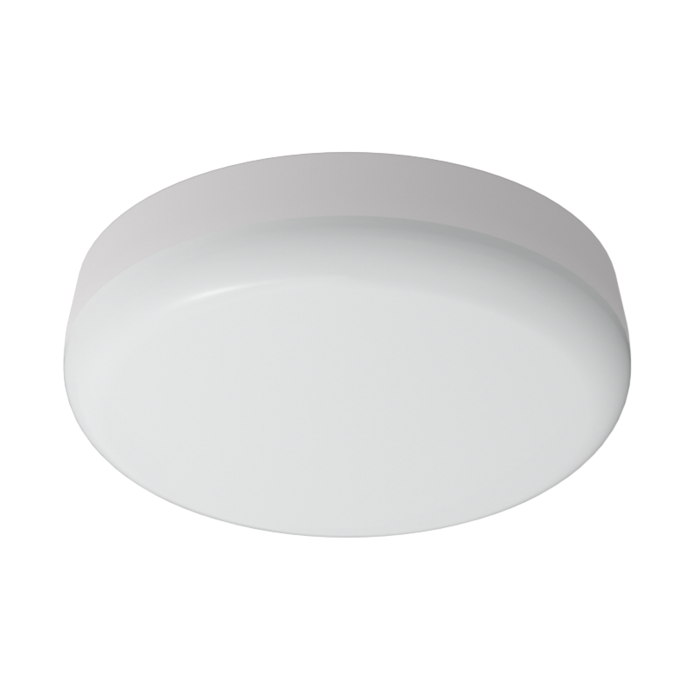

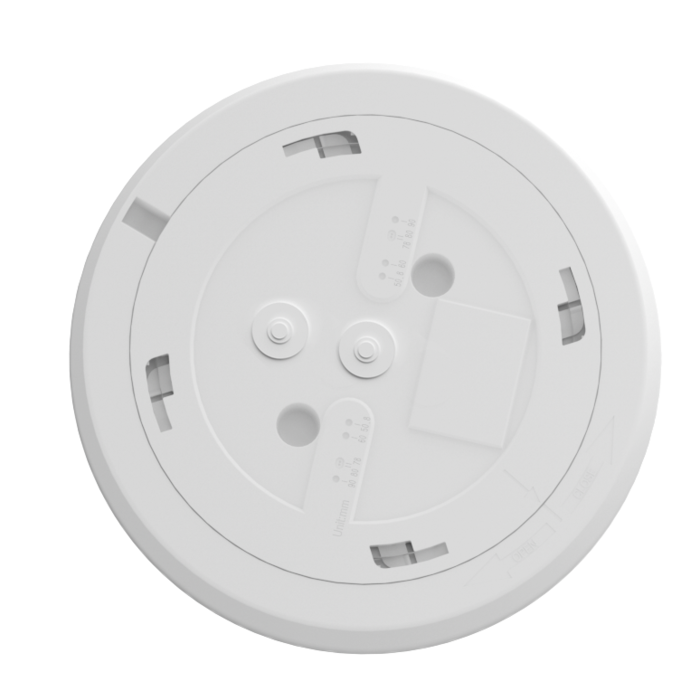

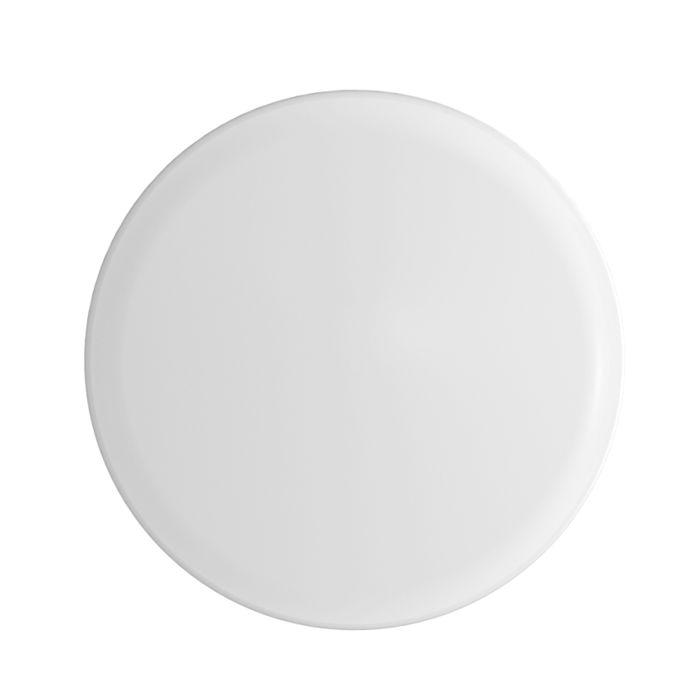

JUNEE SL2116TC/DP
JUNEE SL2116TC/DP
JUNEE SL2116TC/DP
COMING SOON
  • WARM WHITE3000K
  • DAYLIGHT5700K
  • COOL WHITE4000K

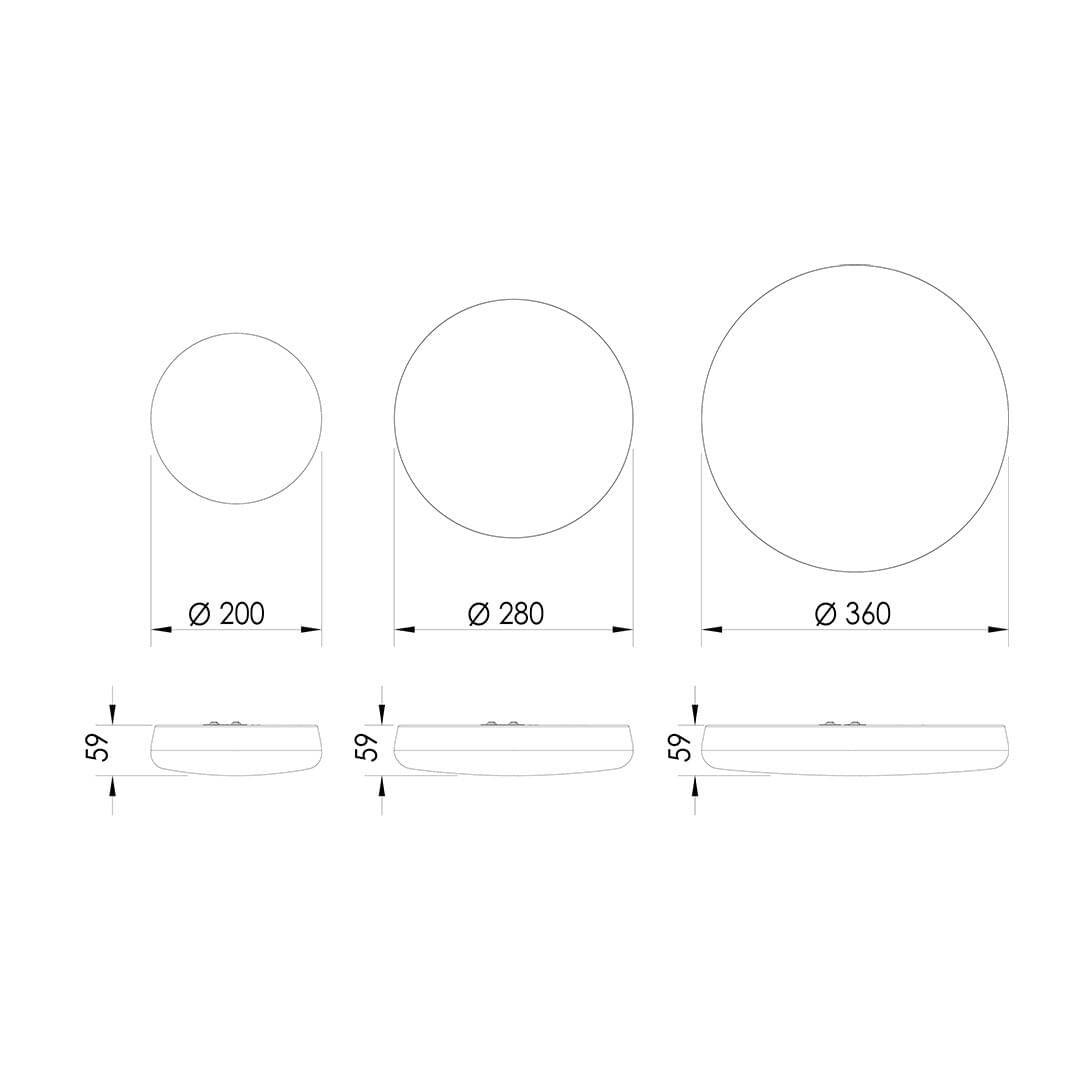

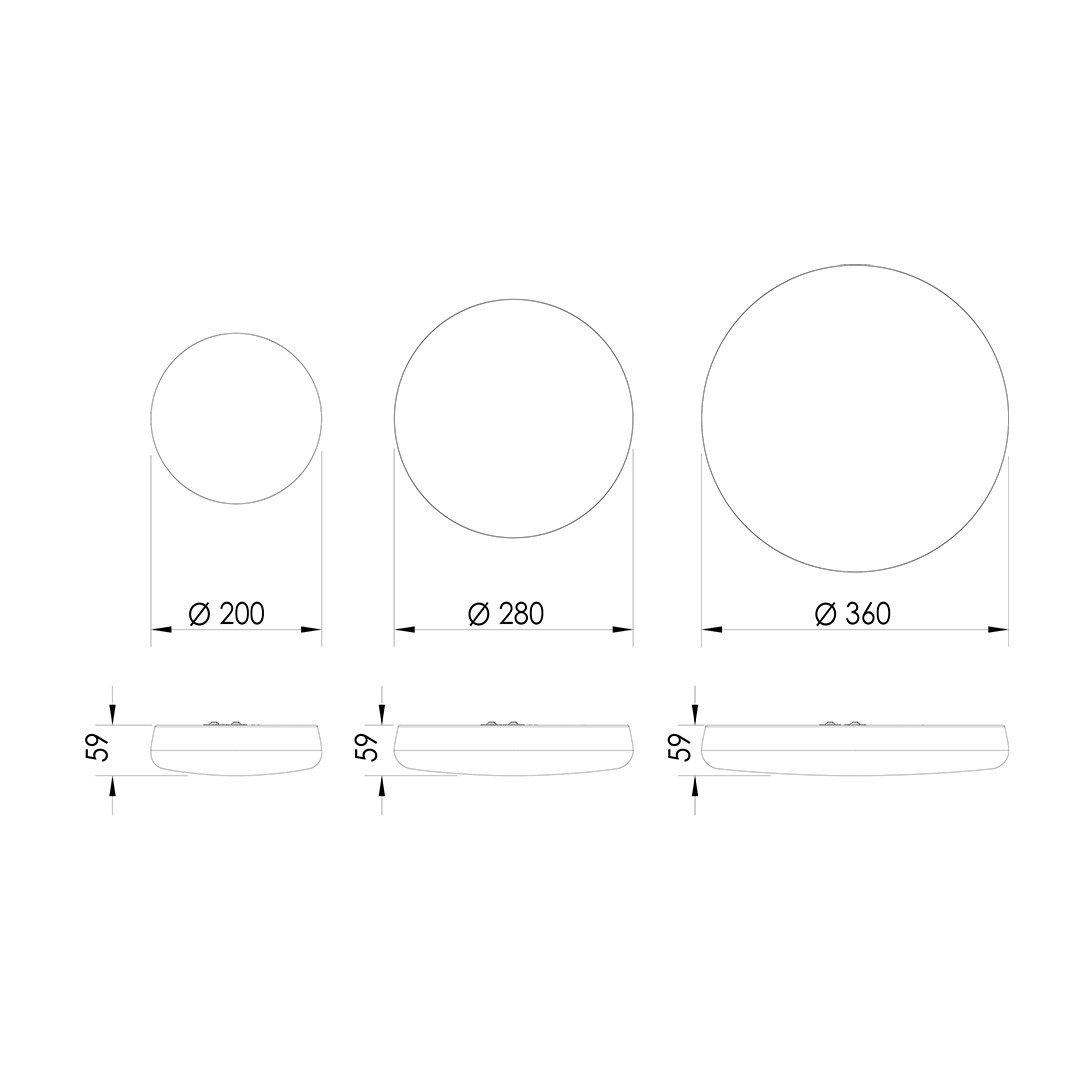

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Multiple Wattage Lumens CCT CRI Dimmable Beam Angle Body Colour Diameter Dim Mass
      		Model No. SL2116/20TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 9/13 Lumens 1400/1500/1450 CCT 3000/4000/5700 CRI 80 Dimmable YES Beam Angle 120 Body Colour WHITE Diameter 200 Dim 59(H) Mass 0.47
      		Model No. SL2116/30TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 17/24 Lumens 2750/2800/2700 CCT 3000/4000/5700 CRI 80 Dimmable YES Beam Angle 120 Body Colour WHITE Diameter 280 Dim 59(H) Mass 0.7
      		Model No. SL2116/40TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 21/30 Lumens 3150/3450/3300 CCT 3000/4000/5700 CRI 80 Dimmable YES Beam Angle 120 Body Colour WHITE Diameter 360 Dim 59(H) Mass 1.13
      		Model No. SL2116/20TC/DP/C Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 9/13 Lumens 1400/1500/1450 CCT 3000/4000/5700 CRI 80 Dimmable NO Beam Angle 120 Body Colour WHITE Diameter 200 Dim 59(H) Mass 0.48
      		Model No. SL2116/30TC/DP/C Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 17/24 Lumens 2750/2800/2700 CCT 3000/4000/5700 CRI 80 Dimmable NO Beam Angle 120 Body Colour WHITE Diameter 280 Dim 59(H) Mass 0.71
      		Model No. SL2116/40TC/DP/C Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 21/30 Lumens 3150/3450/3300 CCT 3000/4000/5700 CRI 80 Dimmable NO Beam Angle 120 Body Colour WHITE Diameter 360 Dim 59(H) Mass 1.14

      NOTE: Lumens displayed (lm) are at the maximum power selection

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
