• LED OYSTERS

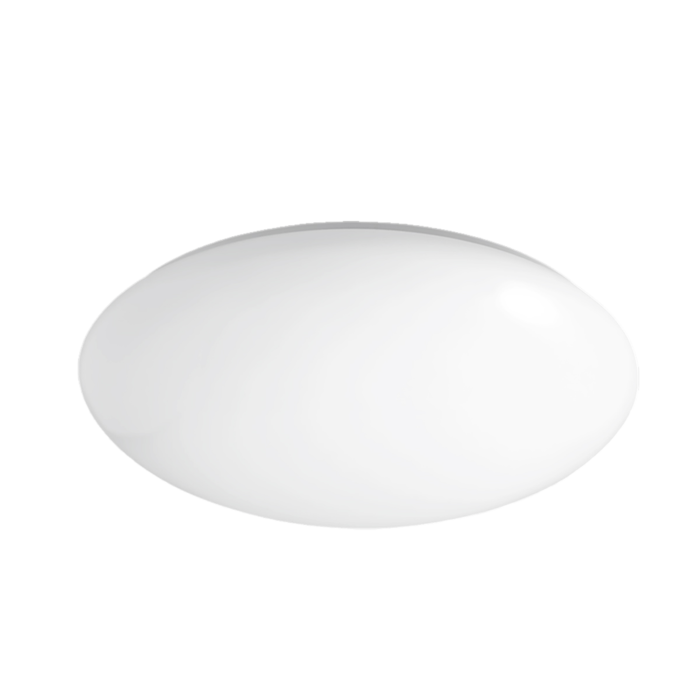

OPAL DIMMABLE SO3700/TC/DPD - 8W/30W

Dimmable LED Oyster 8 to 30 watt, with selectable CCT and dual power, IP20

Application

A perfect choice for apartments or commercial spaces

Design Specifications

  • Selectable CCT 3000K/4000K/6000K

  • Durable powder coated steel body profile with a high performance opal PMMA diffuser

  • High efficiency SMD optics, CRI > 80

  • Integral, dimmable LED driver with dual power selections

  • Ceiling mount, two versatile profile size Ø 320 or 400mm

Performance

  • Dimmable - YES
  • Dimmer Type - Trailing edge
    • Dimensions - Wiring Diagrams
    • Design Options

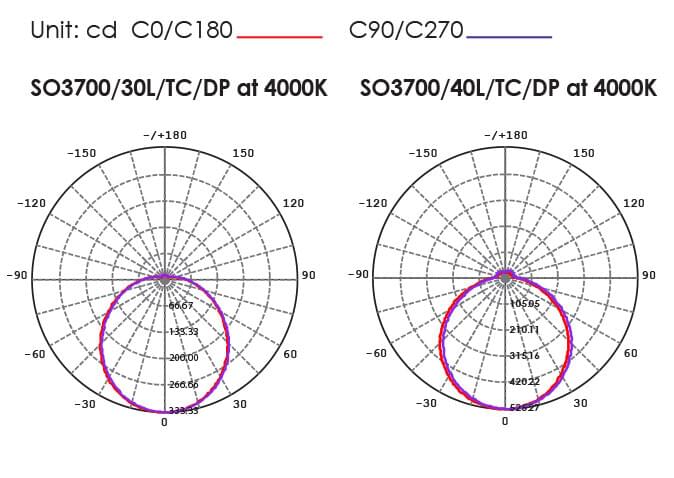

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Multiple Wattage Lumens CCT CRI Beam Angle Body Colour Diameter Dim Mass
      		Model No. SO3700/30TC/DPD Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 8/16 Lumens 1100/1400/1200 CCT 3000/4000/6000 CRI 80 Beam Angle 120 Body Colour White Diameter 310 Dim 100(H) Mass 0.54
      		Model No. SO3700/40TC/DPD Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 15/30 Lumens 2350/2800/2400 CCT 3000/4000/6000 CRI 80 Beam Angle 120 Body Colour White Diameter 390 Dim 112(H) Mass 0.86

      Note: Lumens (lm) values shown are at full power rating

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
