• OYSTERS

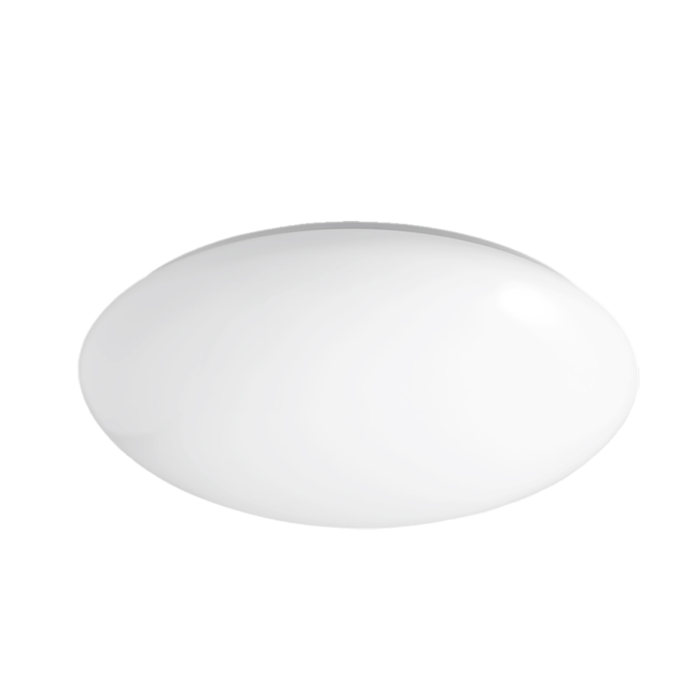

OPAL SO3700/TC/HP - 16W

LED Oyster 16 watt ECO power design with selectable CCT

Application

A perfect choice for apartments or commercial spaces

Design Specifications

  • Selectable CCT 3000K / 4000K / 6000K

  • Durable powder coated steel body profile with a high performance opal PMMA diffuser

  • High efficiency LED optics, CRI > 80

  • Integral constant current non-dimmable LED driver

  • corridorSTANDBY options available

Performance

  • Dimmable - NO

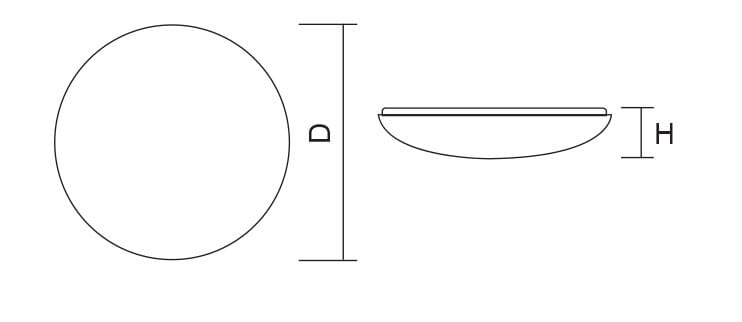

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Body Colour Diameter Dim Mass IPART Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.SO3700/40L/TC/HP Input Voltage240 Power16 Lumens1380/1430/1420 CCT3000/4000/6000 CRI80 Beam Angle120 Body ColourWhite Diameter390 Dim112(H) Mass1.39 IPARTYES Add to Enquiry Add Remove Remove
    Model No.SO3700/40L/TC/C Input Voltage240 Power16 Lumens1380/1430/1420 CCT3000/4000/6000 CRI80 Beam Angle120 Body ColourWhite Diameter390 Dim112(H) Mass IPARTYES Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
