• LED OYSTERS

DISC SL2105TC - 12/30W

Dimmable IP54 LED Oyster, 12, 25, 30 watt, with selectable CCT

Application

A perfect choice for apartments, residential or commercial spaces

Design Specifications

  • Robust white polycarbonate body profile, three sizes to select 12/25 or 30 watt

  • Quality opal polycarbonate diffuser
  • Double insulation

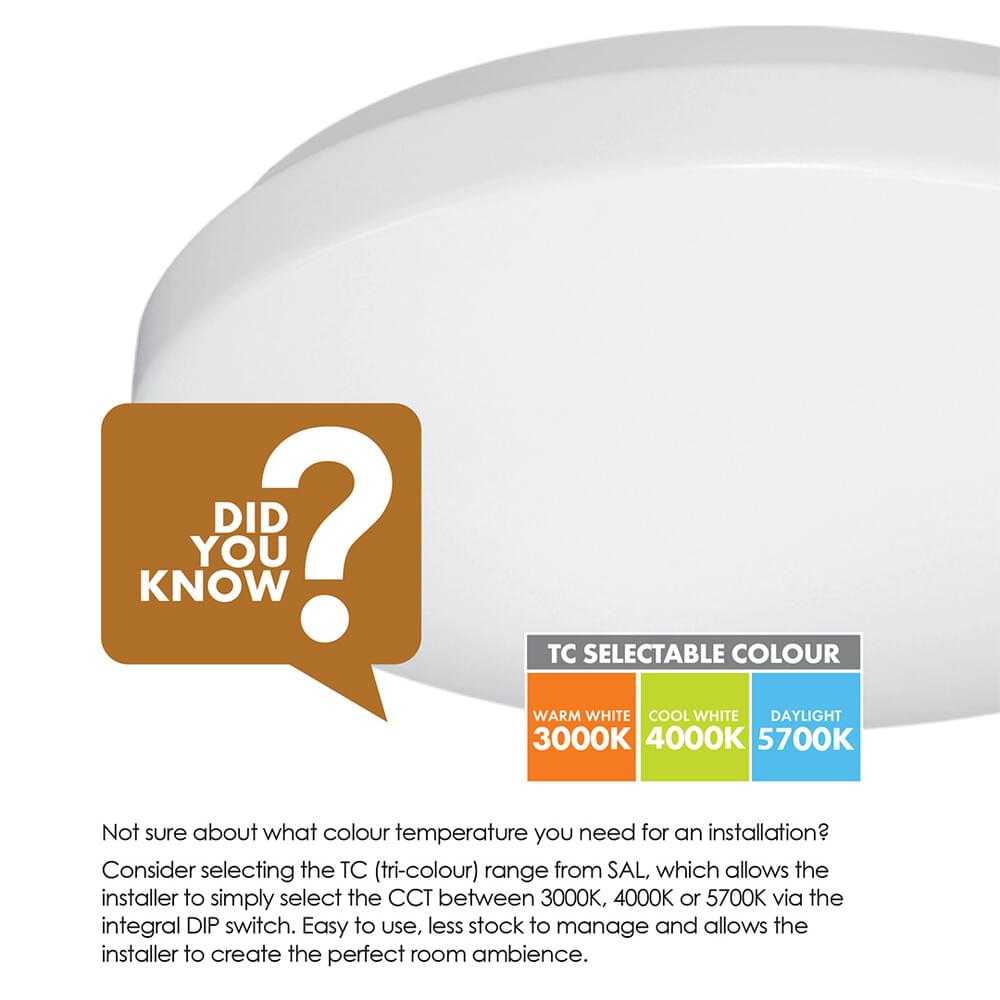

  • High efficiency SMD LED chips, selectable CRI > 80, CCT 3000, 4000 or 5700K

  • Integral constant current trailing edge dimmable LED driver

  • Low profile design, IP54, Dimensions: (diameter x height) (12w) 200 x 48mm, (25w) 300 x 40mm, (30w) 400 x 52mm.

Performance

Dimmable Driver - YES
Dimmer Type - TRAILING EDGE

  • Dimensions
  • Design Options

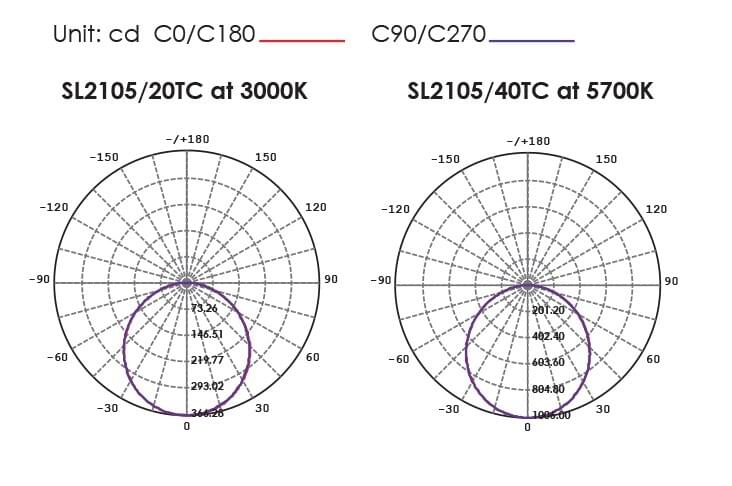

  • Photometric Data
  • Technical Specifications
    Model No. Description Input Power Lumens CCT CRI Body Colour Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.SL2105/20TC DescriptionLED OYSTER 12W IP54 TC DIM WH Input240 Power12 Lumens1090/1230/1170 CCT3000/4000/5700 CRI80 Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL2105/30TC DescriptionLED OYSTER 25W IP54 TC DIM WH Input240 Power25 Lumens2450/2600/2500 CCT3000/4000/5700 CRI80 Body ColourWHITE Add to Enquiry Add Remove Remove
    Model No.SL2105/40TC DescriptionLED OYSTER 30W IP54 TC DIM WH Input240 Power30 Lumens2800/3480/3000 CCT3000/4000/5700 CRI80 Body ColourWHITE Add to Enquiry Add Remove Remove
Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
