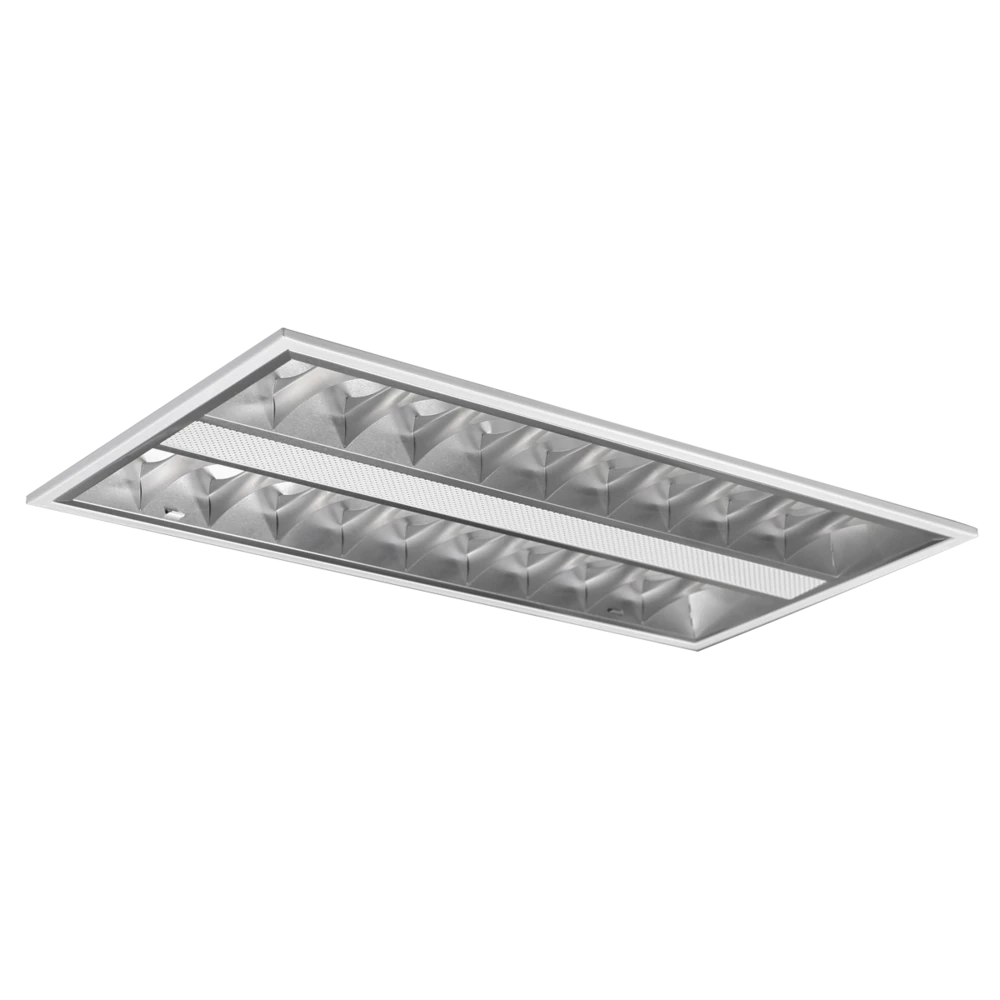

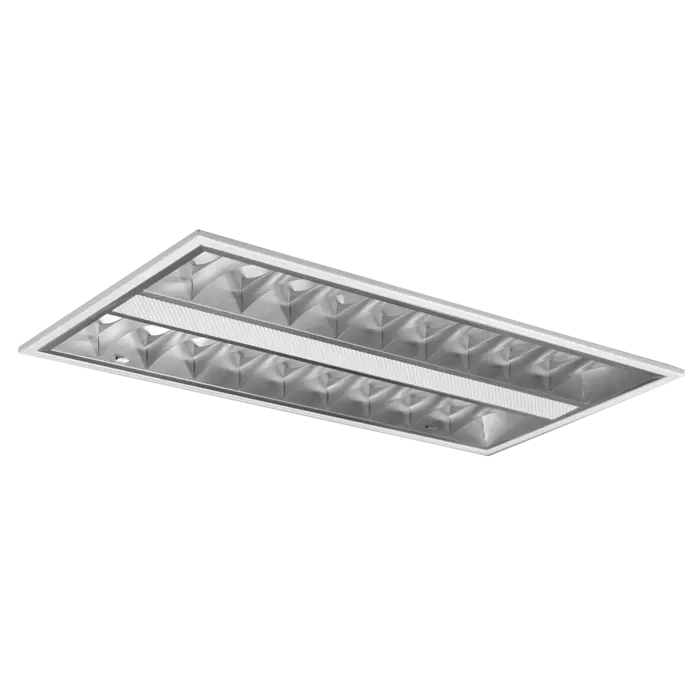

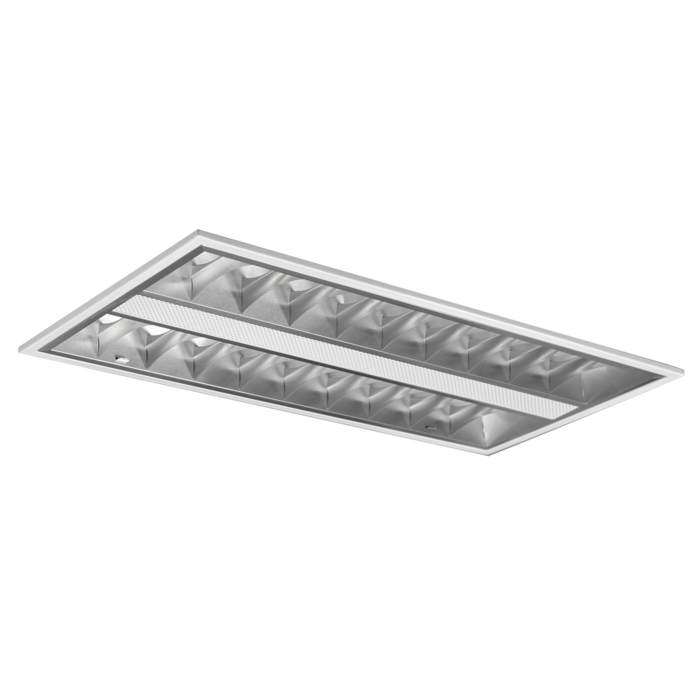

L-LINE MKII S9734 - 38W

LED louvre troffer MKII

Application

LED conventional commercial troffer design for interior spaces

Design Specifications

  • Pressed steel body profile

  • Quality white powder coated finish

  • Double parabolic matt aluminium louvre

  • High efficiency SMD LED chips UGR <19

  • Opal polycarbonate LED diffuser, CRI > 80, CCT 4000K

  • 240V constant current non-dimmable LED driver

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI / DSI
  • COOL WHITE4000K
  • COOL WHITE4000K

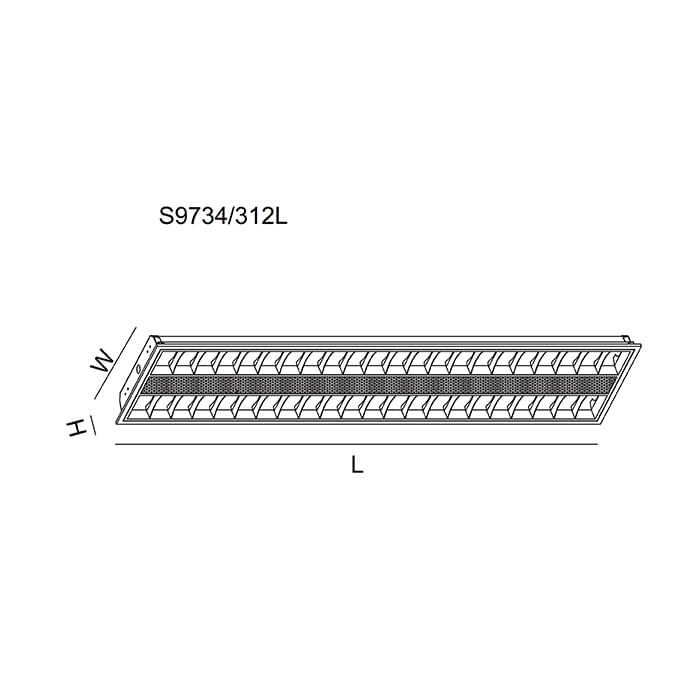

  • Dimensions - Wiring Diagrams
  • Design Options

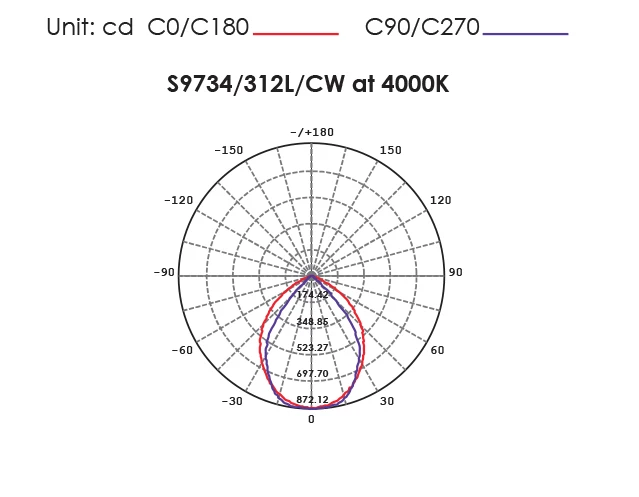

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmer Type Body Colour Dim IPART REES Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9734/312L/CW Input Voltage240 Power38 Lumens3500 CCT4000 CRI80 Beam Angle100 Dimmer TypeTrailing edge, 1-10V, DALI / DSI Body ColourWHITE Dim1195(L) x 295(W) x 65(H) IPARTYES REESYES Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
