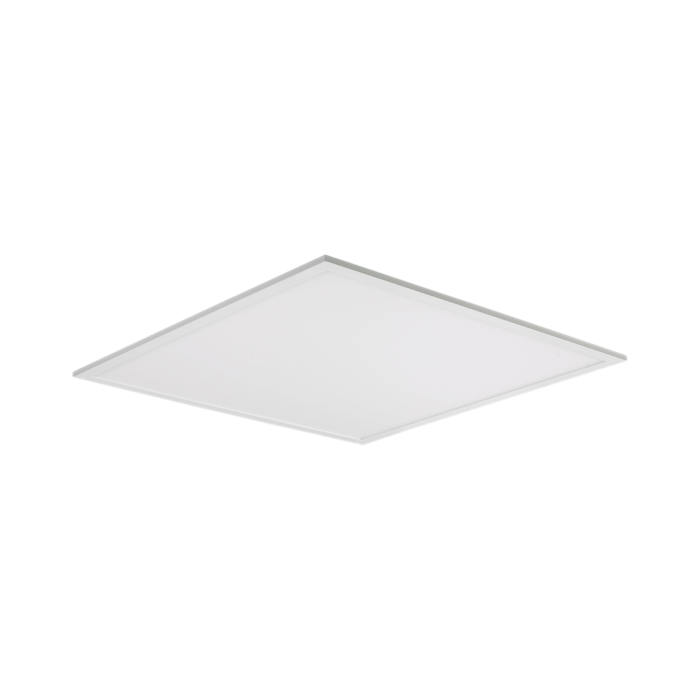

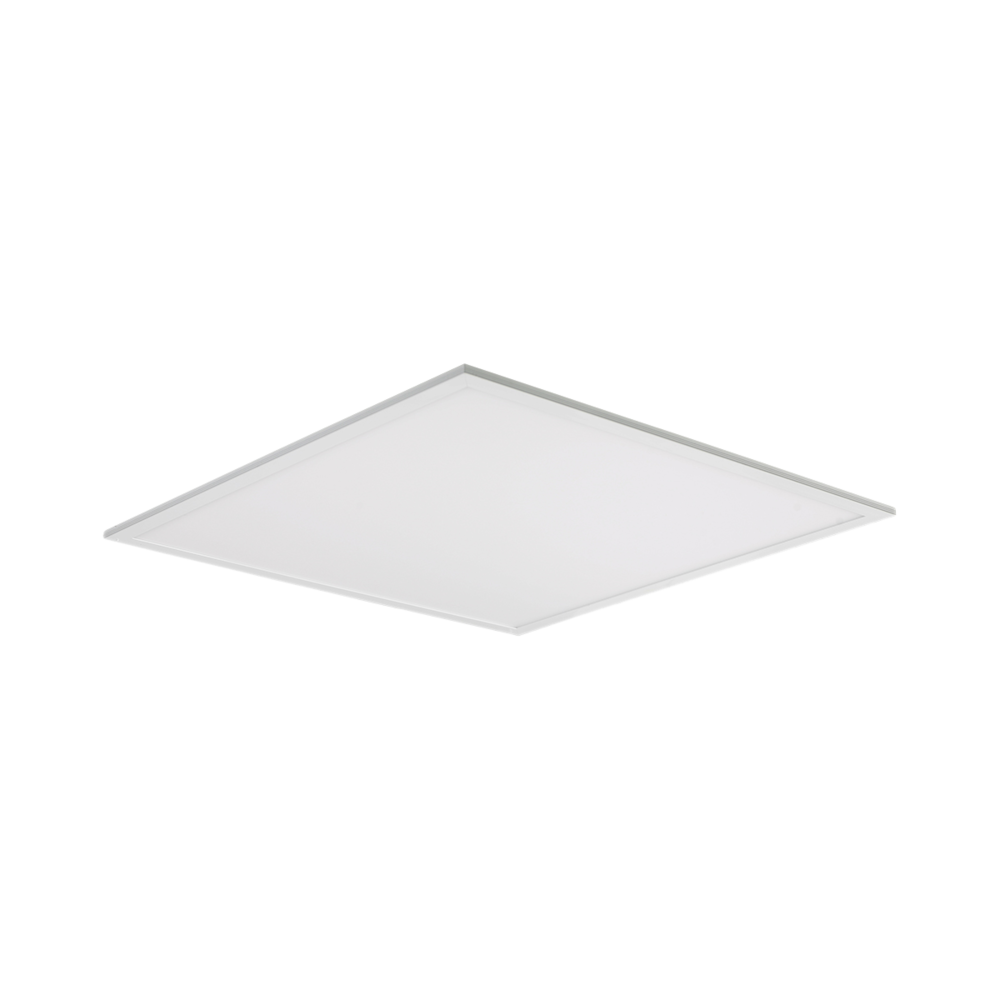

PANEL S9784TC/DP2 - 12/50W

LED Backlit panel with selectable CCT and power

Application

Designed for commercial and office space lighting tasks.

Design Specifications

  • Extruded aluminium profile with high efficiency opal diffuser, suitable for a range of installation types

  • White powder coat finish, high efficiency Backlit LED optics, CRI >90

  • Remote flickerCONTROLLED non-dimmable LED driver, complete with flex and plug

  • Selectable CCT 3000K/4000K/5700K

  • Suspension configuration guide:
    S9784SP4NS requires (4 x Brackets in Pkt),
    (612 Panel Requires 6 x Brackets).
    Suspension Wire Only :  SSY1512,
    (612 Panels Requires 3 x SSY1512)

  • Emergency models available using SEL20PK, see Interior Emergency section.

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, DALI / DSI
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT CRI Beam Angle Dimmable Body Colour Dim Mass IPART VEET Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9784/306TC/DP2 Input Voltage240 Multiple Wattage12/24 Lumens2250/2500/2400 CCT3000/4000/5700 CRI90 Beam Angle110 Dimmable OPTIONAL Body ColourWHITE Dim595(L) x 295(W) x 32(H) Mass0.9 IPARTYES VEETYES Add to Enquiry Add Remove Remove
    Model No.S9784/606TC/DP2 Input Voltage240 Multiple Wattage18/36 Lumens3400/3750/3650 CCT3000/4000/5700 CRI90 Beam Angle110 Dimmable OPTIONAL Body ColourWHITE Dim595(L) x 595(W) x 32(H) Mass1.5 IPARTYES VEETYES Add to Enquiry Add Remove Remove

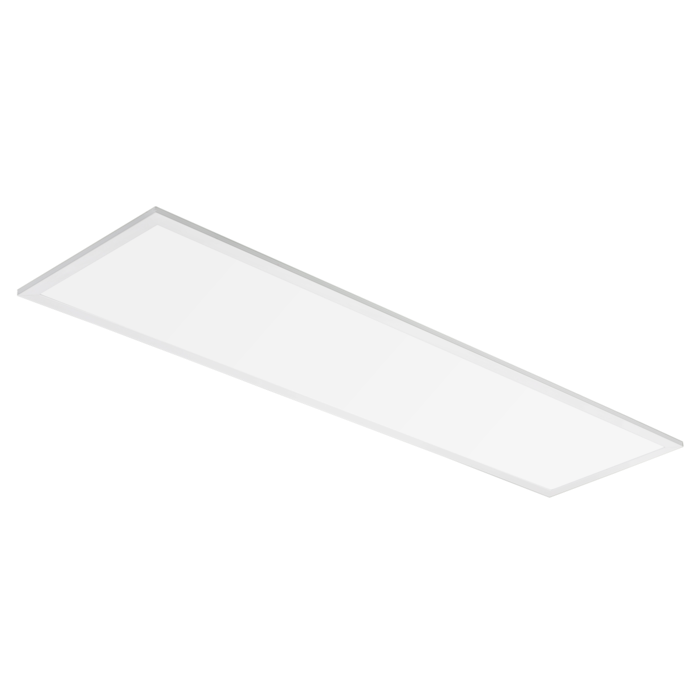

    Model No.S9784/312TC/DP2 Input Voltage240 Multiple Wattage18/36 Lumens3400/3750/3650 CCT3000/4000/5700 CRI90 Beam Angle110 Dimmable OPTIONAL Body ColourWHITE Dim1195(L) x 295(W) x 32(H) Mass1.5 IPARTYES VEETYES Add to Enquiry Add Remove Remove
    Model No.S9784/612TC/DP2 Input Voltage240 Multiple Wattage35/50 Lumens4750/5250/5000 CCT3000/4000/5700 CRI90 Beam Angle110 Dimmable OPTIONAL Body ColourWHITE Dim1195(L) x 595(W) x 32(H) Mass3.3 IPARTN/A VEETYES Add to Enquiry Add Remove Remove

    Note (1) : Lumens (lm) shown are for TOTAL system performance.
    Note (2) : For dimmable configurations, the CCT must be specified at the time of order and the DP function is deactivated.
