• LED PANELS & TROFFERS

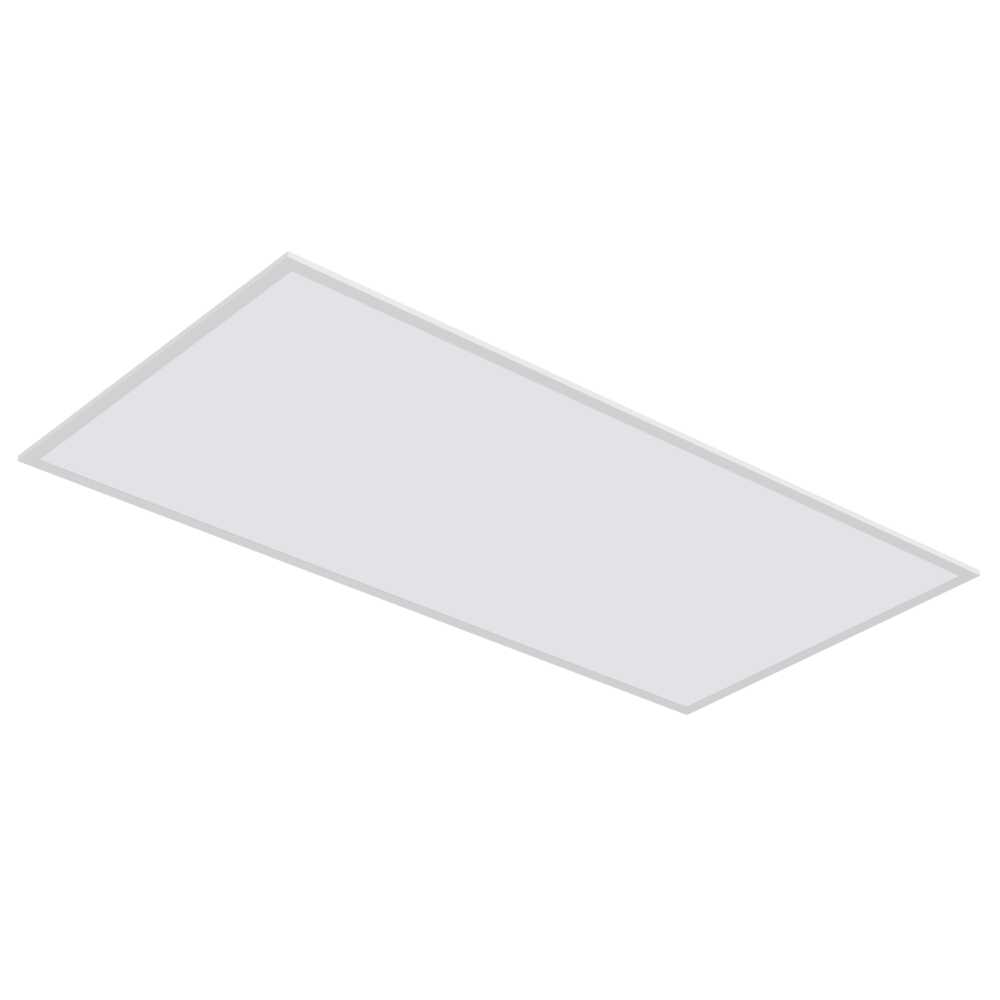

PANEL S9784U TC/DP - 16/27W

LED High performance panel with selectable CCT and power

Application

Designed for commercial and office space lighting tasks.

Design Specifications

  • UGR<19 performance

  • Extruded aluminium profile with high efficiency opal diffuser, suitable for a range of installation types

  • White powder coat finish

  • High efficiency LED optics, CRI >80

  • FlickerCONTROLLED, remote constant current non-dimmable LED driver, complete with flex and plug

  • Selectable CCT 3000K/4000K/5000K, Suspended wire kits available, Emergency models compliant to AS/NZS2293, see SEL20PK EM Power Kit.

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge (excluding S9784/612), 1-10V, DALI / DSI
    • Dimensions - Wiring Diagrams
    • Design Options

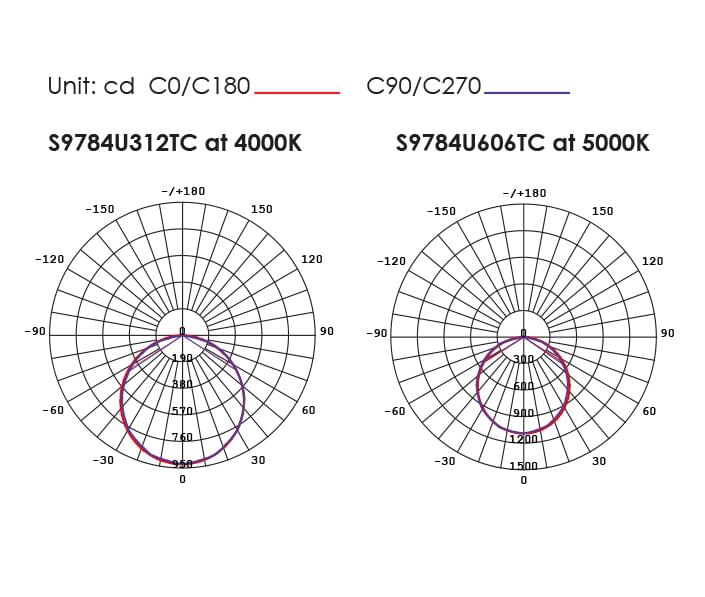

    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Multiple Wattage Lumens CCT CRI Beam Angle Body Colour Dim Mass IPART VEET
      		Model No. S9784U606TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 16/27 Lumens 2700/2850/2750 CCT 3000/4000/5000 CRI 80 Beam Angle 80 Body Colour WHITE Dim 595(L) x 595(W) x 32(H) Mass 1.8 IPART YES VEET YES
      		Model No. S9784U612TC/DP Add to Enquiry Add Remove Remove Input Voltage 240 Multiple Wattage 24/40 Lumens 4500/4750/4600 CCT 3000/4000/5000 CRI 80 Beam Angle 80 Body Colour WHITE Dim 1195(L) x 595(W) x 32(H) IPART YES VEET YES

      Note (1) : Lumens (lm) shown are for FULL POWER performance.
      Note (2) : For dimmable configurations, the CCT must be specified at the time of order and the DP function is deactivated.

    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
