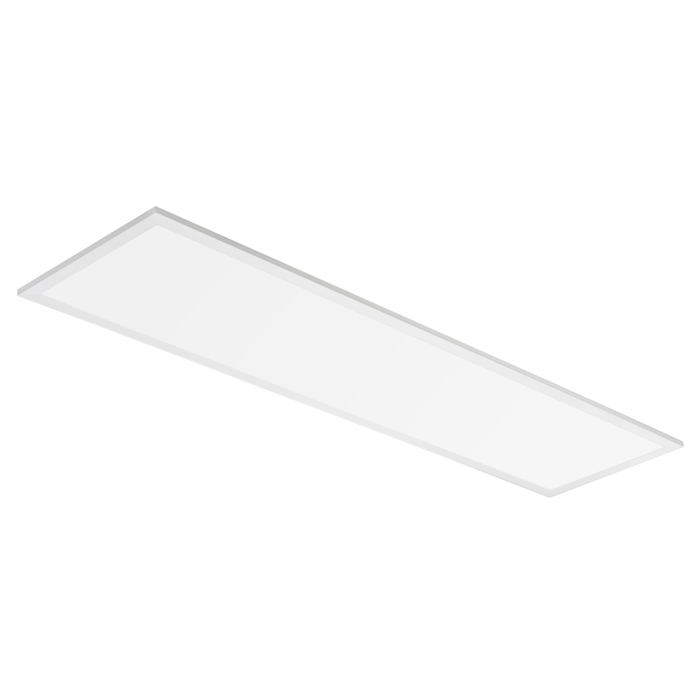

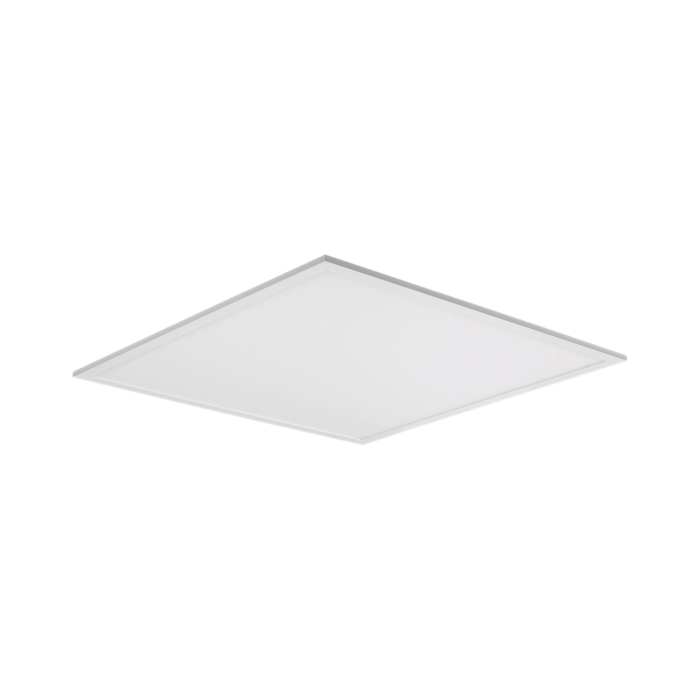

PANEL S9784U TC/DP2 - 12W/50W

LED High performance panel with selectable CCT and power

Application

Designed for commercial and office space lighting tasks.

Design Specifications

  • UGR<19 performance

  • Extruded aluminium profile with high efficiency opal diffuser, suitable for a range of installation types

  • White powder coat finish

  • High efficiency LED optics, CRI >90

  • FlickerCONTROLLED, remote constant current non-dimmable LED driver, complete with flex and plug

  • Selectable CCT 3000K/4000K/5700K
    Suspended wire kits available
    Emergency models compliant to AS/NZS2293 with D50 spacing classification available, see Interior Emergency section.

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - trailing edge, 1-10V, DALI/DSI
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Multiple Wattage Lumens CCT CRI Beam Angle Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9784U306TC/DP2 Input Voltage240 Multiple Wattage12/24 Lumens2250/2500/2400 CCT3000/4000/5700 CRI90 Beam Angle110 Body ColourWHITE Dim595(L) x 295(W) x 32(H) Add to Enquiry Add Remove Remove
    Model No.S9784U312TC/DP2 Input Voltage240 Multiple Wattage23/36 Lumens3400/3700/3600 CCT3000/4000/5700 CRI90 Beam Angle110 Body ColourWHITE Dim1195(L) x 295(W) x 32(H) Add to Enquiry Add Remove Remove
    Model No.S9784U612TC/DP2 Input Voltage240 Multiple Wattage30/50 Lumens4750/5250/5000 CCT3000/4000/5700 CRI90 Beam Angle110 Body ColourWHITE Dim1195(L) x 595(W) x 32(H) Add to Enquiry Add Remove Remove

    Note (1) : Lumens (lm) shown are for FULL POWER performance.
    Note (2) : For dimmable configurations, the CCT must be specified at the time of order and the DP function is deactivated.
