• LED PANELS & TROFFERS

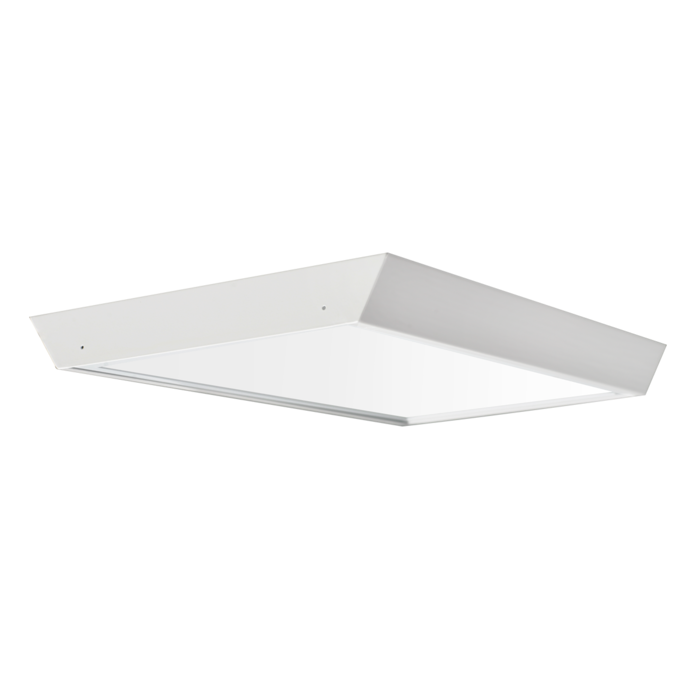

SURFACE MT FRAME - SFM

Pre-assembled surface mount frames

Application

Designed for commercial interior office spaces

Design Specifications

  • Pressed steel base

  • White powder coated finish

  • Accommodates ESS101 quick connect surface mount socket, excluding BACKLIT panels

  • For S312FM and S606FM add the suffix /P or /P2 to the order code, for kit form assemblies supplied ready for easy assembly on site.

  • S306FM = S9754/306 range, S9784/306 range
    S312FM = S9754/312 range, S9784/312 range
    S606FM = S9754/606 range, S9784/606 range
    S612FM = S9754/612 range, S9784/612 range

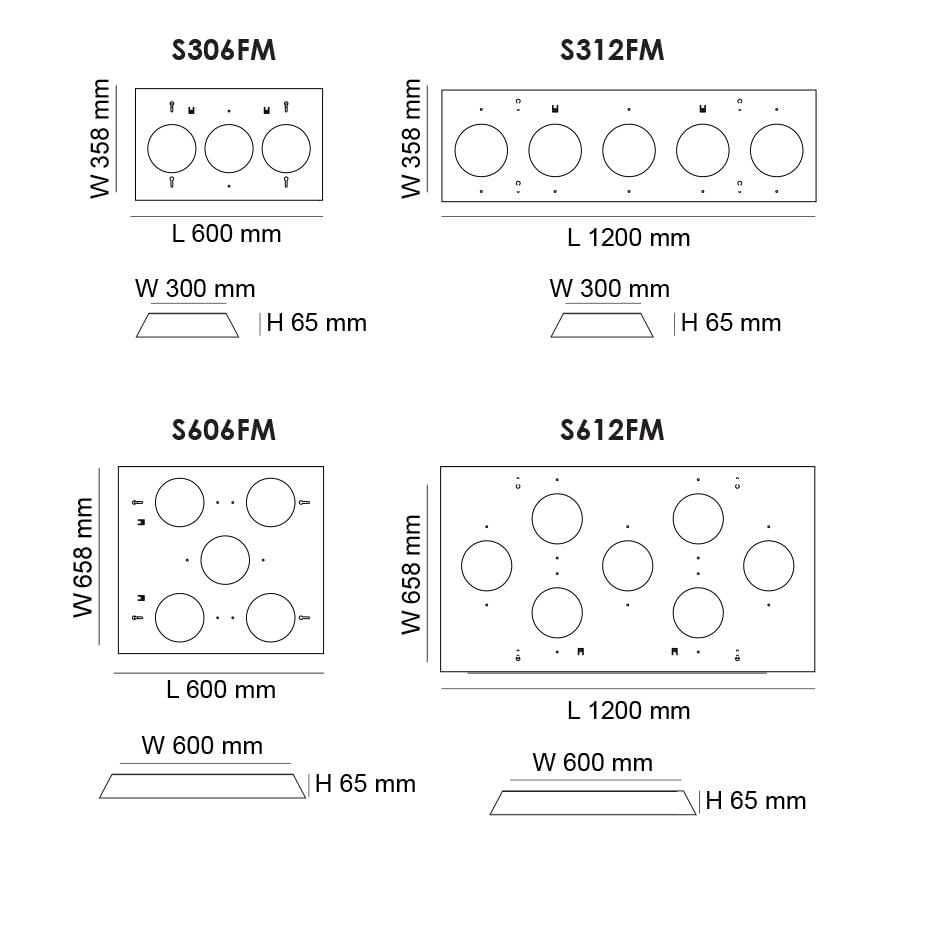

    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Body Colour Dim Mass
      Model No. S306FM Add to Enquiry Add Remove Remove Body Colour WHITE Dim 600(L) x 358(W) x 65(H) Mass 1.5
      Model No. S312FM Add to Enquiry Add Remove Remove Body Colour WHITE Dim 1200(L) x 358(W) x 65(H) Mass 3
      Model No. S606FM Add to Enquiry Add Remove Remove Body Colour WHITE Dim 600(L) x 658(W) x 65(H) Mass 3.6
      Model No. S612FM Add to Enquiry Add Remove Remove Body Colour WHITE Dim 1200(L) x 658(W) x 65(H) Mass 4.3
      Model No. S606FM/P Add to Enquiry Add Remove Remove Body Colour WHITE Dim 600(L) x 658(W) x 65(H)
      Model No. S312FM/P2 Add to Enquiry Add Remove Remove Body Colour WHITE Dim 1200(L) x 358(W) x 65(H) Mass 3.31
      Model No. S606FM/P2 Add to Enquiry Add Remove Remove Body Colour WHITE Dim 600(L) x 658(W) x 65(H) Mass 2.27
      Model No. S612FM/P2 Add to Enquiry Add Remove Remove Body Colour WHITE Dim 1200(L) x 658(W) x 65(H) Mass 3.7
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
