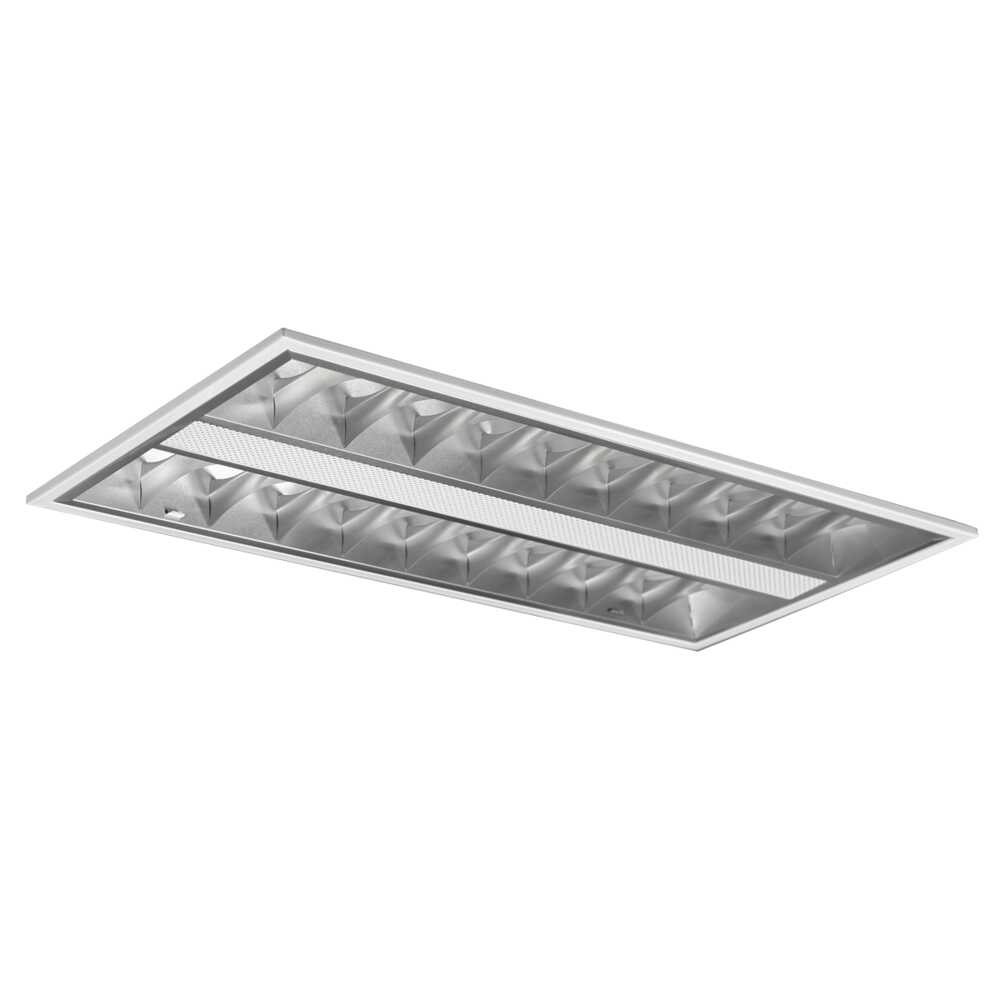

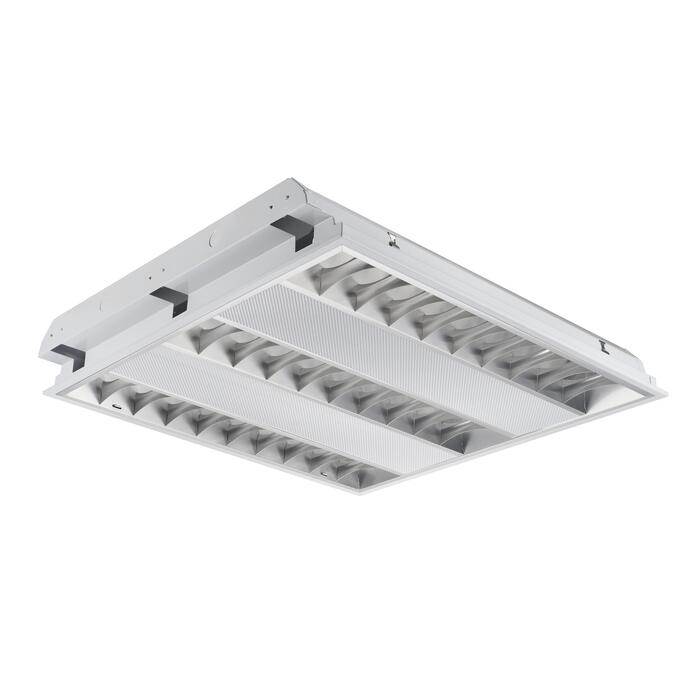

L-LINE S9724 -18/27W

LED T8 louvre troffer

Application

Budget linear louver profile for commercial interior spaces

Design Specifications

  • Pressed steel base

  • White powder coated finish

  • Double parabolic matt aluminium louvre
  • LED T8 tubes fitted
  • Safety fuse installed

  • Flex and plug fitted, ready for plug and play

Performance

  • Dimmable - NO
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
  • Dimensions - Wiring Diagrams
  • Design Options

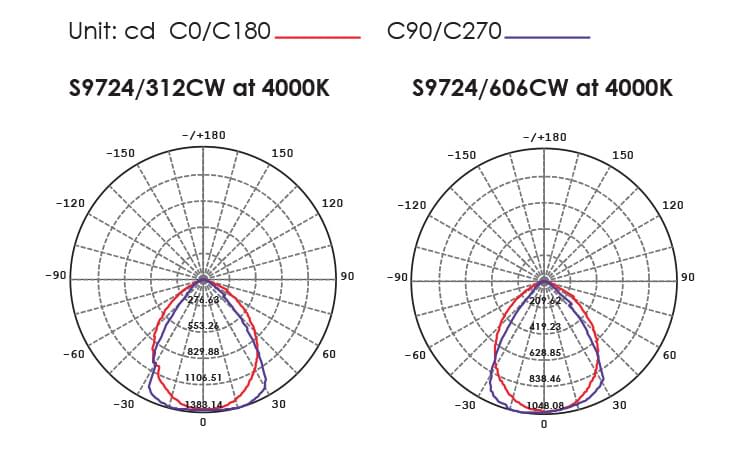

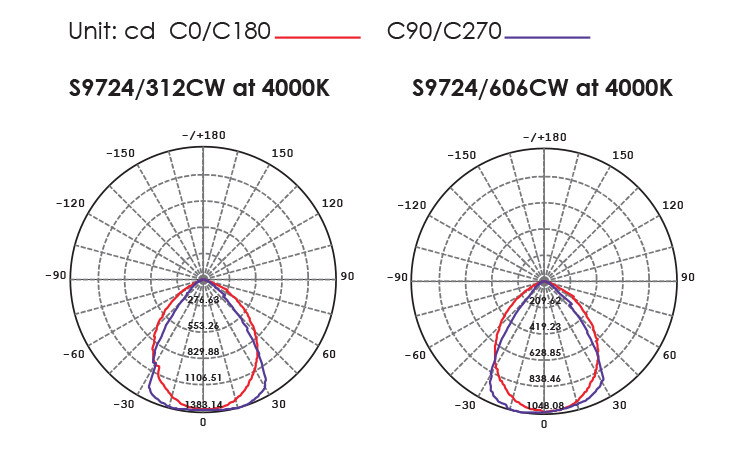

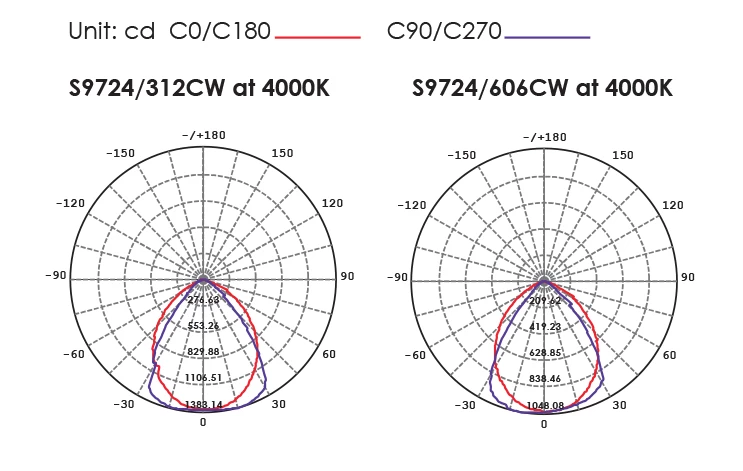

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dimmer Type Body Colour Dim IPART REES Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.S9724/306WW Input Voltage240 Power18 Lumens1100 CCT3000 CRI80 Beam Angle120 Dimmer TypeNO Body ColourWHITE Dim595(L) x 295(W) x 85(H) IPART REES Add to Enquiry Add Remove Remove
    Model No.S9724/306CW Input Voltage240 Power18 Lumens1100 CCT4000 CRI80 Beam Angle120 Dimmer TypeNO Body ColourWHITE Dim595(L) x 295(W) x 85(H) IPART REES Add to Enquiry Add Remove Remove
    Model No.S9724/306DL Input Voltage240 Power18 Lumens1100 CCT6000 CRI80 Beam Angle120 Dimmer TypeNO Body ColourWHITE Dim595(L) x 295(W) x 85(H) IPART REES Add to Enquiry Add Remove Remove
    Model No.S9724/312WW Input Voltage240 Power36 Lumens2200 CCT3000 CRI80 Beam Angle120 Dimmer TypeNO Body ColourWHITE Dim1195(L) x 295(W) x 85(H) IPARTYES REESYES Add to Enquiry Add Remove Remove
    Model No.S9724/312CW Input Voltage240 Power36 Lumens2200 CCT4000 CRI80 Beam Angle120 Dimmer TypeNO Body ColourWHITE Dim1195(L) x 295(W) x 85(H) IPARTYES REESYES Add to Enquiry Add Remove Remove
    Model No.S9724/312DL Input Voltage240 Power36 Lumens2200 CCT6000 CRI80 Beam Angle120 Dimmer TypeNO Body ColourWHITE Dim1195(L) x 295(W) x 85(H) IPARTYES REESYES Add to Enquiry Add Remove Remove

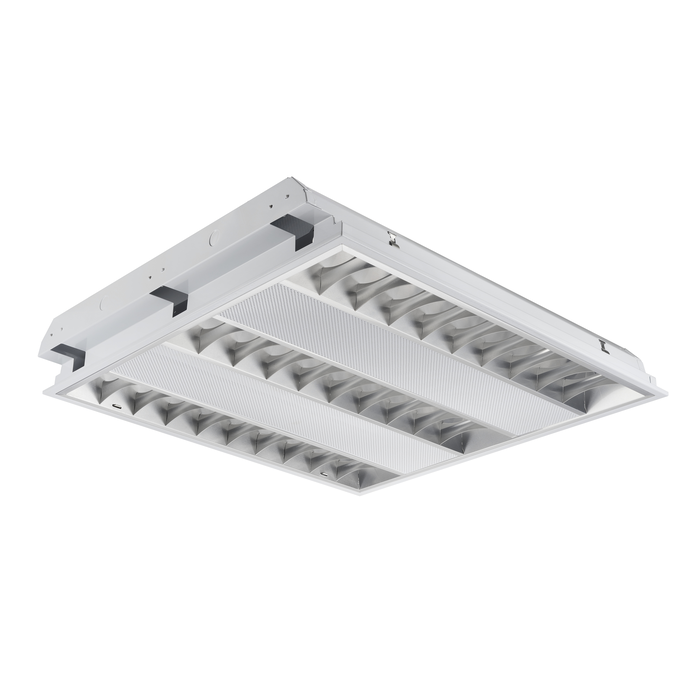

    Model No.S9724/606WW Input Voltage240 Power27 Lumens1800 CCT3000 CRI80 Beam Angle120 Dimmer TypeNO Body ColourWHITE Dim595(L) x 595(W) x 85(H) IPART REES Add to Enquiry Add Remove Remove
    Model No.S9724/606CW Input Voltage240 Power27 Lumens1800 CCT4000 CRI80 Beam Angle120 Dimmer TypeNO Body ColourWHITE Dim595(L) x 595(W) x 85(H) IPART REES Add to Enquiry Add Remove Remove
    Model No.S9724/606DL Input Voltage240 Power27 Lumens1800 CCT6000 CRI80 Beam Angle120 Dimmer TypeNO Body ColourWHITE Dim595(L) x 595(W) x 85(H) IPART REES Add to Enquiry Add Remove Remove
    Installation types - Standard metric T-Bar ceiling recessed installation Air Slot models to suit –/306, –/312 panel sizes, Plaster ceiling recessed installation (S9704 Plaster ceiling frame required)
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models.
