• PANELS & TROFFERS

PANEL S9774 - 24/40W

LED panel, LOW power

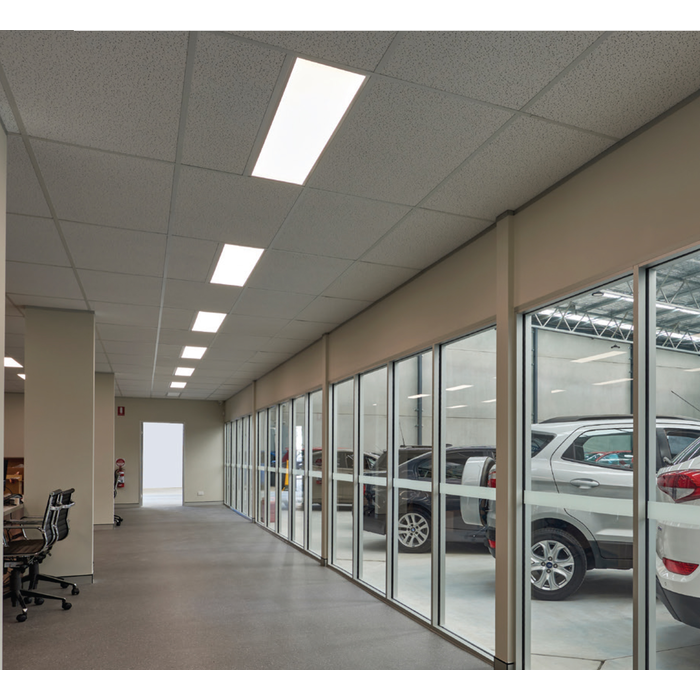

Application

 Designed for commercial and office space lighting tasks.

Design Specifications

  • Extruded aluminium profile with high performance optical design, suitable for a range of installation types.

  • White powder coated finish

  • High efficiency LED optics, CRI > 80

  • Remote constant current non-dimmable LED driver PF>0.9, complete with flex and plug

  • CCT 5700K , 24 watt systems

  • Recessed frames, surface mount kits and suspended wire kits available

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Trailing edge, 1-10V, (excluding S9774/612) DALI / DSI
PANEL
PANEL
PANEL
LIMITED STOCK
  • DAYLIGHT5700K
  • Dimensions - Wiring Diagrams
  • Design Options

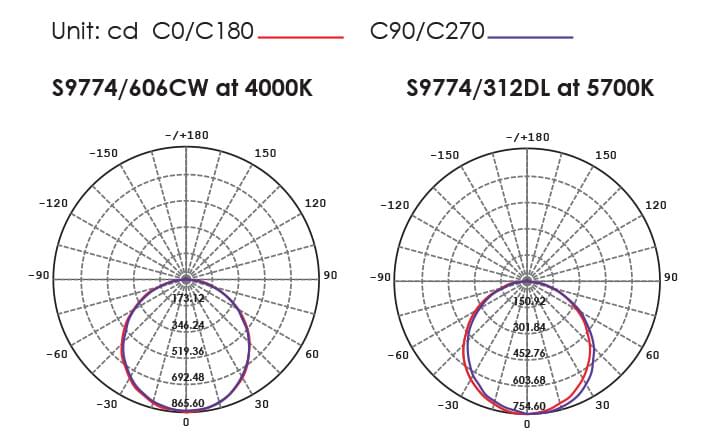

  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Power Lumens CCT CRI Beam Angle Dim Mass IPART REES VEET Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close

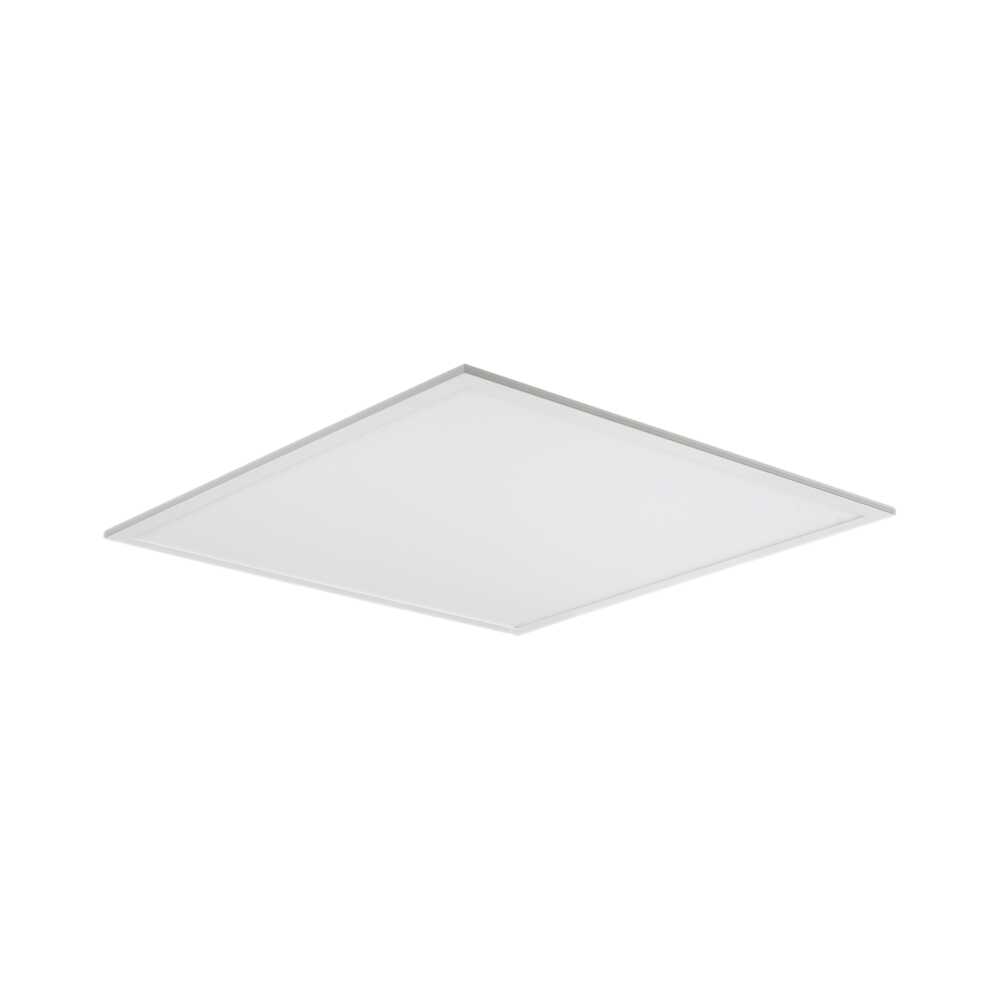

    Model No.S9774/606DL Input Voltage240 Power24 Lumens2400 CCT5700 CRI80 Beam Angle100 Dim595(L) x 595(W) x 9(H) Mass2.76 IPARTYES REESYES VEETYES Add to Enquiry Add Remove Remove

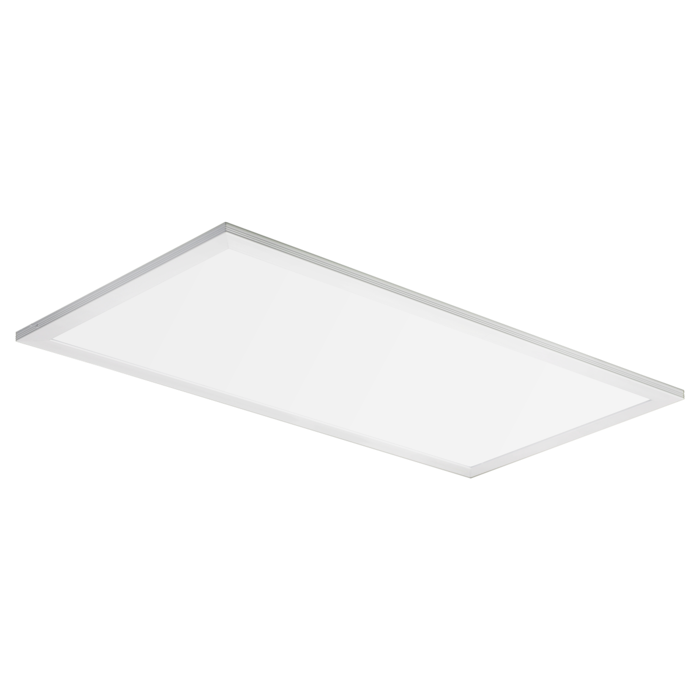

    Model No.S9774/312DL Input Voltage240 Power24 Lumens2400 CCT5700 CRI80 Beam Angle100 Dim1195(L) x 295(W) x 9(H) Mass3 IPARTYES REESYES VEETYES Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
