• LED PANELS AND TROFFERS

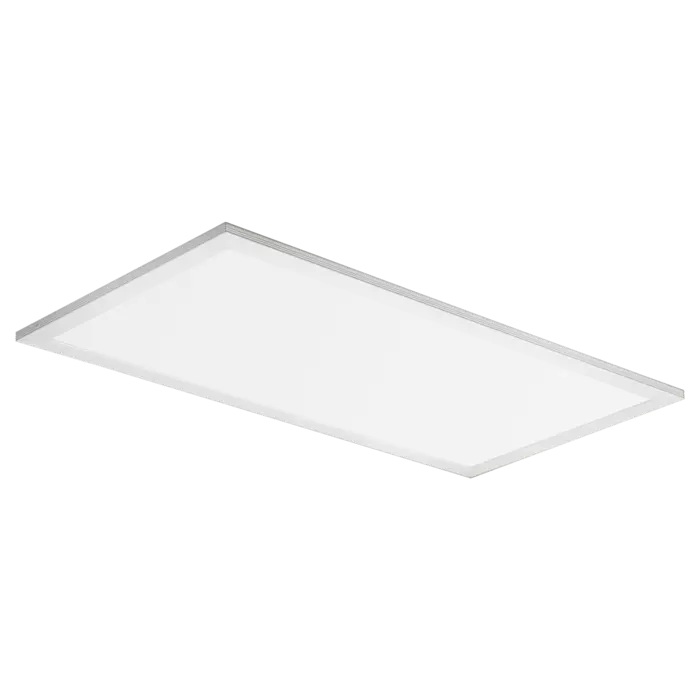

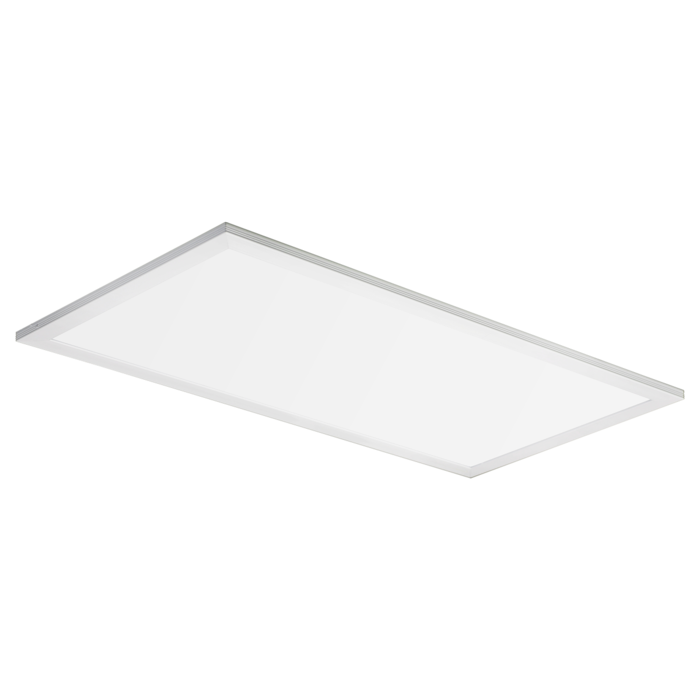

PANEL MK II S9754 - 18/48W

LED panel with selectable colour

Application

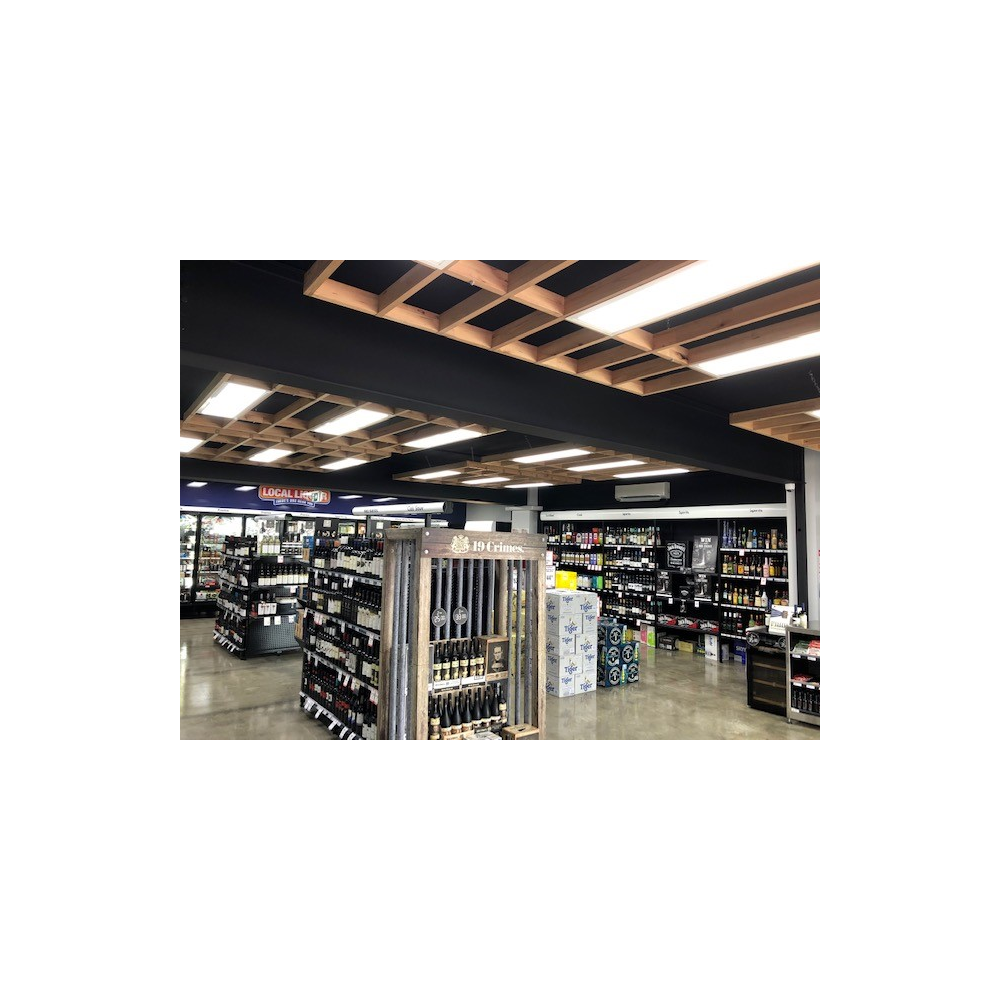

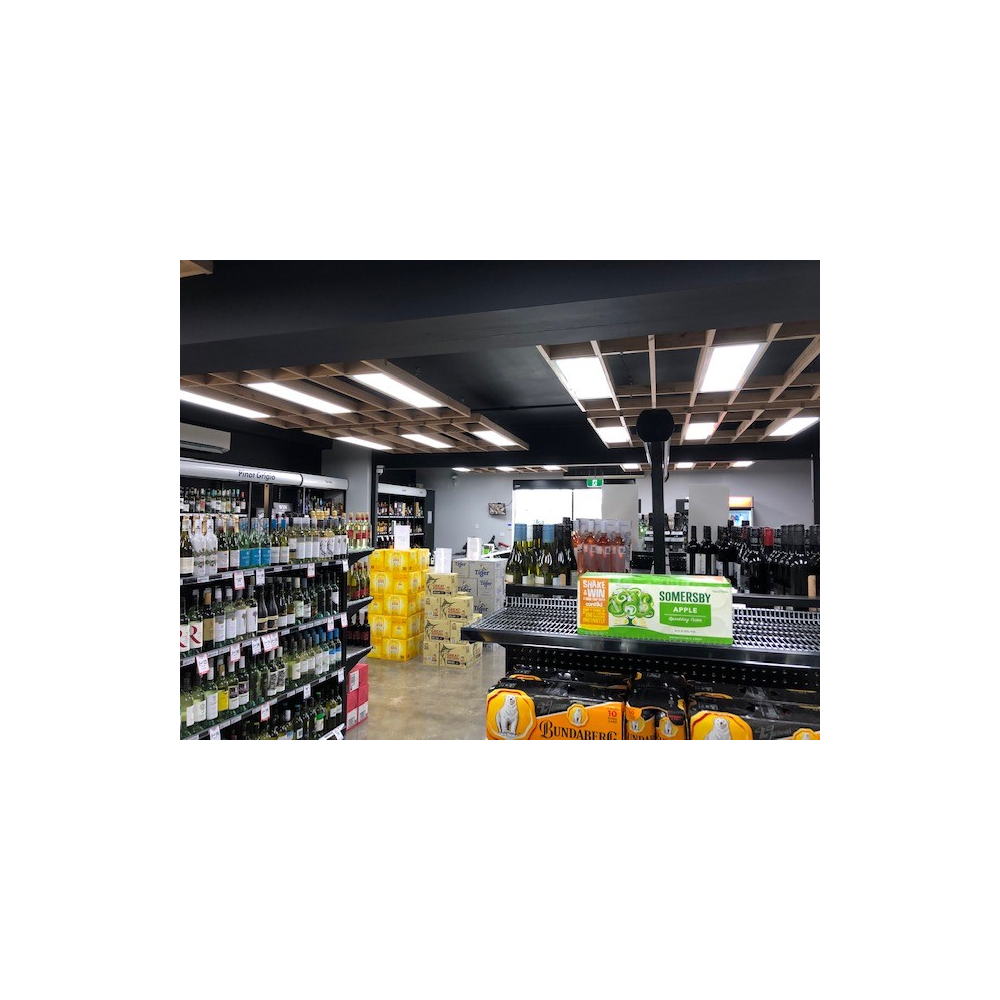

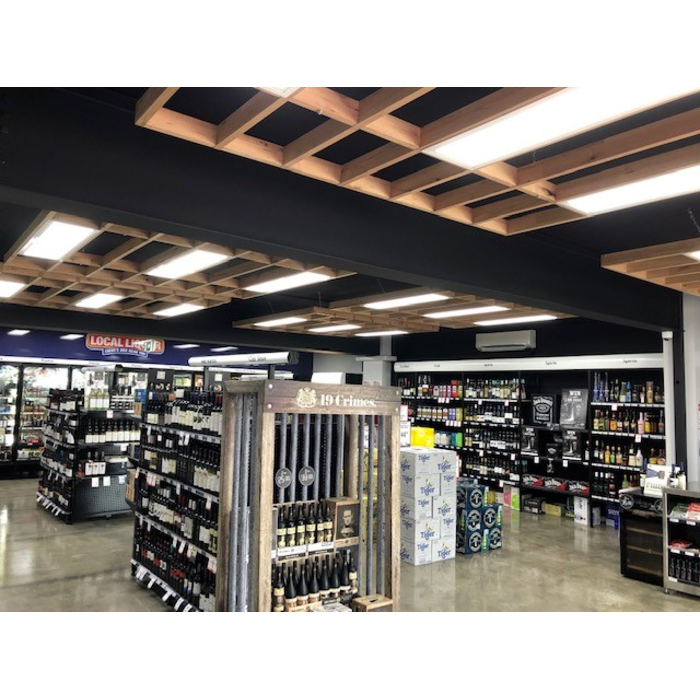

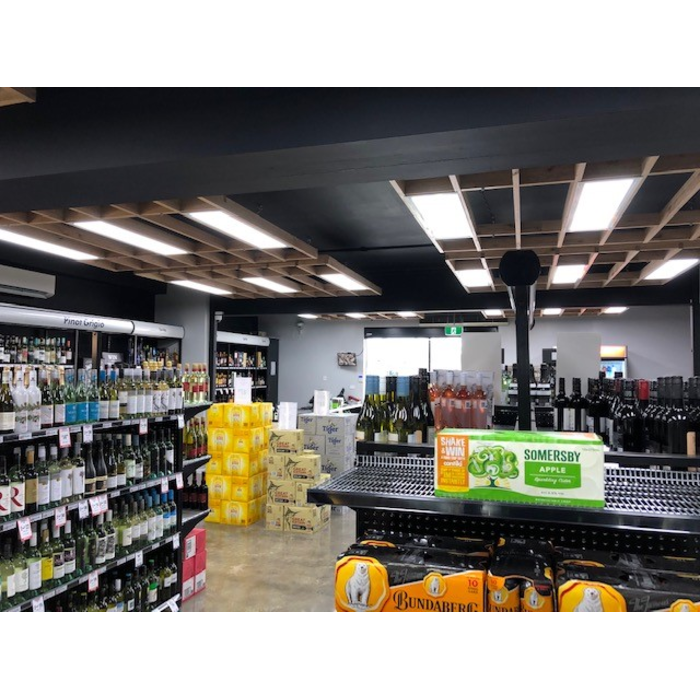

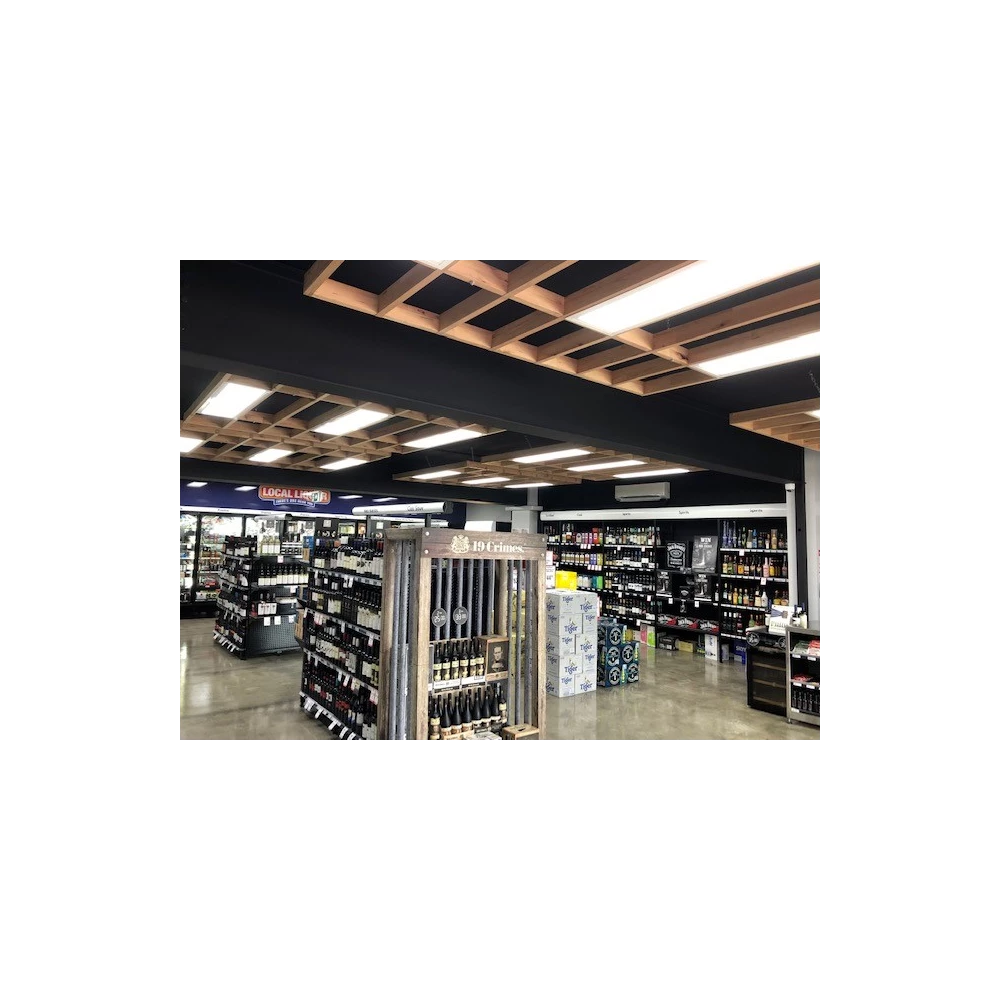

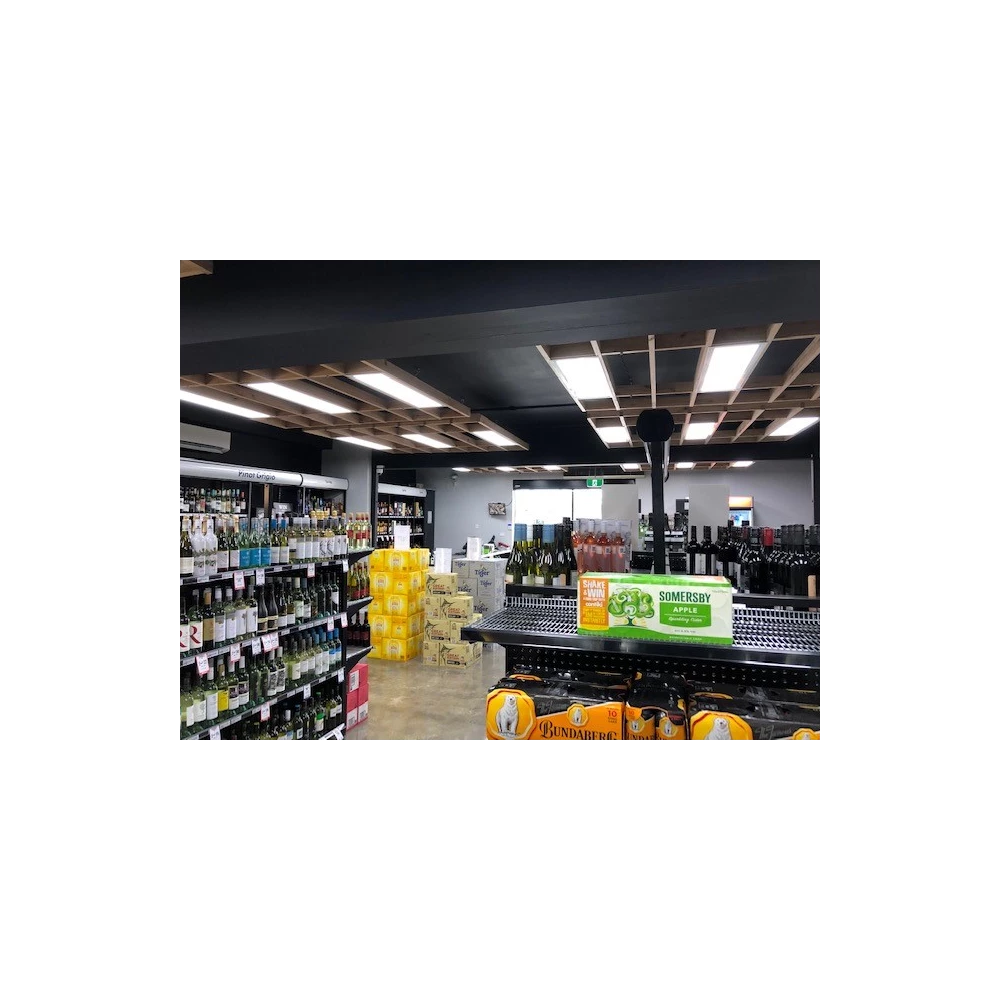

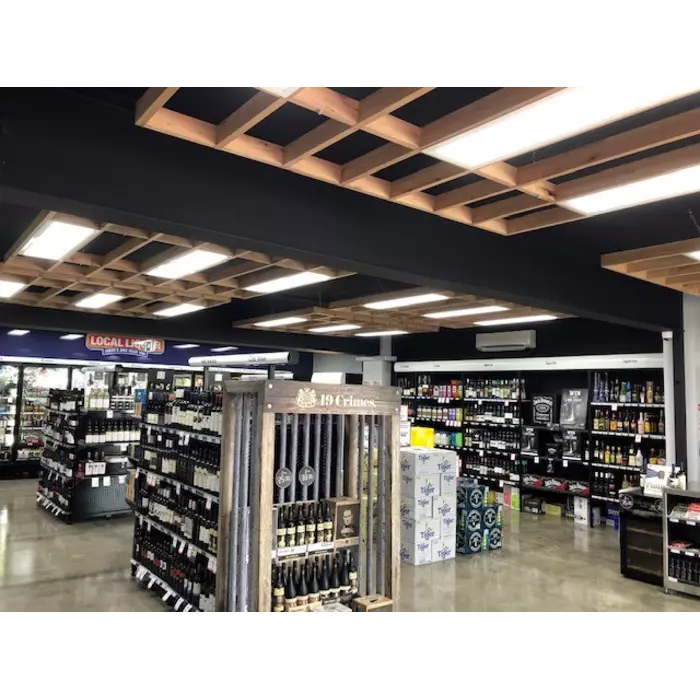

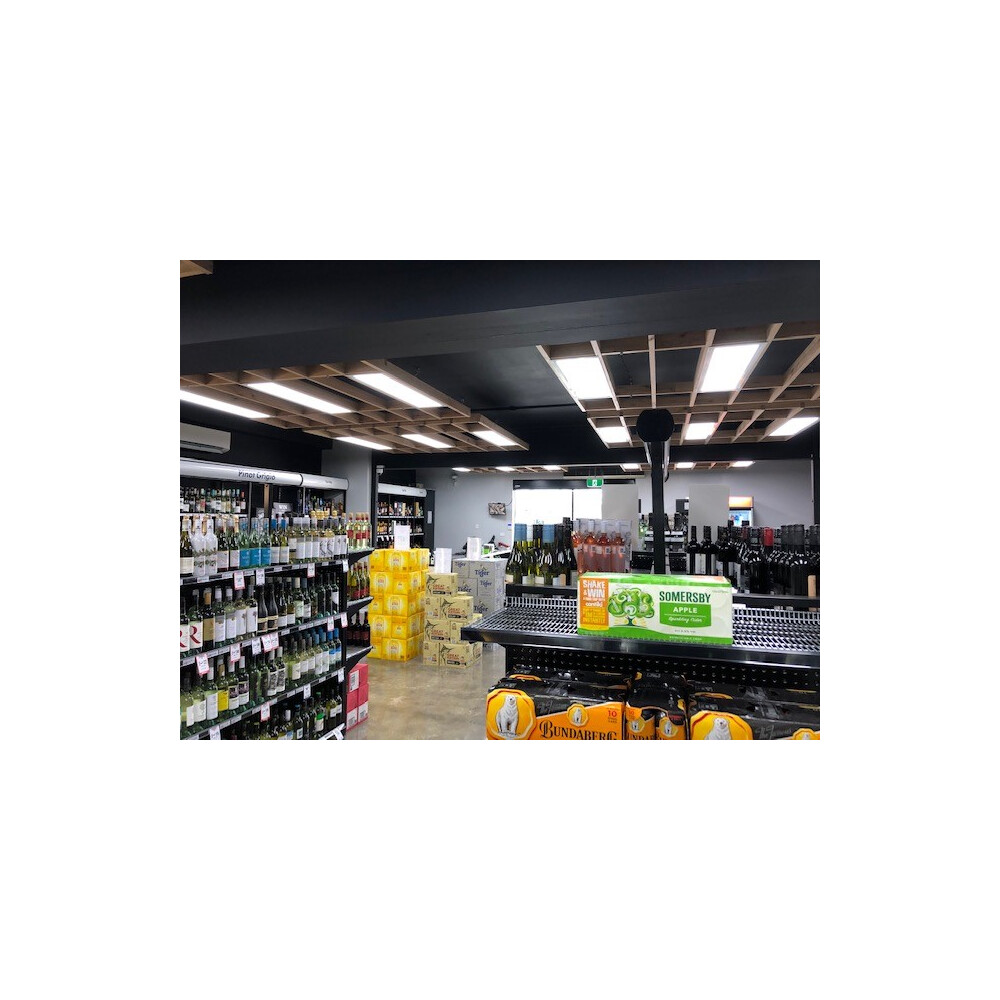

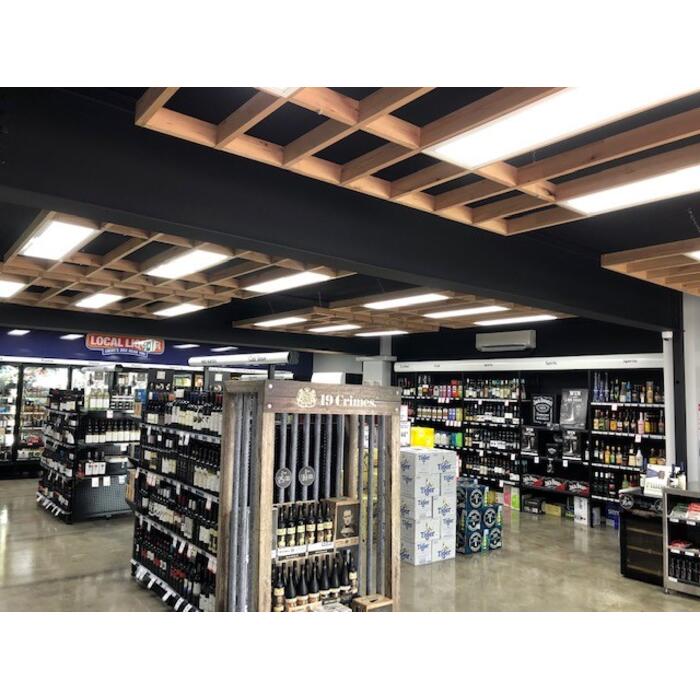

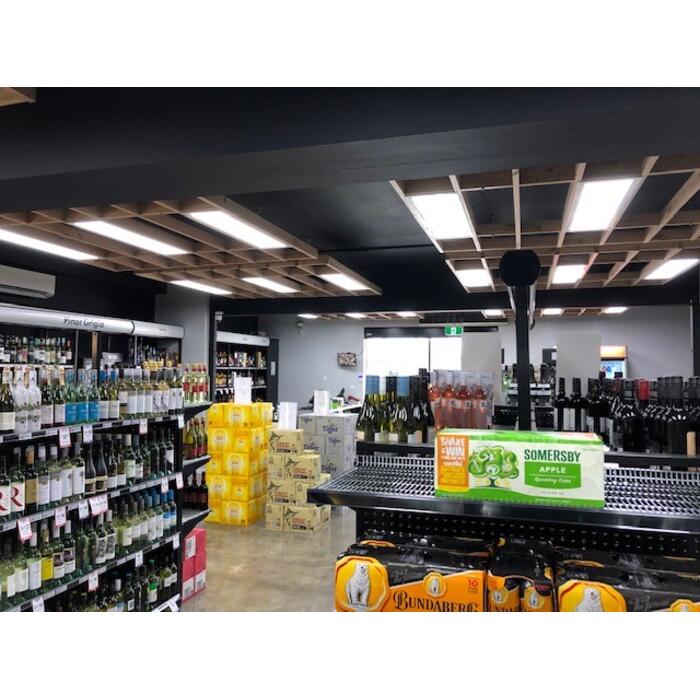

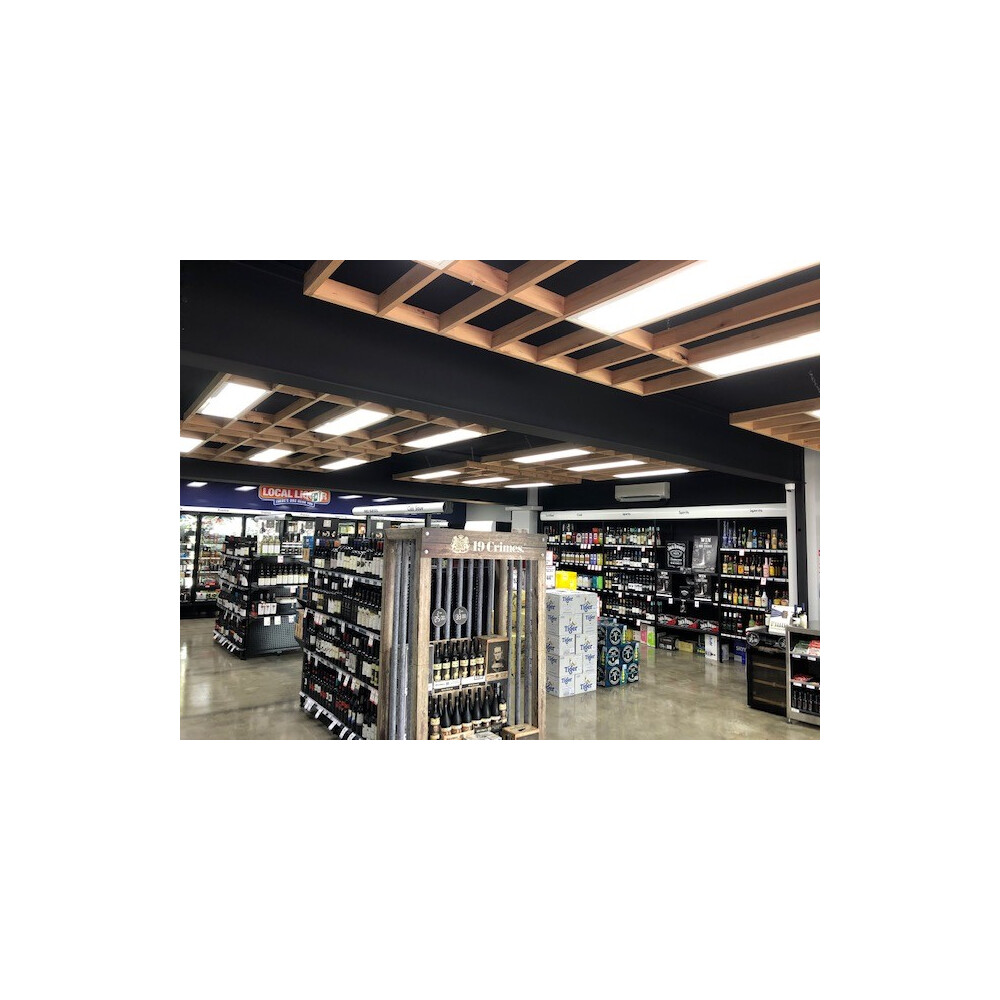

 Designed for commercial and office space lighting tasks.

Design Specifications

  • Extruded aluminium profile with high efficiency opal diffuser suitable for a range of installation types.

  • Quality white powder coated finish

  • High efficiency SMD LED chips, CRI > 80

  • Remote constant current non-dimmable LED driver, complete with flex and plug

  • Easy selectable colour temperature with an inbuilt DIP switch, 3000, 4000, 5700K for TC models

  • Emergency models compliant to AS/NZS2293 with D50 spacing classification available. Warranty for EM models 2 years, battery 1 year.

Performance

Dimmable Driver - OPTIONAL

  • Dimensions
  • Design Options
    Dimmer Trailing Edge YES
    Dimmer 1-10V YES
    Dimmer DSI YES
    Dimmer DALI YES

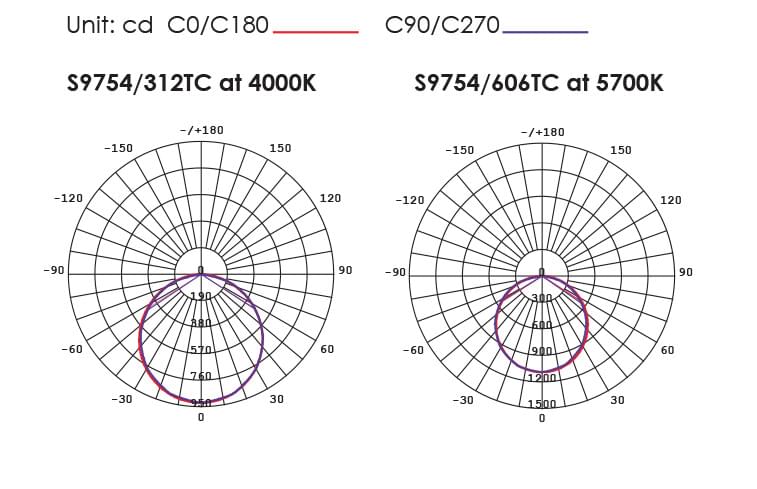

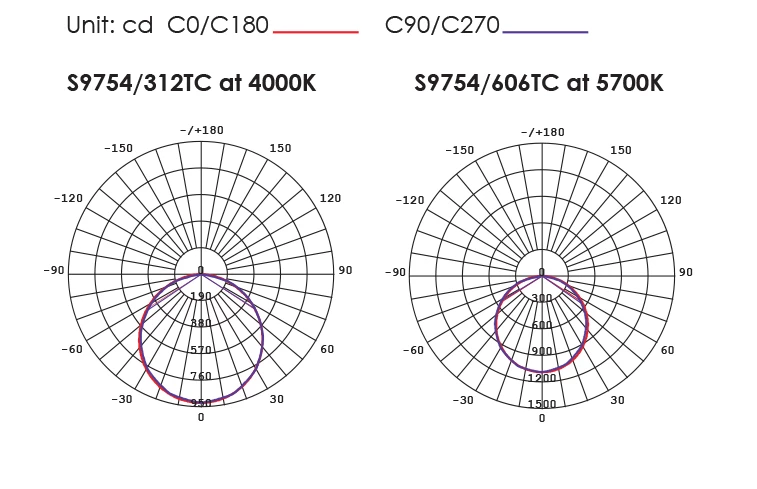

  • Photometric Data
  • Technical Specifications
    Model No. Description Input Power Lumens CCT Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
    Model No.S9754/312 CW DescriptionLED PANEL 30W 295 X 1195 X 10mm CW WH Input240 Power30 Lumens3100 CCT4000 Add to Enquiry Add Remove Remove
    Model No.S9754/312 DL DescriptionLED PANEL 30W 295 X 1195 X 10mm DL WH Input240 Power30 Lumens3200 CCT6000 Add to Enquiry Add Remove Remove
    Model No.S9754/306TC DescriptionLED PANEL 18W 295 X 595 X 10mm 3/4/6K Input240 Power18 Lumens1800/1900/1900 CCT3000/4000/5700 Add to Enquiry Add Remove Remove
    Model No.S9754/606TC DescriptionLED PANEL 30W 595 X 595 X 10mm 3/4/6K Input240 Power30 Lumens3000/3400/3300 CCT3000/4000/5700 Add to Enquiry Add Remove Remove
    Model No.S9754/312TC DescriptionLED PANEL 30W 295 X 1195 X 10mm 3/4/6K Input240 Power30 Lumens2900/3200/3100 CCT3000/4000/5700 Add to Enquiry Add Remove Remove
    Model No.S9754/612TC DescriptionLED PANEL 48W 595 X 1195 X 11mm 3/4/6K Input240 Power48 Lumens5000/5200/5200 CCT3000/4000/5700 Add to Enquiry Add Remove Remove
    Model No.S9754/306EM DescriptionLED PANEL 18W 300mm X 600 X 10mm EMERG. Input240 Power18 Lumens CCT Add to Enquiry Add Remove Remove
    Model No.S9754/606EM DescriptionLED PANEL 30W 600 X 600 X 10 mm EMERG. Input240 Power30 Lumens CCT Add to Enquiry Add Remove Remove
    Model No.S9754/312EM DescriptionLED PANEL 30W 300 X 1200 X 10mm EMERG Input240 Power30 Lumens CCT Add to Enquiry Add Remove Remove
    Model No.S9754/612EM DescriptionLED PANEL 48W 600 X 1200 X 10mm EMERG Input240 Power48 Lumens CCT Add to Enquiry Add Remove Remove

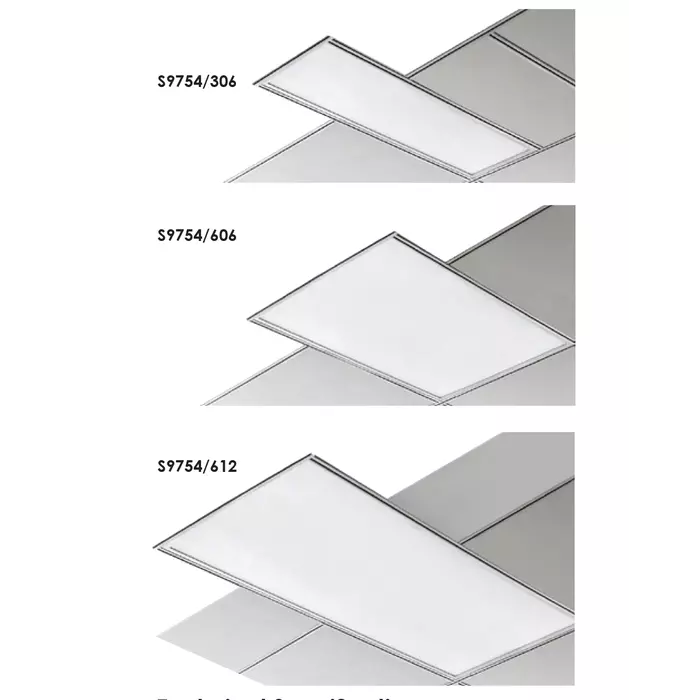

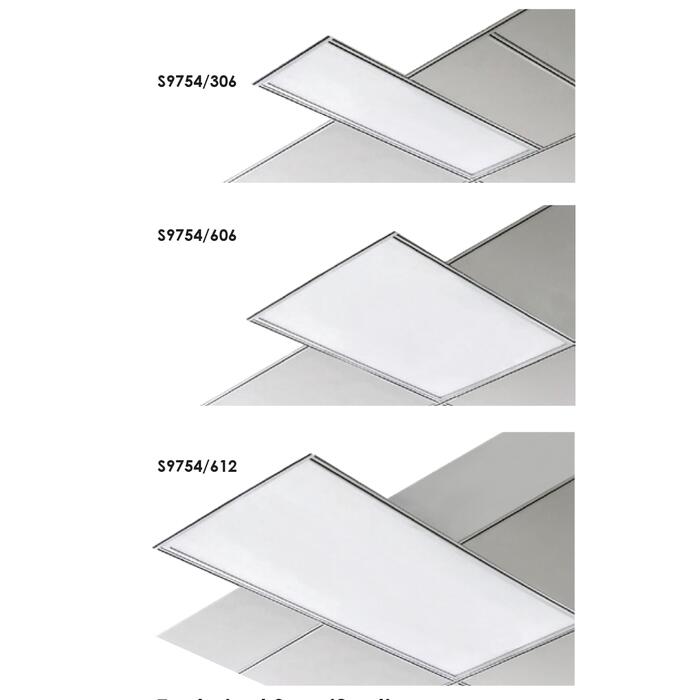

    INSTALLATION TYPES Standard metric T-Bar ceiling recessed installation Air Slot models to suit –/306, –/312 panel sizes Plaster ceiling recessed installation (S9704 Plaster ceiling frame required) Clean Room models to suit –/606, –/312 panel sizes Surface mounted installation (S306FM, S312FM, S606FM or S612FM surface mounted frame required) Suspended installation (SSI1512 & S9714SP6 or SSY1512 & S9714SP6 Suspension Kits required) Dimming options - Trailing edge (excluding S9754/612) , 1-10V analogue (excluding S9754/612) emergency Compliant to AS/NZS2293 Emergency classification: D40 LED charge status indicator Test switch Guaranteed 90 minutes emergency operation Intelligent automatic recharging function 16 hours charge time Deep discharge protection SELV compliant Battery type: 1500mAh @ 6.4V

Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish.
