• LED STRIP LIGHTS

FLEXI 24V SINGLE COLOUR IP20 FL2406/R05-6W/M

Run length 5 metre, 24V narrow single colour LED Strip, IP20

Application

A creative solution for residential and commercial interior spaces

Design Specifications

  • High efficiency SMD LED chips with 3M self-adhesive tape.

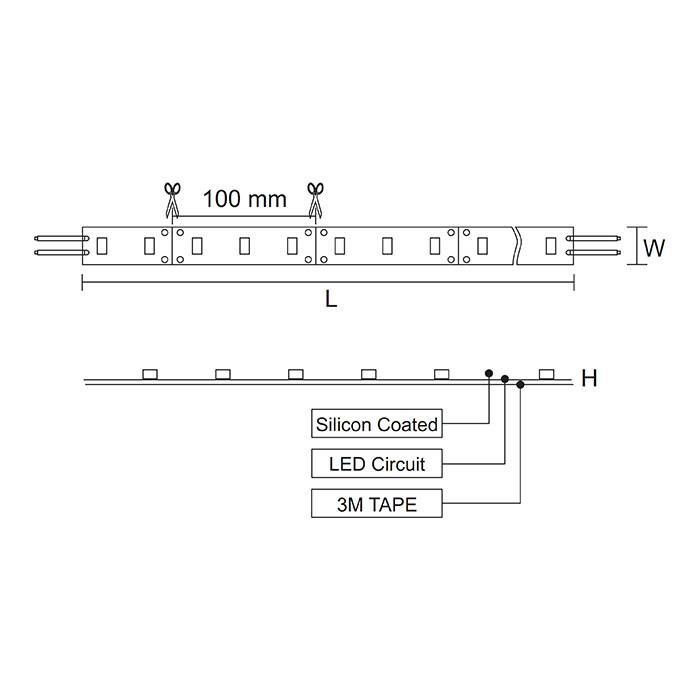

  • Maximum run length 5m, cuttable every 100 mm at
    scissors symbol ✂

  • Heat sink required for system performance and 24V constant voltage LED driver required.

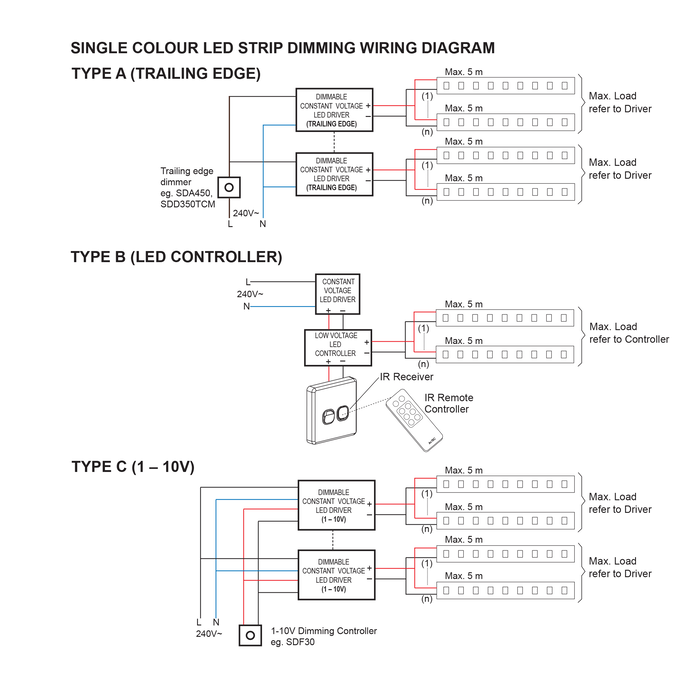

  • Dimming options: (quick link)
    Type A - Trailing edge dimming,
    Type B - LED strip controller LT8915DIM/BT
    with LT8914DIM/RP if required,
    Type C - Analogue 1-10V
    Type D - DALI 2 control

  • LED channel options refer this section

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - refer dimming options
  • WARM WHITE3000K
  • NEUTRAL DAYLIGHT5000K
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Watts per metre Beam Angle CRI Lumens per metre LEDs Per Metre Cutting Interval CCT Body Colour Dim

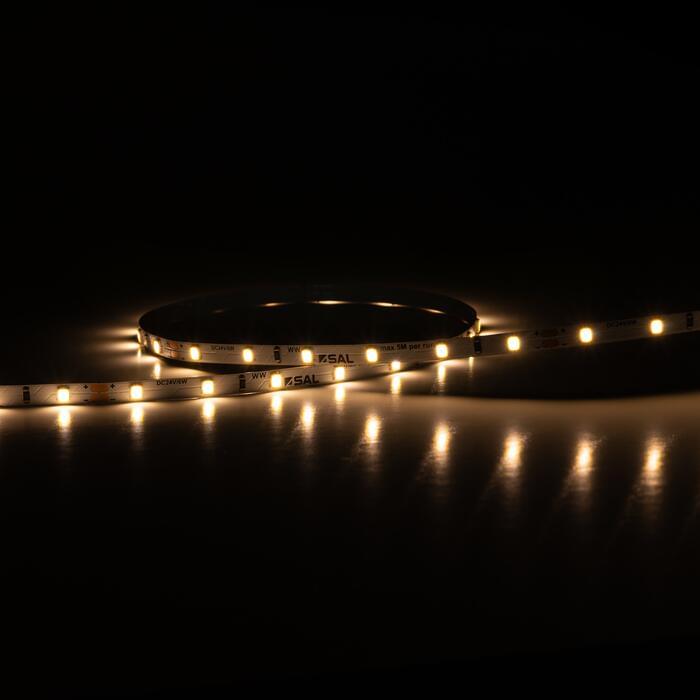

      		Model No. FL2406WW/R05 Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 6 Beam Angle 115 CRI 80 Lumens per metre 460 LEDs Per Metre 60 Cutting Interval 100 CCT 3000 Body Colour CLEAR Dim 5(W) x 1.4(H)

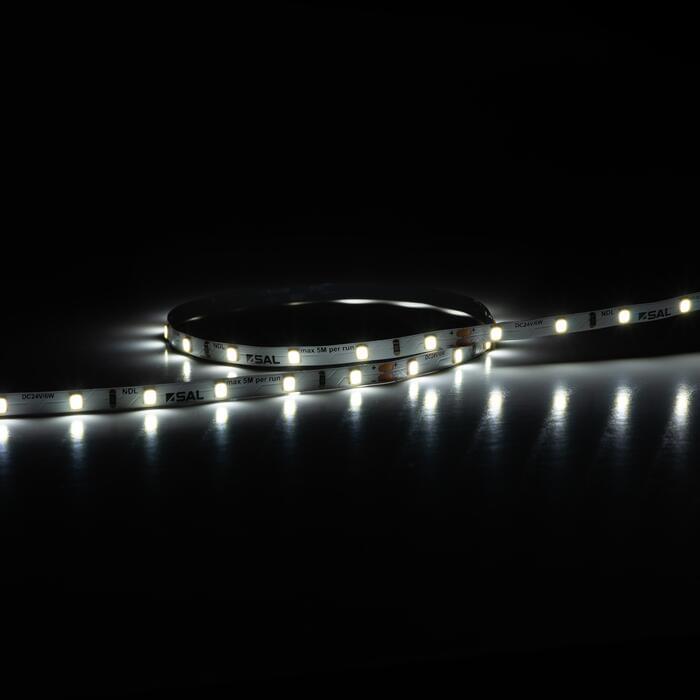

      		Model No. FL2406NDL/R05 Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 6 Beam Angle 115 CRI 80 Lumens per metre 460 LEDs Per Metre 60 Cutting Interval 100 CCT 5000 Body Colour CLEAR Dim 5(W) x 1.4(H)

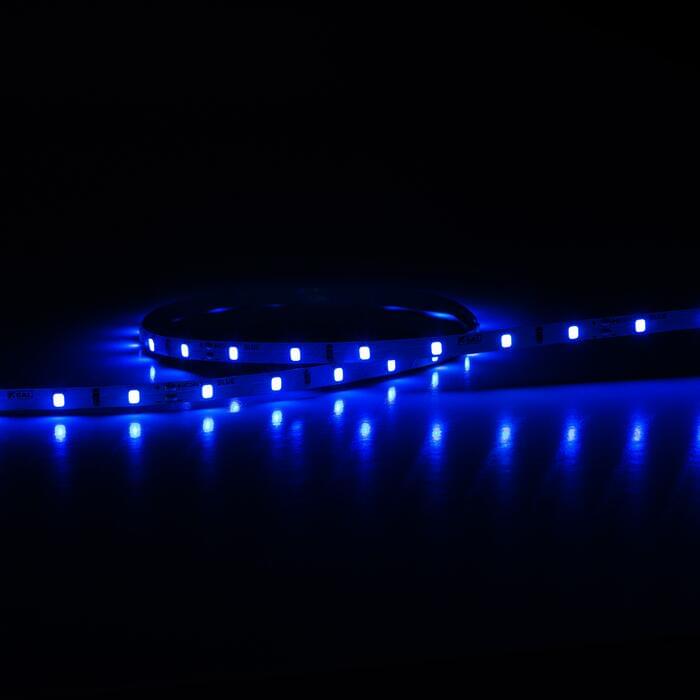

      		Model No. FL2406BU/R05 Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 6 Beam Angle 115 Lumens per metre 85 LEDs Per Metre 60 Cutting Interval 100 Body Colour BLUE Dim 5(W) x 1.4(H)
      		Model No. FL2406NDL/R05/30MROLL Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 6 Beam Angle 115 CRI 80 Lumens per metre 460 LEDs Per Metre 60 Cutting Interval 100 CCT 5000 Body Colour CLEAR Dim 30000(L) x 5(W) x 1.4(H)
