• STRIP LIGHTS

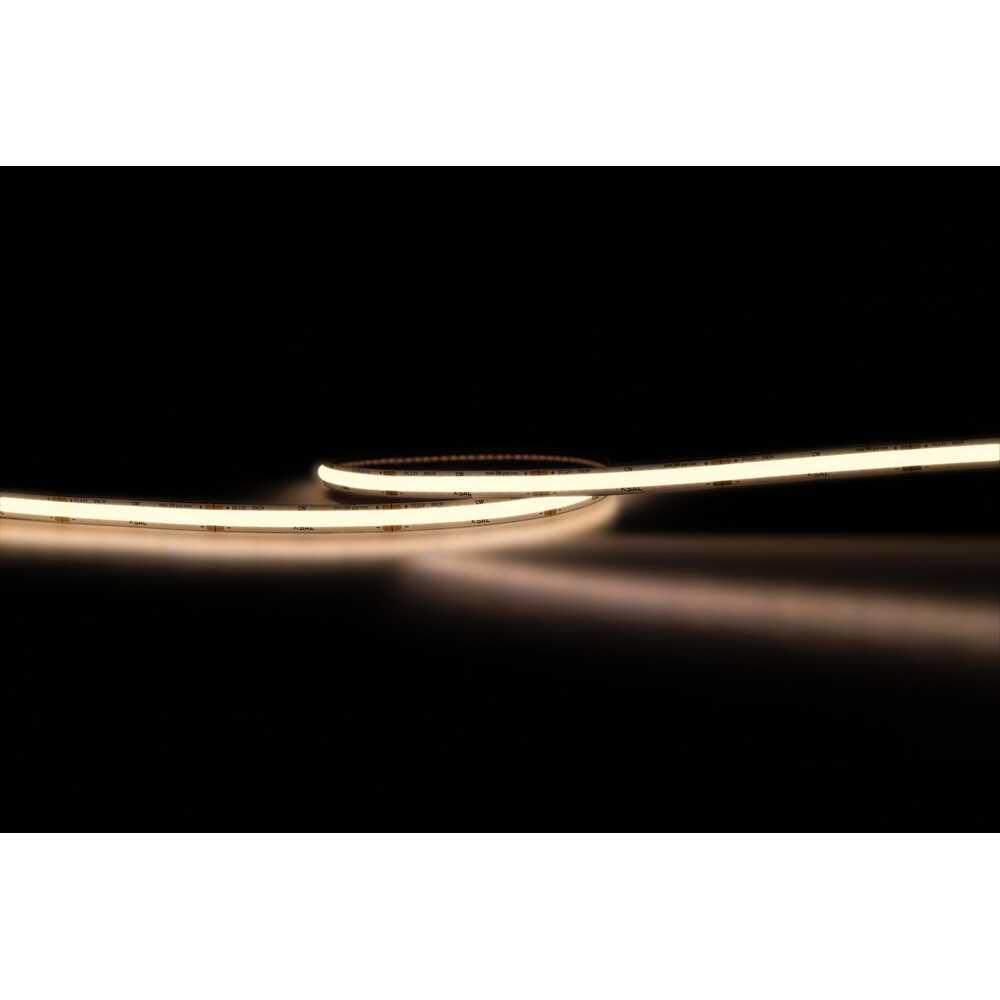

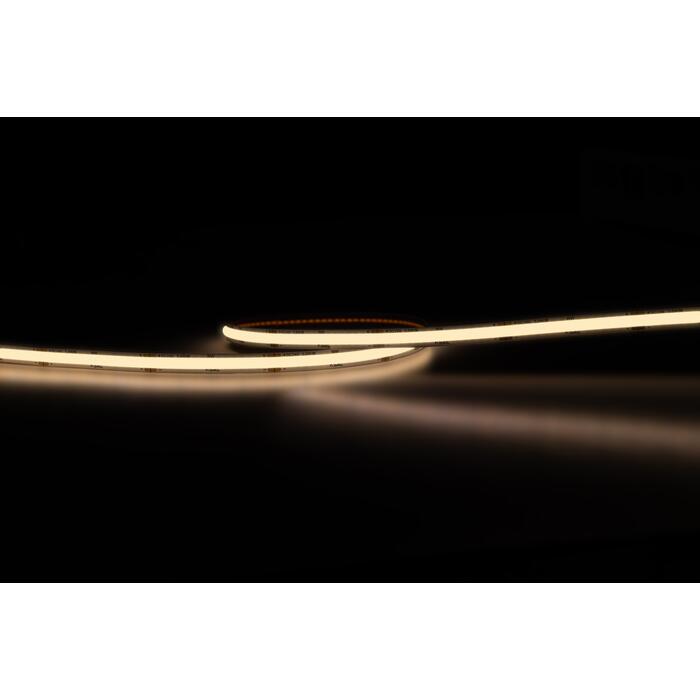

FLEXI STREAMLINE 12V SINGLE COLOUR WHITE 50M ROLL FLB1208/S50M - 8W/M

Versatile, CRI>90, COB LED single colour white, 50M roll, maximum run length 5M, IP44, strip width 8mm.

Application

Ideal for residential or commercial features

Design Specifications

  • 50 metre roll with adhesive tape, 5 metre run length, cuttable every 36mm

  • Beam distribution 140°, choice of 3000/4000/6000K

  • Streamline COB LED chip technology, providing a smooth lighting profile

  • Dimming options: (quick link)
    Type A - Trailing edge dimming,
    Type B - LED strip controller LT8915DIM/BT
    with LT8914DIM/RP if required,
    Type C - Analogue 1-10V
    Type D - DALI 2 control

  • Heat sink required for system performance, LED channel options refer this section

  • 12V constant voltage driver required, refer driver options

Performance

  • Dimmable - YES
  • Dimmer Type - REFER DIMMING OPTIONS
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Watts per metre Beam Angle CRI Lumens per metre LEDs Per Metre Cutting Interval Colour Temp. Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.FLB1208WW/S Input Voltage12 Watts per metre8 Beam Angle140 CRI90 Lumens per metre500 LEDs Per Metre252 Cutting Interval36 Colour Temp.3000 Body ColourCLEAR Dim1000(L) x 8(W) x 2(H) Add to Enquiry Add Remove Remove
    Model No.FLB1208CW/S Input Voltage12 Watts per metre8 Beam Angle140 CRI90 Lumens per metre530 LEDs Per Metre252 Cutting Interval36 Colour Temp.4000 Body ColourCLEAR Dim1000(L) x 8(W) x 2(H) Add to Enquiry Add Remove Remove
    Model No.FLB1208DL/S Input Voltage12 Watts per metre8 Beam Angle140 CRI90 Lumens per metre560 LEDs Per Metre252 Cutting Interval36 Colour Temp.6000 Body ColourCLEAR Dim1000(L) x 8(W) x 2(H) Add to Enquiry Add Remove Remove

    NOTE: code displayed are per M

(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
