• LED STRIP LIGHTS

FLEXI STREAMLINE 24V SINGLE COLOUR CRI90 FLB2410/HS - 10W/M

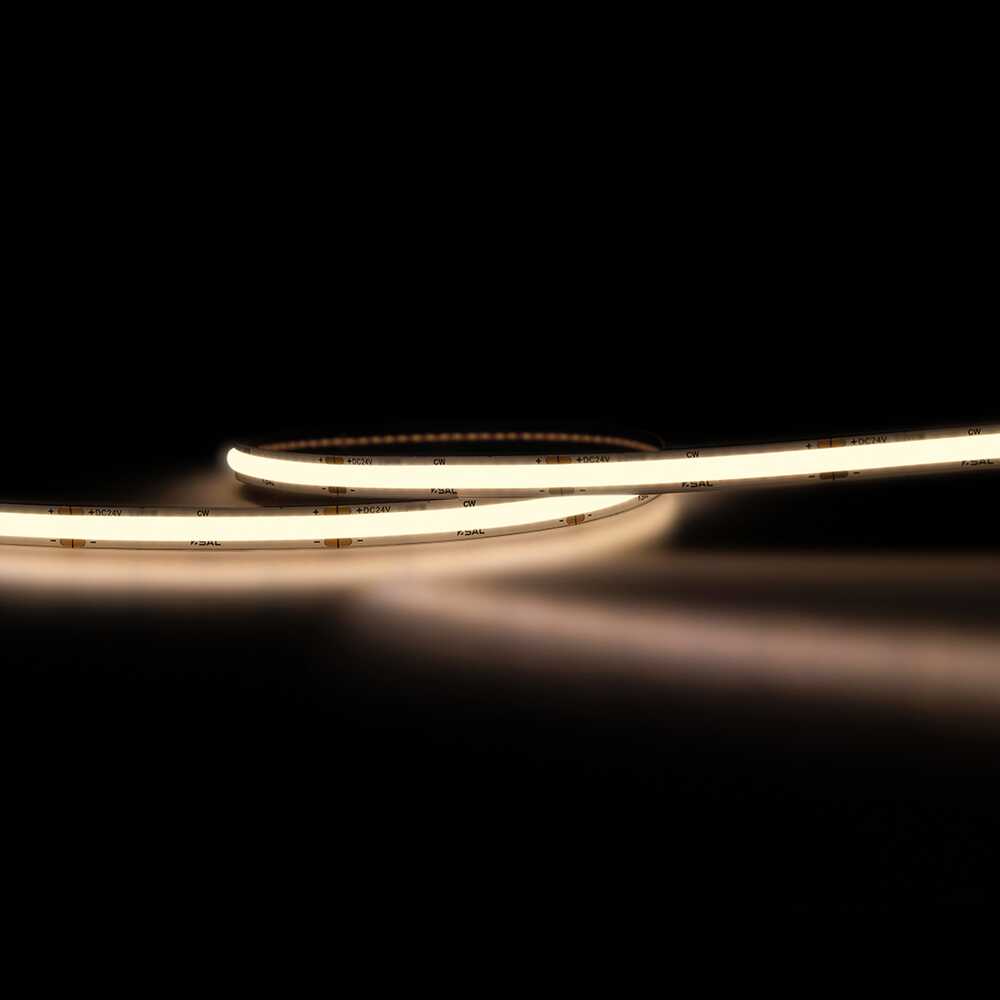

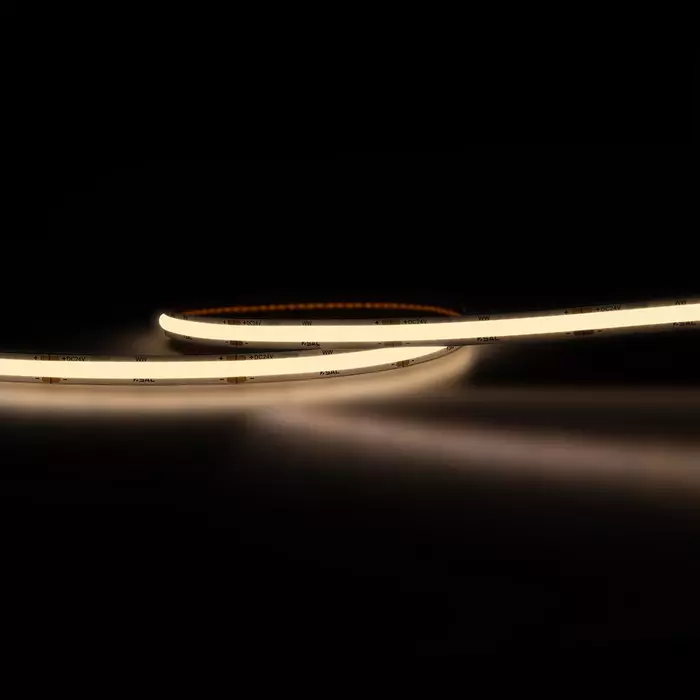

Roll length 20m, maximum run length 5m, LED single colour white COB LED strip, IP65, strip width 8mm.

Application

Interior or Exterior feature lighting, residential or commercial spaces

Design Specifications

  • Streamline COB LED optics technology, providing a smooth lighting profile, single colour white strip, with self adhesive tape.

  • Maximum run per driver 5m, cuttable every 32mm, dimmable only with compatible power supply.

  • Choice of 3000 / 4000 / 6500K, CRI>90, heat sink and LED power supply required

  • Dimming options: (quick link)
    Type A - Trailing edge dimming,
    Type B - LED strip controller LT8915DIM/BT
    with LT8914DIM/RP if required,
    Type C - Analogue 1-10V
    Type D - DALI 2 control

  • Each 20m roll pack includes 1 x accessory kit - FLC08KIT

  • Heat sink required for system performance  LED channel options (quick link)

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - Refer dimming options
  •
  • WARM WHITE3000K
  • COOL WHITE4000K
  • DAYLIGHT6000K
    • Dimensions - Wiring Diagrams
    • Design Options
    • Photometric Data
    • FAQ

      Do you have any more questions? Simply check our FAQs page or contact our customer service team.


    • Downloads
    • Technical Specifications
      Product Model No. Add to Enquiry
      Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      		Input Voltage Watts per metre Beam Angle CRI Lumens per metre LEDs Per Metre Cutting Interval CCT Dim
      		Model No. FLB2410/WW/HS Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 10 Beam Angle 140 CRI 90 Lumens per metre 800 LEDs Per Metre 512 Cutting Interval 32 CCT 3000 Dim 1000(L) x 8(W) x 2(H)
      		Model No. FLB2410/CW/HS Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 10 Beam Angle 140 CRI 90 Lumens per metre 900 LEDs Per Metre 512 Cutting Interval 32 CCT 4000 Dim 1000(L) x 8(W) x 2(H)
      		Model No. FLB2410/DL/HS Add to Enquiry Add Remove Remove Input Voltage 24 Watts per metre 10 Beam Angle 140 CRI 90 Lumens per metre 900 LEDs Per Metre 512 Cutting Interval 32 CCT 6500 Dim 1000(L) x 8(W) x 2(H)
    (1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
