• LED STRIP LIGHTS

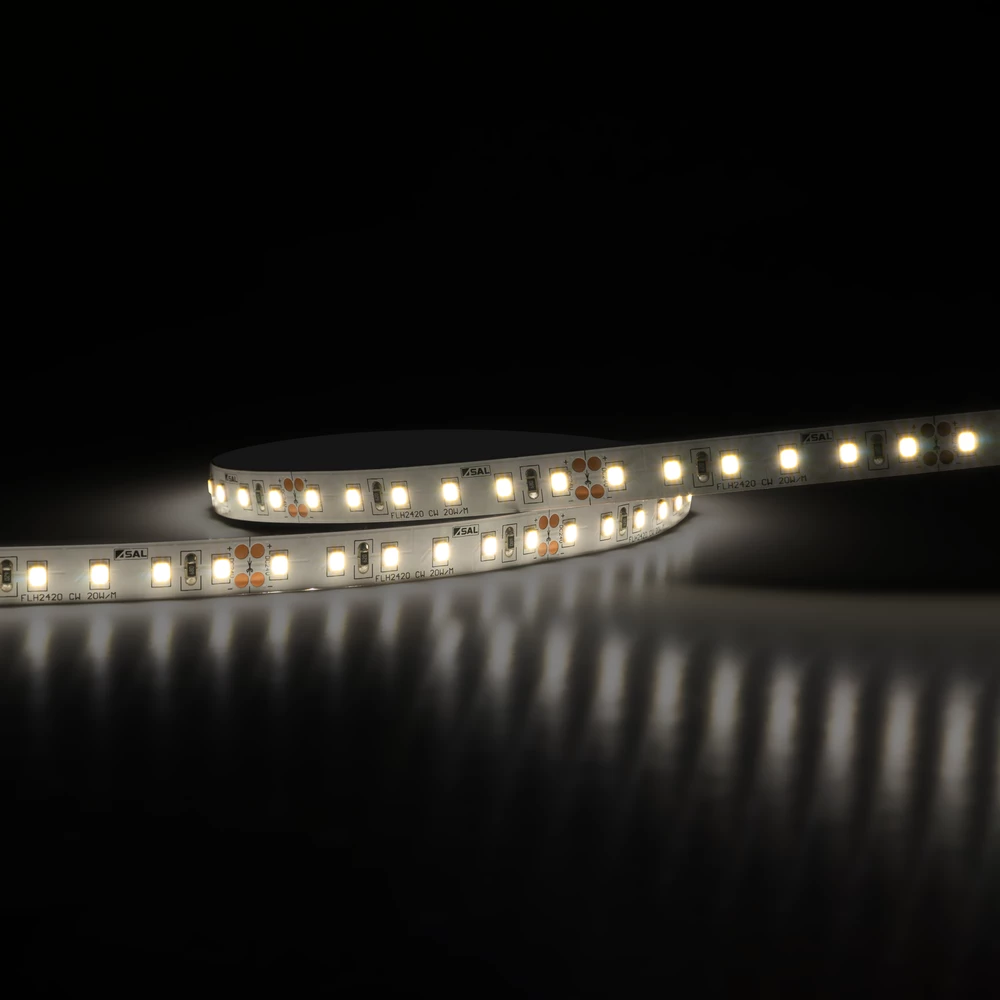

FLEXI 24V WHITE COLOUR FLH2420 - 20W/M

Roll length 5m, maximum run length 5m, 24V, high output LED Strip, IP20, strip width 10mm.

Application

A creative solution for residential and commercial interior spaces

Design Specifications

  • High output greater than 1700lm/m

  • High efficiency LED optics with self adhesive tape

  • Maximum run length 5 m, cuttable every 62.5 mm at the scissors symbol ✂

  • Heat sink required for system performance and 24V constant voltage LED driver required

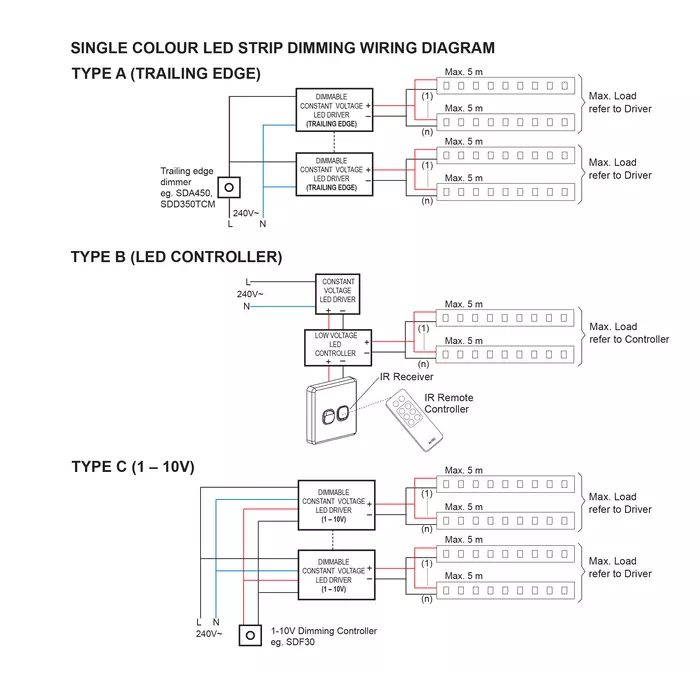

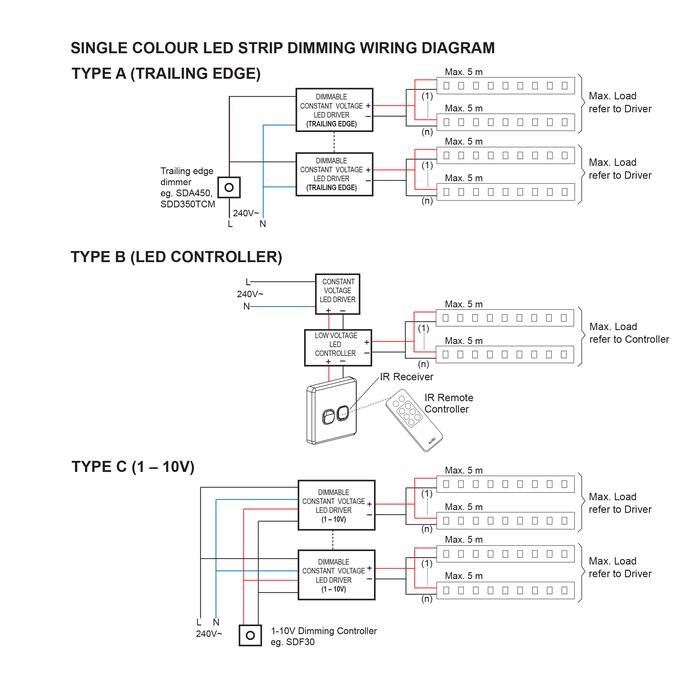

  • Dimming options: (quick link)
    Type A - Trailing edge dimming,
    Type B - LED strip controller LT8915DIM/BT
    with LT8914DIM/RP if required,
    Type C - Analogue 1-10V
    Type D - DALI 2 control

  • LED channel options (quick link)

Performance

  • Dimmable - OPTIONAL
  • Dimmer Type - refer dimming options
  • COOL WHITE4000K
  • COOL WHITE4000K
  • DAYLIGHT6000K

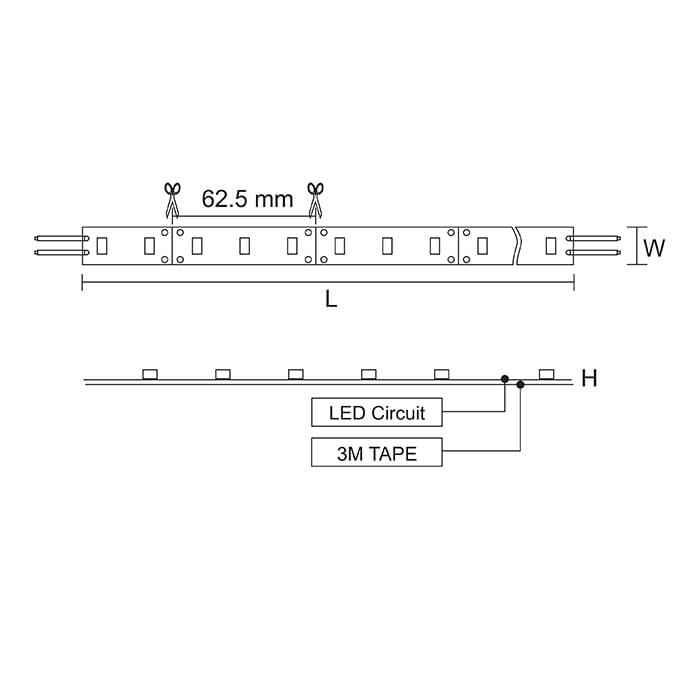

  • Dimensions - Wiring Diagrams
  • Design Options
  • Photometric Data
  • FAQ

    Do you have any more questions? Simply check our FAQs page or contact our customer service team.


  • Downloads
  • Technical Specifications
    Product Model No. Input Voltage Watts per metre Beam Angle CRI Lumens LEDs Per Metre Cutting Interval CCT Body Colour Dim Add to Enquiry
    • Use your collection cart to make an enquiry, send your collection to a friend via email, or easily download multiple datasheets with a single click
      Close
    Model No.FLH2420 WW Input Voltage24 Watts per metre20 Beam Angle115 CRI80 Lumens1700 LEDs Per Metre96 Cutting Interval62.5 CCT3000 Body ColourCLEAR Dim1000(L) x 10(W) x 2(H) Add to Enquiry Add Remove Remove
    Model No.FLH2420 CW Input Voltage24 Watts per metre20 Beam Angle115 CRI80 Lumens1800 LEDs Per Metre96 Cutting Interval62.5 CCT4000 Body ColourCLEAR Dim1000(L) x 10(W) x 2(H) Add to Enquiry Add Remove Remove
    Model No.FLH2420 DL Input Voltage24 Watts per metre20 Beam Angle115 CRI80 Lumens2000 LEDs Per Metre96 Cutting Interval62.5 CCT6000 Body ColourCLEAR Dim1000(L) x 10(W) x 2(H) Add to Enquiry Add Remove Remove
    Model No.FLH2420WW/5M Input Voltage24 Watts per metre20 Beam Angle115 CRI80 Lumens1700 LEDs Per Metre96 Cutting Interval62.5 CCT3000 Body ColourCLEAR Dim5000(L) x 10(W) x 2(H) Add to Enquiry Add Remove Remove
    Model No.FLH2420CW/5M Input Voltage24 Watts per metre20 Beam Angle115 CRI80 Lumens1800 LEDs Per Metre96 Cutting Interval62.5 CCT4000 Body ColourCLEAR Dim5000(L) x 10(W) x 2(H) Add to Enquiry Add Remove Remove
    Model No.FLH2420DL/5M Input Voltage24 Watts per metre20 Beam Angle115 CRI80 Lumens2000 LEDs Per Metre96 Cutting Interval62.5 CCT6000 Body ColourCLEAR Dim5000(L) x 10(W) x 2(H) Add to Enquiry Add Remove Remove
(1) Due to continued product and technology enhancements, data sourced from sal.net.au shall not form part of any contract and or technical performance guarantee unless expressly confirmed in writing by SAL at the time of order. (2) Products are sold in accordance with SAL Terms and Conditions of sale and all images shown are for illustration purposes only and may vary from the actual colour or finish. (3) Unless specifically stated, all Interior product IP ratings nominated are from "below the ceiling". IC ratings (if any) apply to the downlight only. (4) VEET, IPART & REES approval validation must only be sourced via the dedicated web listed catalogues; icons shown (if any) on the relevant product page are a guide only and do not guarantee approvals for individual models. (5) With the exception of DIY lamps, all other products must be installed by a qualified electrical installer.
